Commercial
Insulated
Pin Terminals

Filter
1102-67-04415
1102-67-04415
1102-67-04415
0.681" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Green YES

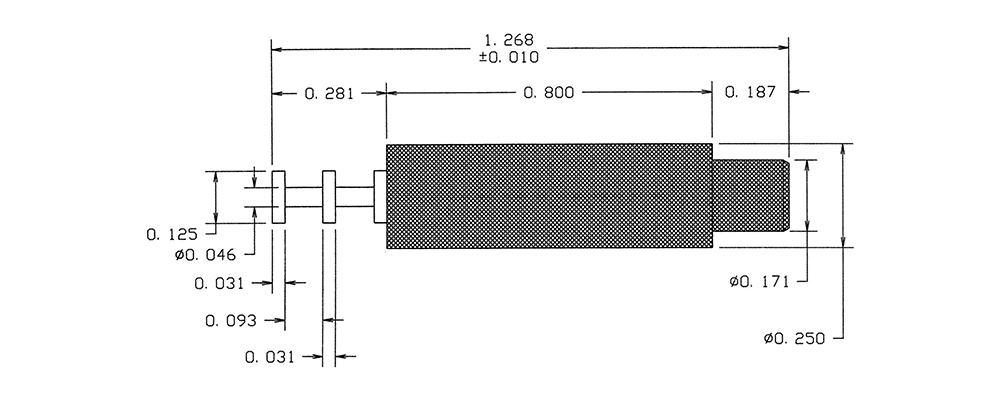

1102-71-08811
1102-71-08811
1102-71-08811
1.268" - - Press Fit 5/32 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1102-77-0117
1102-77-0117
1102-77-0117
0.583" - - Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Violet YES

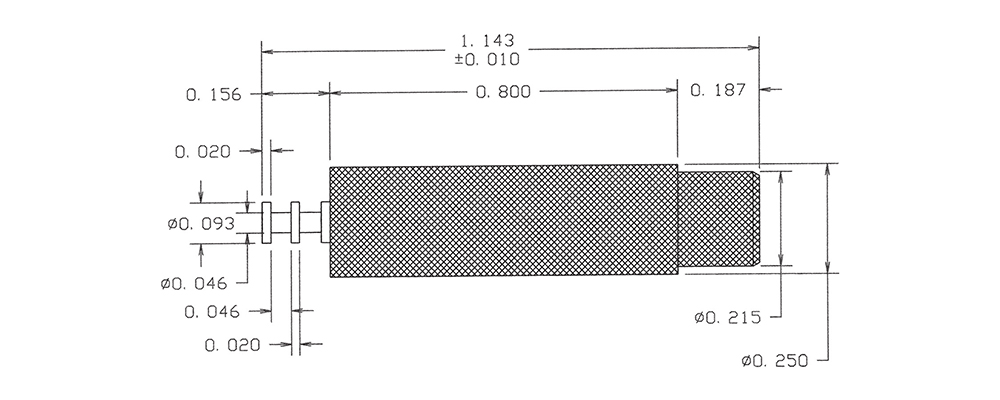

1102-81-0413
1102-81-0413
1102-81-0413
1.143" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE Orange NO
1102-85-04419
1102-85-04419
1102-85-04419
0.968" - - Press Fit Up to 1/4 0.203 Brass Bright Tin - - PTFE White YES

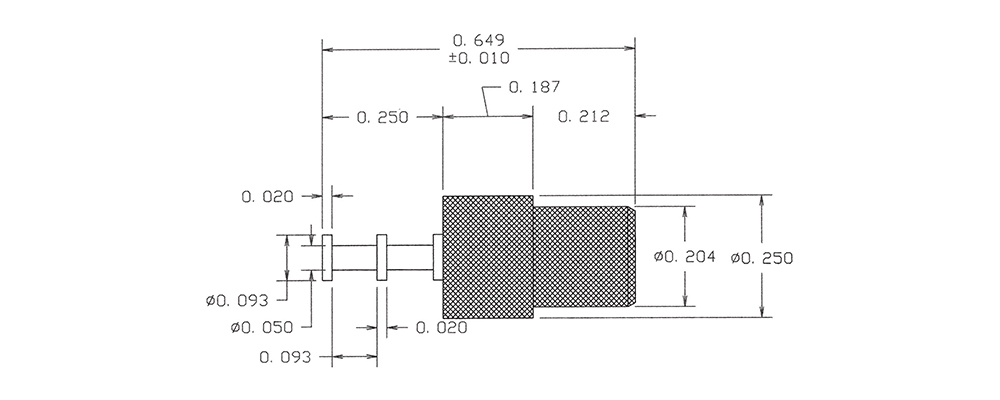

1102-94-08815
1102-94-08815
1102-94-08815
0.649" - - Press Fit Up to 3/16 0.191 Brass Bright Tin-Lead - - PTFE Green NO
1102R-11-0311
1102R-11-0311
1102R-11-0311
0.296" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Brown NO

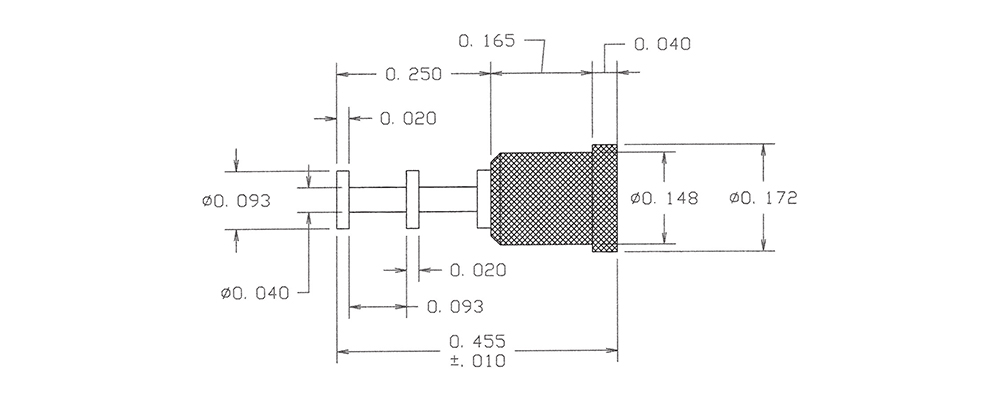

1102R-21-0417
1102R-21-0417
1102R-21-0417
0.455" - - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Violet YES
1102R-28-0513
1102R-28-0513
1102R-28-0513
0.361" - - Press Fit 1/8 0.140 Brass Electro Solder - - PTFE Orange NO
1102R-74-08819
1102R-74-08819
1102R-74-08819
0.375" - - Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE White NO

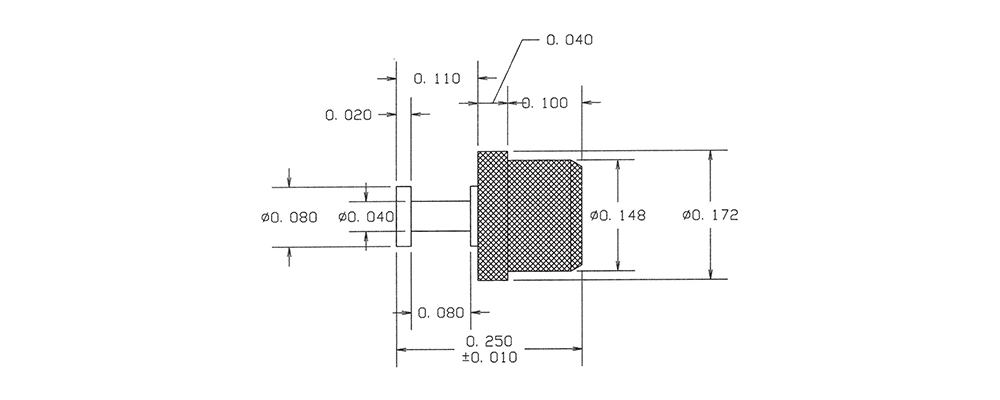

1103-01-0315
1103-01-0315
1103-01-0315
0.250" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES

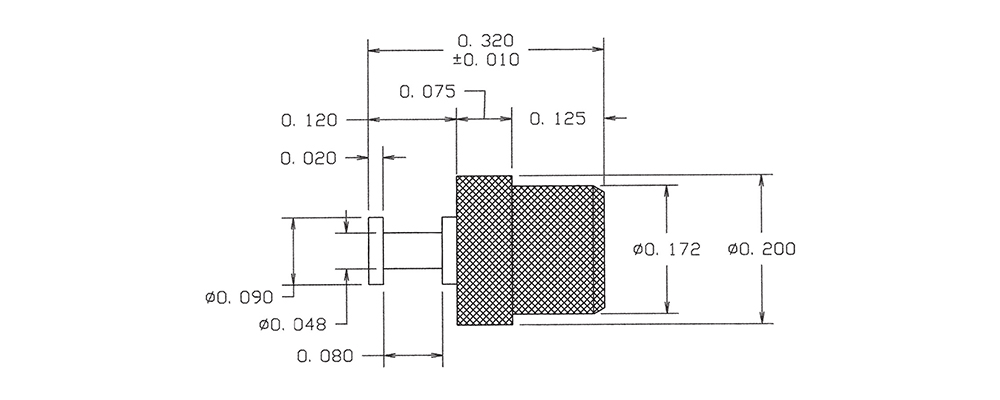

1103-08-04411
1103-08-04411
1103-08-04411
0.320" - - Press Fit 3/32 0.152 Brass Bright Tin - - PTFE Brown NO
1103R-08-0517
1103R-08-0517
1103R-08-0517
0.320" - - Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Violet NO
1104-51-0113
1104-51-0113
1104-51-0113
0.255" - - Press Fit 1/32 0.086 Brass Silver - - PTFE Orange NO

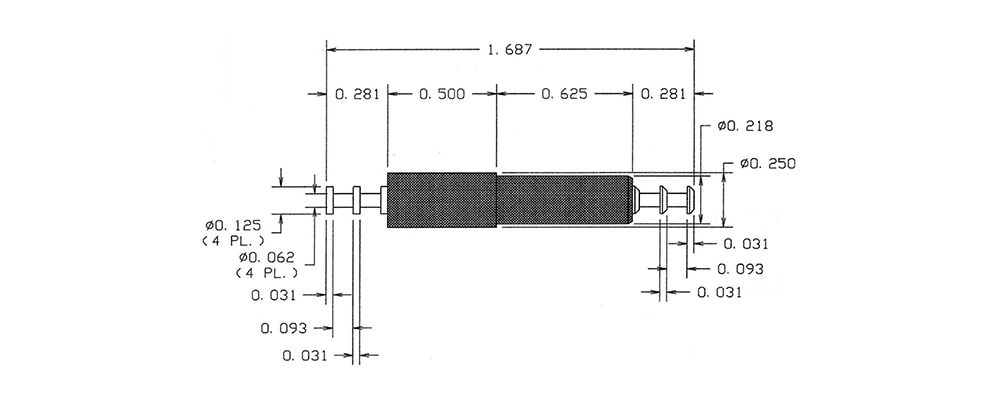

1105-02-0319
1105-02-0319
1105-02-0319
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE White YES

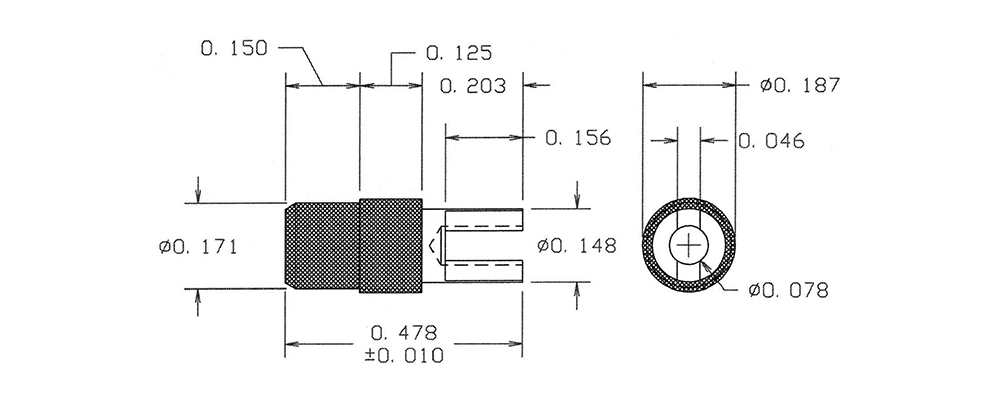

1106-03-04415
1106-03-04415
1106-03-04415
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Green YES

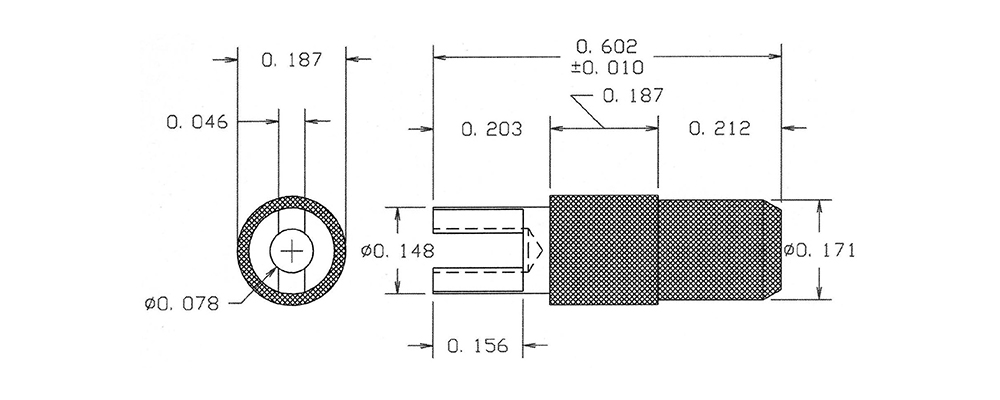

1106-07-08811
1106-07-08811
1106-07-08811
0.602" - - Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Brown NO

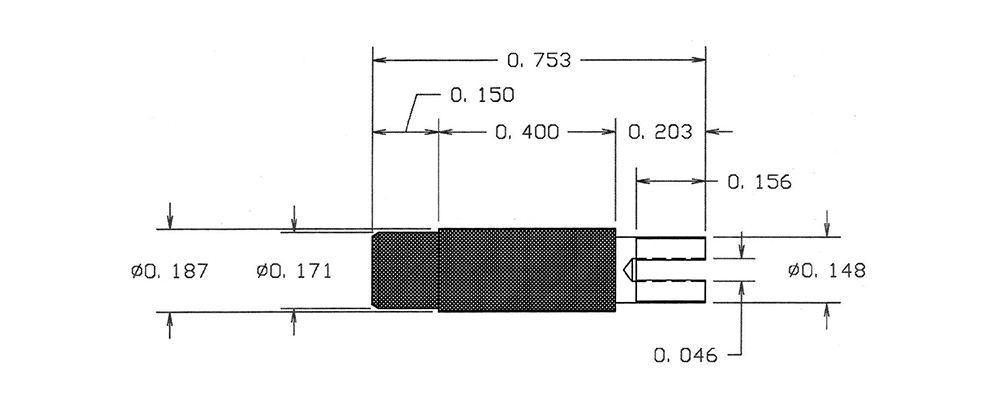

1106-12-0117
1106-12-0117
1106-12-0117
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Violet YES

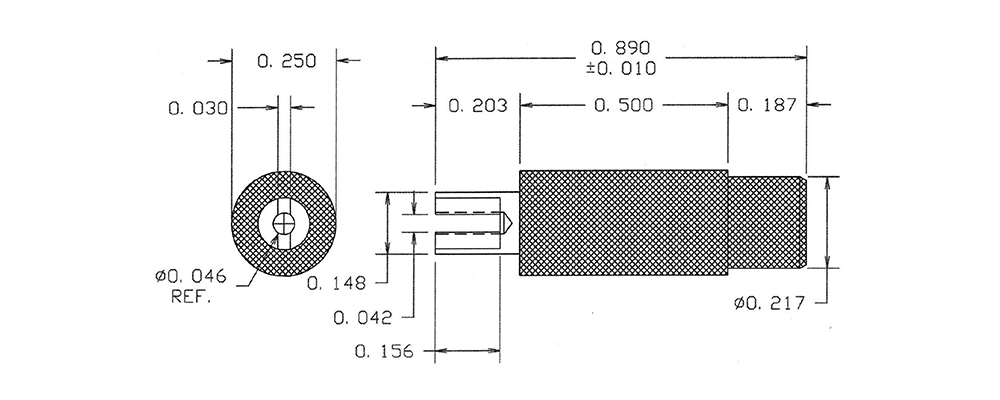

1106-16-0413
1106-16-0413
1106-16-0413
0.890" - - Press Fit 5/32 0.205 Brass Electro-Tin - - PTFE Orange NO
1106-22-04419
1106-22-04419
1106-22-04419
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE White YES
