Commercial
Insulated
Pin Terminals

Filter
1121-02-08815
1121-02-08815
1121-02-08815
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Green NO

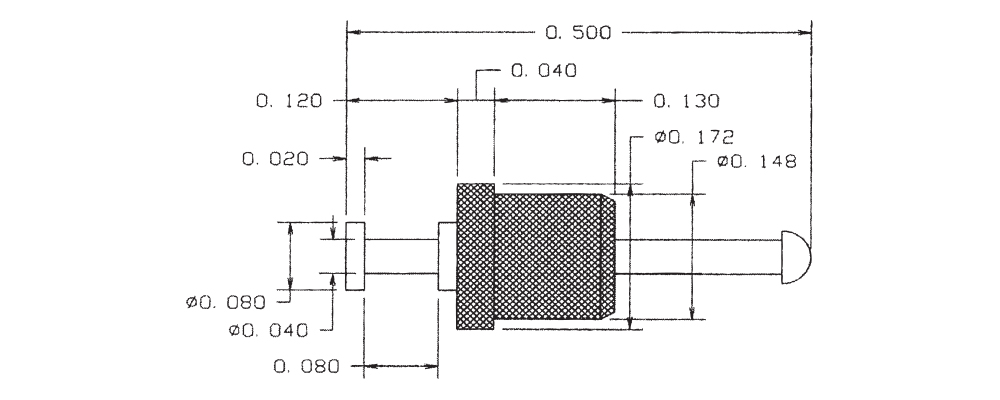

1121-07-0311
1121-07-0311
1121-07-0311
0.500" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Gold - - PTFE Brown NO

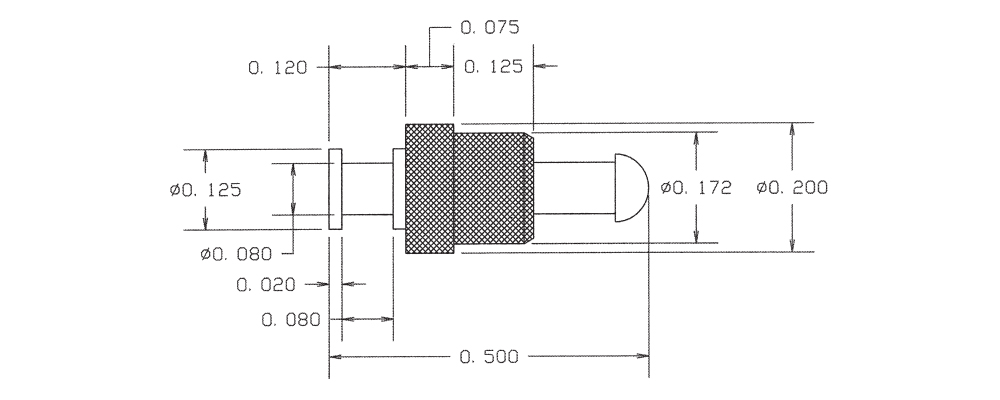

1121-12-0417
1121-12-0417
1121-12-0417
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Violet YES
1121-16-0513
1121-16-0513
1121-16-0513
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Orange NO
1121-20-08819
1121-20-08819
1121-20-08819
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Bright Tin-Lead - - PTFE White NO

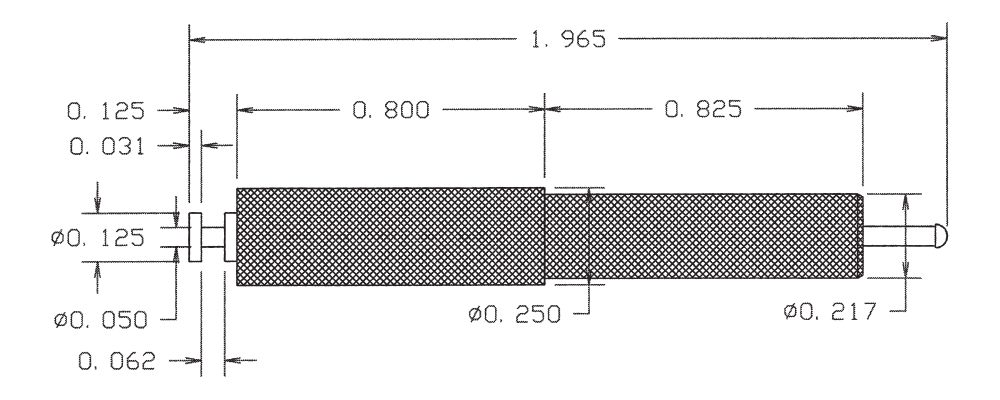

1121-26-0315
1121-26-0315
1121-26-0315
1.965" 0.050 Turret/Tip Press Fit 49/64 0.205 Brass Gold - - PTFE Green YES

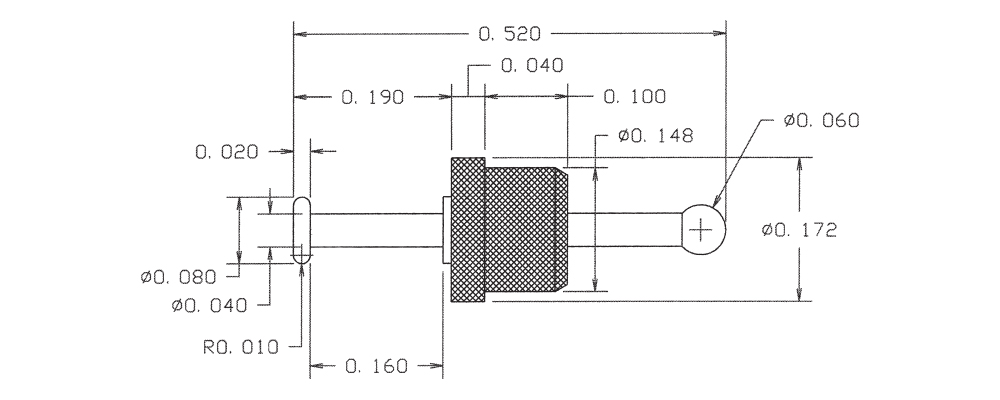

1121-31-04411
1121-31-04411
1121-31-04411
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1121-52-0517
1121-52-0517
1121-52-0517
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Violet NO
1121R-07-0113
1121R-07-0113
1121R-07-0113
0.500" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Silver - - PTFE Orange NO
1122-01-0319
1122-01-0319
1122-01-0319
0.250" - - Press Fit 1/64 0.070 Brass Gold - - PTFE White YES
1123-04-04415
1123-04-04415
1123-04-04415
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Green YES
1123-08-08811
1123-08-08811
1123-08-08811
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1123-73-0117
1123-73-0117
1123-73-0117
0.602" - - Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Violet YES

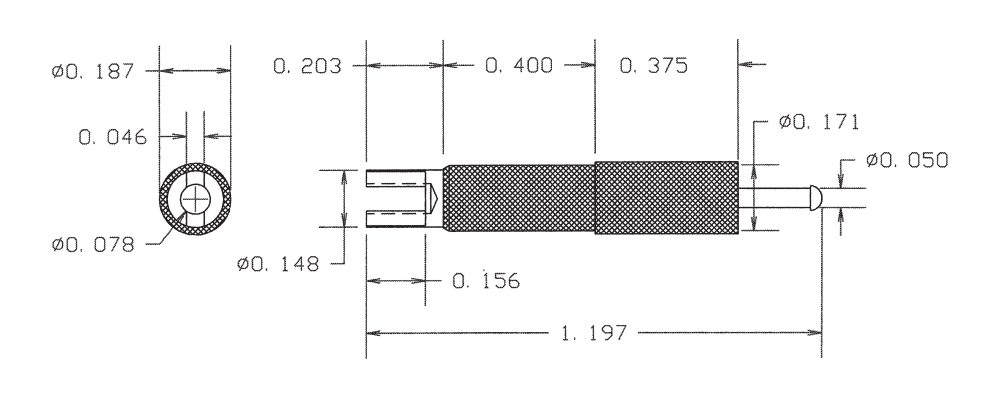

1123R-07-0413
1123R-07-0413
1123R-07-0413
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Electro-Tin - - PTFE Orange NO
1123R-70-04419
1123R-70-04419
1123R-70-04419
0.495" 0.040 Pin/Slotted Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES
1125-35-08815
1125-35-08815
1125-35-08815
0.850" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Green NO

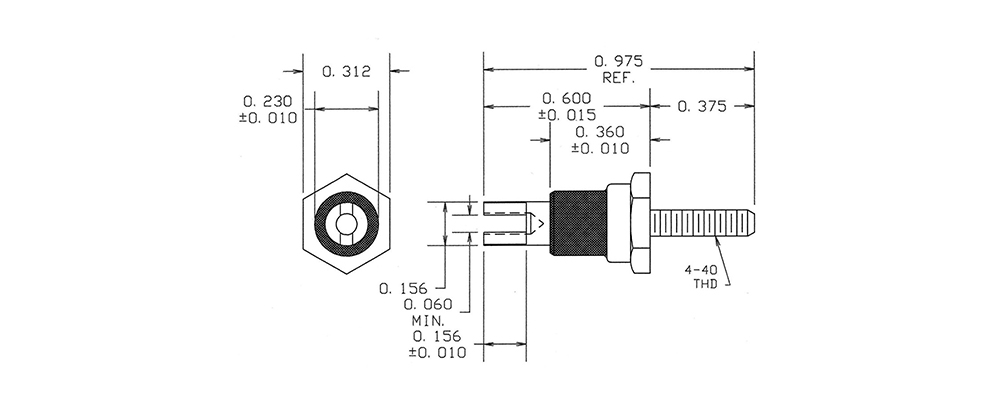

1125-41-0311
1125-41-0311
1125-41-0311
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Gold Electro-Tin Brass PTFE Brown NO
1125-45-0417
1125-45-0417
1125-45-0417
0.890" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Violet YES
1125-49-0513
1125-49-0513
1125-49-0513
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass PTFE Orange NO
1125-53-08819
1125-53-08819
1125-53-08819
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE White NO
