Commercial
Insulated
Pin Terminals

Filter
1102R-28-0512
1102R-28-0512
1102R-28-0512
0.361" - - Press Fit 1/8 0.140 Brass Electro Solder - - PTFE Red NO
1102R-74-08818
1102R-74-08818
1102R-74-08818
0.375" - - Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Gray NO
1103-01-0314
1103-01-0314
1103-01-0314
0.250" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO

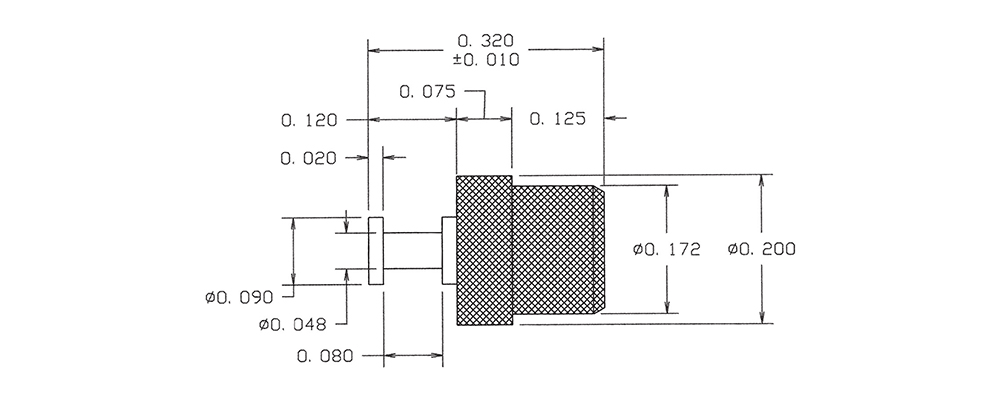

1103-08-04410
1103-08-04410
1103-08-04410
0.320" - - Press Fit 3/32 0.152 Brass Bright Tin - - PTFE Black YES
1103R-08-0516
1103R-08-0516
1103R-08-0516
0.320" - - Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Blue NO

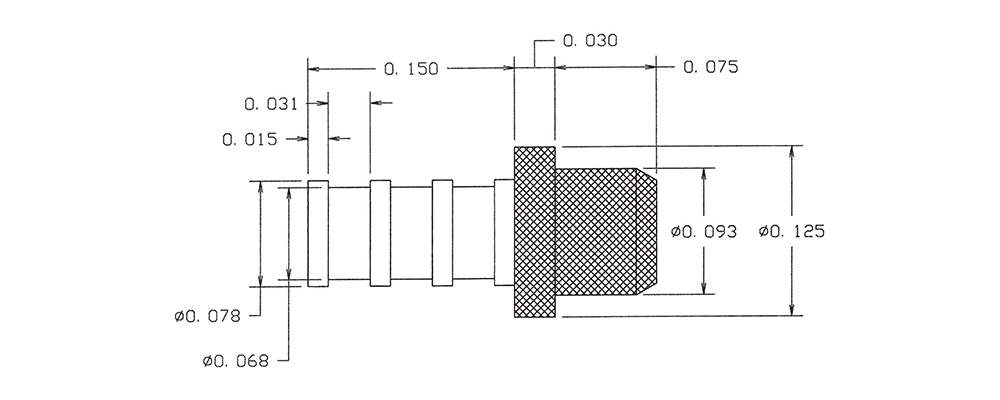

1104-51-0112
1104-51-0112
1104-51-0112
0.255" - - Press Fit 1/32 0.086 Brass Silver - - PTFE Red NO

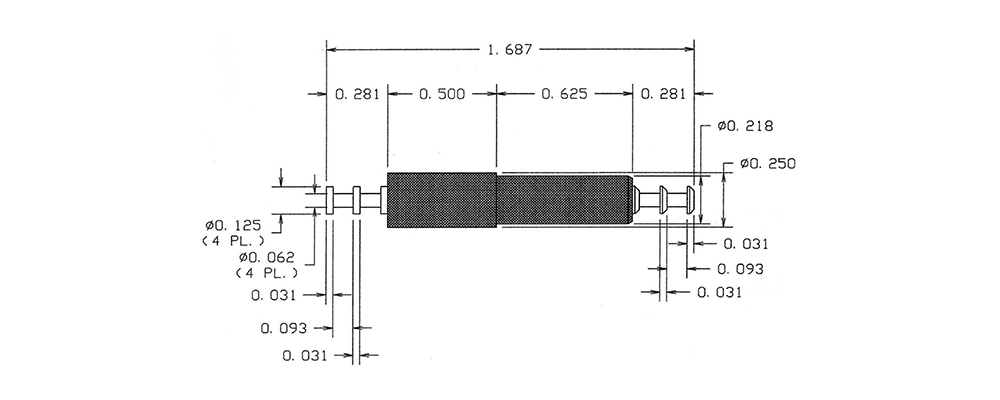

1105-02-0318
1105-02-0318
1105-02-0318
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE Gray NO
1106-03-04414
1106-03-04414
1106-03-04414
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Yellow NO
1106-07-08810
1106-07-08810
1106-07-08810
0.602" - - Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Black NO

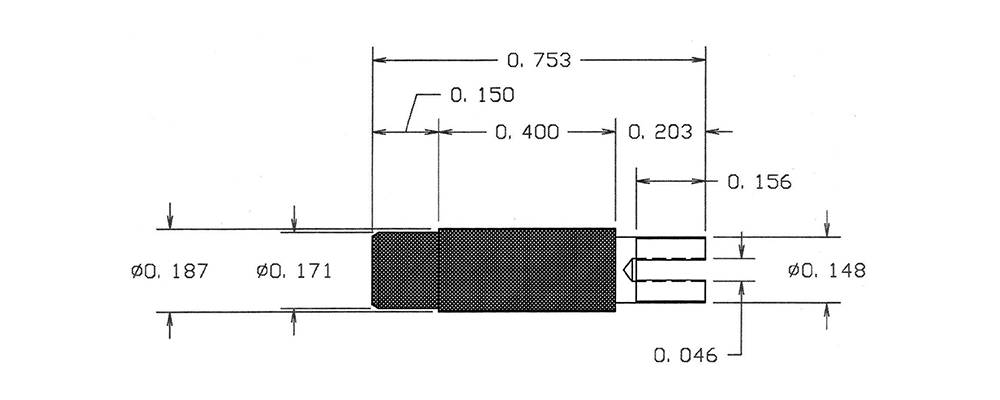

1106-12-0116
1106-12-0116
1106-12-0116
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Blue YES

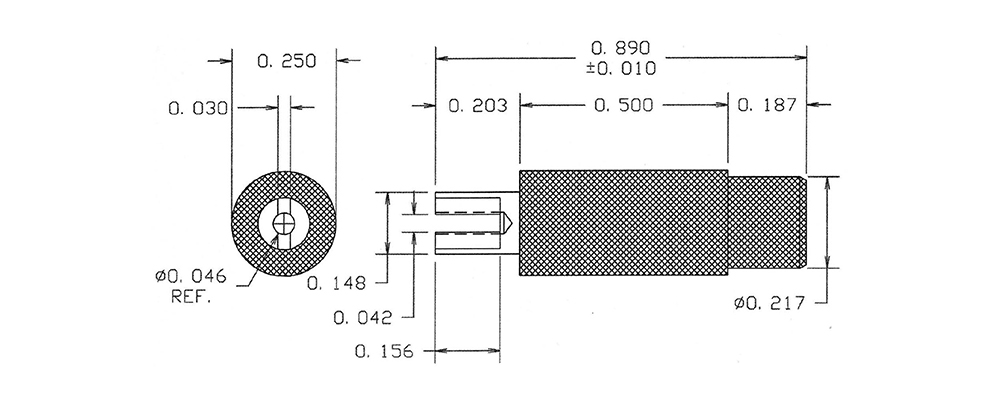

1106-16-0412
1106-16-0412
1106-16-0412
0.890" - - Press Fit 5/32 0.205 Brass Electro-Tin - - PTFE Red NO
1106-22-04418
1106-22-04418
1106-22-04418
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Gray NO
1106-52-08814
1106-52-08814
1106-52-08814
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO

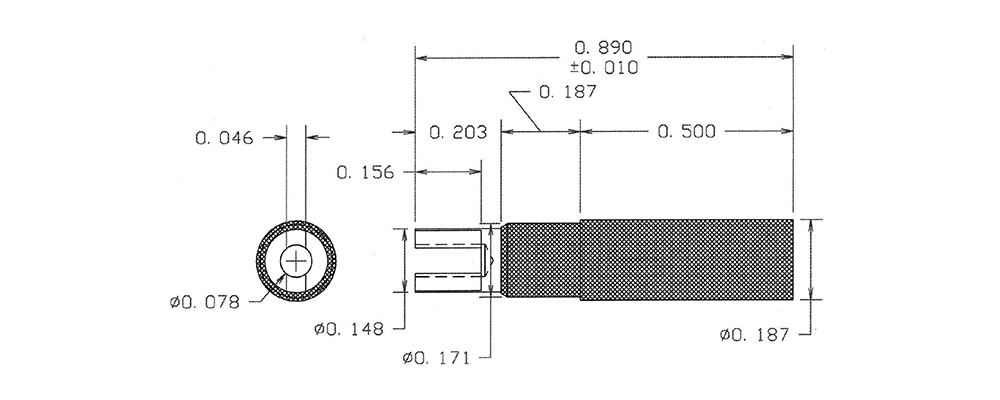

1106R-24-0310
1106R-24-0310
1106R-24-0310
0.890" - - Press Fit 5/32 0.158 Brass Gold - - PTFE Black YES

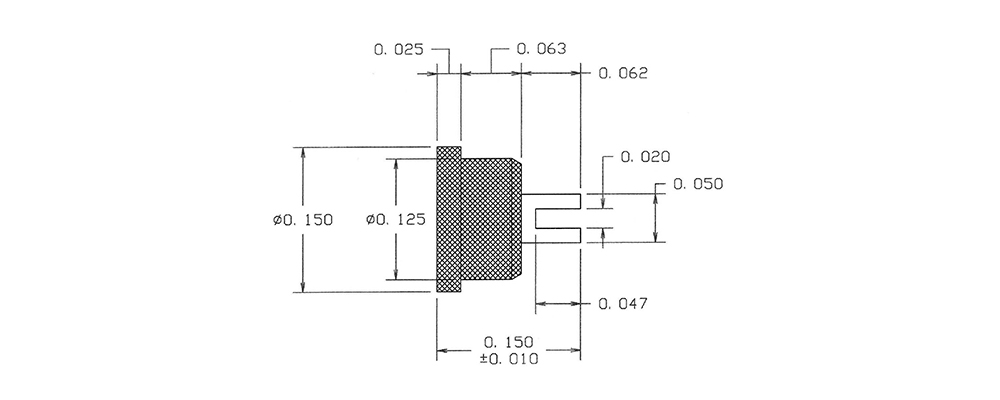

1106R-51-0416
1106R-51-0416
1106R-51-0416
0.150" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Blue YES
1107-03-0512
1107-03-0512
1107-03-0512
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Red NO
1107-08-08818
1107-08-08818
1107-08-08818
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Gray NO

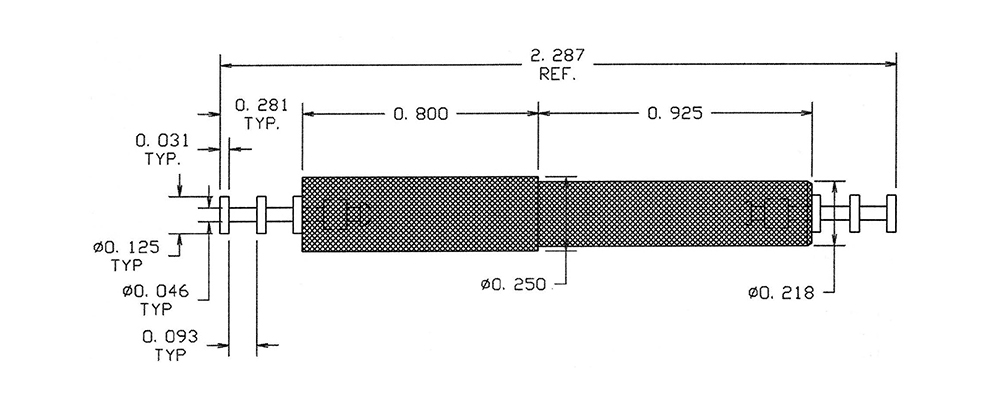

1108-02-0314
1108-02-0314
1108-02-0314
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Gold - - PTFE Yellow NO

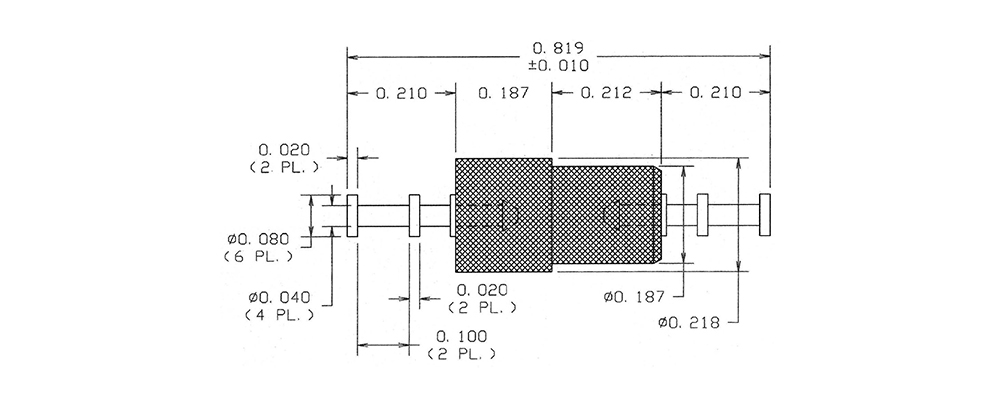

1108-06-04410
1108-06-04410
1108-06-04410
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Bright Tin - - PTFE Black YES
1110-02-0516
1110-02-0516
1110-02-0516
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Blue NO
