Commercial
Insulated
Pin Terminals

Filter
1114R-20-0512
1114R-20-0512
1114R-20-0512
0.310" 0.040 - Press Fit 1/64 0.136 Brass Electro Solder - - PTFE Red NO
1114R-80-08818
1114R-80-08818
1114R-80-08818
0.380" 0.055 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Gray NO

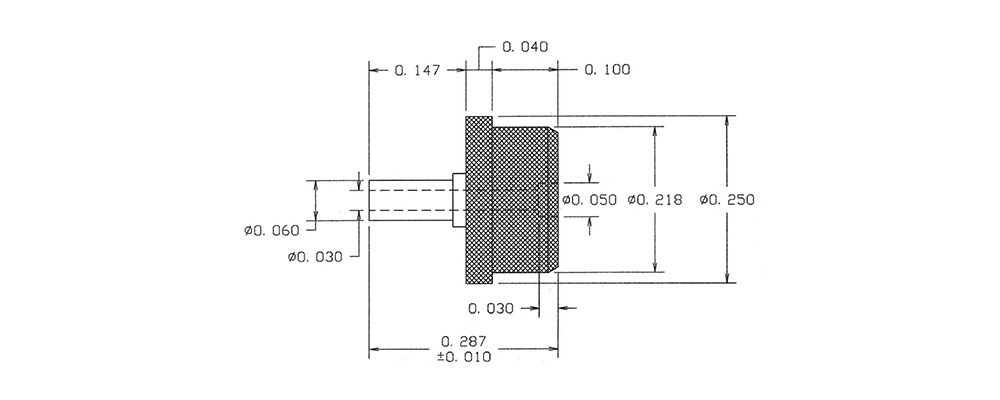

1115-07-0314
1115-07-0314
1115-07-0314
0.287" 0.060 - Press Fit 1/16 0.205 Brass Gold - - PTFE Yellow NO
1115-51-04410
1115-51-04410
1115-51-04410
0.453" - - Press Fit 1/16 0.187 Brass Bright Tin - - PTFE Black YES
1115R-02-0516
1115R-02-0516
1115R-02-0516
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Blue NO

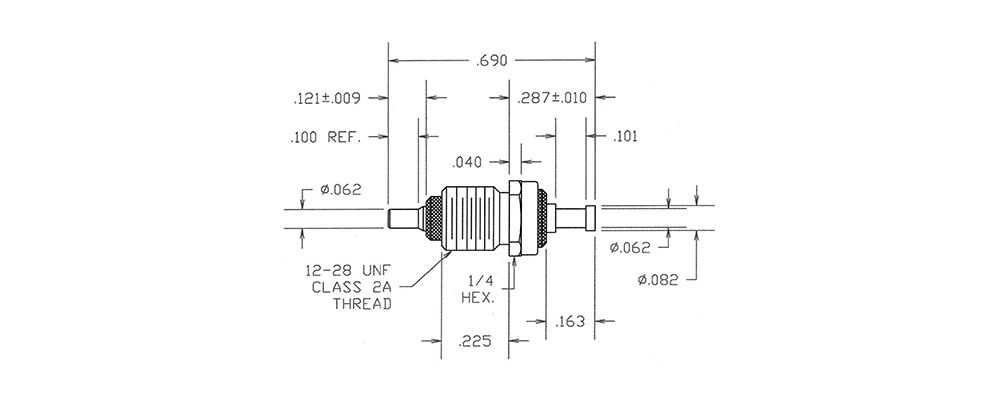

1117-01-0112
1117-01-0112
1117-01-0112
0.690" 0.062 ± 0.010 TURRET/PIN 12-28 Nut 3/32 0.221 Brass Silver Nickel Brass PTFE Red NO
1117-16-0318
1117-16-0318
1117-16-0318
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Gold Nickel Brass PTFE Gray NO
1117-50-04414
1117-50-04414
1117-50-04414
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Bright Tin Nickel Brass PTFE Yellow NO
1117-54-08810
1117-54-08810
1117-54-08810
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Nickel Brass PTFE Black NO

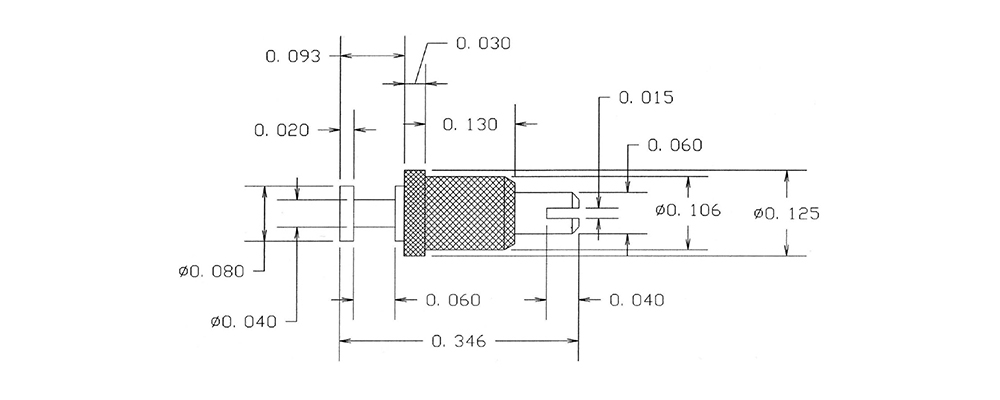

1118-40-0116
1118-40-0116
1118-40-0116
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Silver - - PTFE Blue YES

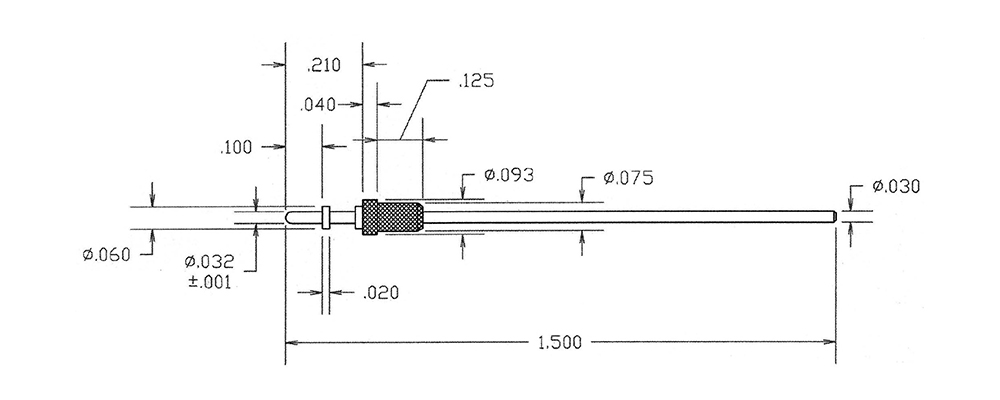

1119-25-0412
1119-25-0412
1119-25-0412
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Electro-Tin - - PTFE Red NO
1119R-20-04418
1119R-20-04418
1119R-20-04418
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Gray NO
1121-02-08814
1121-02-08814
1121-02-08814
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Yellow NO
1121-07-0310
1121-07-0310
1121-07-0310
0.500" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Gold - - PTFE Black YES

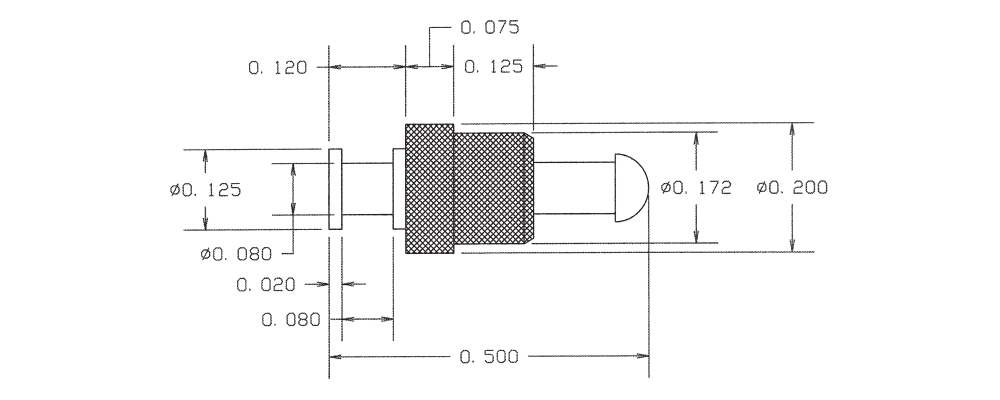

1121-12-0416
1121-12-0416
1121-12-0416
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Blue YES
1121-16-0512
1121-16-0512
1121-16-0512
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Red NO
1121-20-08818
1121-20-08818
1121-20-08818
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Bright Tin-Lead - - PTFE Gray NO

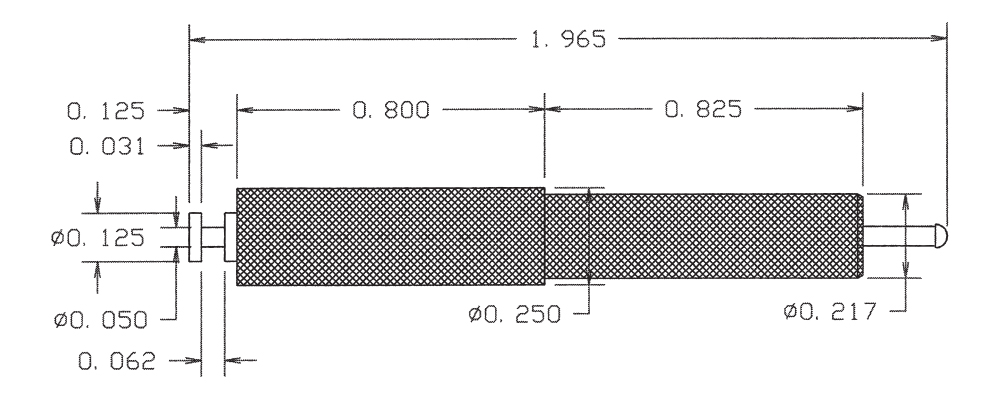

1121-26-0314
1121-26-0314
1121-26-0314
1.965" 0.050 Turret/Tip Press Fit 49/64 0.205 Brass Gold - - PTFE Yellow NO

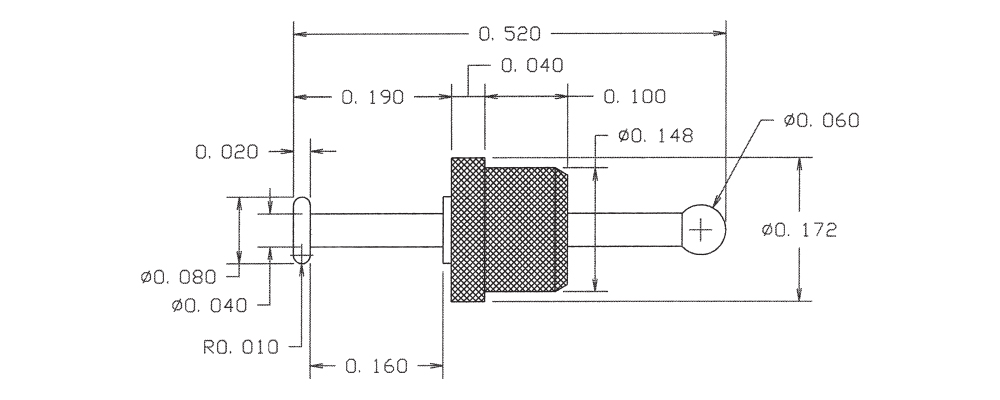

1121-31-04410
1121-31-04410
1121-31-04410
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1121-52-0516
1121-52-0516
1121-52-0516
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Blue NO
