Commercial
Insulated
Pin Terminals

Filter
1125-28-0519
1125-28-0519
1125-28-0519
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Electro Solder Electro-Tin Brass PTFE White NO

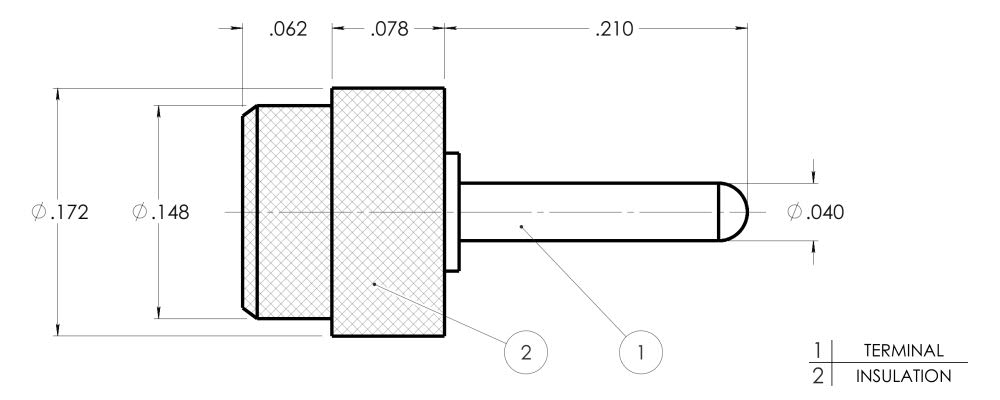

1100-29-0115
1100-29-0115
1100-29-0115
0.350" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Green YES

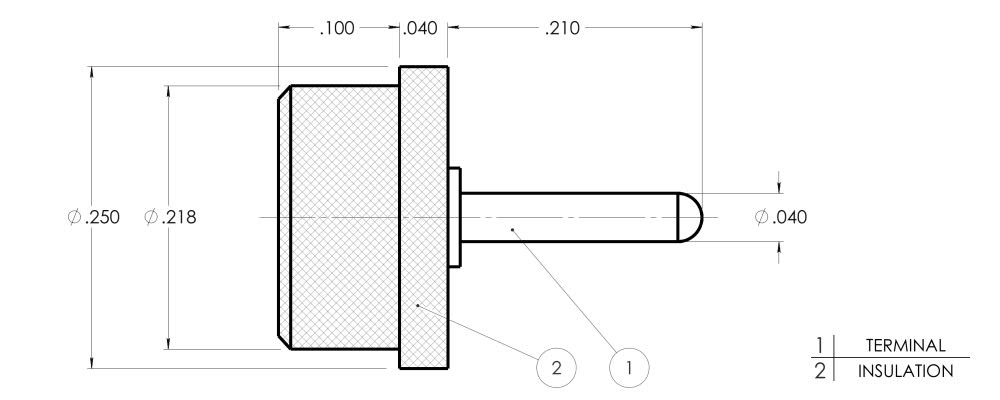

1100-49-0411
1100-49-0411
1100-49-0411
0.350" 0.040 - Press Fit 1/16 0.205 Brass Electro-Tin - - PTFE Brown NO

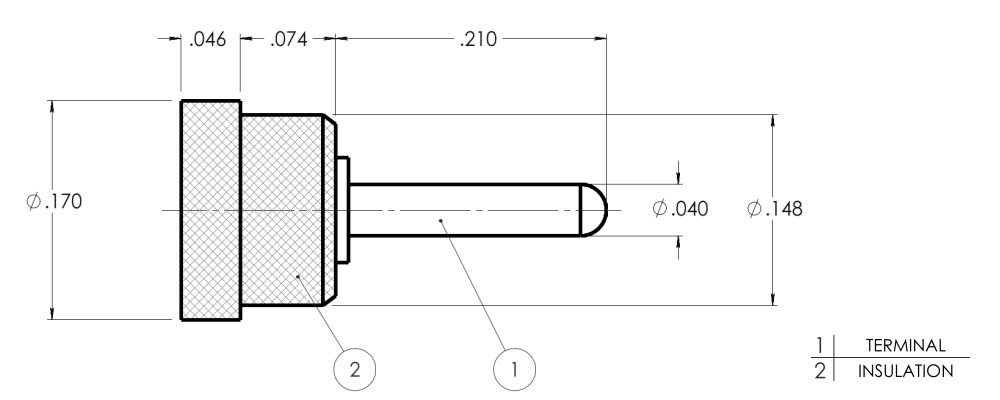

1100R-23A-04417
1100R-23A-04417
1100R-23A-04417
0.330" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Violet YES
1100R-36-08813
1100R-36-08813
1100R-36-08813
0.390" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

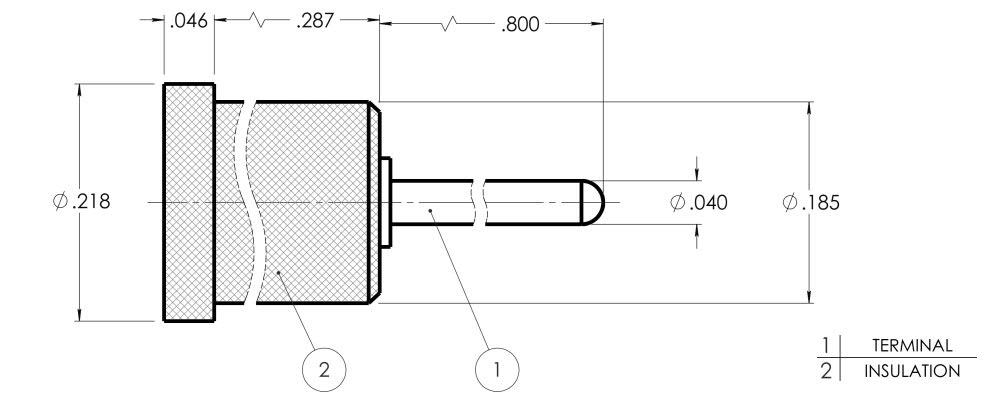

1100R-54-0119
1100R-54-0119
1100R-54-0119
1.133" 0.040 - Press Fit 7/32 0.172 Brass Silver - - PTFE White YES

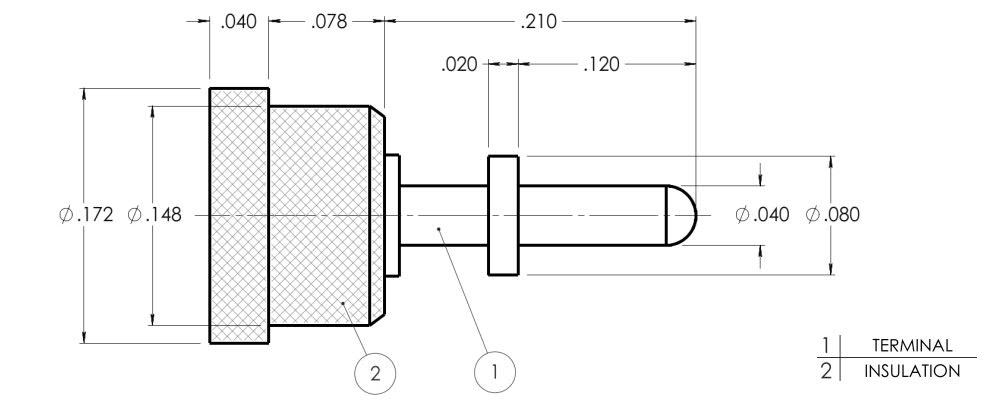

1101R-01-0415
1101R-01-0415
1101R-01-0415
0.328" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Green YES
09-2010-1-0516
09-2010-1-0516
09-2010-1-0516
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Blue NO
1102-44-0512
1102-44-0512
1102-44-0512
0.750" - - Press Fit 1/16 0.152 Brass Electro Solder - - PTFE Red NO

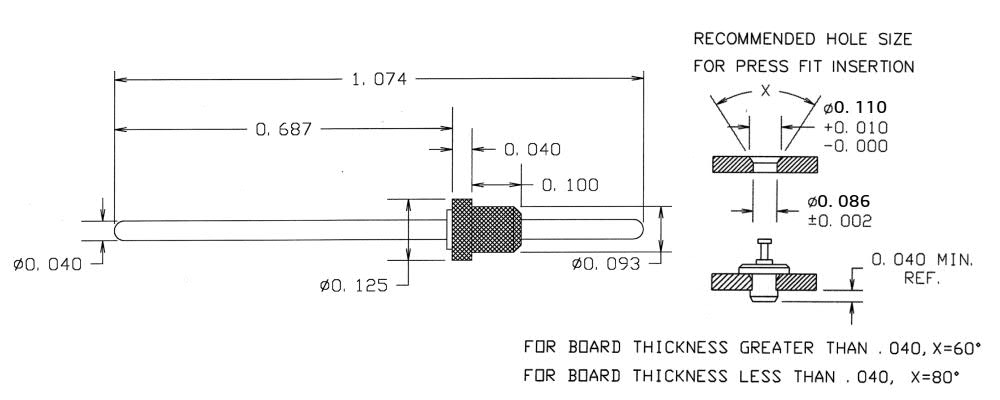

09-2084-1-0112
09-2084-1-0112
09-2084-1-0112
1.074" 0.040 ± 0.010 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Red NO
1110-39-08818
1110-39-08818
1110-39-08818
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Bright Tin-Lead - - PTFE Gray NO
09-2095-1-0318
09-2095-1-0318
09-2095-1-0318
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Gray NO
1111-25-0314
1111-25-0314
1111-25-0314
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.152 Brass Gold - - PTFE Yellow NO
09-2104-1-04414
09-2104-1-04414
09-2104-1-04414
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1112-07-04410
1112-07-04410
1112-07-04410
0.273" - - Press Fit 1/16 0.113 Brass Bright Tin - - PTFE Black YES
09-2112-1-08810
09-2112-1-08810
09-2112-1-08810
0.838" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead Nickel Brass PTFE Black NO
1113-54-0516
1113-54-0516
1113-54-0516
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Blue NO
1100-01-0116
1100-01-0116
1100-01-0116
0.185" 0.032 - Press Fit 1/32 0.086 Brass Silver - - PTFE Blue YES
1114-20-0112
1114-20-0112
1114-20-0112
0.310" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Red NO

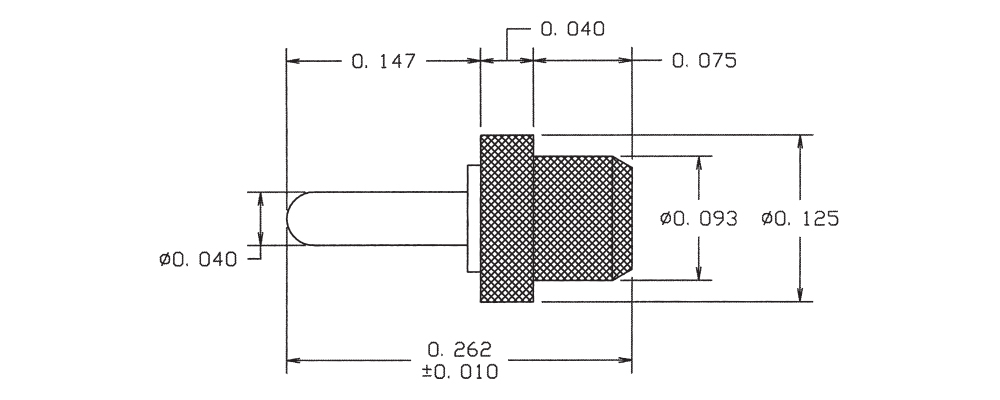

1100-05-0412
1100-05-0412
1100-05-0412
0.262" 0.040 - Press Fit 3/64 0.086 Brass Electro-Tin - - PTFE Red NO
