Commercial
Insulated
Pin Terminals

Filter

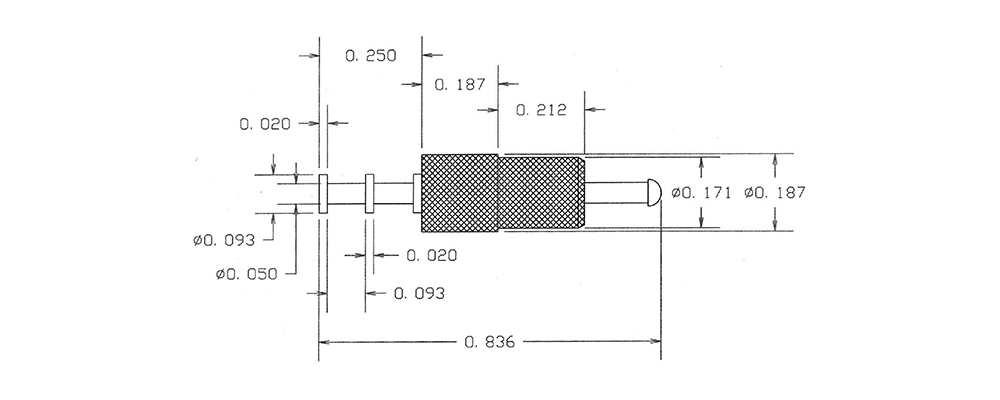

1111-26-0412
1111-26-0412
1111-26-0412
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Red NO
1111-34-04418
1111-34-04418
1111-34-04418
0.438" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.172 Brass Bright Tin - - PTFE Gray NO
1111-38-08814
1111-38-08814
1111-38-08814
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1111-46-0310
1111-46-0310
1111-46-0310
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.217 Brass Gold - - PTFE Black YES

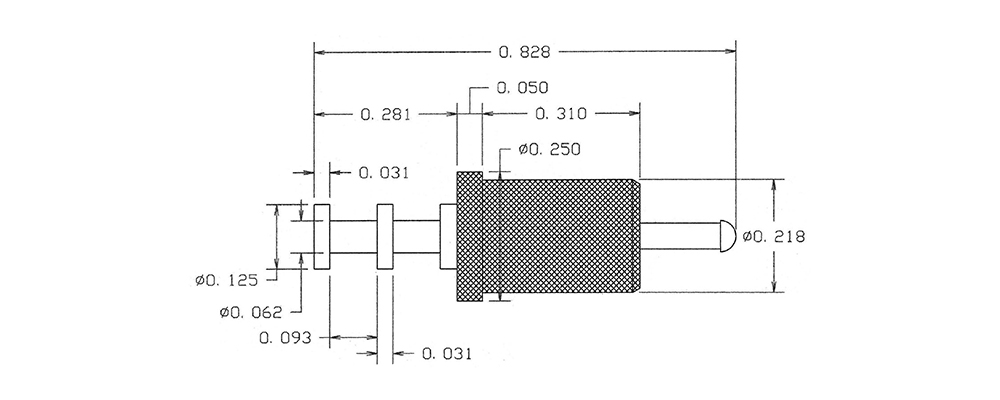

1111-51-0416
1111-51-0416
1111-51-0416
0.828" 0.062 DOUBLE Turret/Tip Press Fit Up to 1/4 0.205 Brass Electro-Tin - - PTFE Blue YES
1111-59-0512
1111-59-0512
1111-59-0512
0.750" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.086 Brass Electro Solder - - PTFE Red NO
1111R-09-08818
1111R-09-08818
1111R-09-08818
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Gray NO

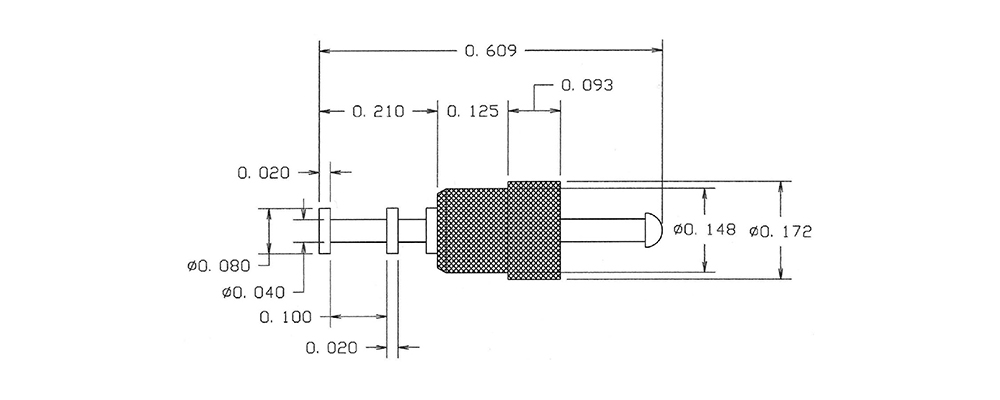

1111R-15-0314
1111R-15-0314
1111R-15-0314
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Gold - - PTFE Yellow NO

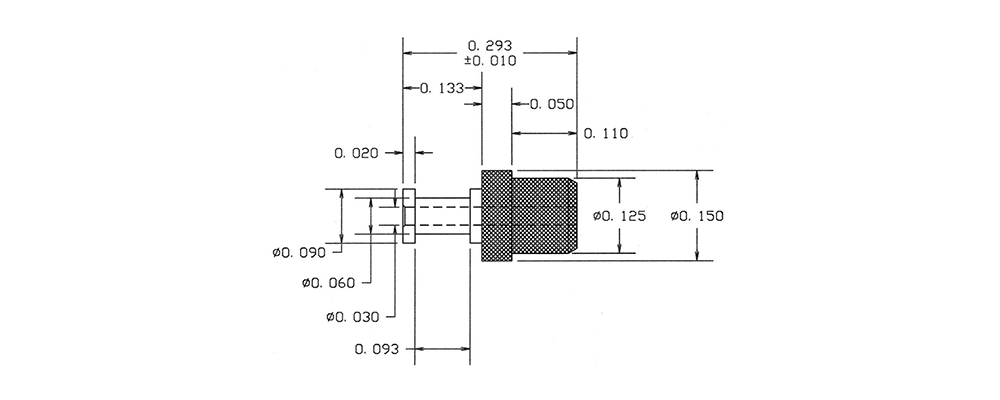

1112-09-04410
1112-09-04410
1112-09-04410
0.293" - - Press Fit 1/64 0.113 Brass Bright Tin - - PTFE Black YES
1112-14-0516
1112-14-0516
1112-14-0516
0.293" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO

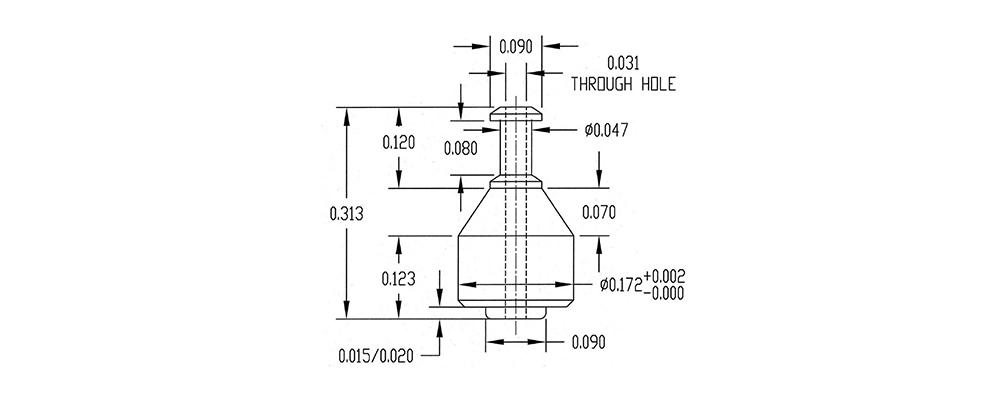

1112-70-0112
1112-70-0112
1112-70-0112
0.313" - - Press Fit 3/32 0.158 Brass Silver - - PTFE Red NO

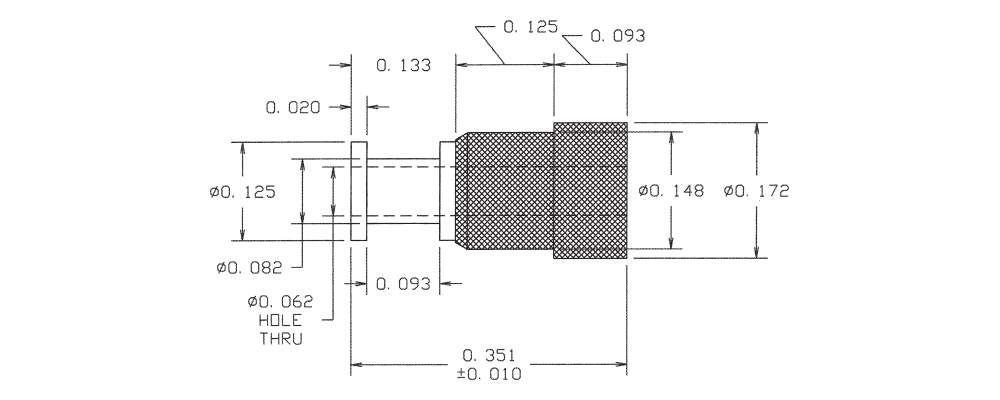

1112R-15-0318
1112R-15-0318
1112R-15-0318
0.351" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Gray NO
1112R-62-04414
1112R-62-04414
1112R-62-04414
0.260" - - Press Fit 3/32 0.086 Brass Bright Tin - - PTFE Yellow NO
1113-03-08810
1113-03-08810
1113-03-08810
0.333" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO

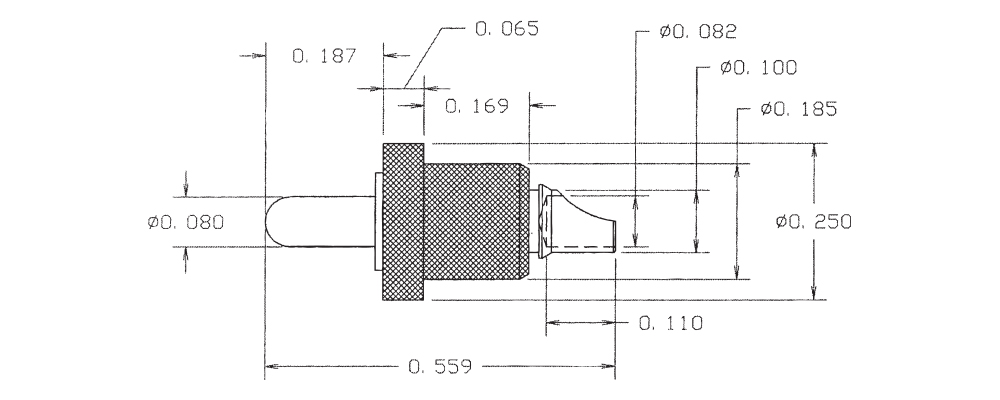

1113-58-0116
1113-58-0116
1113-58-0116
0.559" 0.080 PIN/Solder CUP Press Fit 1/8 0.172 Brass Silver - - PTFE Blue YES

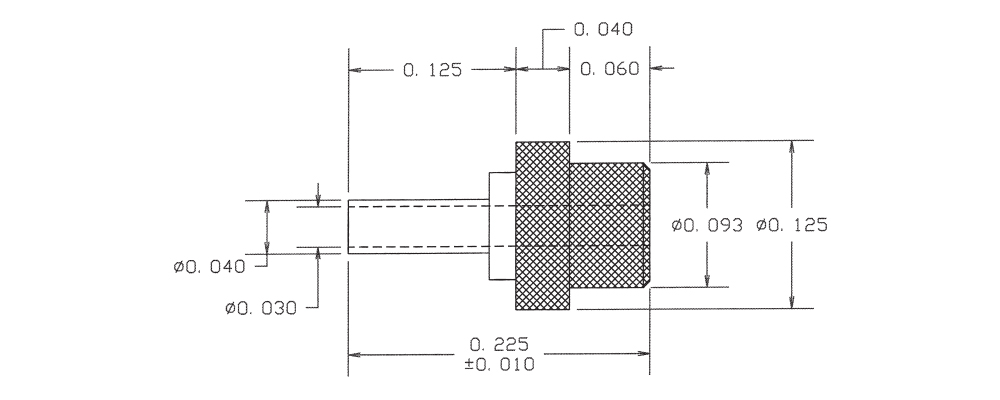

1114-04-0412
1114-04-0412
1114-04-0412
0.225" 0.040 - Press Fit 1/32 0.086 Brass Electro-Tin - - PTFE Red NO
1114-08-04418
1114-08-04418
1114-08-04418
0.310" 0.040 - Press Fit 3/32 0.108 Brass Bright Tin - - PTFE Gray NO
1114-50-08814
1114-50-08814
1114-50-08814
0.270" 0.060 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1114-75-0310
1114-75-0310
1114-75-0310
0.367" - - Press Fit 1/16 0.158 Brass Gold - - PTFE Black YES
1114R-14-0416
1114R-14-0416
1114R-14-0416
0.193" 0.080 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Blue YES
