Commercial
Insulated
Pin Terminals

Filter
1114-25-0318
1114-25-0318
1114-25-0318
0.413" 0.085 - Press Fit 1/8 0.136 Brass Gold - - PTFE Gray NO
1100-09-04418
1100-09-04418
1100-09-04418
0.350" 0.040 - Press Fit 3/32 0.098 Brass Bright Tin - - PTFE Gray NO
1114R-16-04414
1114R-16-04414
1114R-16-04414
0.296" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1100-14-08814
1100-14-08814
1100-14-08814
0.280" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1123R-75-08810
1123R-75-08810
1123R-75-08810
0.426" - - Press Fit 1/8 0.172 Brass Bright Tin-Lead - - PTFE Black NO

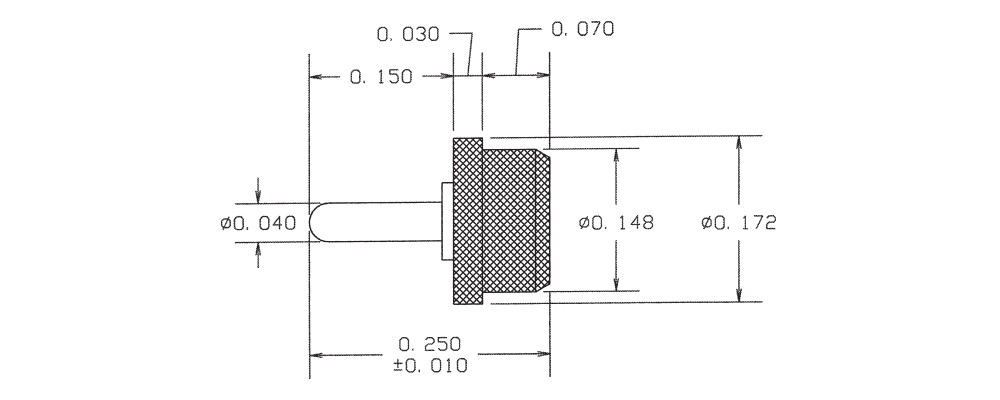

1100-19-0310
1100-19-0310
1100-19-0310
0.250" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Black YES

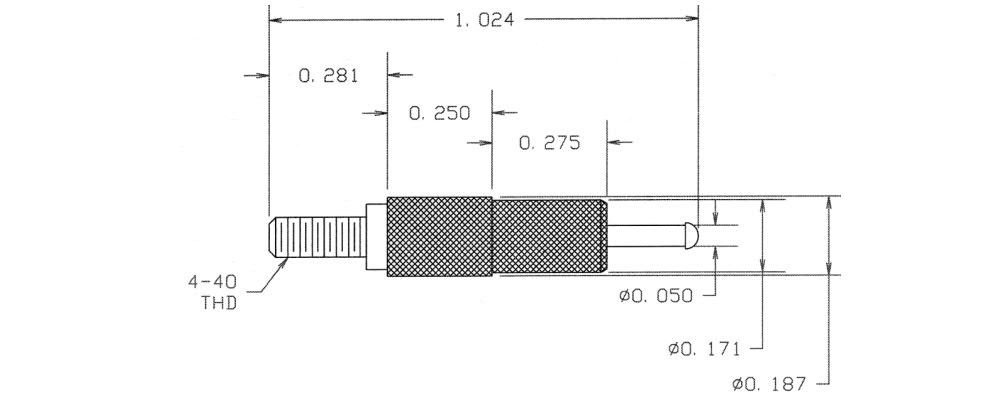

1124-11-0116
1124-11-0116
1124-11-0116
1.024" 0.050 THREAD/TIP Press Fit Up to 1/4 0.158 Brass Silver - - PTFE Blue YES

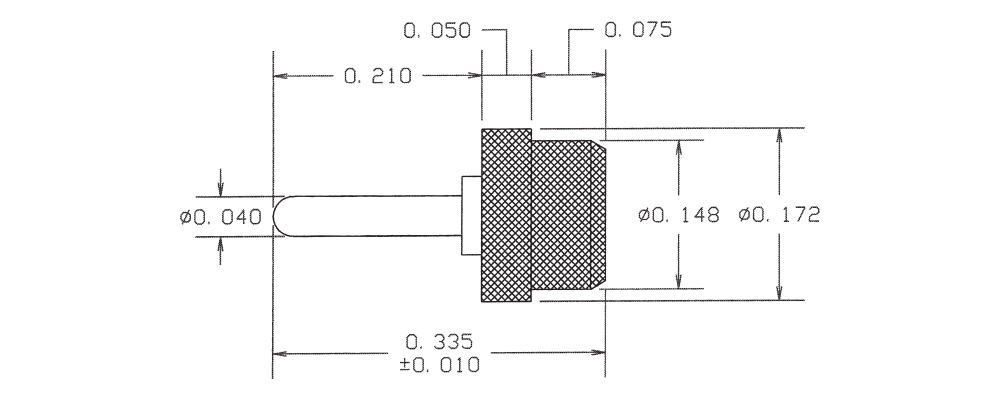

1100-24-0416
1100-24-0416
1100-24-0416
0.335" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Blue YES
1153-12-0412
1153-12-0412
1153-12-0412
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Red NO
1100-34-0512
1100-34-0512
1100-34-0512
0.410" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Red NO
1110-95-04418
1110-95-04418
1110-95-04418
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Gray NO
1100-43-08818
1100-43-08818
1100-43-08818
0.485" 0.040 - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Gray NO

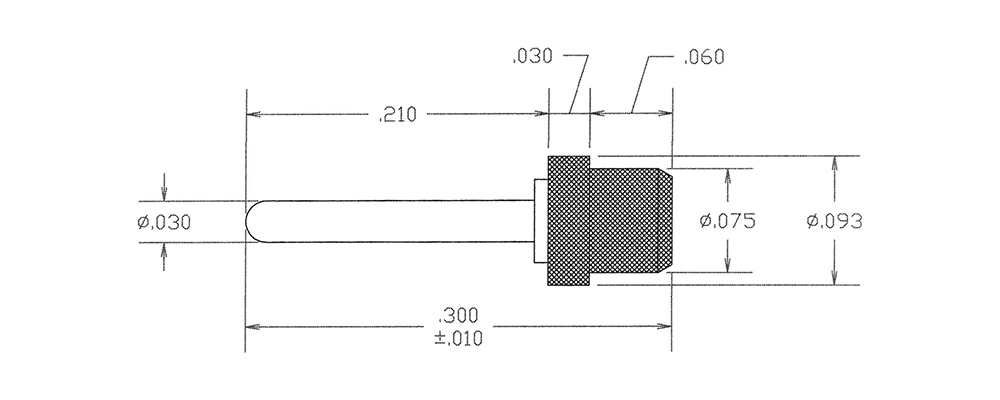

1100-56-0314
1100-56-0314
1100-56-0314
0.300" 0.030 - Press Fit 1/32 0.070 Brass Gold - - PTFE Yellow NO

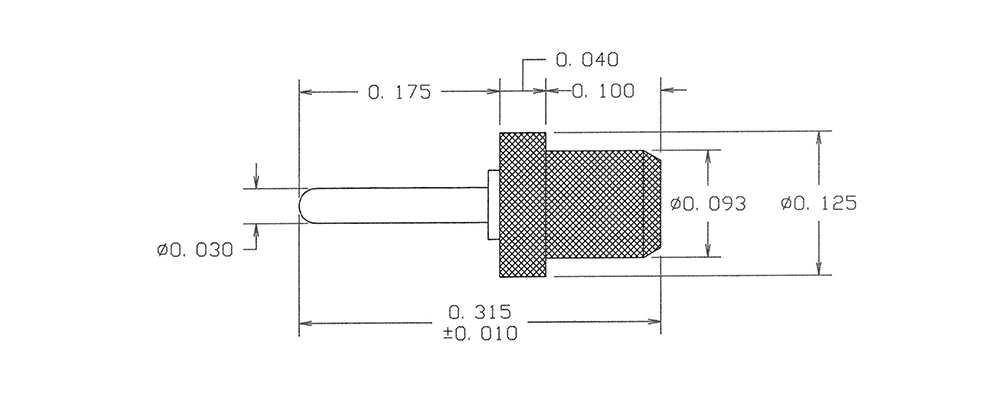

1100-93-04410
1100-93-04410
1100-93-04410
0.315" 0.030 - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Black YES
1100R-08A-0516
1100R-08A-0516
1100R-08A-0516
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro Solder - - PTFE Blue NO

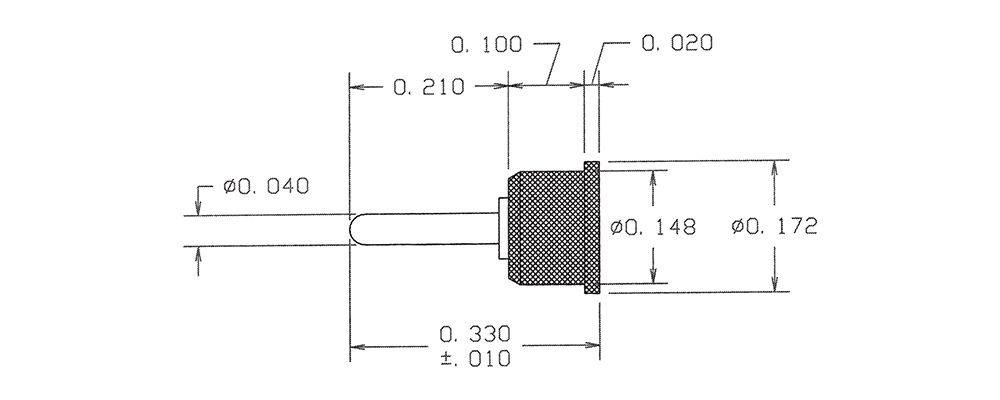

1100R-23-0112
1100R-23-0112
1100R-23-0112
0.330" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Red NO

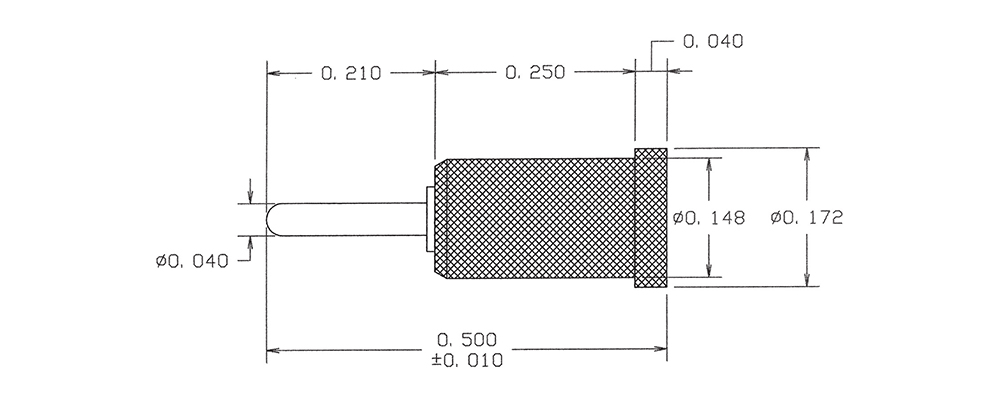

1100R-35-0318
1100R-35-0318
1100R-35-0318
0.500" 0.040 - Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Gray NO
1100R-66-04414
1100R-66-04414
1100R-66-04414
0.350" 0.040 - Press Fit 1/16 0.113 Brass Bright Tin - - PTFE Yellow NO
1101-05-08810
1101-05-08810
1101-05-08810
0.428" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO

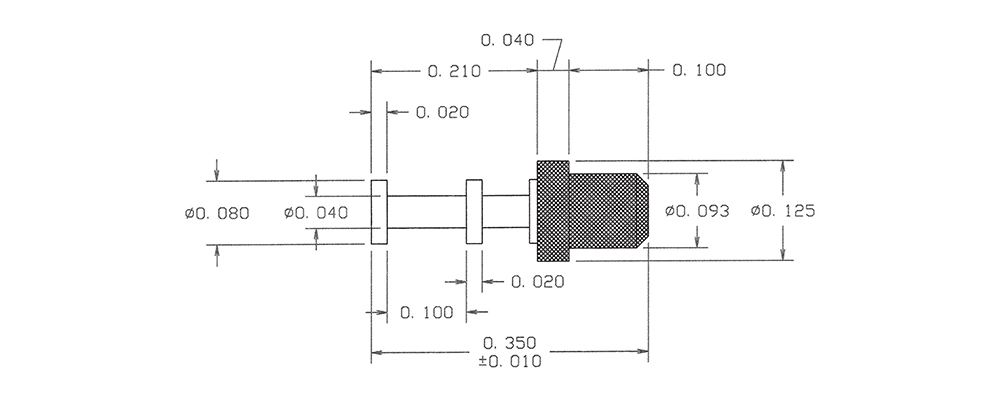

1102-03-0116
1102-03-0116
1102-03-0116
0.350" - - Press Fit 1/16 0.086 Brass Silver - - PTFE Blue YES
