Commercial
Insulated
Pin Terminals

1121R-07-0112
1121R-07-0112
1121R-07-0112
0.500" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO
1122-01-0318
1122-01-0318
1122-01-0318
0.250" - - Press Fit 1/64 0.070 Brass Gold - - PTFE Gray NO
1123-04-04414
1123-04-04414
1123-04-04414
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Yellow NO
1123-08-08810
1123-08-08810
1123-08-08810
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Bright Tin-Lead - - PTFE Black NO

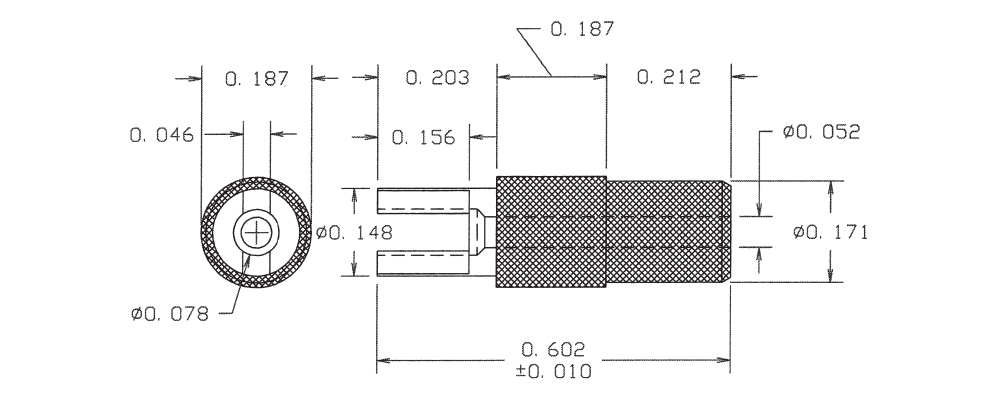

1123-73-0116
1123-73-0116
1123-73-0116
0.602" - - Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Blue YES
1123R-07-0412
1123R-07-0412
1123R-07-0412
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Electro-Tin - - PTFE Red NO
1123R-70-04418
1123R-70-04418
1123R-70-04418
0.495" 0.040 Pin/Slotted Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Gray NO
1125-35-08814
1125-35-08814
1125-35-08814
0.850" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Yellow NO

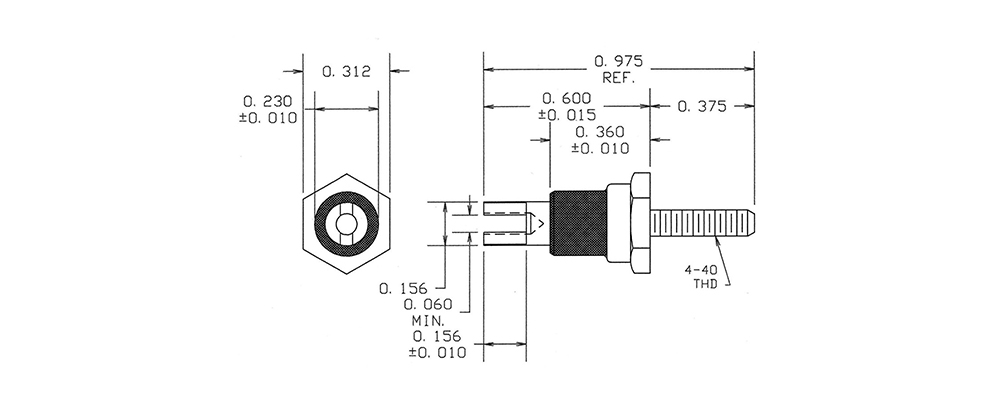

1125-41-0310
1125-41-0310
1125-41-0310
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Gold Electro-Tin Brass PTFE Black YES

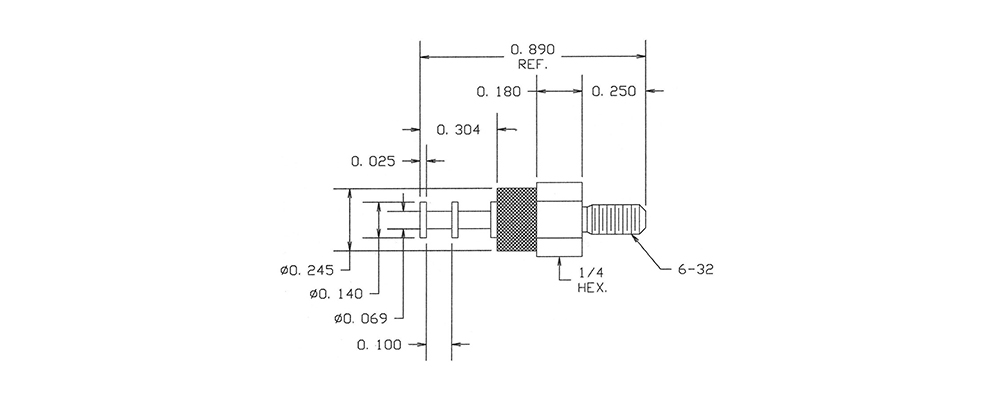

1125-45-0416
1125-45-0416
1125-45-0416
0.890" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Blue YES
1125-49-0512
1125-49-0512
1125-49-0512
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass PTFE Red NO
1125-53-08818
1125-53-08818
1125-53-08818
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Gray NO
1125-58-0314
1125-58-0314
1125-58-0314
1.172" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass PTFE Yellow NO
1125-63-04410
1125-63-04410
1125-63-04410
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Black YES
1125-74-0516
1125-74-0516
1125-74-0516
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder ZINC Brass PTFE Blue NO

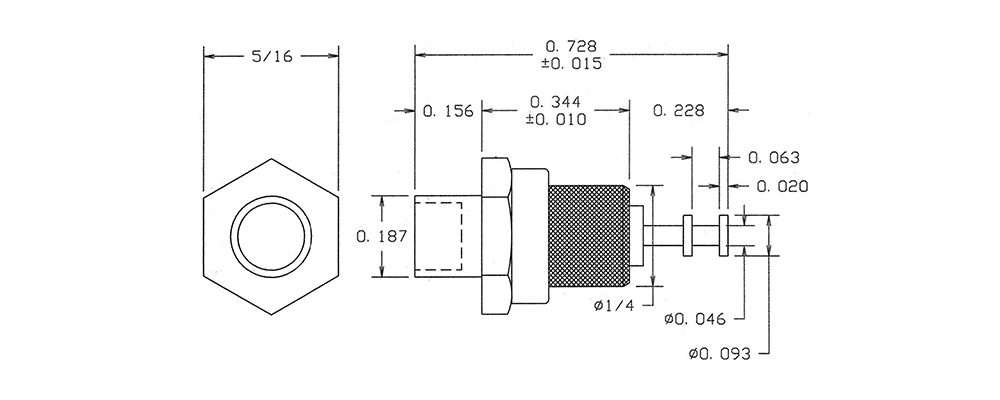

1125-79-0112
1125-79-0112
1125-79-0112
0.728" - - Swage Mount 1/8 0.194 Brass Silver ZINC Brass PTFE Red NO
1125-84-0318
1125-84-0318
1125-84-0318
0.756" - - Swage Mount 1/8 0.191 Brass Gold Electro-Tin Brass PTFE Gray NO
1125-89-04414
1125-89-04414
1125-89-04414
0.698" - - 4-40 Nut 1/16 0.120 Brass Bright Tin Electro-Tin Brass PTFE Yellow NO
1125-93-08810
1125-93-08810
1125-93-08810
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass PTFE Black NO

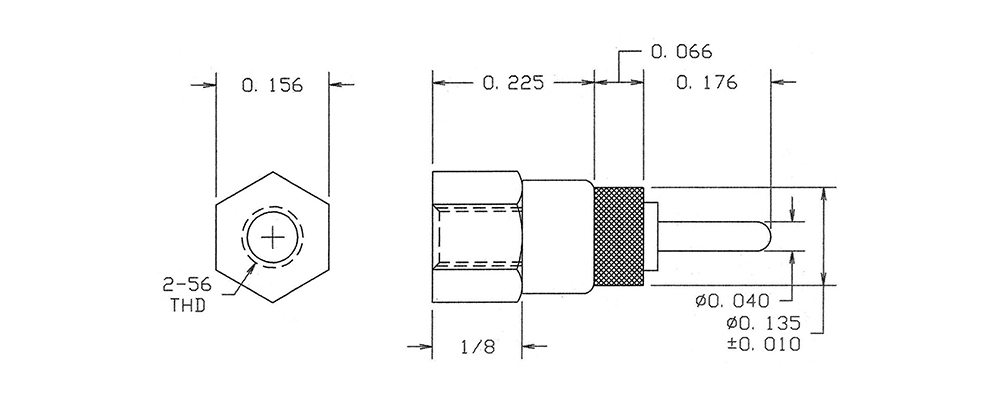

1125-98-0116
1125-98-0116
1125-98-0116
0.467" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass PTFE Blue YES
