Commercial
Insulated
Pin Terminals

Filter

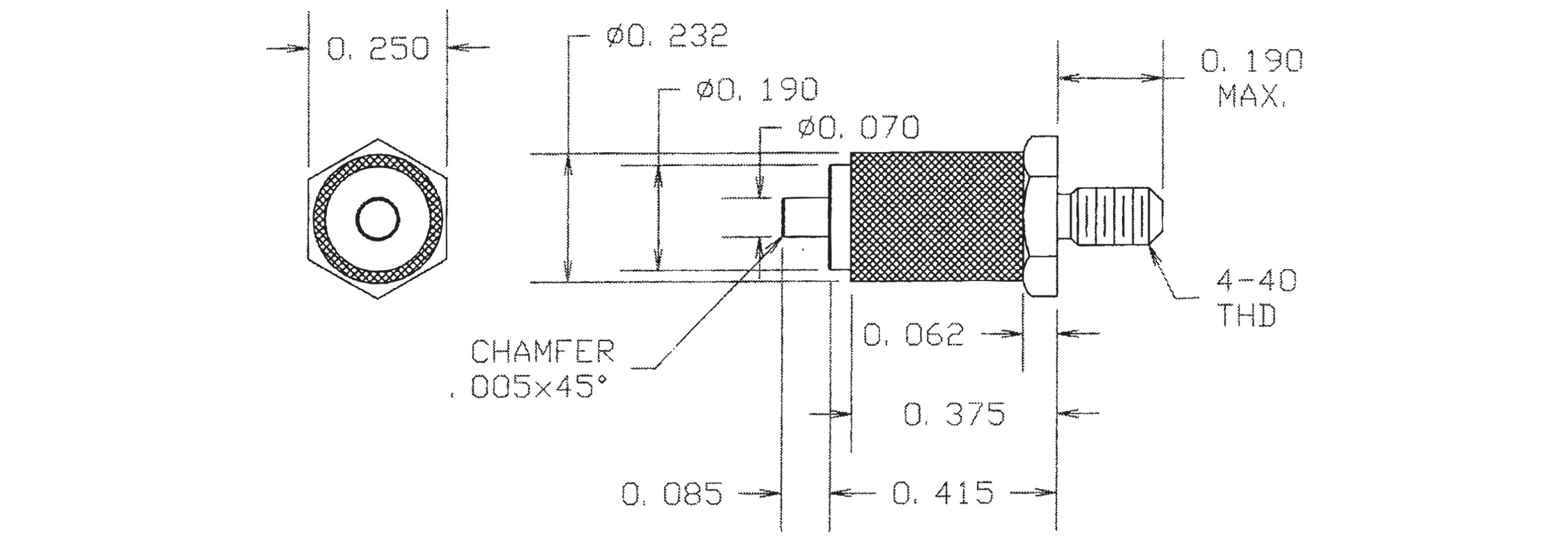

1170-23-0119
1170-23-0119
1170-23-0119
0.500" 0.070 - 4-40 Nut 1/16 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES

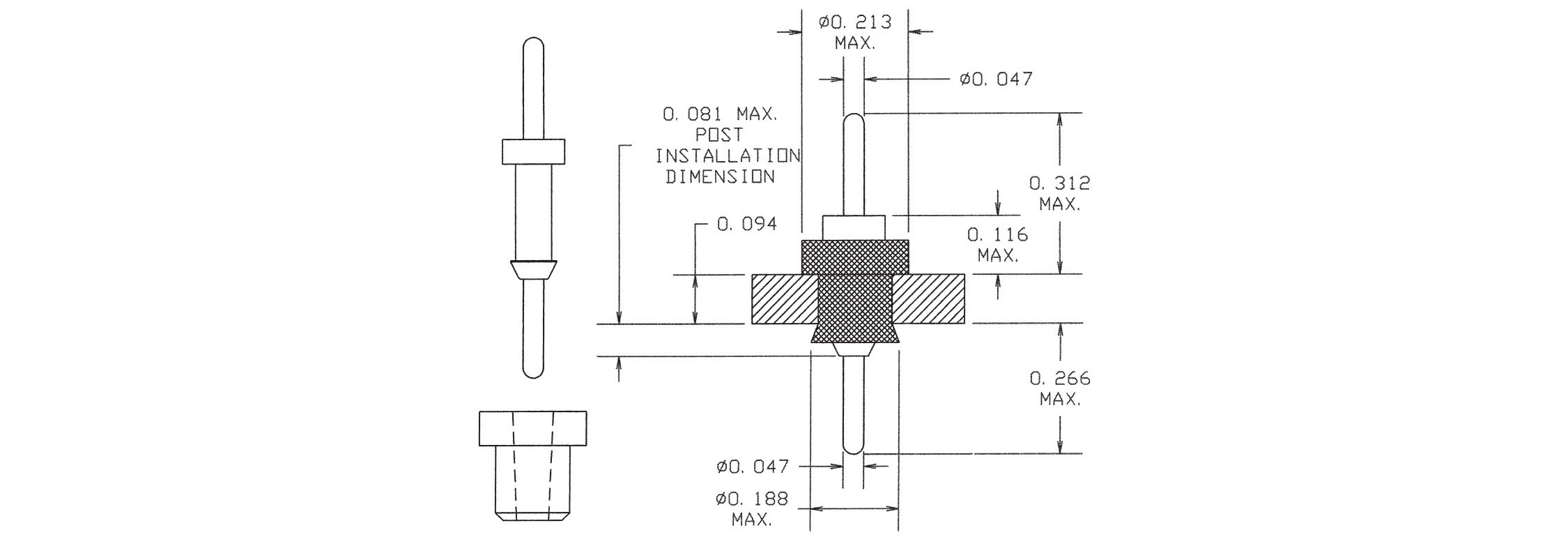

1175-013-0415
1175-013-0415
1175-013-0415
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Green YES
1175-301-0511
1175-301-0511
1175-301-0511
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO

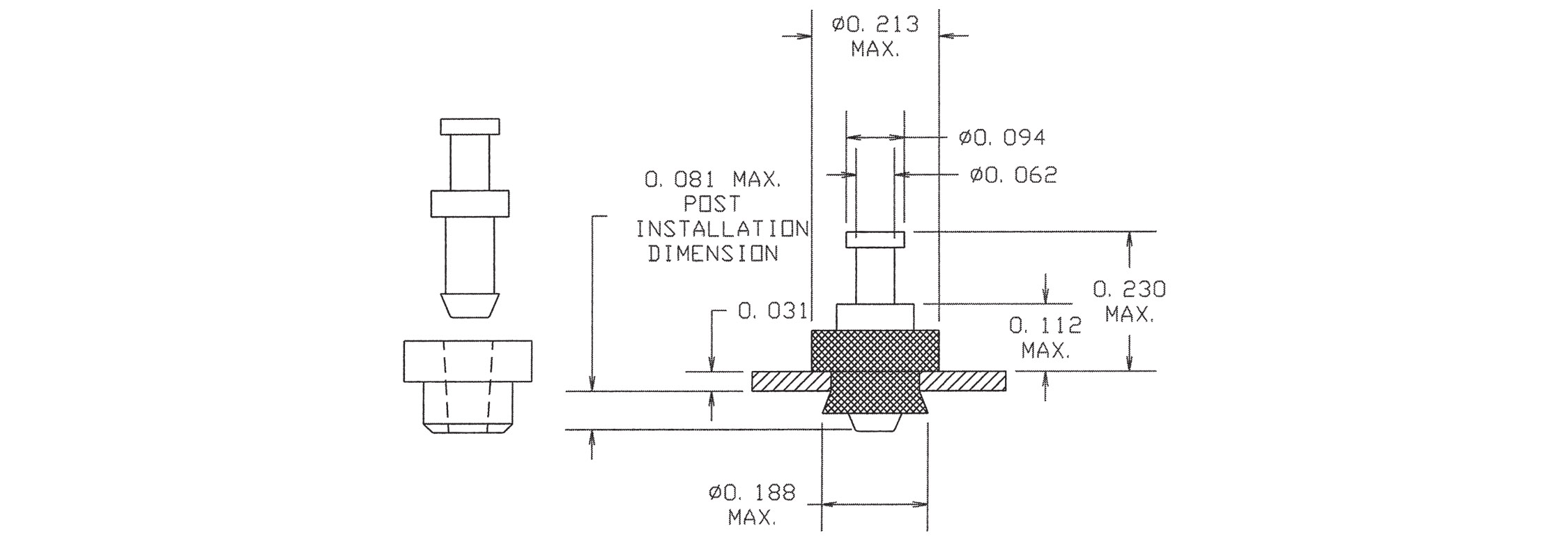

1175-351-08817
1175-351-08817
1175-351-08817
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO

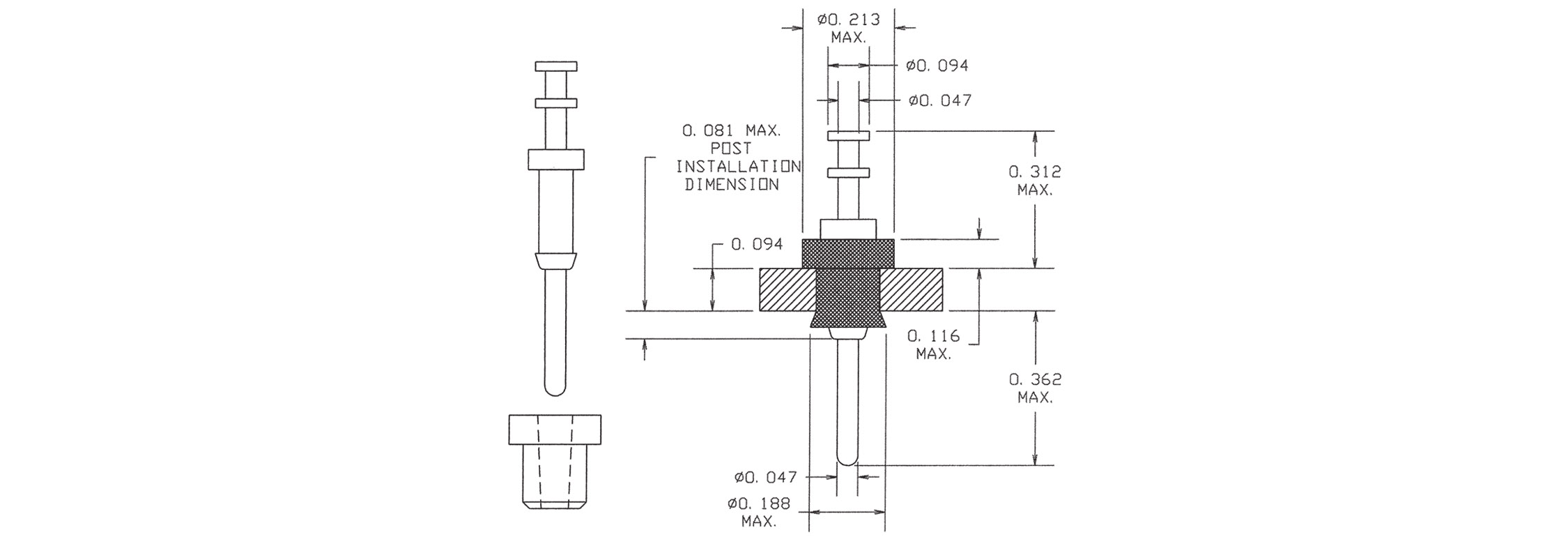

1175-373-0313
1175-373-0313
1175-373-0313
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Orange NO

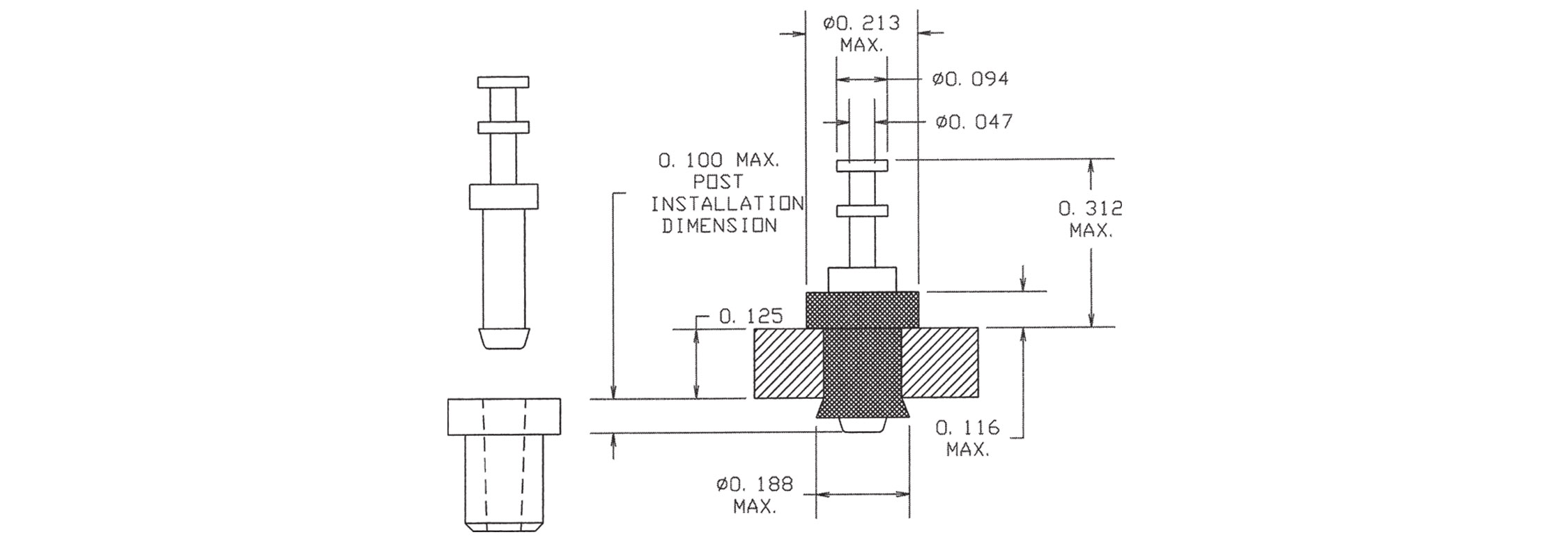

1175-404-0419
1175-404-0419
1175-404-0419
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES
1175-414-0515
1175-414-0515
1175-414-0515
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO
1175-431-0111
1175-431-0111
1175-431-0111
0.443" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Brown NO

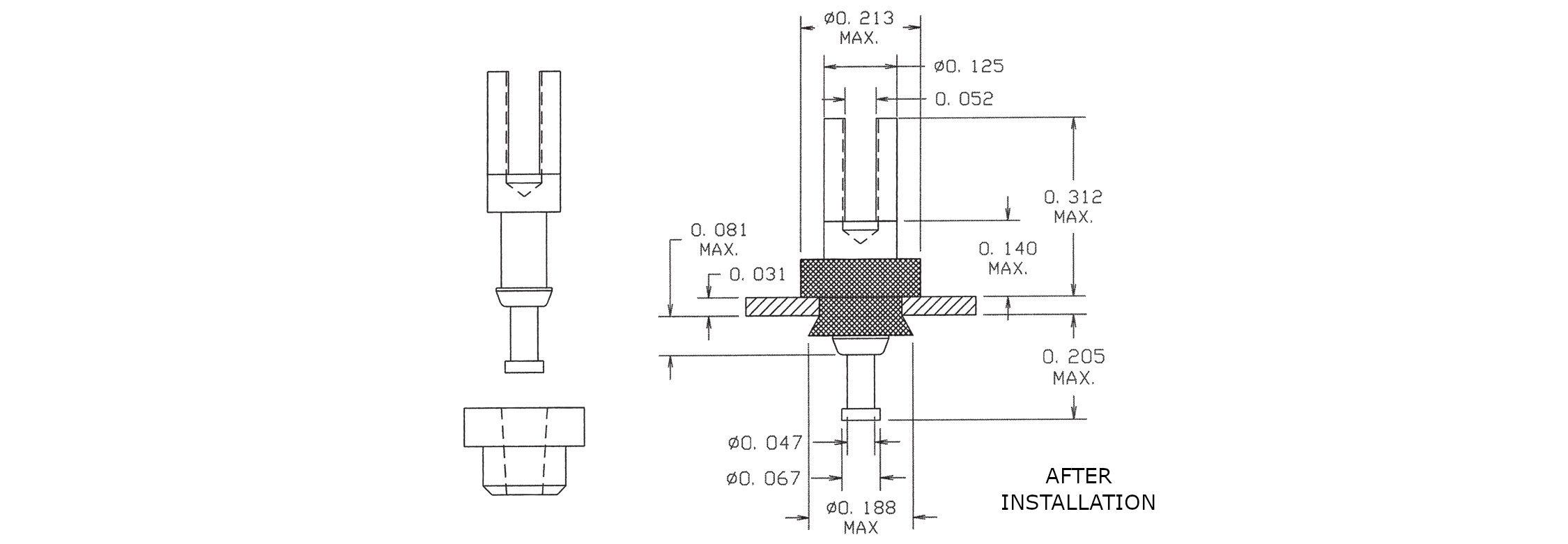

1175-441-0317
1175-441-0317
1175-441-0317
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Violet YES

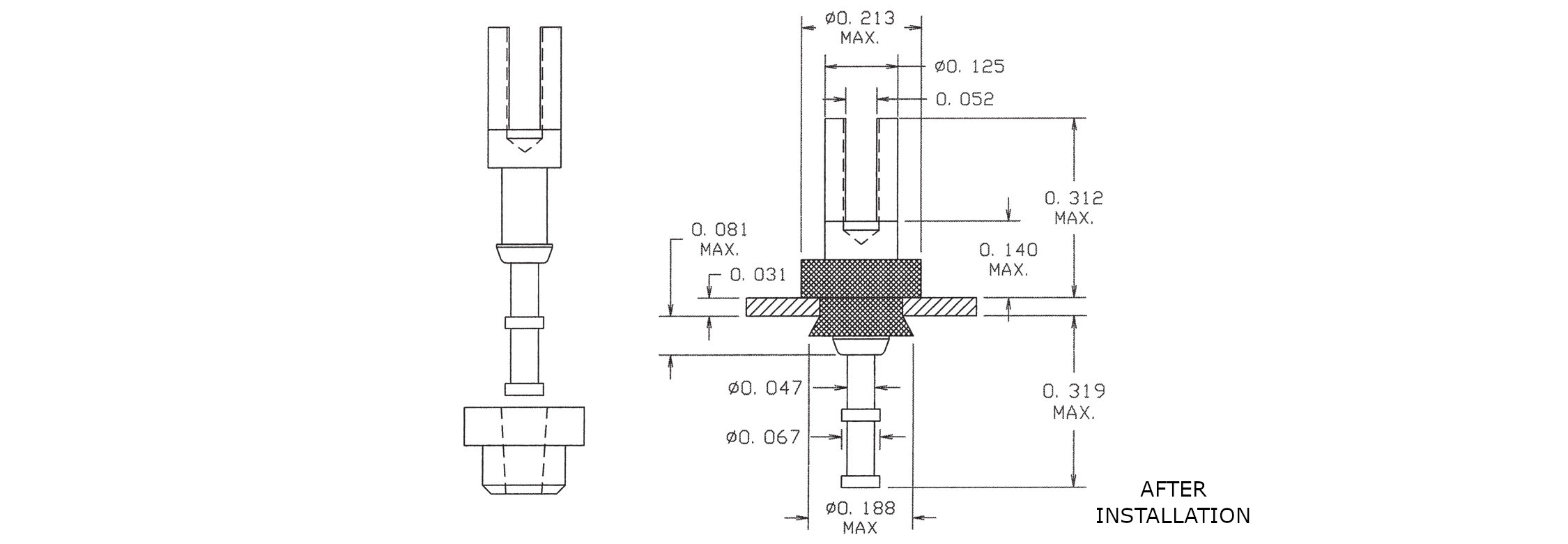

1175-451-04413
1175-451-04413
1175-451-04413
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO
1175-462-0519
1175-462-0519
1175-462-0519
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE White NO

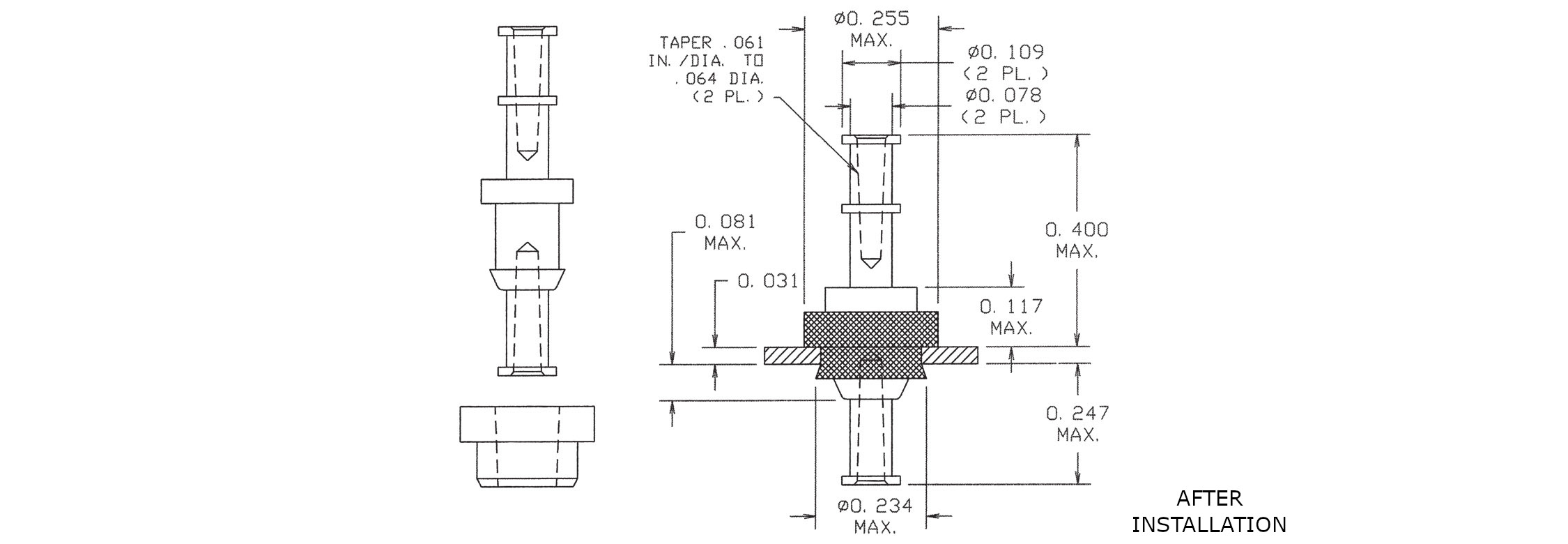

1175-481-0115
1175-481-0115
1175-481-0115
0.678" - DOUBLE Turret/Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Silver - - PTFE Green YES
1175-492-0411
1175-492-0411
1175-492-0411
0.831" - Double Turret/Double Turret PRESS LOCK 1/16 0.188 (+0.003/-0.001) Brass Electro-Tin - - PTFE Brown NO
1175-601-04417
1175-601-04417
1175-601-04417
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Violet YES
1175-702-08813
1175-702-08813
1175-702-08813
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Orange NO
1175-713-0119
1175-713-0119
1175-713-0119
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE White YES
1175-723-0415
1175-723-0415
1175-723-0415
0.725" - Double Turret/Double Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Green YES

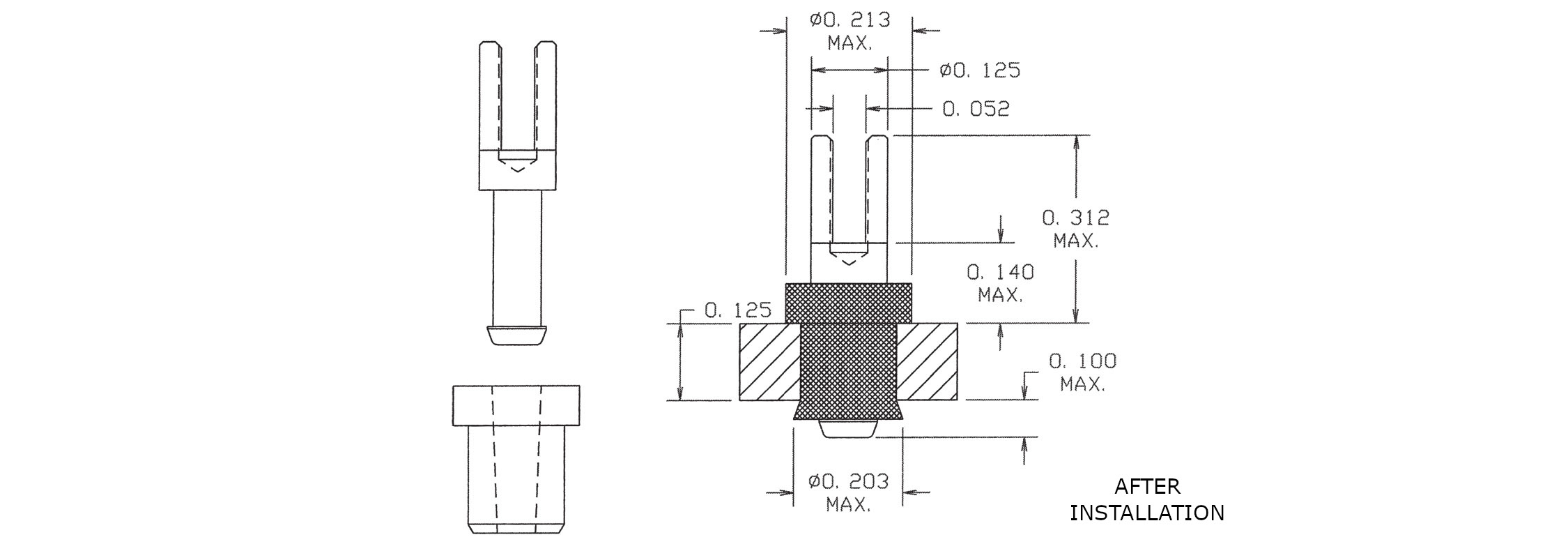

1175-734-0511
1175-734-0511
1175-734-0511
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO
1175-751-08817
1175-751-08817
1175-751-08817
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO

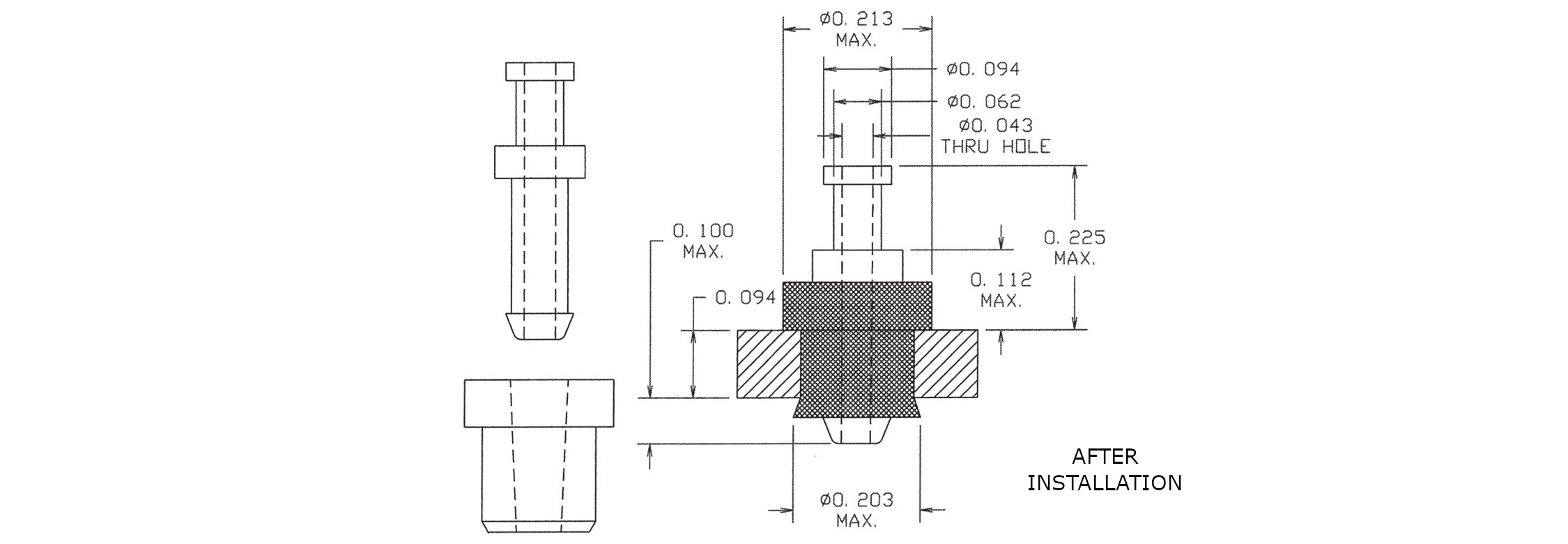

1175-763-0313
1175-763-0313
1175-763-0313
0.419" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Orange NO
