Commercial
Insulated
Pin Terminals

Filter
1107-08-08816
1107-08-08816
1107-08-08816
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Blue NO
1108-02-0312
1108-02-0312
1108-02-0312
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Gold - - PTFE Red NO

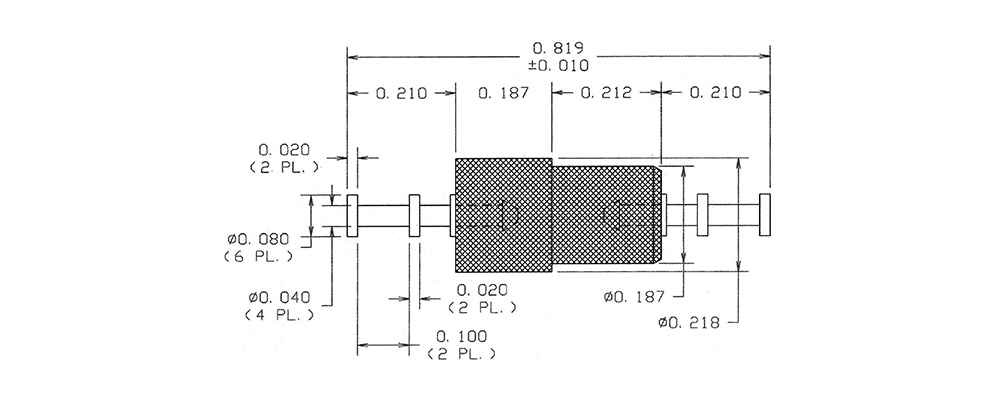

1108-06-0418
1108-06-0418
1108-06-0418
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Electro-Tin - - PTFE Gray NO
1110-02-0514
1110-02-0514
1110-02-0514
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Yellow NO
1110-07-0110
1110-07-0110
1110-07-0110
0.355" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Silver - - PTFE Black YES

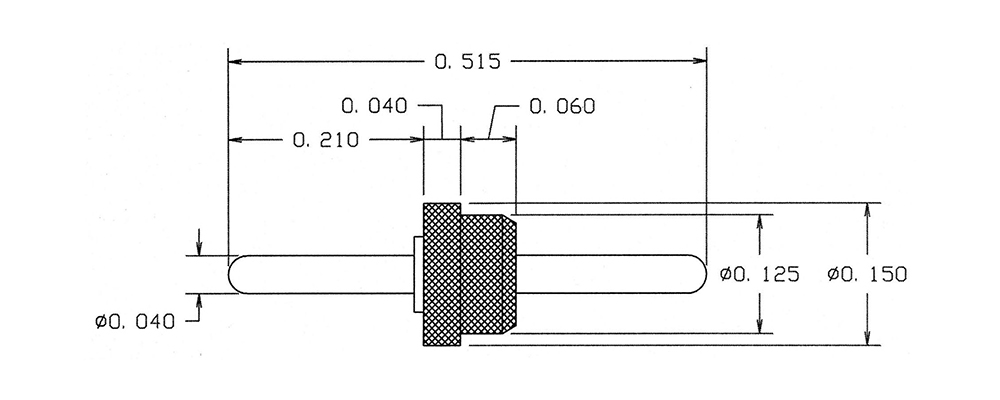

1110-11-0316
1110-11-0316
1110-11-0316
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Gold - - PTFE Blue YES
1110-16-04412
1110-16-04412
1110-16-04412
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Red NO
1110-20-0518
1110-20-0518
1110-20-0518
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Gray NO

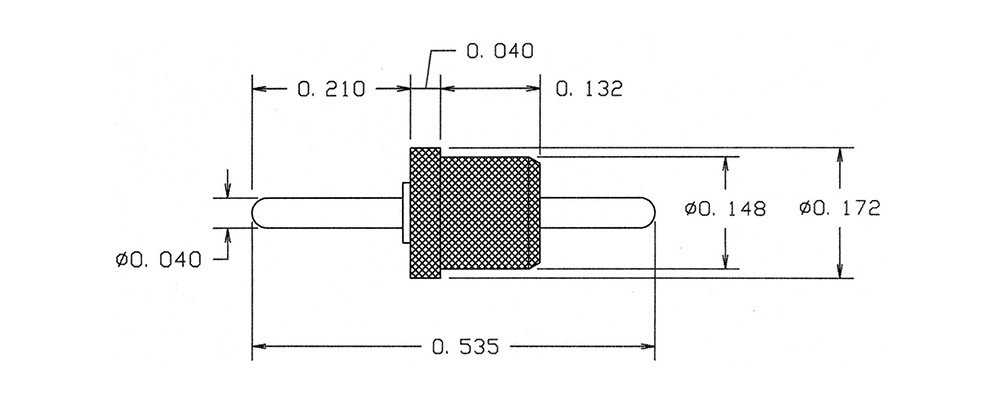

1110-25-0114
1110-25-0114
1110-25-0114
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Yellow NO

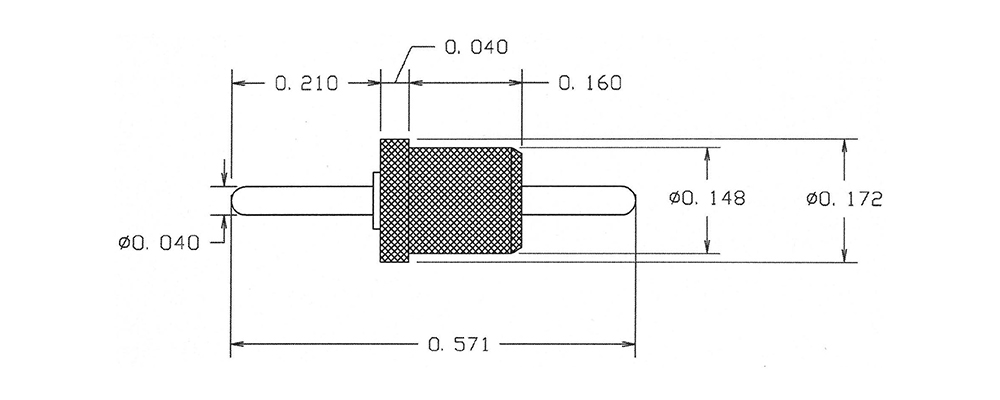

1110-29-0410
1110-29-0410
1110-29-0410
0.571" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Black YES
1110-33-04416
1110-33-04416
1110-33-04416
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1110-40-08812
1110-40-08812
1110-40-08812
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Red NO
1110-45-0118
1110-45-0118
1110-45-0118
2.500" 0.040 Pin/Pin Press Fit 1/16 0.156 Brass Silver - - PTFE Gray NO

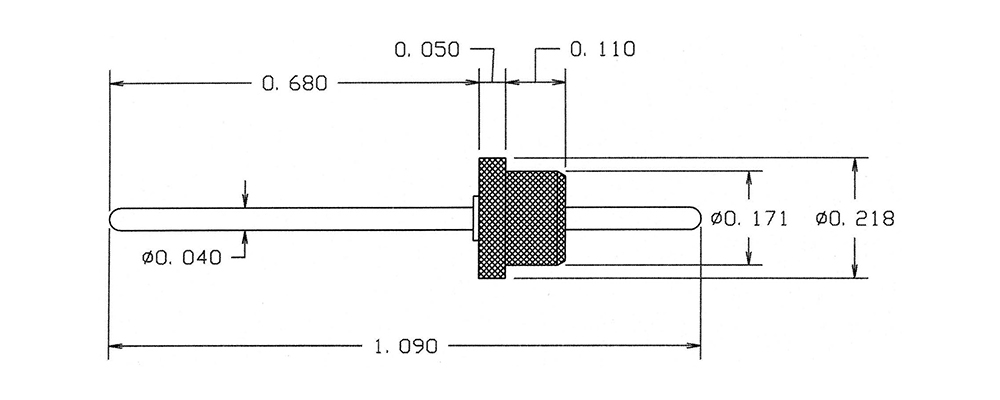

1110-49-0414
1110-49-0414
1110-49-0414
1.090" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Yellow NO
1110-55-0510
1110-55-0510
1110-55-0510
0.515" 0.040 Pin/Pin Press Fit 1/16 0.166 Brass Electro Solder - - PTFE Black NO
1110-61-08816
1110-61-08816
1110-61-08816
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Blue NO

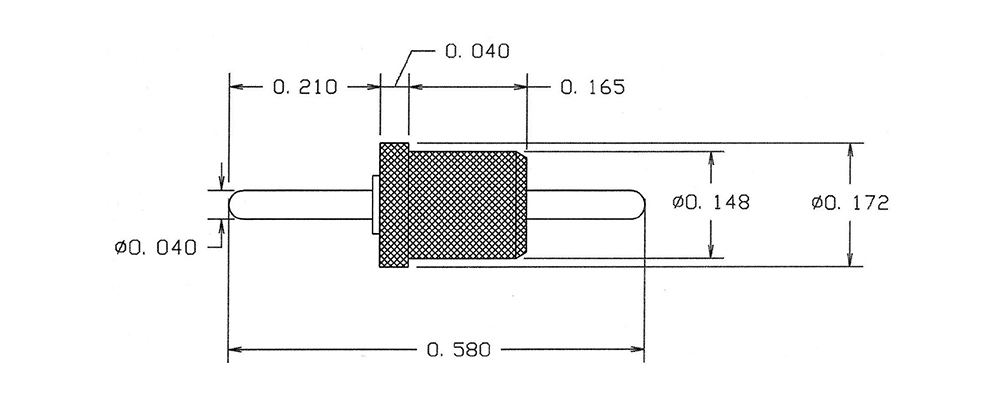

1110-67-0312
1110-67-0312
1110-67-0312
0.580" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Red NO

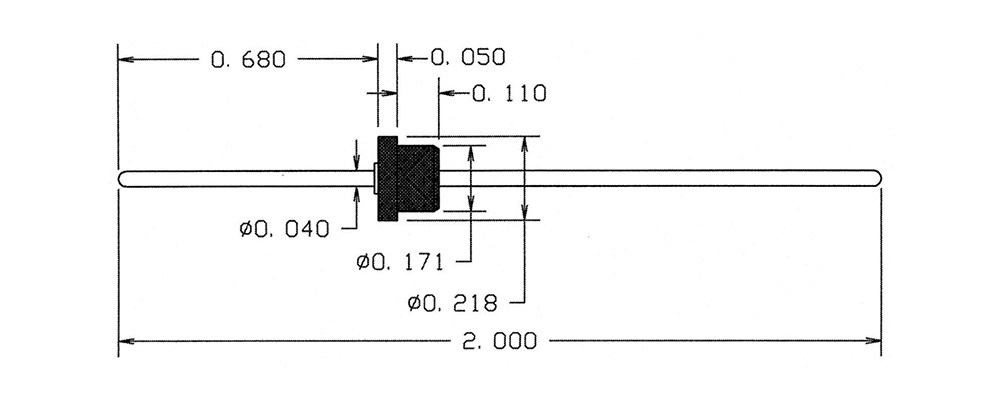

1110-71-0418
1110-71-0418
1110-71-0418
2.000" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Gray NO
1110-76-0514
1110-76-0514
1110-76-0514
0.450" 0.018 Pin/Pin Press Fit 1/32 0.054 Brass Electro Solder - - PTFE Yellow NO

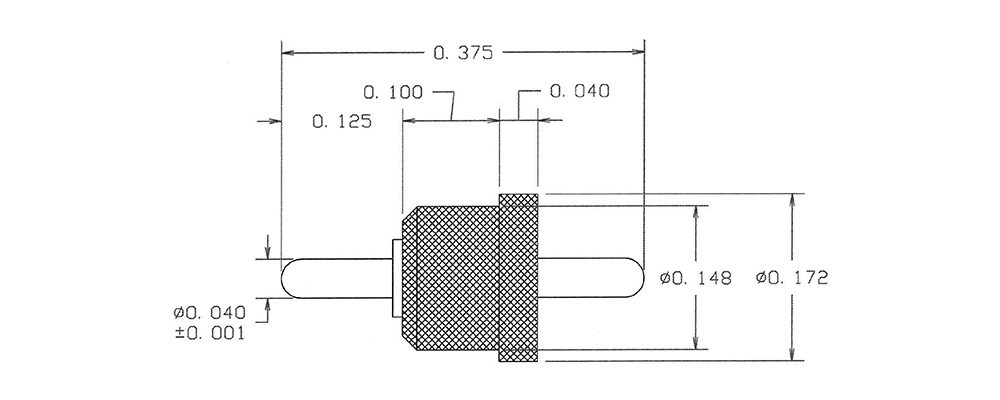

1110R-16-0110
1110R-16-0110
1110R-16-0110
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES
