Commercial
Insulated
Pin Terminals

Filter

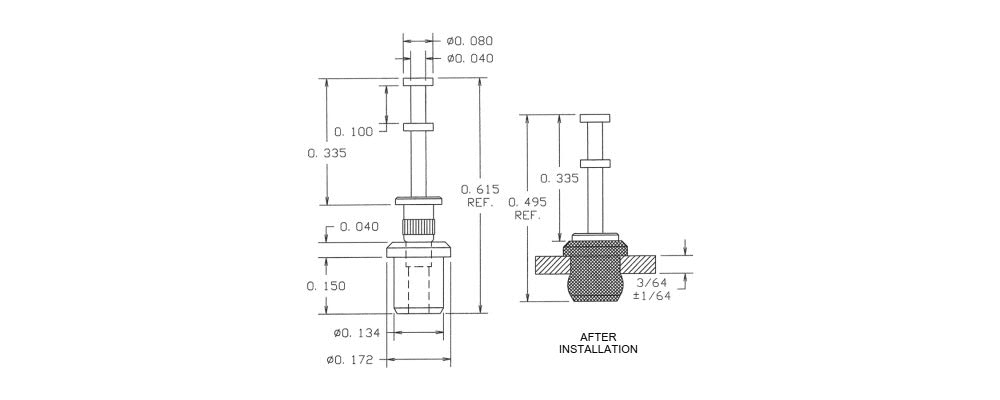

1177-13-04410
1177-13-04410
1177-13-04410
0.495" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1177-32-0516
1177-32-0516
1177-32-0516
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Blue NO

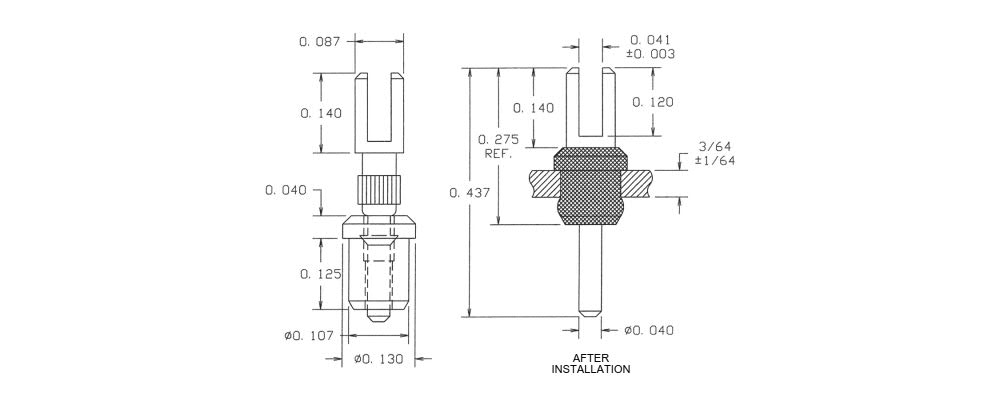

1177-42-0112
1177-42-0112
1177-42-0112
0.437" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Silver - - PTFE Red NO
1177-53-0318
1177-53-0318
1177-53-0318
0.656" 0.030 Pin/Pin PRESS LOCK 1/32 - 1/16 0.115 Brass Gold - - PTFE Gray NO

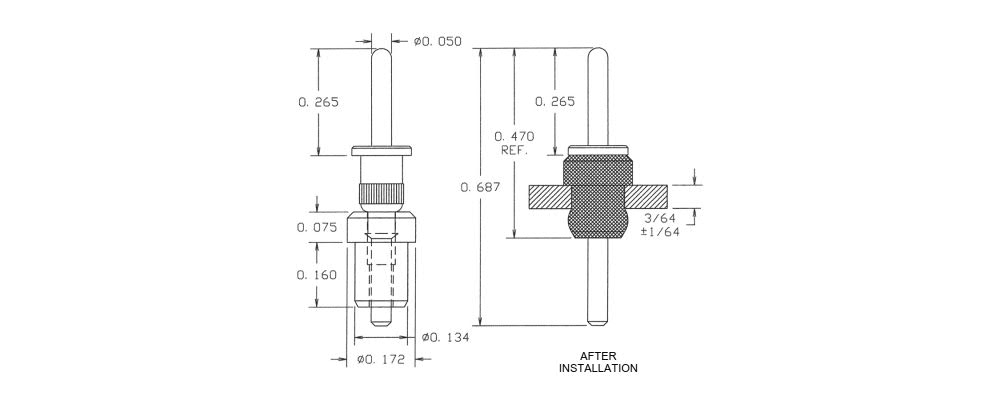

1177-57-04414
1177-57-04414
1177-57-04414
0.687" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1177-61-08810
1177-61-08810
1177-61-08810
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Bright Tin-Lead - - PTFE Black NO

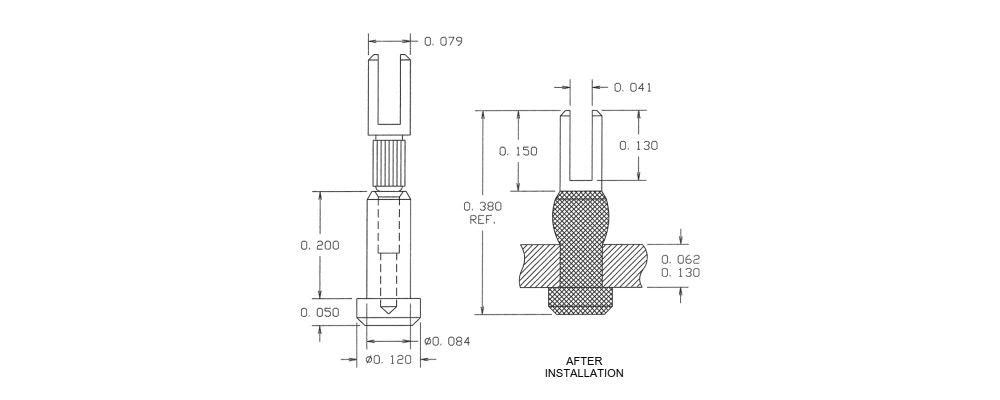

1178R-04-0116
1178R-04-0116
1178R-04-0116
0.380" - - PRESS LOCK 1/16 - 1/8 0.086 Brass Silver - - PTFE Blue YES

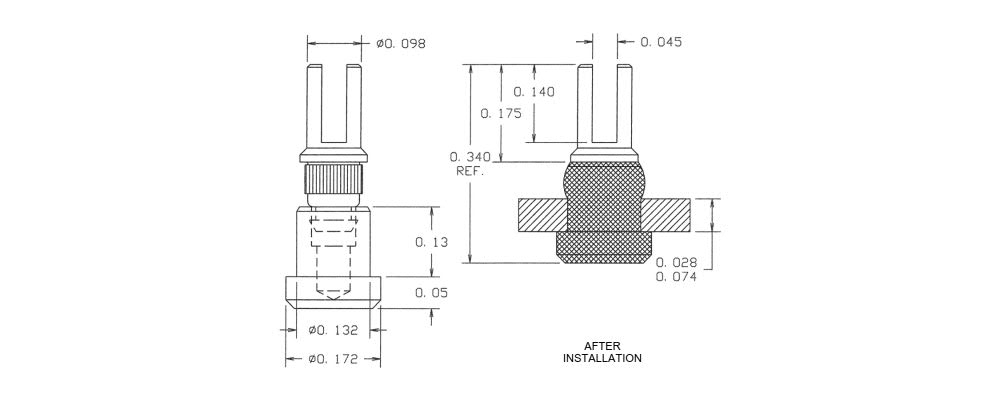

1178R-11-0412
1178R-11-0412
1178R-11-0412
0.340" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Electro-Tin - - PTFE Red NO
1178R-15-04418
1178R-15-04418
1178R-15-04418
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Bright Tin - - PTFE Gray NO
1102R-95-08814
1102R-95-08814
1102R-95-08814
0.812" - - Press Fit 13/64 0.297 Brass Bright Tin-Lead - - PTFE Yellow NO

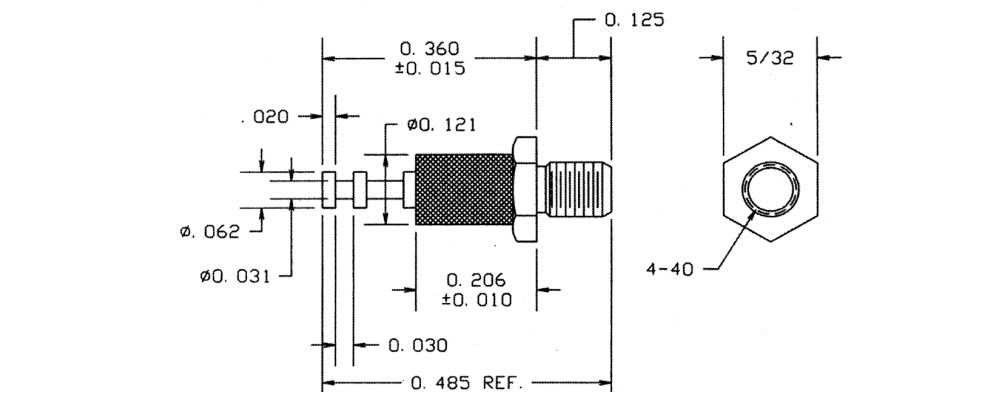

1125-03-0310
1125-03-0310
1125-03-0310
0.485" - - 4-40 1/8 4-40 THREAD Brass Gold Electro-Tin Brass PTFE Black YES
1125-07-0416
1125-07-0416
1125-07-0416
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Blue YES
1125-11-0512
1125-11-0512
1125-11-0512
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Red NO
1125-15-08818
1125-15-08818
1125-15-08818
0.578" - - 4-40 Nut 7/64 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Gray NO
1125-20-0314
1125-20-0314
1125-20-0314
0.885" - - 6-32 Nut 7/32 0.144 Brass Gold Electro-Tin Brass PTFE Yellow NO
1125-24-04410
1125-24-04410
1125-24-04410
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Bright Tin Electro-Tin Brass PTFE Black YES
1125-28-0516
1125-28-0516
1125-28-0516
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Electro Solder Electro-Tin Brass PTFE Blue NO

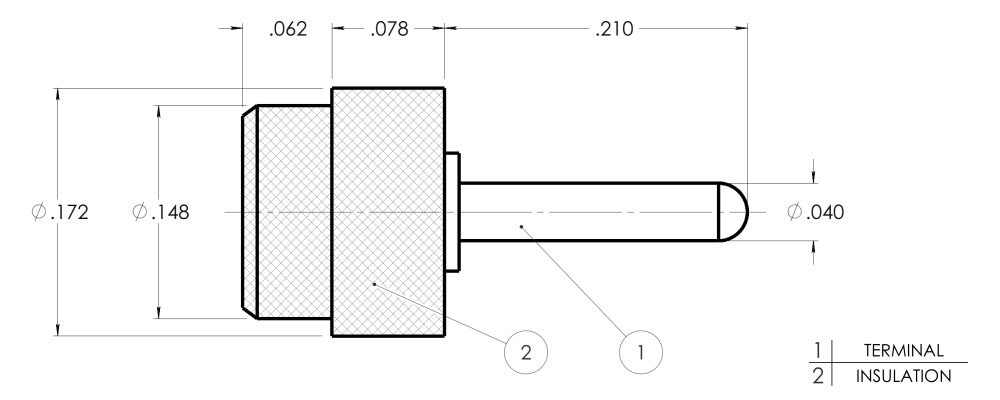

1100-29-0112
1100-29-0112
1100-29-0112
0.350" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Red NO

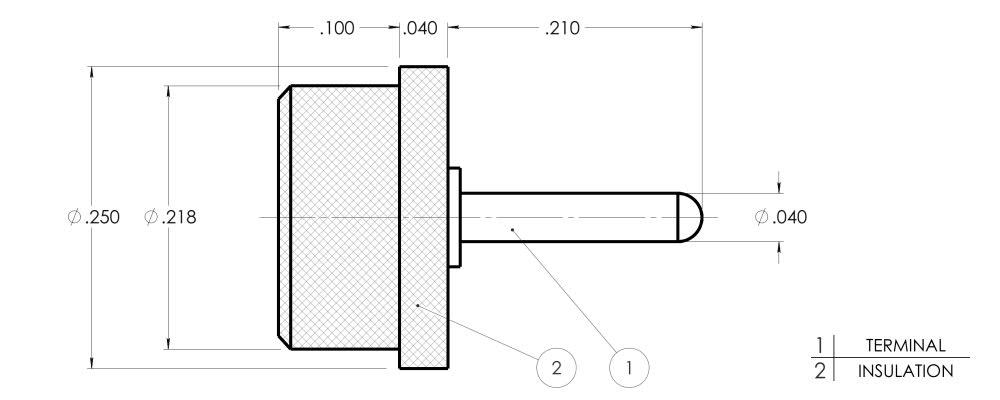

1100-49-0318
1100-49-0318
1100-49-0318
0.350" 0.040 - Press Fit 1/16 0.205 Brass Gold - - PTFE Gray NO

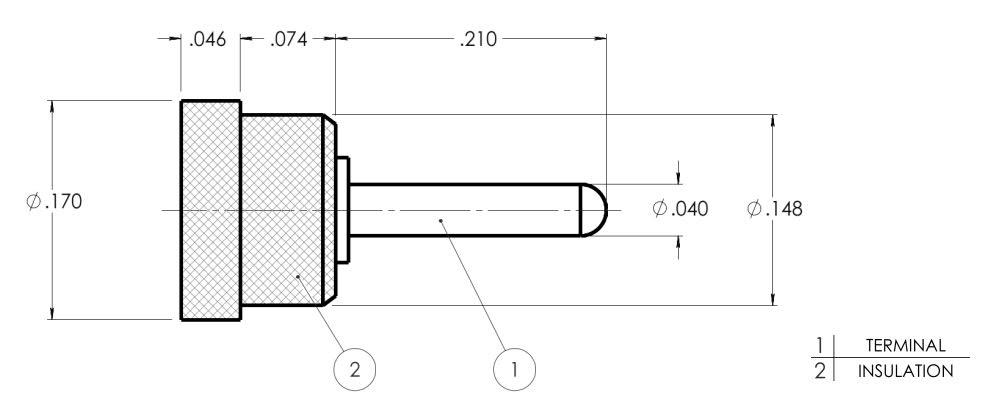

1100R-23A-04414
1100R-23A-04414
1100R-23A-04414
0.330" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Yellow NO
