Commercial
Insulated
Pin Terminals

Filter
1103R-08-0513
1103R-08-0513
1103R-08-0513
0.320" - - Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Orange NO
1104-04-08819
1104-04-08819
1104-04-08819
0.392" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO

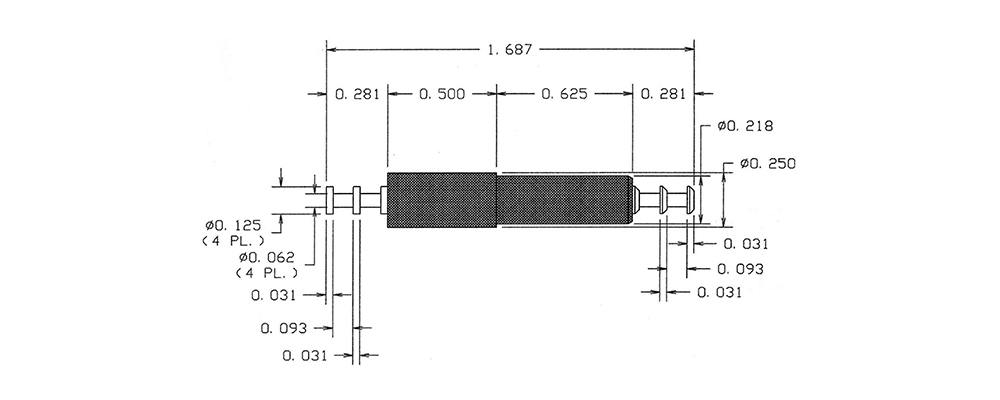

1105-02-0315
1105-02-0315
1105-02-0315
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE Green YES
1106-03-04411
1106-03-04411
1106-03-04411
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Brown NO
1106-07-0517
1106-07-0517
1106-07-0517
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Violet NO

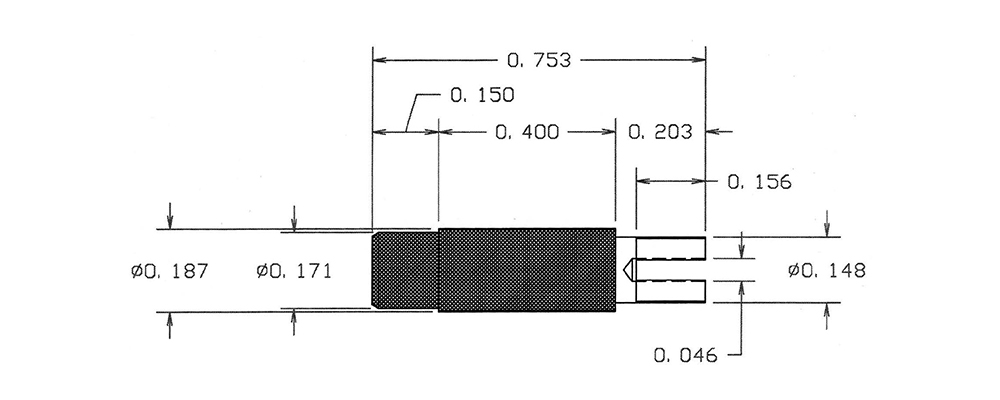

1106-12-0113
1106-12-0113
1106-12-0113
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Orange NO

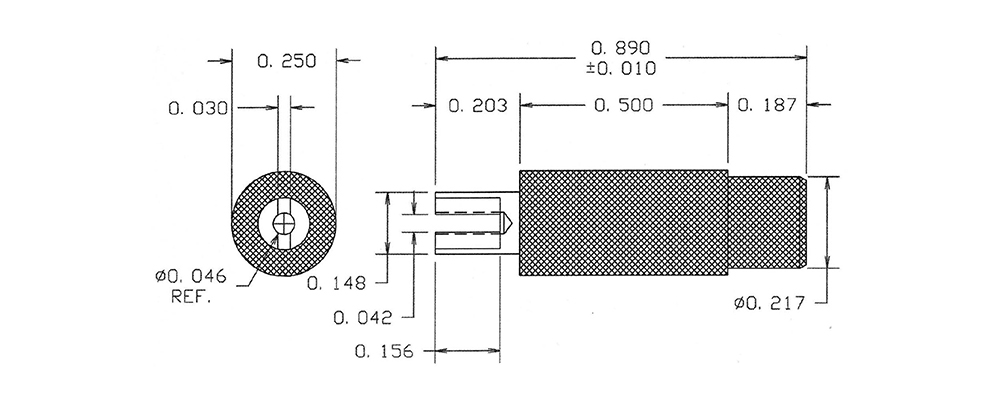

1106-16-0319
1106-16-0319
1106-16-0319
0.890" - - Press Fit 5/32 0.205 Brass Gold - - PTFE White YES
1106-22-04415
1106-22-04415
1106-22-04415
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Green YES

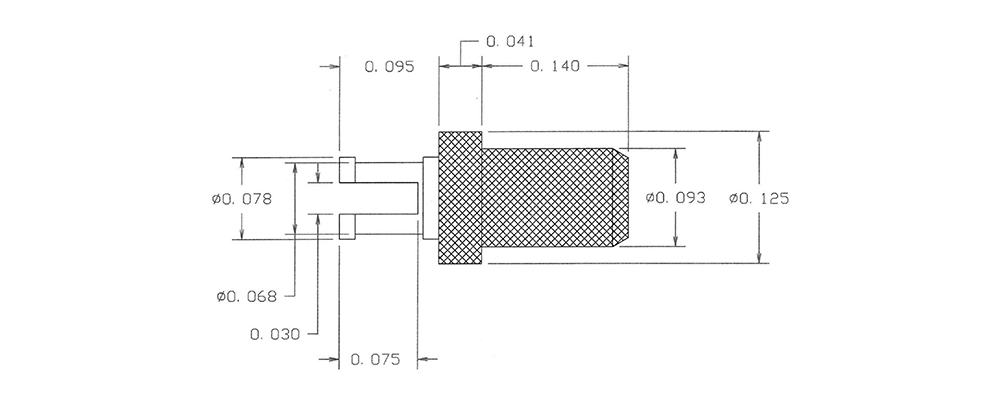

1106-52-08811
1106-52-08811
1106-52-08811
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin-Lead - - PTFE Brown NO

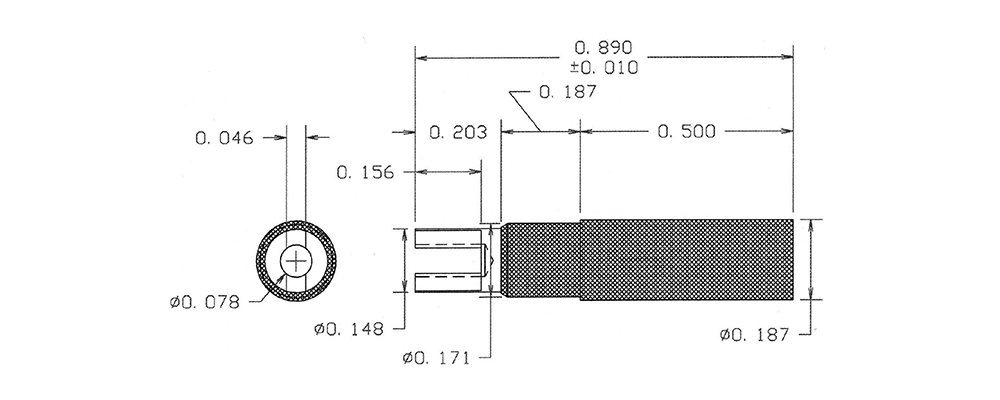

1106R-24-0117
1106R-24-0117
1106R-24-0117
0.890" - - Press Fit 5/32 0.158 Brass Silver - - PTFE Violet YES

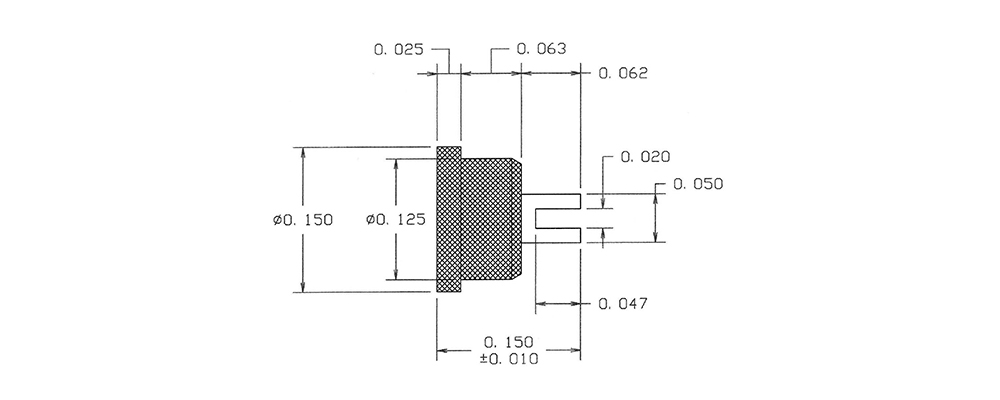

1106R-51-0413
1106R-51-0413
1106R-51-0413
0.150" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Orange NO

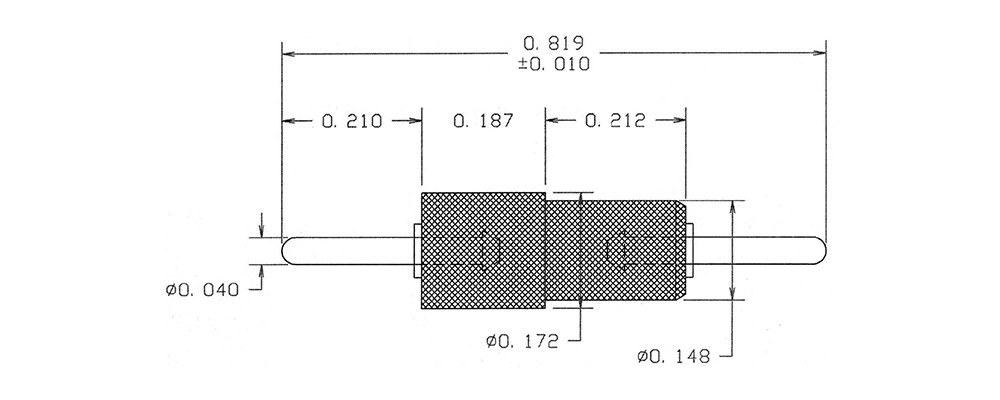

1107-03-04419
1107-03-04419
1107-03-04419
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE White YES
1107-08-08815
1107-08-08815
1107-08-08815
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Green NO

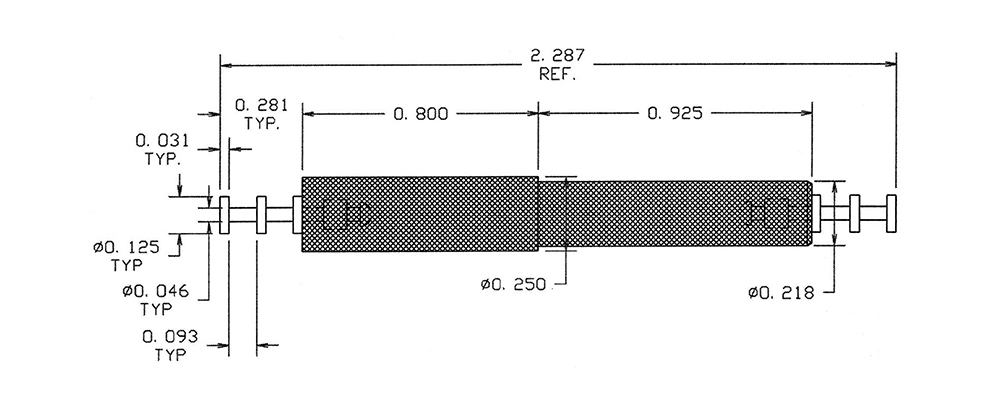

1108-02-0311
1108-02-0311
1108-02-0311
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Gold - - PTFE Brown NO

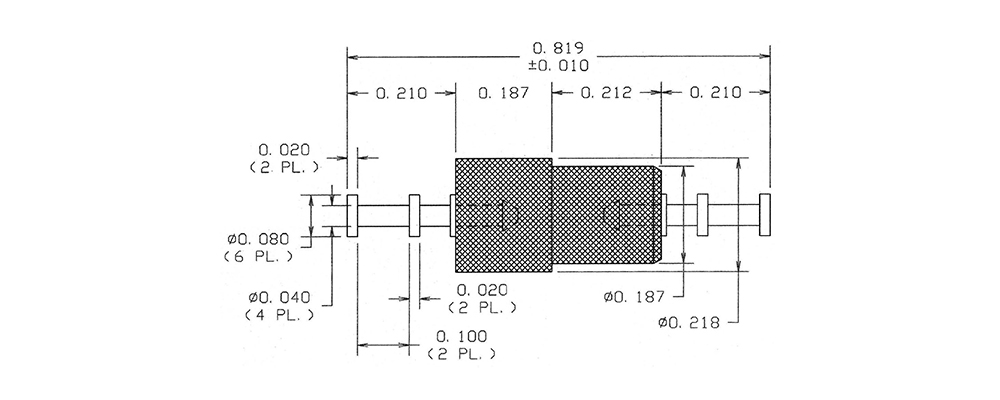

1108-06-0417
1108-06-0417
1108-06-0417
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Electro-Tin - - PTFE Violet YES
1110-02-0513
1110-02-0513
1110-02-0513
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Orange NO
1110-06-08819
1110-06-08819
1110-06-08819
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE White NO

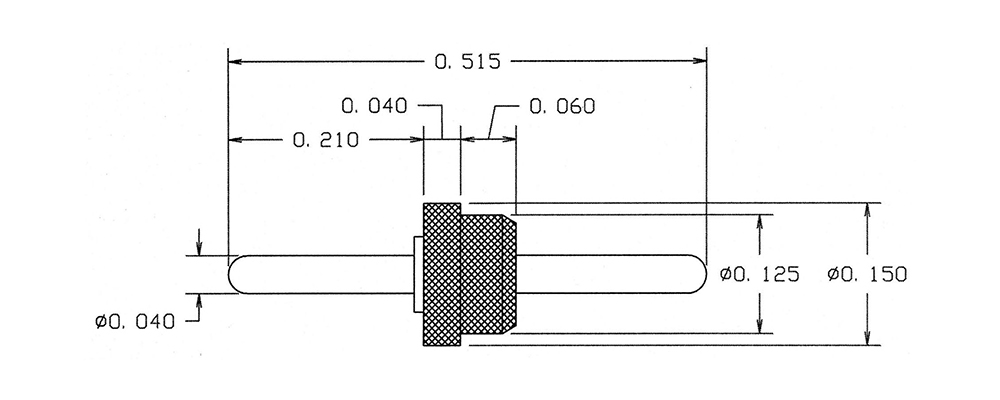

1110-11-0315
1110-11-0315
1110-11-0315
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Gold - - PTFE Green YES
1110-16-04411
1110-16-04411
1110-16-04411
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1110-20-0517
1110-20-0517
1110-20-0517
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Violet NO
