Commercial
Insulated
Pin Terminals

Filter
1155-02-0310
1155-02-0310
1155-02-0310
0.510" - - Press Fit Up to 3/16 0.204 Brass Gold - - PTFE Black YES

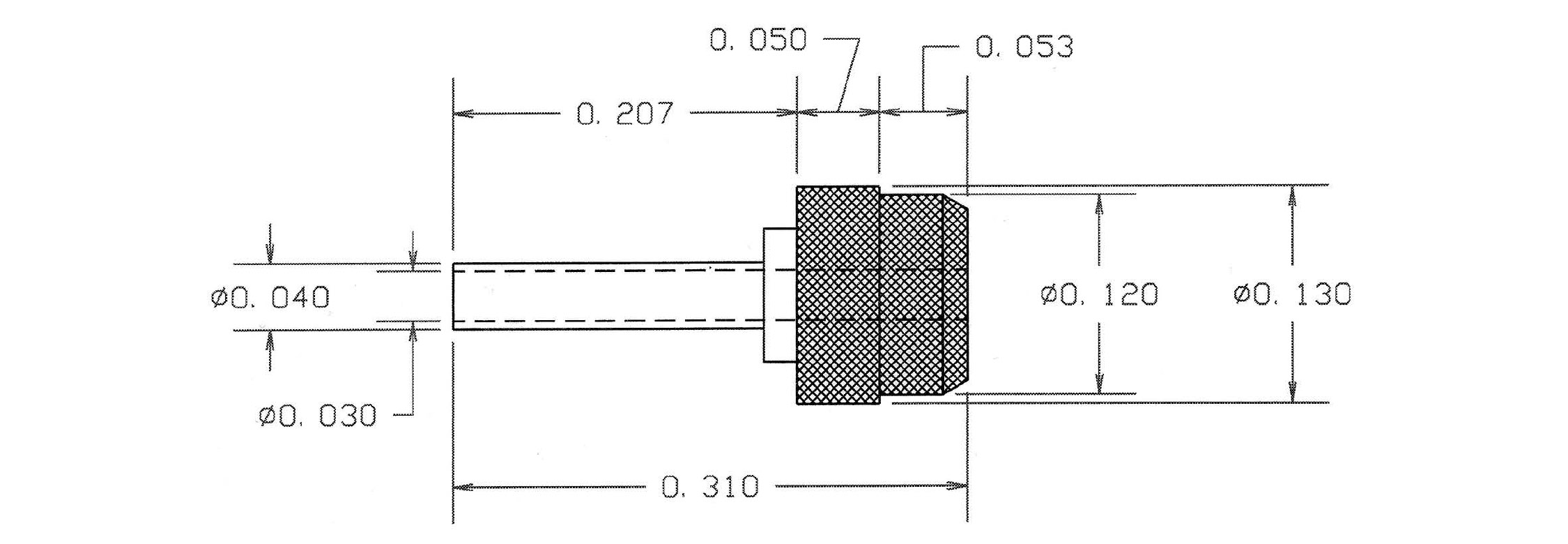

1155-13-0416
1155-13-0416
1155-13-0416
0.310" 0.040 - Press Fit 1/64 0.108 Brass Electro-Tin - - PTFE Blue YES
1156-02-0512
1156-02-0512
1156-02-0512
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Red NO
1156-07-08818
1156-07-08818
1156-07-08818
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1156-15-0314
1156-15-0314
1156-15-0314
1.061" 0.050 DOUBLE TURRET/PIN Press Fit 7/32 0.158 Brass Gold - - PTFE Yellow NO
1156-19-04410
1156-19-04410
1156-19-04410
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Black YES
1156R-01-0516
1156R-01-0516
1156R-01-0516
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Blue NO

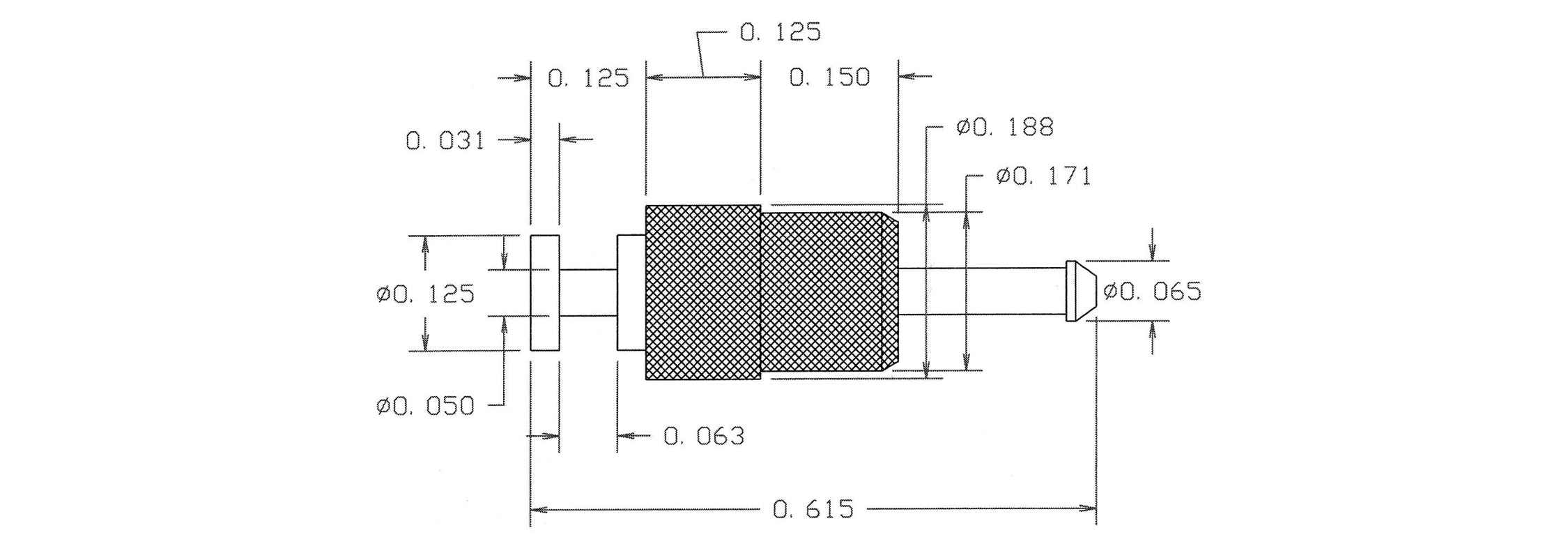

1157-03-0112
1157-03-0112
1157-03-0112
0.615" 0.050 TURRET/PIN Press Fit 1/8 0.158 Brass Silver - - PTFE Red NO
1157-07-0318
1157-07-0318
1157-07-0318
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Gold - - PTFE Gray NO
1157R-05-04414
1157R-05-04414
1157R-05-04414
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Bright Tin - - PTFE Yellow NO
1160-13-08810
1160-13-08810
1160-13-08810
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1167-24-0116
1167-24-0116
1167-24-0116
0.781" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES

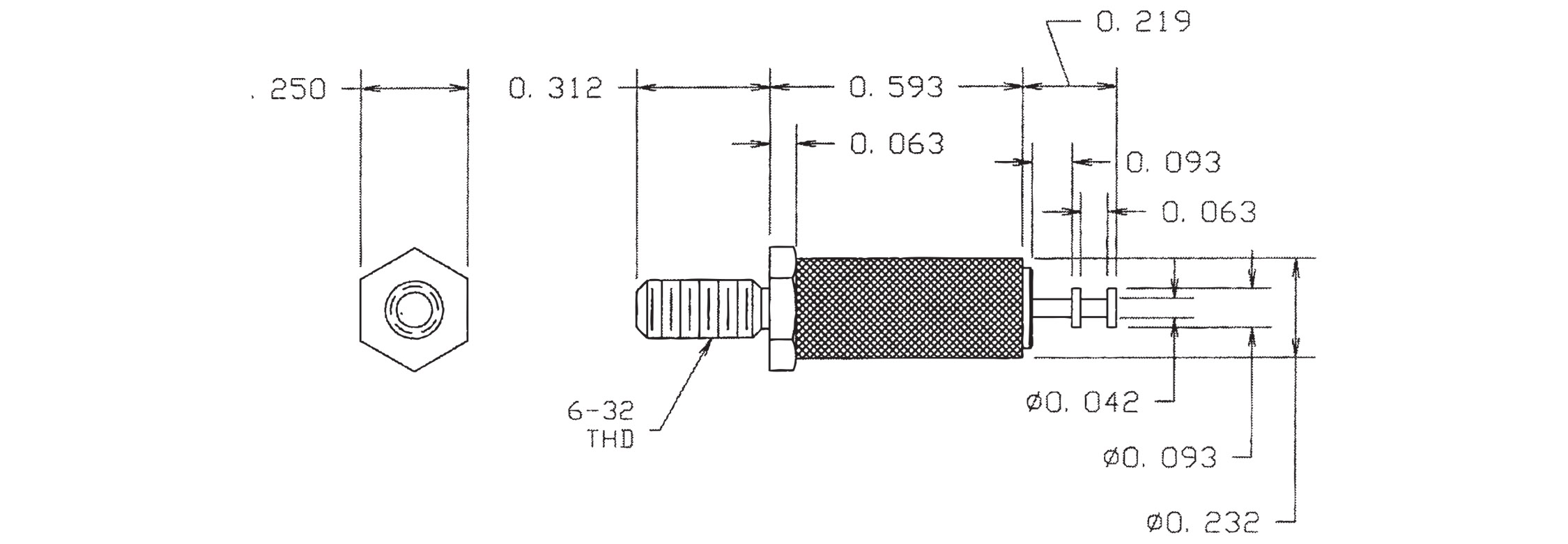

1167-75-0412
1167-75-0412
1167-75-0412
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES
1169-30-04418
1169-30-04418
1169-30-04418
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1169-37-08814
1169-37-08814
1169-37-08814
0.750" - - 4-40 Nut 1/8 0.120 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Yellow NO
1170-08-07510
1170-08-07510
1170-08-07510
1.000" - - 6-32 Nut Up to 1/4 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Black YES

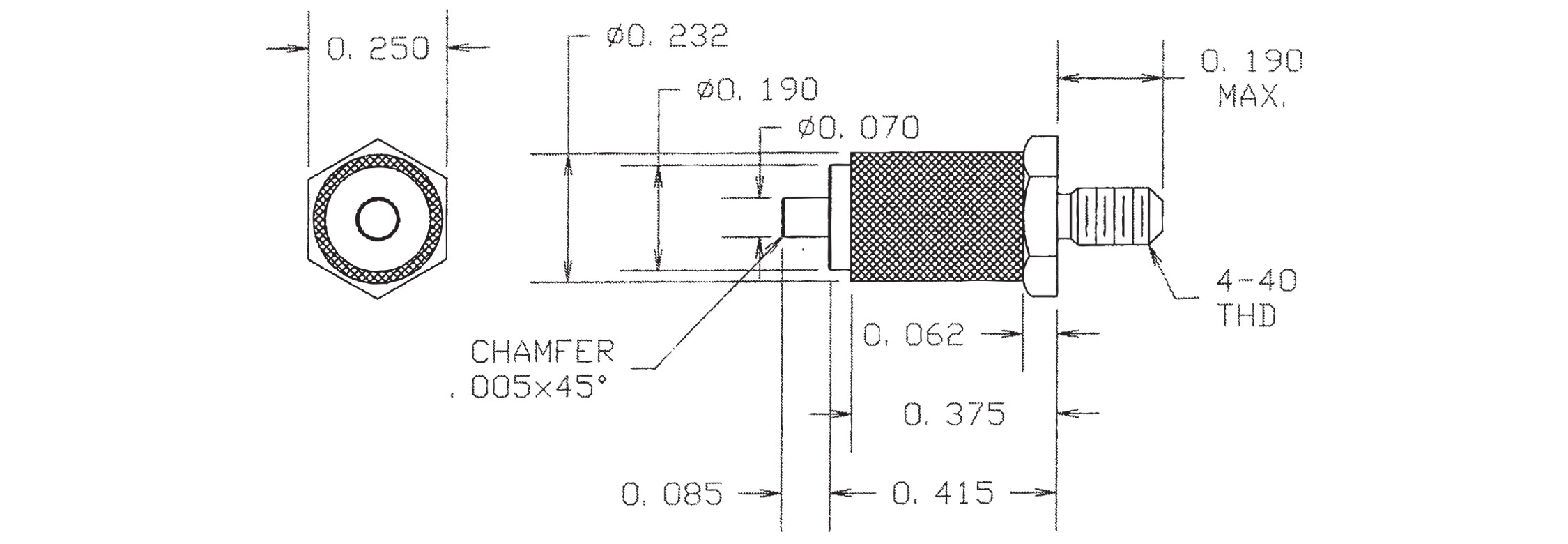

1170-23-0116
1170-23-0116
1170-23-0116
0.500" 0.070 - 4-40 Nut 1/16 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES

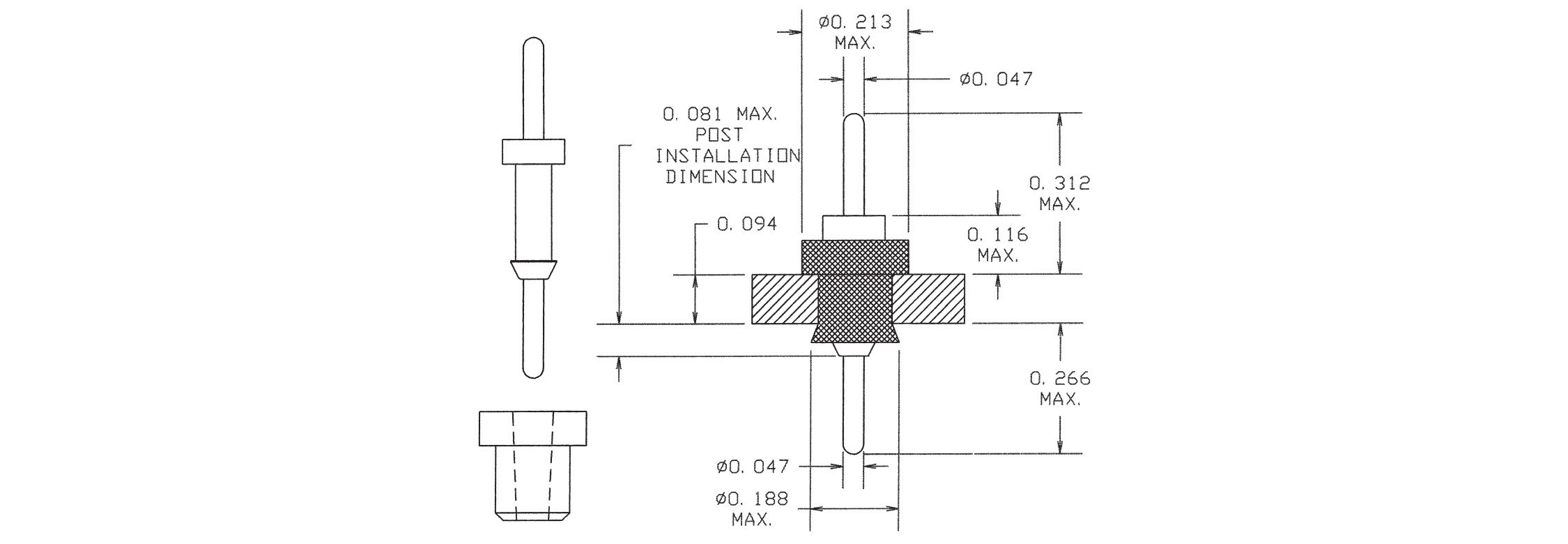

1175-013-0412
1175-013-0412
1175-013-0412
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Red NO
1175-301-04418
1175-301-04418
1175-301-04418
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Gray NO
1175-351-08814
1175-351-08814
1175-351-08814
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO
