Commercial
Insulated
Pin Terminals

Filter
1127-35-04410
1127-35-04410
1127-35-04410
0.719" - - Swage Mount 3/32 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Black YES
1127-39-0516
1127-39-0516
1127-39-0516
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Blue NO
1127-44-0112
1127-44-0112
1127-44-0112
1.094" - - 6-32 Nut Up to 1/4 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Red YES
1127-48-0318
1127-48-0318
1127-48-0318
0.875" - - Swage Mount 1/8 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE Gray YES
1127-52-04414
1127-52-04414
1127-52-04414
0.875" - - Swage Mount 1/8 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-57-08810
1127-57-08810
1127-57-08810
0.579" - - 2-56 Nut 1/16 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO

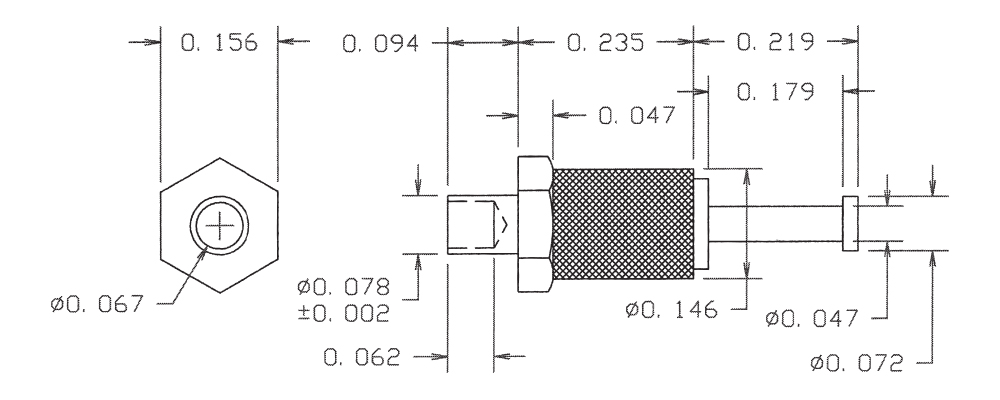

1127-62-0116
1127-62-0116
1127-62-0116
0.548" - - Swage Mount 1/16 0.082 Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES
1127-66-0412
1127-66-0412
1127-66-0412
0.454" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES
1127-70-04418
1127-70-04418
1127-70-04418
0.844" - - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Gray YES

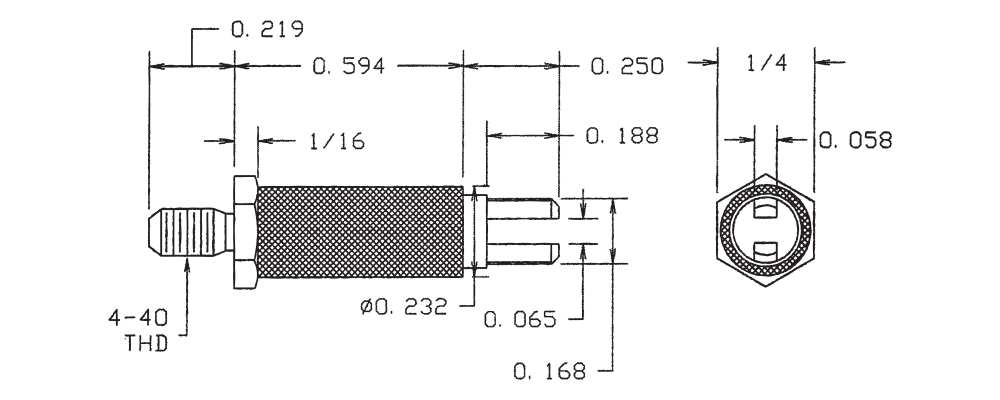

1127-74-08814
1127-74-08814
1127-74-08814
1.000" - - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Yellow NO
1127-79-0310
1127-79-0310
1127-79-0310
0.719" - - Swage Mount 1/16 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Black YES
1127-83-0416
1127-83-0416
1127-83-0416
0.625" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Blue YES

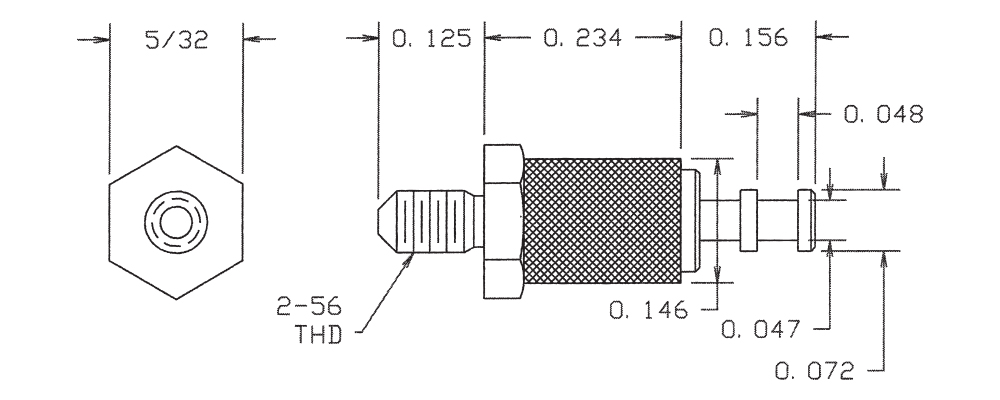

1127-87-0512
1127-87-0512
1127-87-0512
0.515" - - 2-56 Nut 1/32 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Red NO

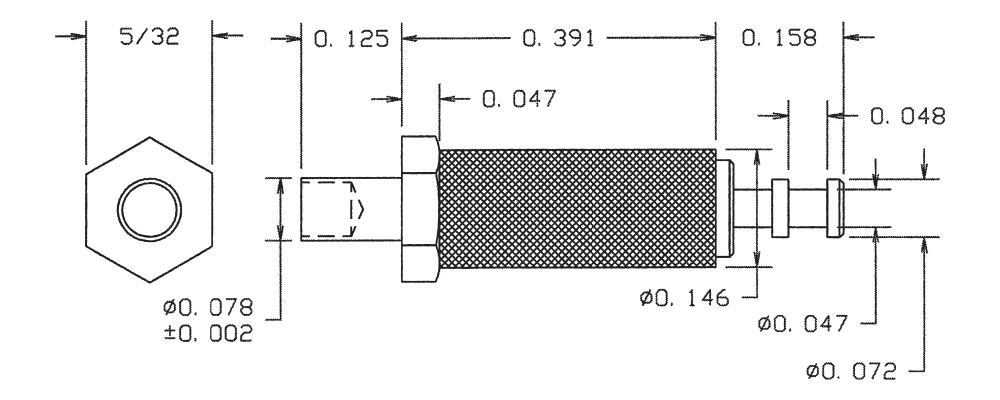

1127-91-08818
1127-91-08818
1127-91-08818
0.674" - - Swage Mount 3/32 0.082 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Gray NO
1129-01-0314
1129-01-0314
1129-01-0314
1.000" 0.030 TURRET/PIN Press Fit Up to 1/4 0.205 Brass Gold - - PTFE Yellow NO
1130-02-04410
1130-02-04410
1130-02-04410
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Bright Tin - - PTFE Black YES
1130-07-0516
1130-07-0516
1130-07-0516
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Blue NO

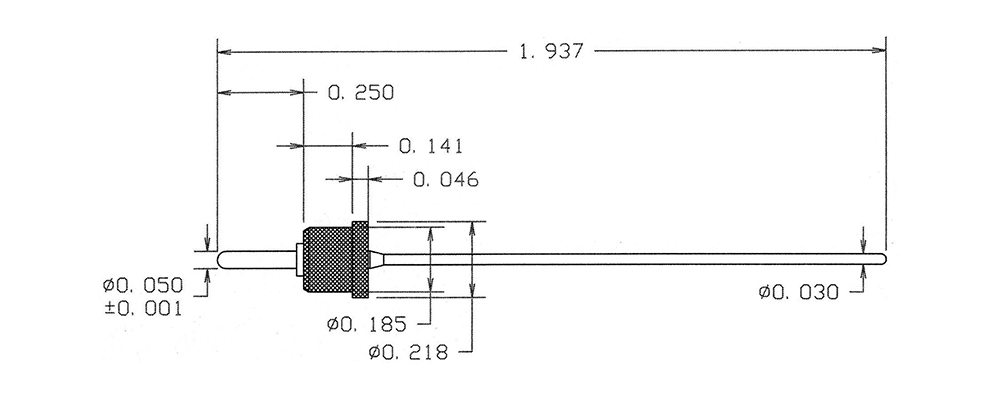

1130R-06-0112
1130R-06-0112
1130R-06-0112
1.937" (0.030)/(0.050) Pin/Pin Press Fit 3/32 0.172 Brass Silver - - PTFE Red NO

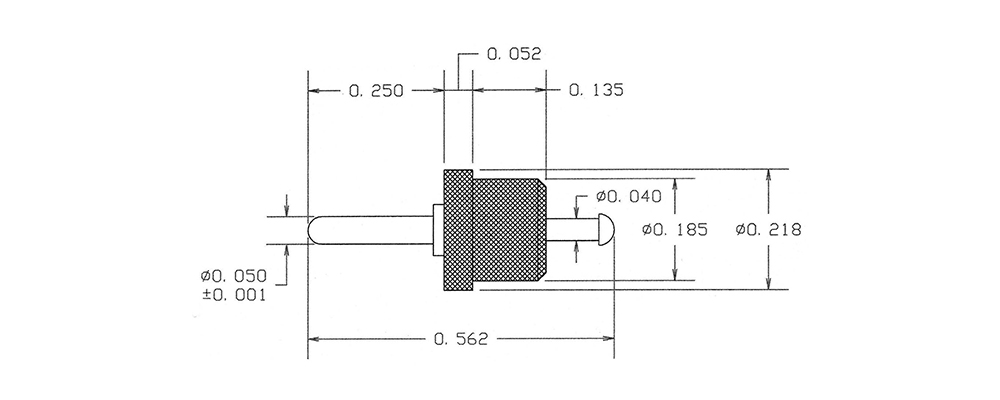

1131-03-0318
1131-03-0318
1131-03-0318
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Gold - - PTFE Gray NO

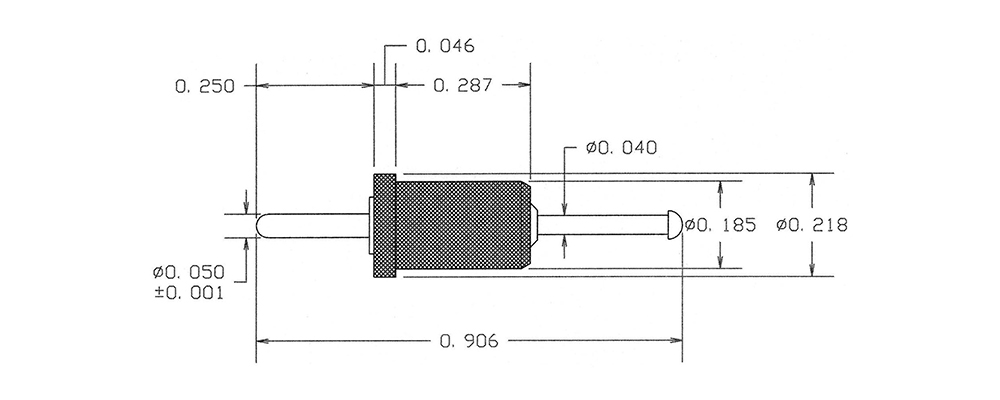

1131-07-04414
1131-07-04414
1131-07-04414
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Yellow NO
