Commercial
Insulated
Pin Terminals

Filter
1175-373-0310
1175-373-0310
1175-373-0310
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Black YES
1175-404-0416
1175-404-0416
1175-404-0416
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Blue YES

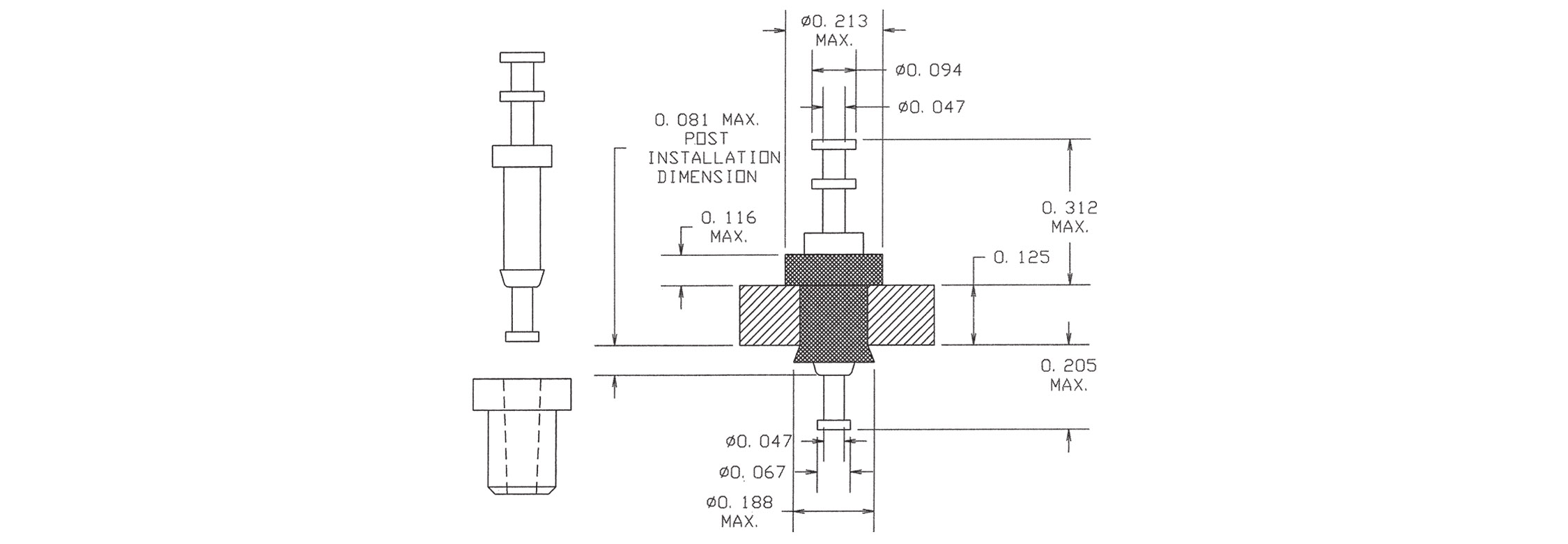

1175-414-0512
1175-414-0512
1175-414-0512
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO
1175-424-08818
1175-424-08818
1175-424-08818
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO

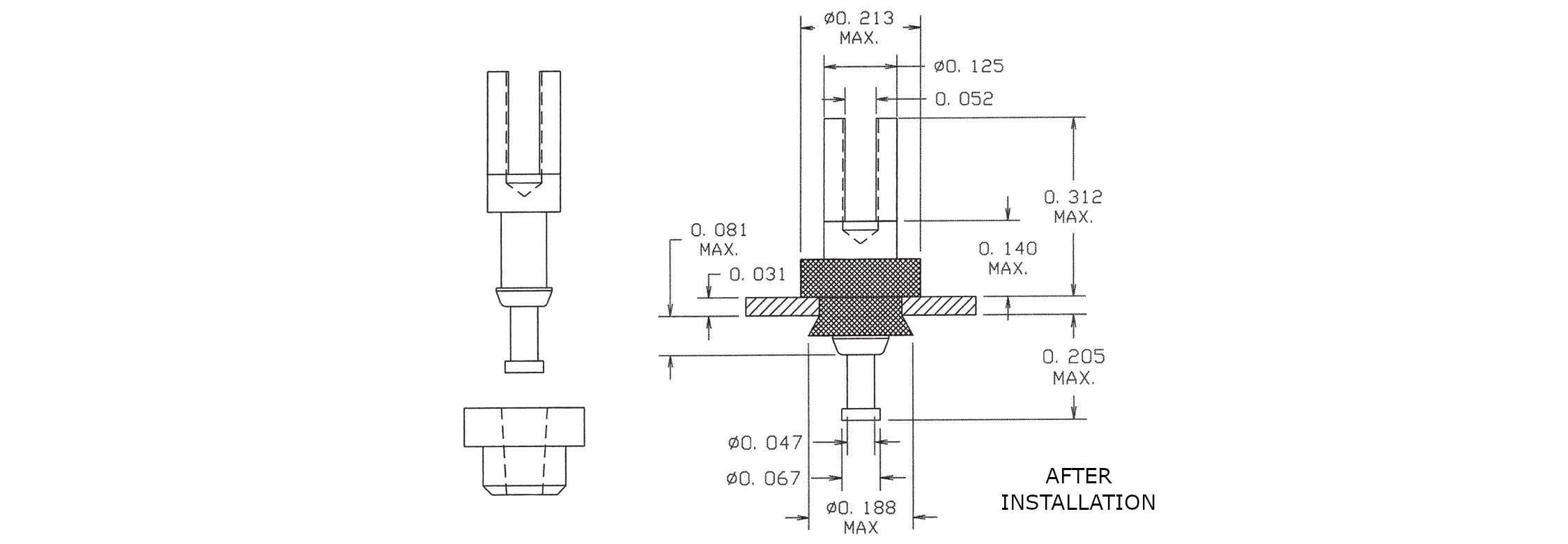

1175-441-0314
1175-441-0314
1175-441-0314
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO

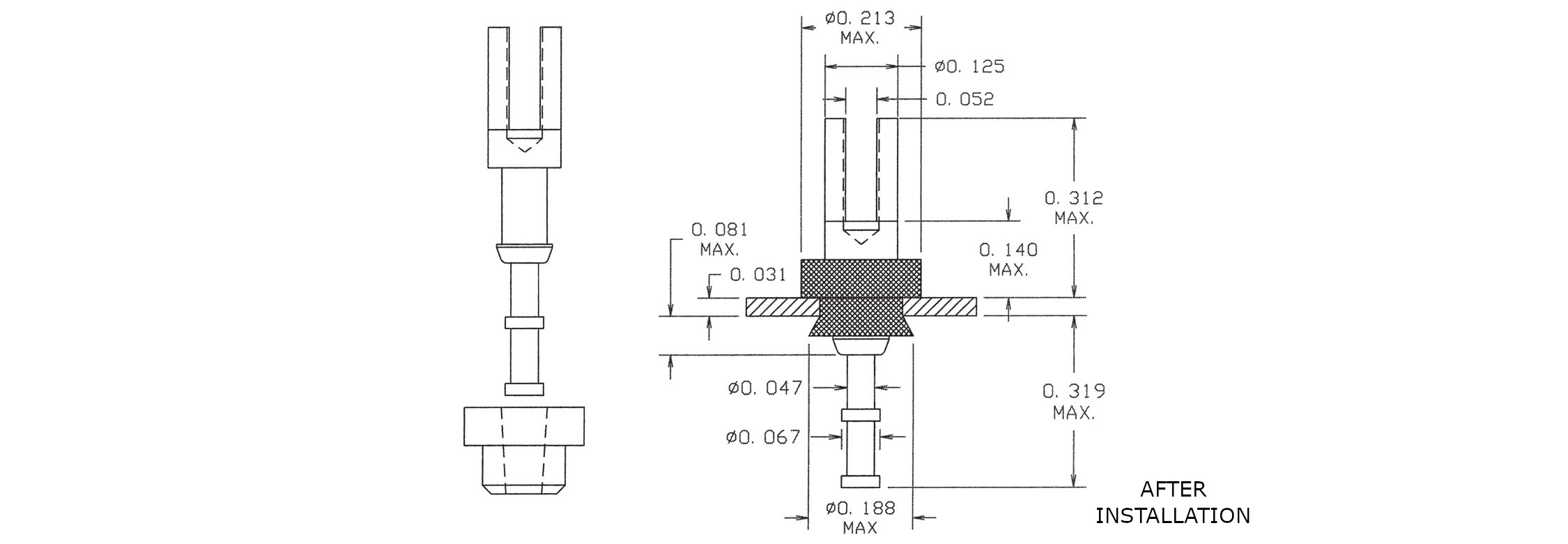

1175-451-04410
1175-451-04410
1175-451-04410
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES
1175-462-0516
1175-462-0516
1175-462-0516
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO

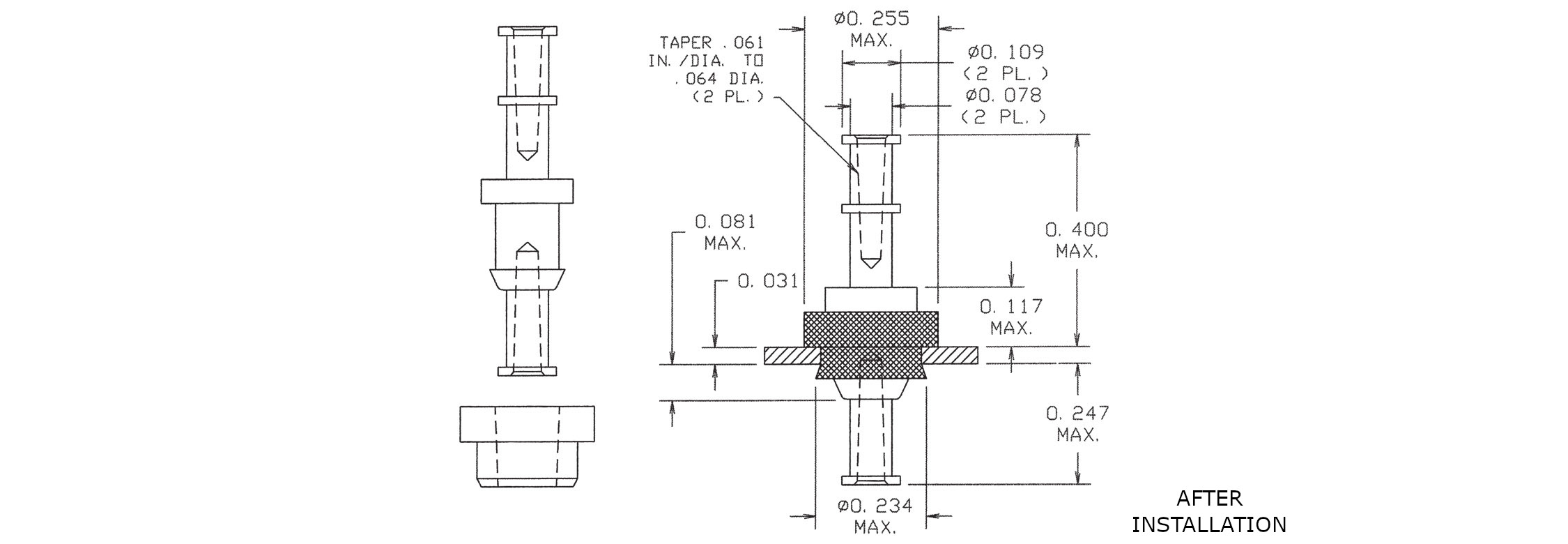

1175-481-0112
1175-481-0112
1175-481-0112
0.678" - DOUBLE Turret/Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Silver - - PTFE Red NO

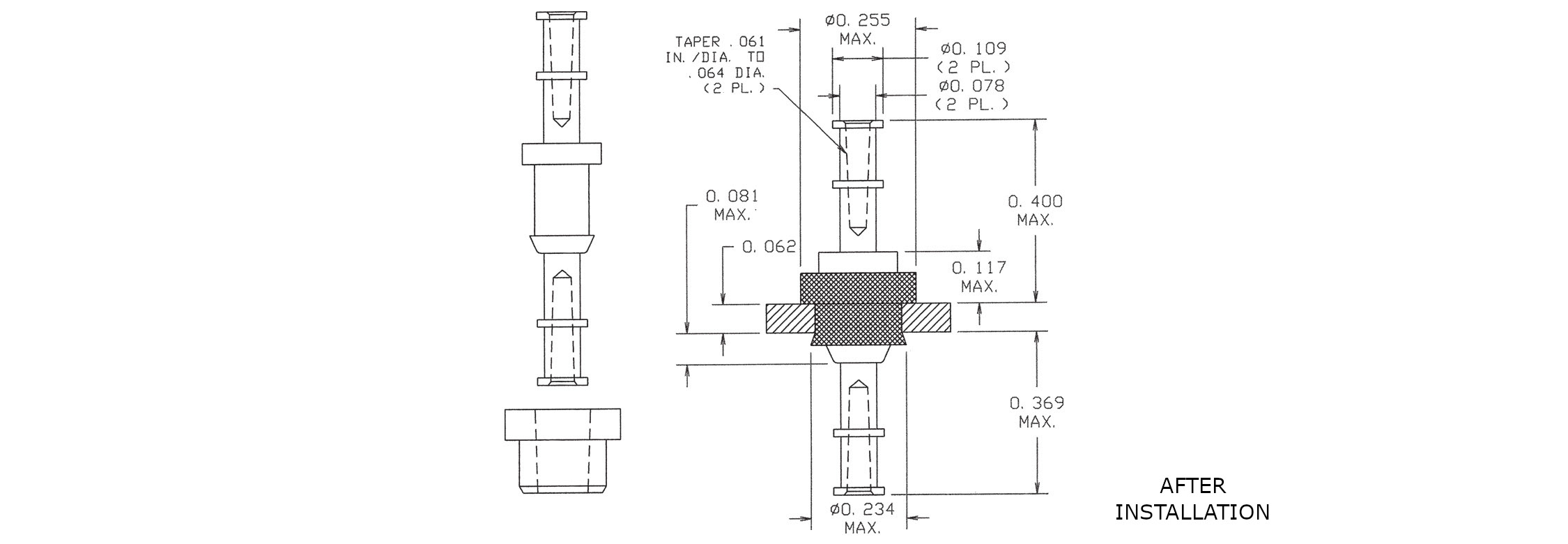

1175-492-0318
1175-492-0318
1175-492-0318
0.831" - Double Turret/Double Turret PRESS LOCK 1/16 0.188 (+0.003/-0.001) Brass Gold - - PTFE Gray NO
1175-601-04414
1175-601-04414
1175-601-04414
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Yellow NO
1175-702-08810
1175-702-08810
1175-702-08810
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Black NO
1175-713-0116
1175-713-0116
1175-713-0116
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Blue YES
1175-723-0412
1175-723-0412
1175-723-0412
0.725" - Double Turret/Double Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Red NO

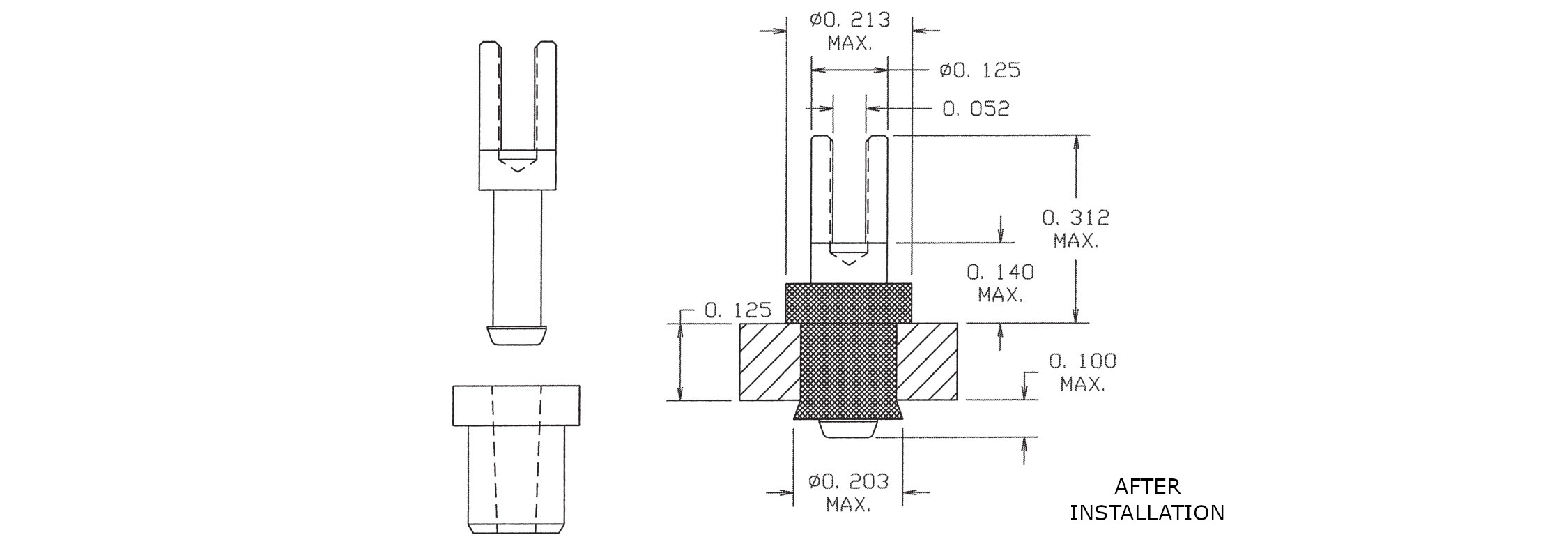

1175-734-04418
1175-734-04418
1175-734-04418
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Gray NO
1175-751-08814
1175-751-08814
1175-751-08814
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO

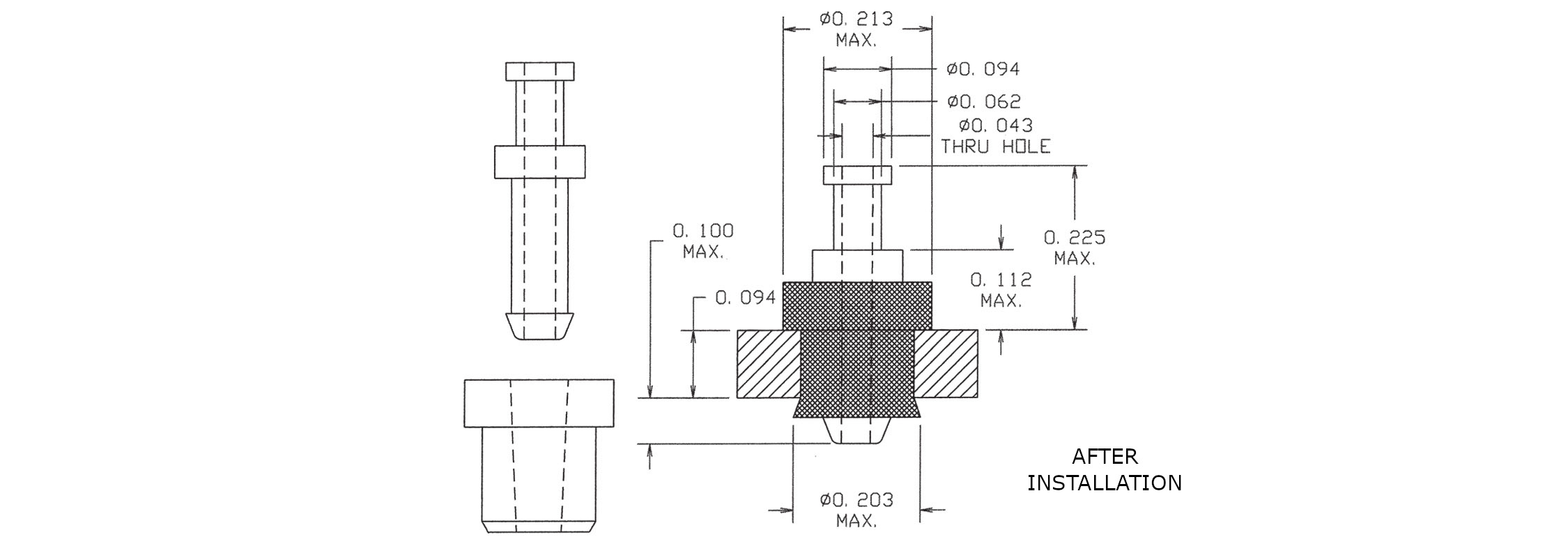

1175-763-0310
1175-763-0310
1175-763-0310
0.419" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Black YES
1175-822-0416
1175-822-0416
1175-822-0416
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE Blue YES

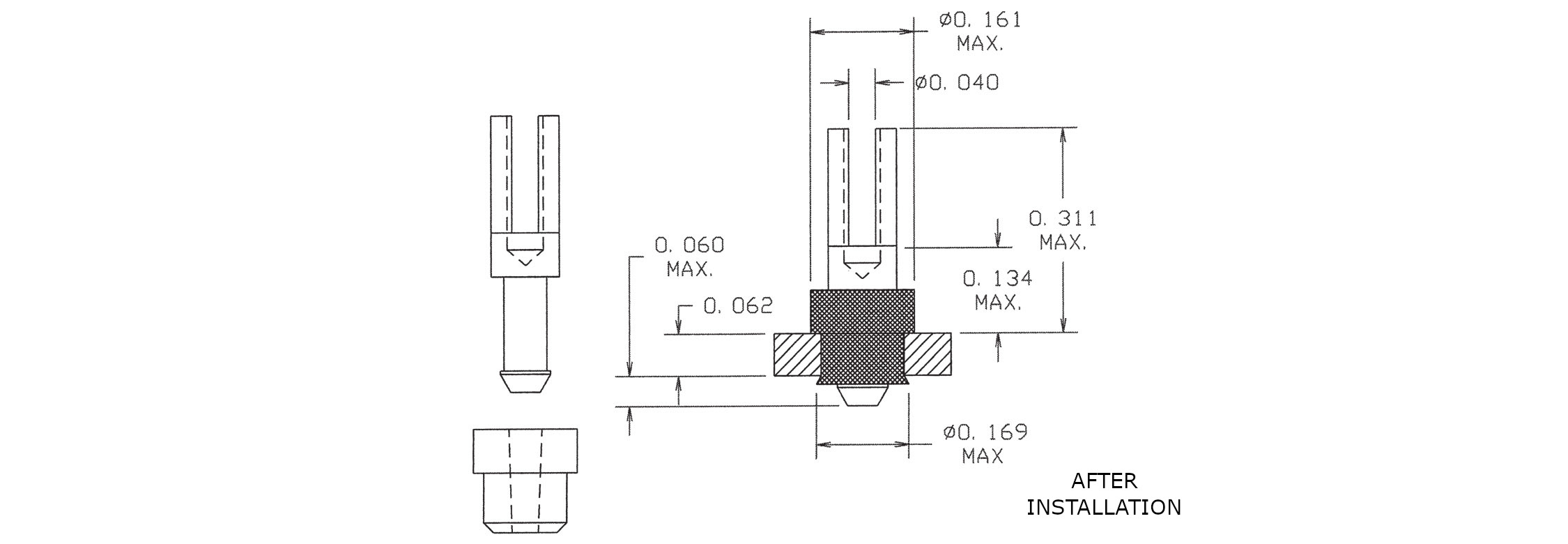

1175-842-0512
1175-842-0512
1175-842-0512
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO
1175-872-08818
1175-872-08818
1175-872-08818
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO

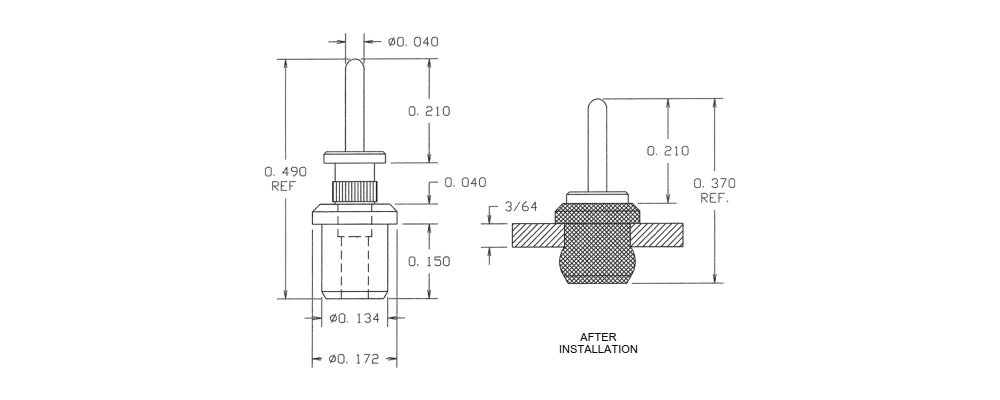

1177-03-0314
1177-03-0314
1177-03-0314
0.370" 0.040 - PRESS LOCK 1/32 - 1/16 0.136 Brass Gold - - PTFE Yellow NO
