Commercial
Insulated
Pin Terminals

Filter
1123R-75-0517
1123R-75-0517
1123R-75-0517
0.426" - - Press Fit 1/8 0.172 Brass Electro Solder - - PTFE Violet NO

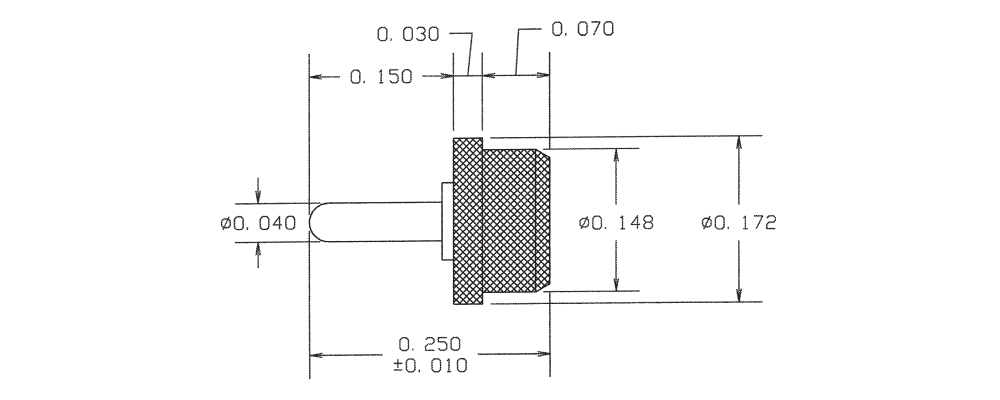

1100-19-0117
1100-19-0117
1100-19-0117
0.250" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Violet YES

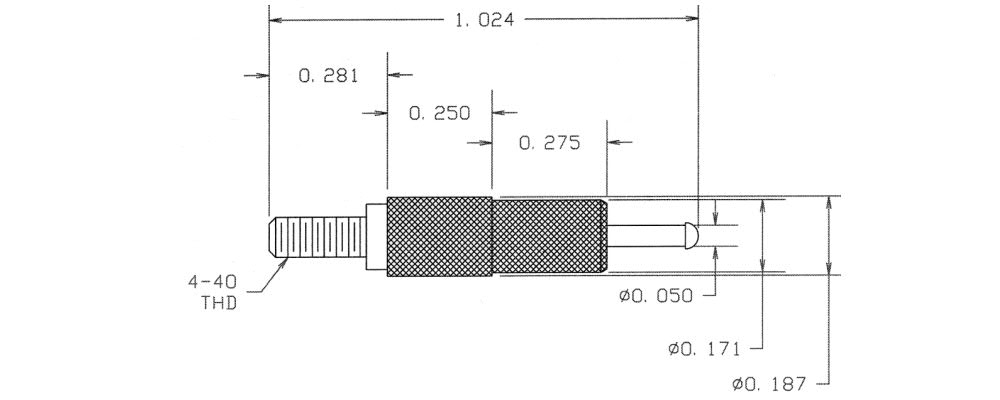

1124-11-0113
1124-11-0113
1124-11-0113
1.024" 0.050 THREAD/TIP Press Fit Up to 1/4 0.158 Brass Silver - - PTFE Orange NO
1100-24-0413
1100-24-0413
1100-24-0413
0.335" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Orange NO
1153-12-0319
1153-12-0319
1153-12-0319
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE White YES
1100-34-04419
1100-34-04419
1100-34-04419
0.410" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE White YES
1110-95-04415
1110-95-04415
1110-95-04415
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Green YES
1100-43-08815
1100-43-08815
1100-43-08815
0.485" 0.040 - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Green NO

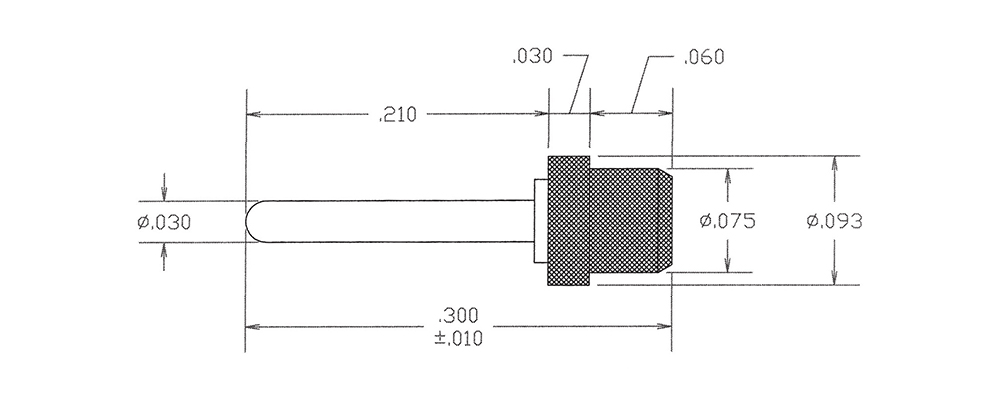

1100-56-0311
1100-56-0311
1100-56-0311
0.300" 0.030 - Press Fit 1/32 0.070 Brass Gold - - PTFE Brown NO
1100-93-0417
1100-93-0417
1100-93-0417
0.315" 0.030 - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Violet YES
1100R-08A-0513
1100R-08A-0513
1100R-08A-0513
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro Solder - - PTFE Orange NO
1100R-17-08819
1100R-17-08819
1100R-17-08819
0.305" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1100R-35-0315
1100R-35-0315
1100R-35-0315
0.500" 0.040 - Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Green YES
1100R-66-04411
1100R-66-04411
1100R-66-04411
0.350" 0.040 - Press Fit 1/16 0.113 Brass Bright Tin - - PTFE Brown NO
1101-05-0517
1101-05-0517
1101-05-0517
0.428" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Violet NO
1102-03-0113
1102-03-0113
1102-03-0113
0.350" - - Press Fit 1/16 0.086 Brass Silver - - PTFE Orange NO

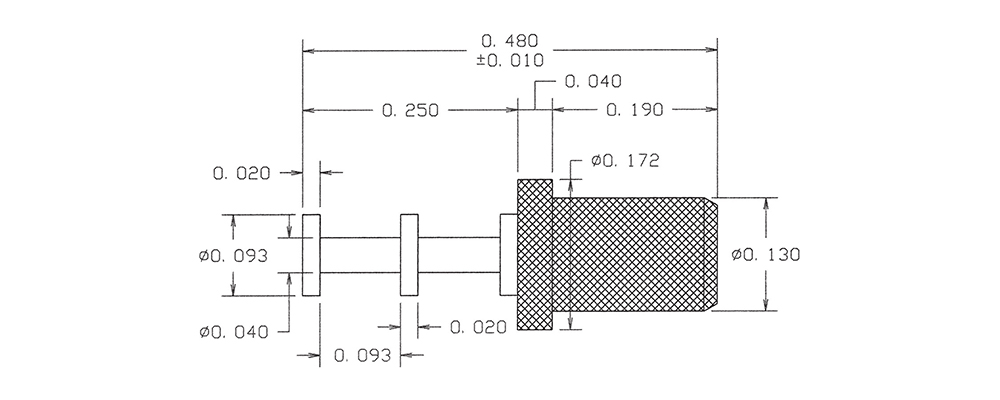

1102-07-0319
1102-07-0319
1102-07-0319
0.480" - - Press Fit 5/32 0.118 Brass Gold - - PTFE White YES
1102-12-04415
1102-12-04415
1102-12-04415
0.334" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Green YES
1102-16-08811
1102-16-08811
1102-16-08811
0.428" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO

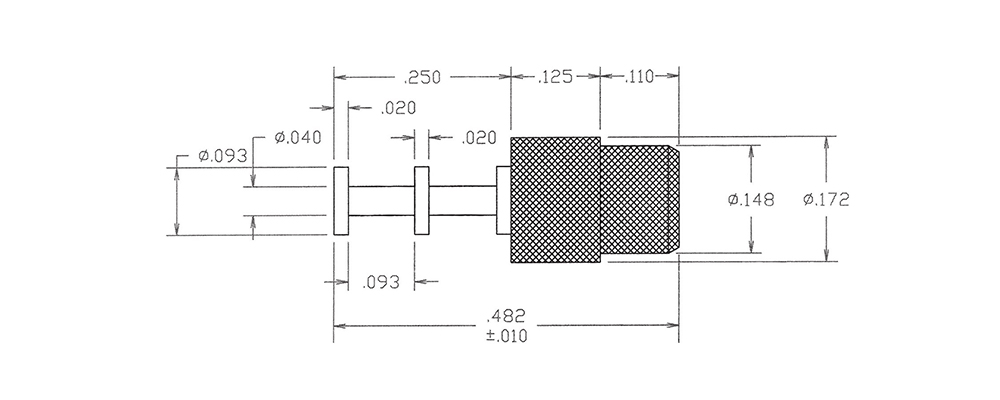

1102-23-0117
1102-23-0117
1102-23-0117
0.482" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
