Commercial
Insulated
Pin Terminals

Filter
1132-01-08810
1132-01-08810
1132-01-08810
0.645" 0.090 - Solder 7/32 0.0935 Brass Bright Tin-Lead - - PTFE Black NO

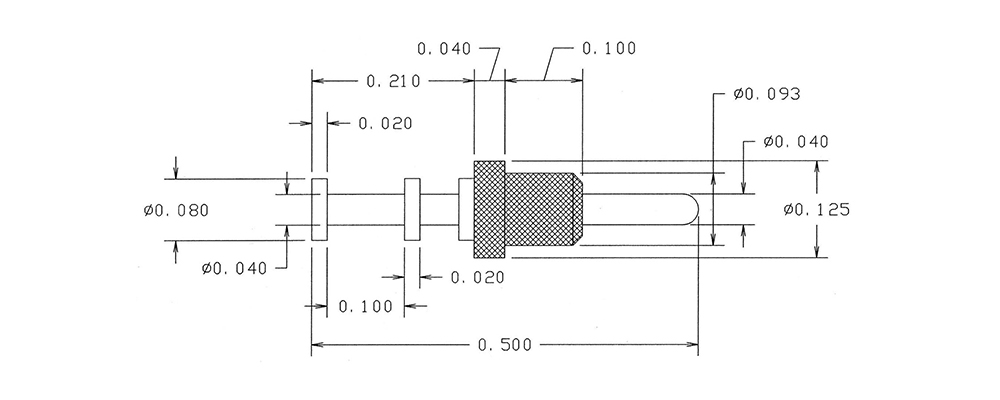

1133-03-0116
1133-03-0116
1133-03-0116
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.086 Brass Silver - - PTFE Blue YES
1135-01-0412
1135-01-0412
1135-01-0412
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Electro-Tin - - PTFE Red NO
1135-05-04418
1135-05-04418
1135-05-04418
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Gray NO

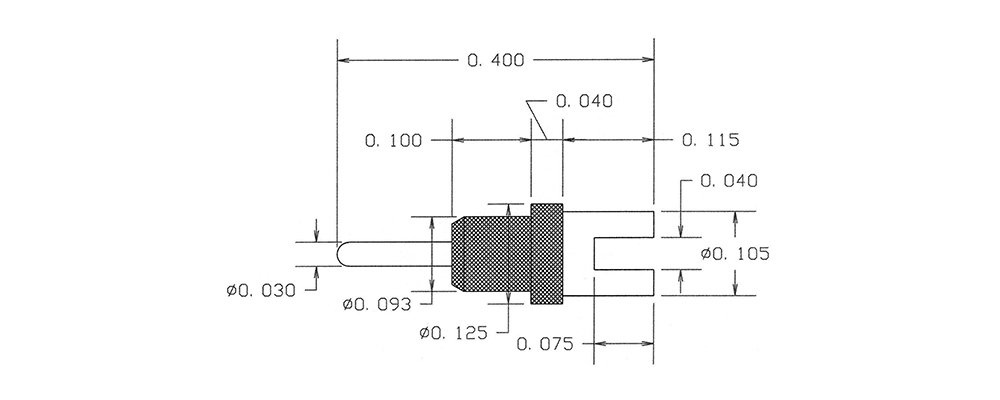

1135-09-08814
1135-09-08814
1135-09-08814
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO

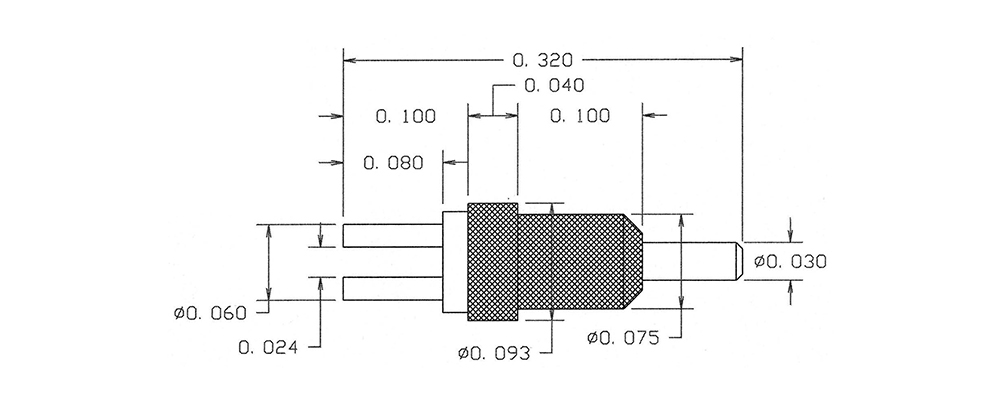

1137-03-0310
1137-03-0310
1137-03-0310
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Gold - - PTFE Black YES

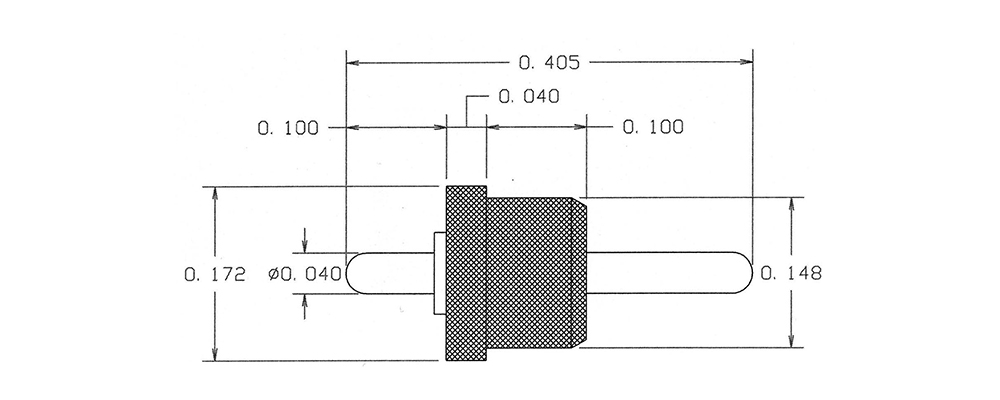

1139-04-0416
1139-04-0416
1139-04-0416
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES

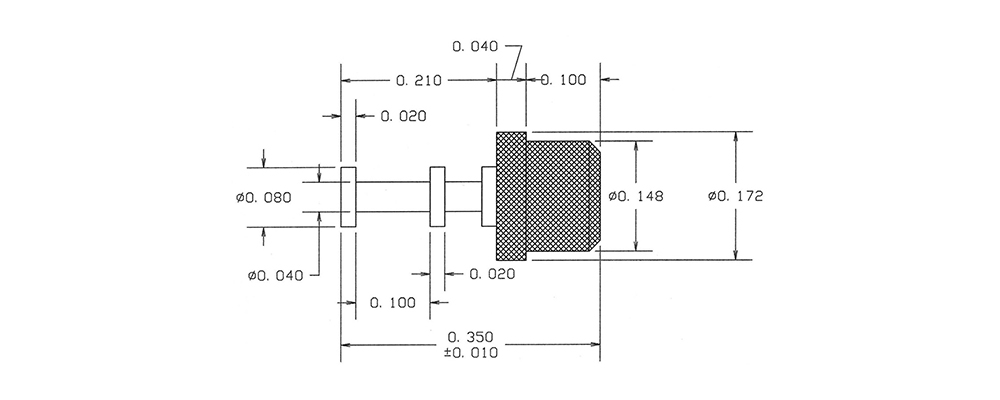

1151-05-0512
1151-05-0512
1151-05-0512
0.350" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Red NO
1151-11-08818
1151-11-08818
1151-11-08818
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1151-20-0314
1151-20-0314
1151-20-0314
0.469" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Yellow NO

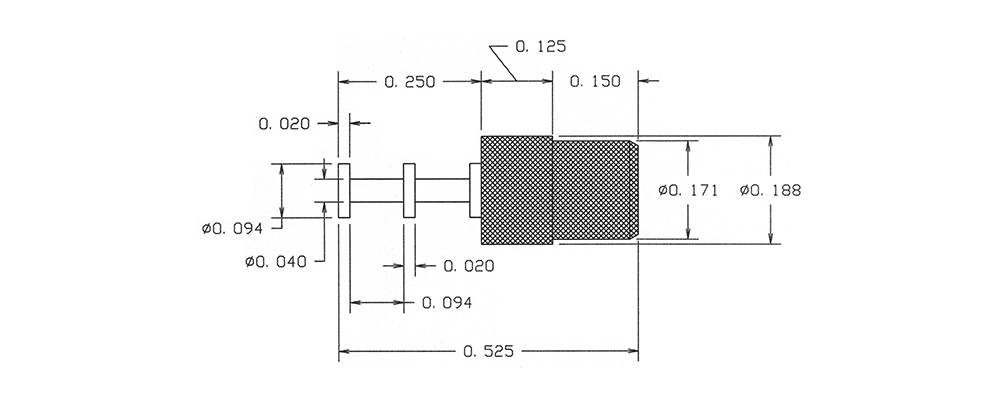

1151-39-04410
1151-39-04410
1151-39-04410
0.525" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Black YES
1151-51-0516
1151-51-0516
1151-51-0516
1.234" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Blue NO
1151R-10-0112
1151R-10-0112
1151R-10-0112
0.415" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO
1152-01-0318
1152-01-0318
1152-01-0318
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO

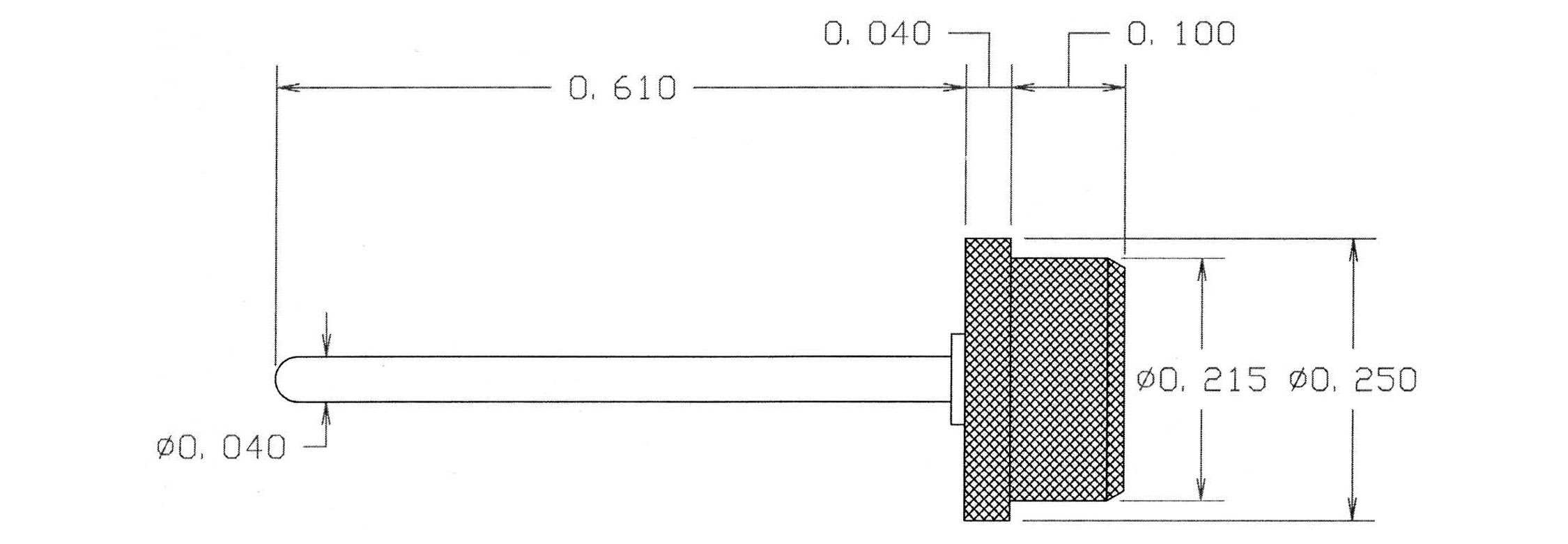

1152-31-04414
1152-31-04414
1152-31-04414
0.750" 0.040 - Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Yellow NO
1152R-17-08810
1152R-17-08810
1152R-17-08810
0.615" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Black NO

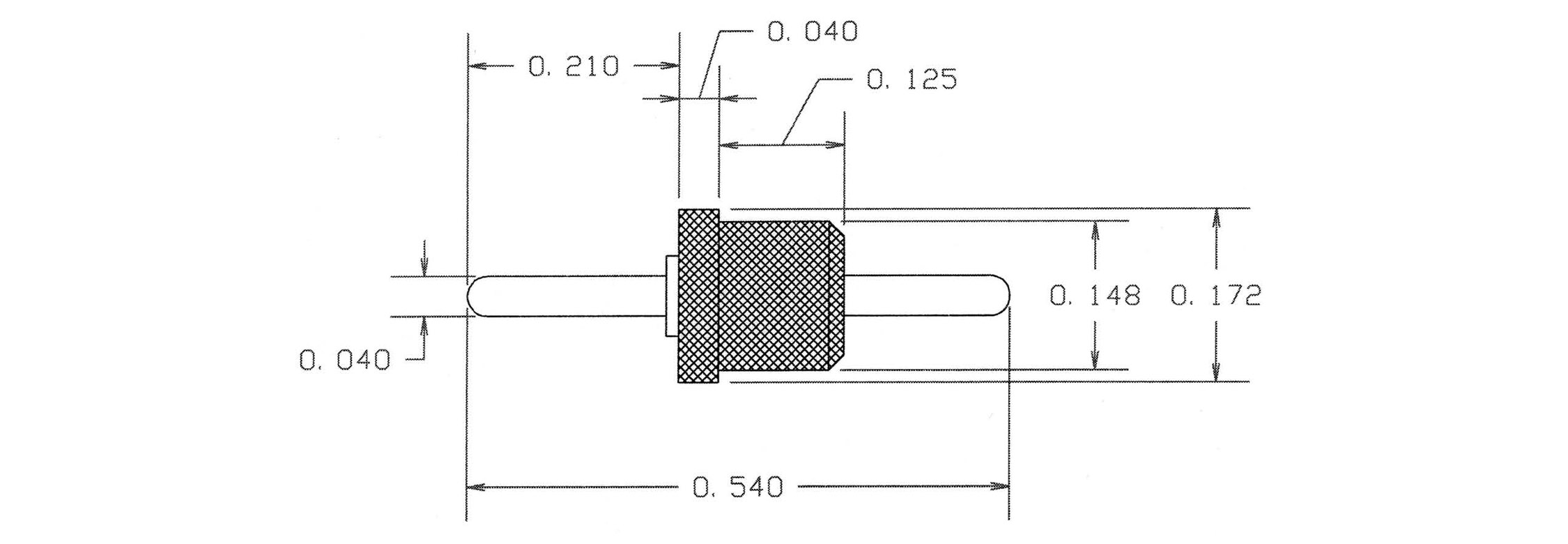

1153-07-0116
1153-07-0116
1153-07-0116
0.540" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Blue YES

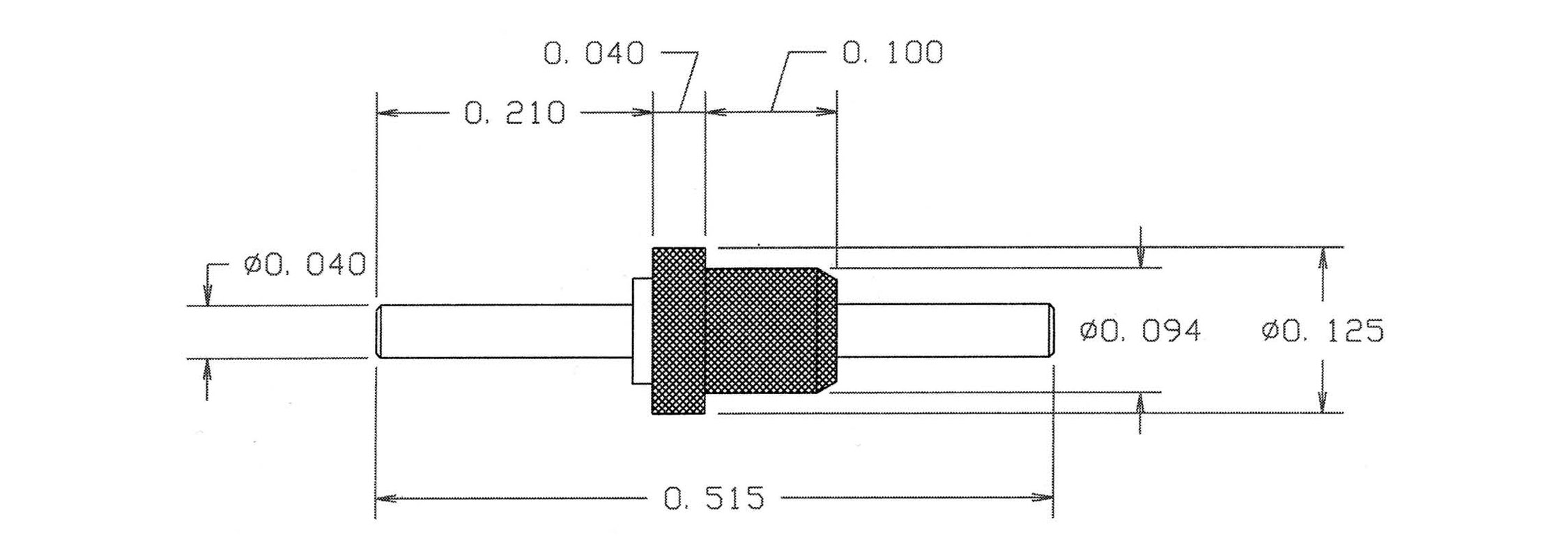

1153-32-0412
1153-32-0412
1153-32-0412
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Red NO

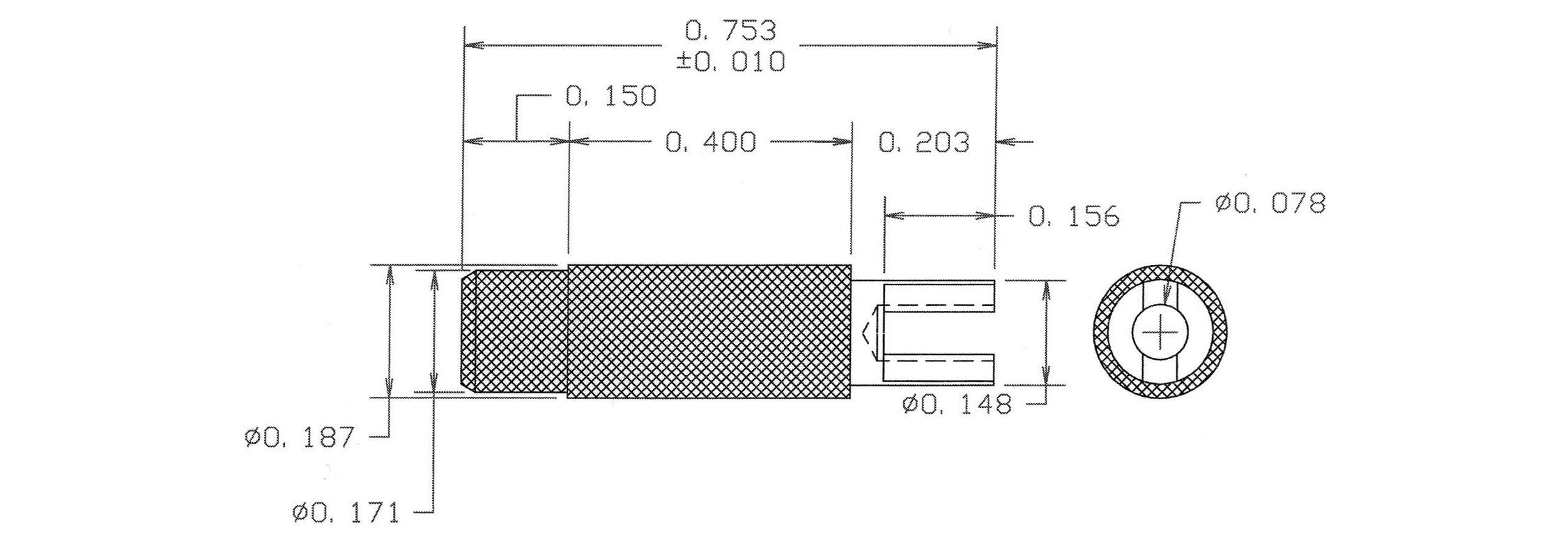

1154-10-04418
1154-10-04418
1154-10-04418
0.753" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Gray NO
1154-44-08814
1154-44-08814
1154-44-08814
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Yellow NO
