Commercial
Insulated
Pin Terminals

Filter
1112R-62-04410
1112R-62-04410
1112R-62-04410
0.260" - - Press Fit 3/32 0.086 Brass Bright Tin - - PTFE Black YES
1113-03-0516
1113-03-0516
1113-03-0516
0.333" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO

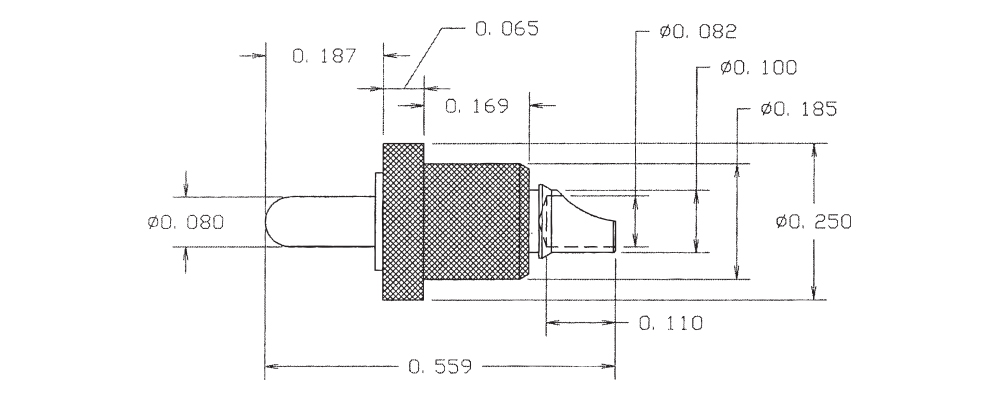

1113-58-0112
1113-58-0112
1113-58-0112
0.559" 0.080 PIN/Solder CUP Press Fit 1/8 0.172 Brass Silver - - PTFE Red NO
1114-04-0318
1114-04-0318
1114-04-0318
0.225" 0.040 - Press Fit 1/32 0.086 Brass Gold - - PTFE Gray NO
1114-08-04414
1114-08-04414
1114-08-04414
0.310" 0.040 - Press Fit 3/32 0.108 Brass Bright Tin - - PTFE Yellow NO
1114-50-08810
1114-50-08810
1114-50-08810
0.270" 0.060 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1114-75-0116
1114-75-0116
1114-75-0116
0.367" - - Press Fit 1/16 0.158 Brass Silver - - PTFE Blue YES

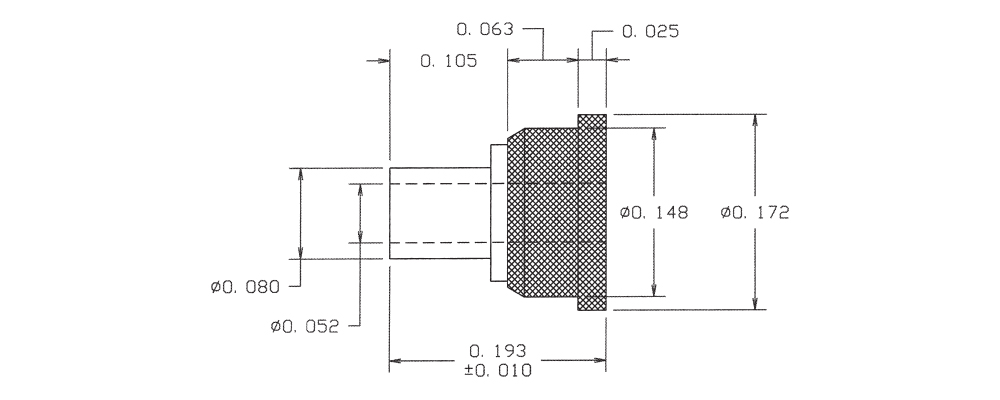

1114R-14-0412
1114R-14-0412
1114R-14-0412
0.193" 0.080 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Red NO
1114R-20-04418
1114R-20-04418
1114R-20-04418
0.310" 0.040 - Press Fit 1/64 0.136 Brass Bright Tin - - PTFE Gray NO
1114R-80-08814
1114R-80-08814
1114R-80-08814
0.380" 0.055 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO

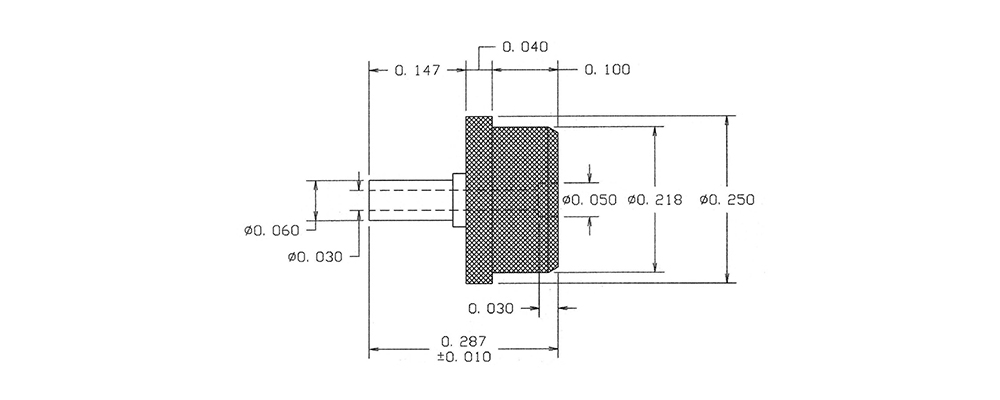

1115-07-0310
1115-07-0310
1115-07-0310
0.287" 0.060 - Press Fit 1/16 0.205 Brass Gold - - PTFE Black YES
1115-51-0416
1115-51-0416
1115-51-0416
0.453" - - Press Fit 1/16 0.187 Brass Electro-Tin - - PTFE Blue YES
1115R-02-0512
1115R-02-0512
1115R-02-0512
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Red NO
1116-26-08818
1116-26-08818
1116-26-08818
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1117-16-0314
1117-16-0314
1117-16-0314
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Gold Nickel Brass PTFE Yellow NO
1117-50-04410
1117-50-04410
1117-50-04410
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Bright Tin Nickel Brass PTFE Black YES
1117-54-0516
1117-54-0516
1117-54-0516
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro Solder Nickel Brass PTFE Blue NO

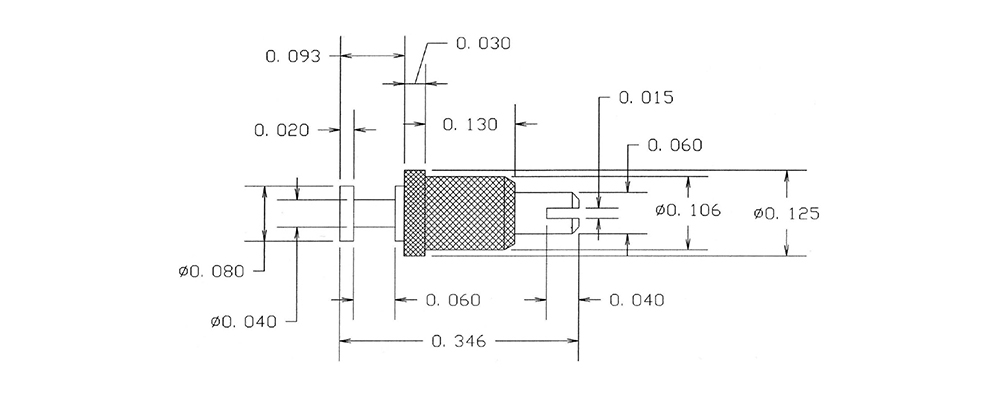

1118-40-0112
1118-40-0112
1118-40-0112
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Silver - - PTFE Red NO
1119-25-0318
1119-25-0318
1119-25-0318
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Gold - - PTFE Gray NO
1119R-20-04414
1119R-20-04414
1119R-20-04414
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
