Commercial
Insulated
Pin Terminals

Filter
1106-52-08810
1106-52-08810
1106-52-08810
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin-Lead - - PTFE Black NO

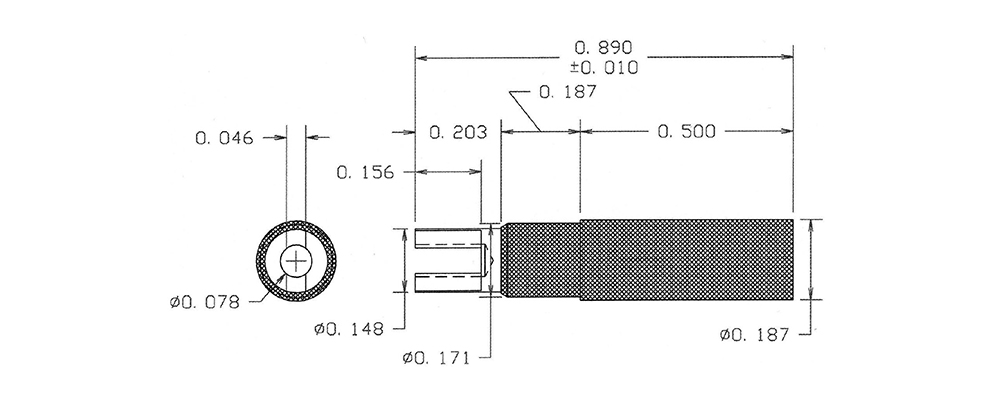

1106R-24-0116
1106R-24-0116
1106R-24-0116
0.890" - - Press Fit 5/32 0.158 Brass Silver - - PTFE Blue YES

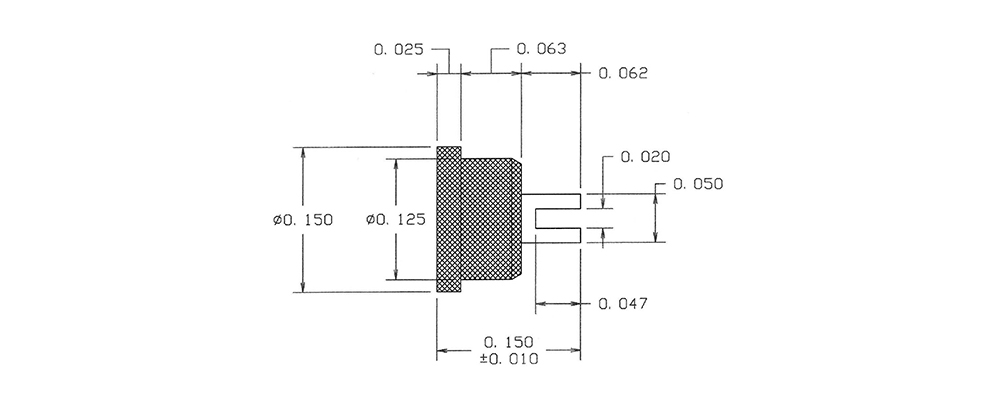

1106R-51-0412
1106R-51-0412
1106R-51-0412
0.150" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Red NO
1107-03-04418
1107-03-04418
1107-03-04418
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Gray NO
1107-08-08814
1107-08-08814
1107-08-08814
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Yellow NO
1108-02-0310
1108-02-0310
1108-02-0310
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Gold - - PTFE Black YES

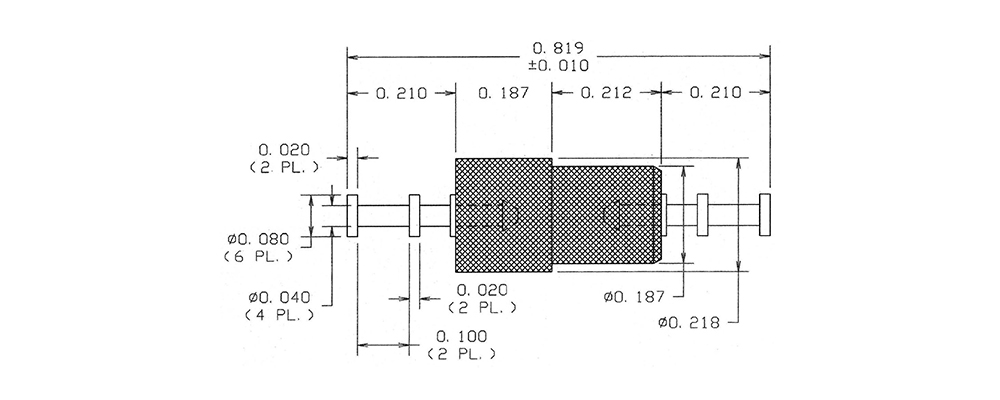

1108-06-0416
1108-06-0416
1108-06-0416
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Electro-Tin - - PTFE Blue YES
1110-02-0512
1110-02-0512
1110-02-0512
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Red NO
1110-06-08818
1110-06-08818
1110-06-08818
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Gray NO

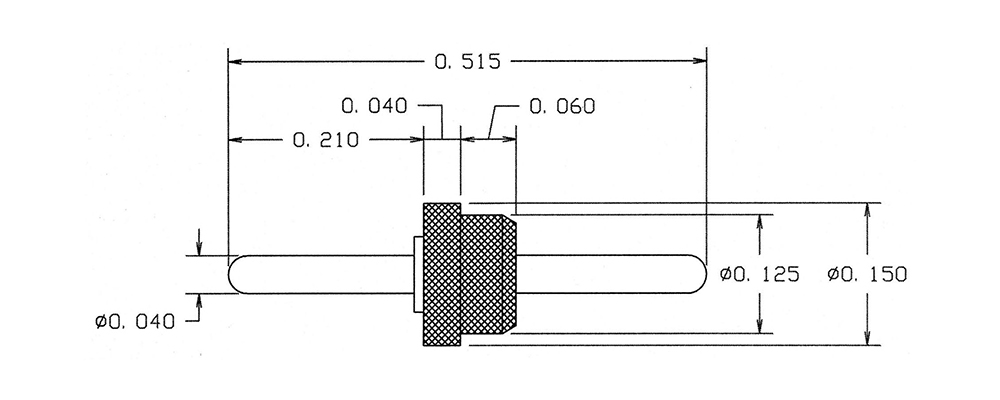

1110-11-0314
1110-11-0314
1110-11-0314
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Gold - - PTFE Yellow NO
1110-16-04410
1110-16-04410
1110-16-04410
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1110-20-0516
1110-20-0516
1110-20-0516
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO

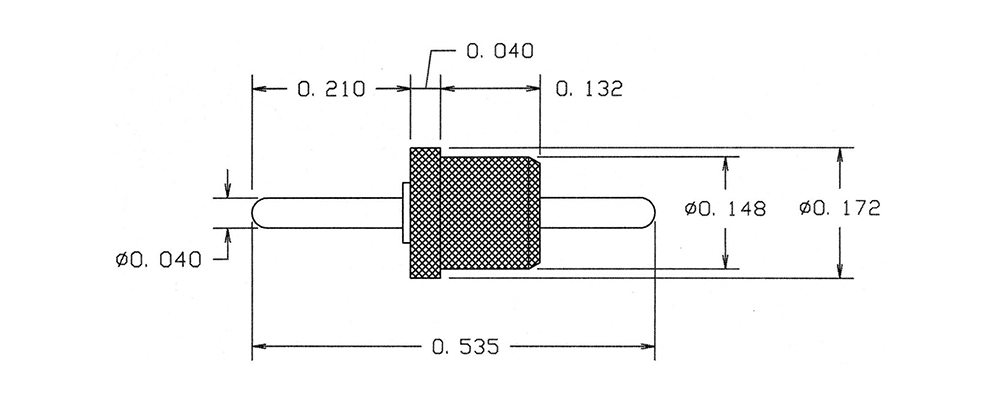

1110-25-0112
1110-25-0112
1110-25-0112
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO

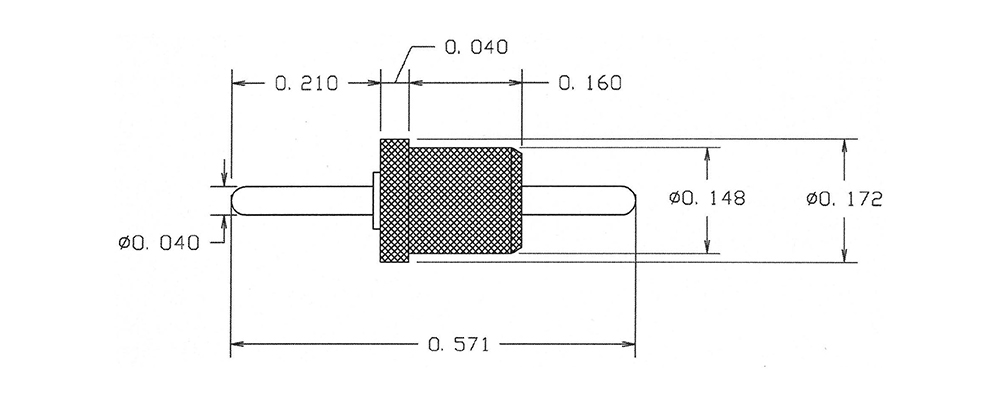

1110-29-0318
1110-29-0318
1110-29-0318
0.571" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Gray NO
1110-33-04414
1110-33-04414
1110-33-04414
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1110-40-08810
1110-40-08810
1110-40-08810
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Black NO
1110-45-0116
1110-45-0116
1110-45-0116
2.500" 0.040 Pin/Pin Press Fit 1/16 0.156 Brass Silver - - PTFE Blue YES

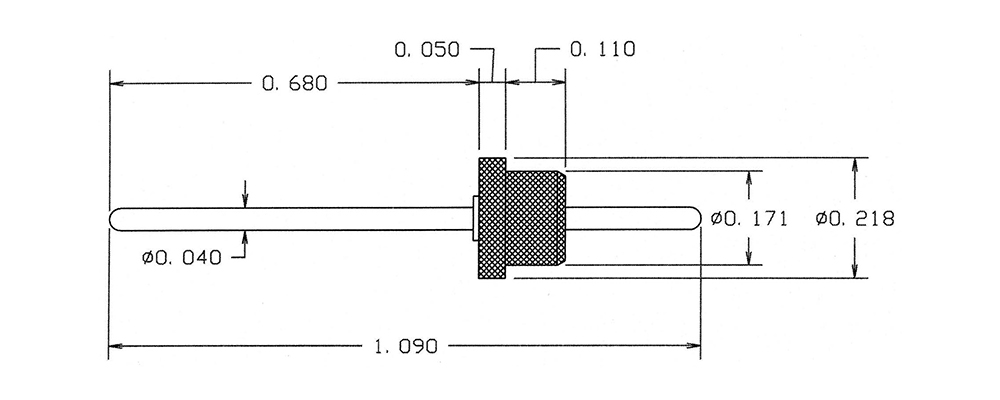

1110-49-0412
1110-49-0412
1110-49-0412
1.090" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Red NO
1110-55-04418
1110-55-04418
1110-55-04418
0.515" 0.040 Pin/Pin Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Gray NO
1110-61-08814
1110-61-08814
1110-61-08814
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO
