Insulated
PC Jacks

Filter

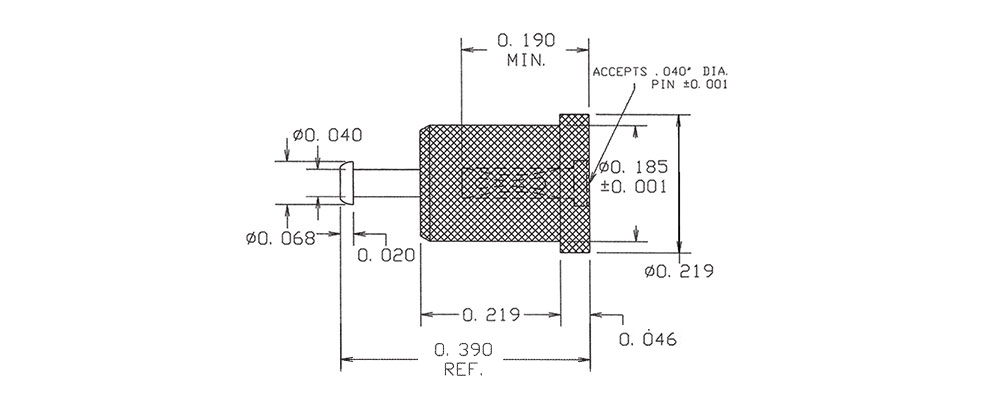

09-9012-1-03517
09-9012-1-03517
09-9012-1-03517
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Violet -

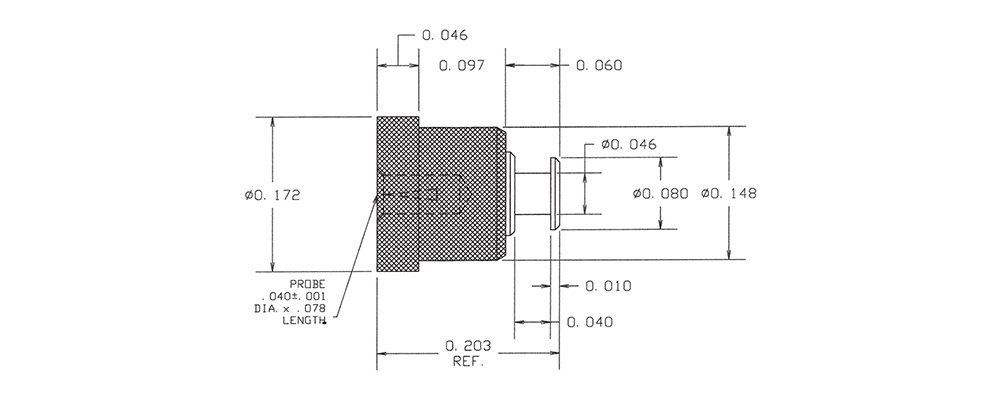

1128-07-03515
1128-07-03515
1128-07-03515
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Green -

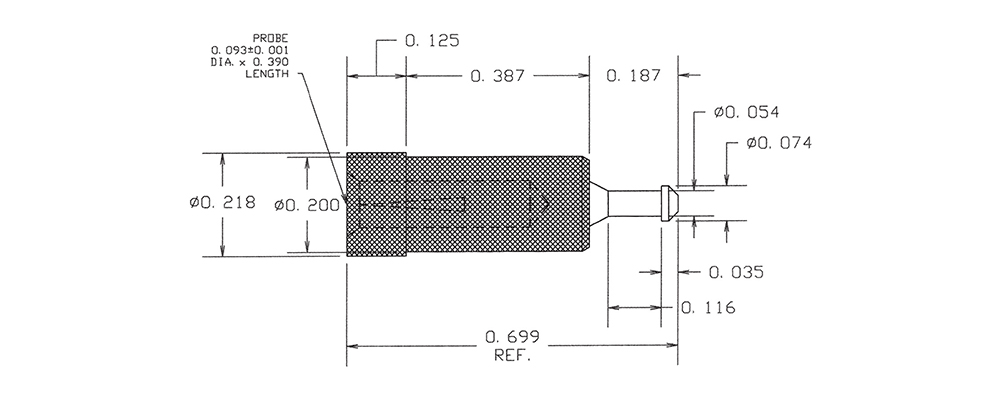

1128-28-0311
1128-28-0311
1128-28-0311
0.093 0.390 " 0.699" Jack/Turret Press Fit 0.187 1/32 - 23/64 Vertical - - PTFE Brown -

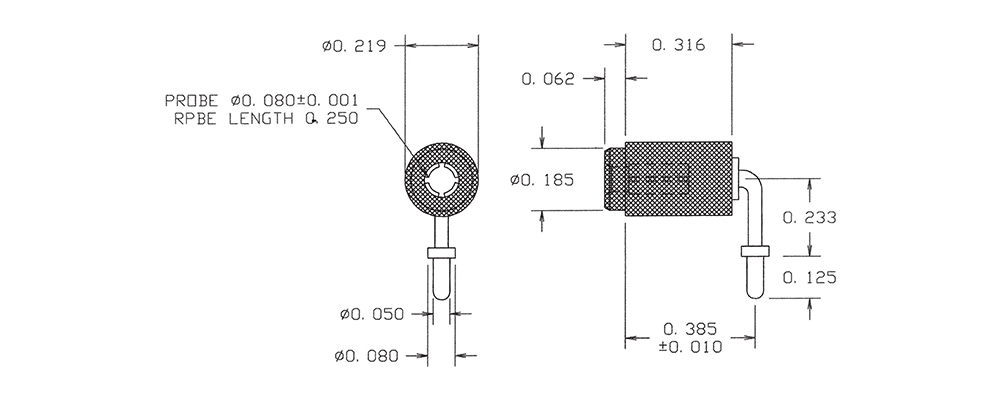

1128-50-03517
1128-50-03517
1128-50-03517
0.080 0.250 " 0.472" Jack/Pin Press Fit 0.172 1/32 - 1/16 Vertical - - PTFE Violet -

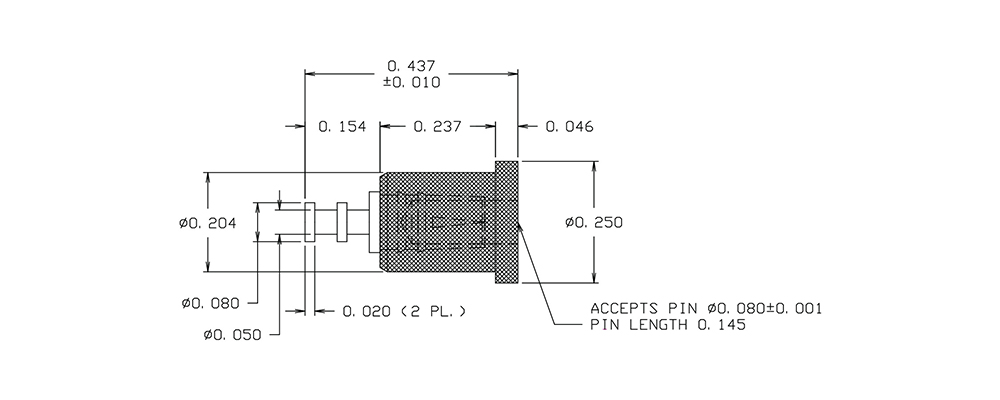

1128-73-0313
1128-73-0313
1128-73-0313
0.080 0.145 " 0.437" Jack/Turret Press Fit 0.191 1/32 - 3/16 Vertical - - PTFE Orange -

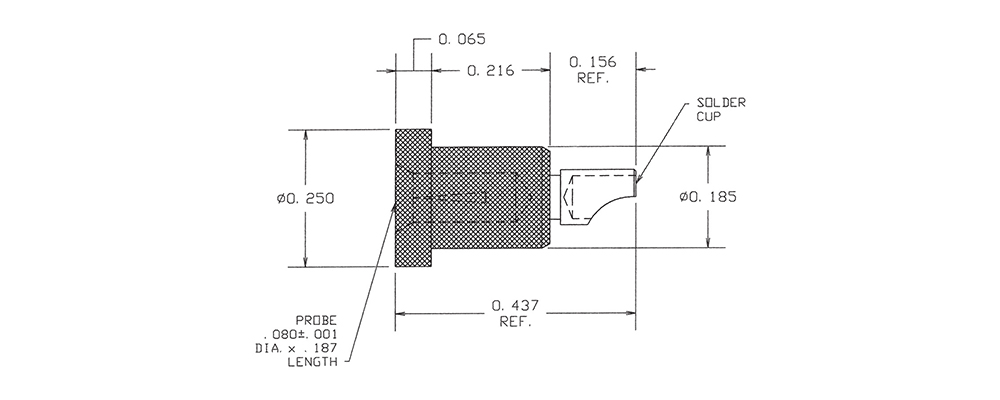

1138-29-0319
1138-29-0319
1138-29-0319
0.080 0.187 " 0.437" Jack/Solder Cup Press Fit 0.172 1/32 - 3/16 Vertical - - PTFE White -

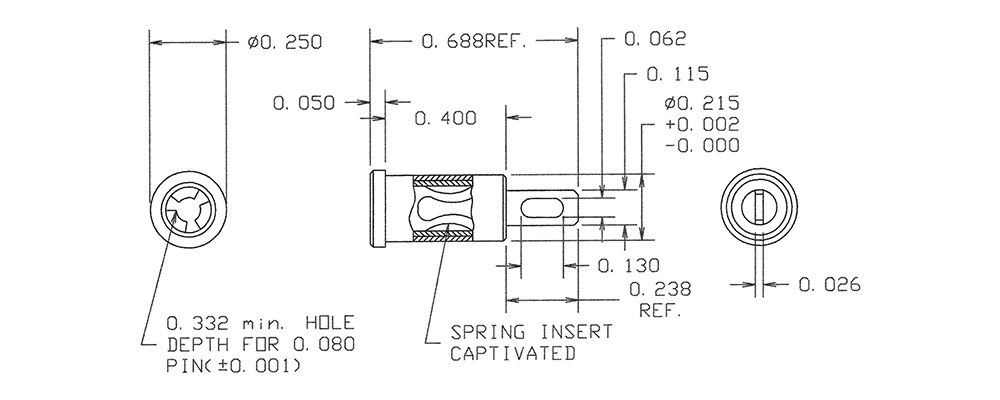

09-9060-1-08814
09-9060-1-08814
09-9060-1-08814
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Yellow -

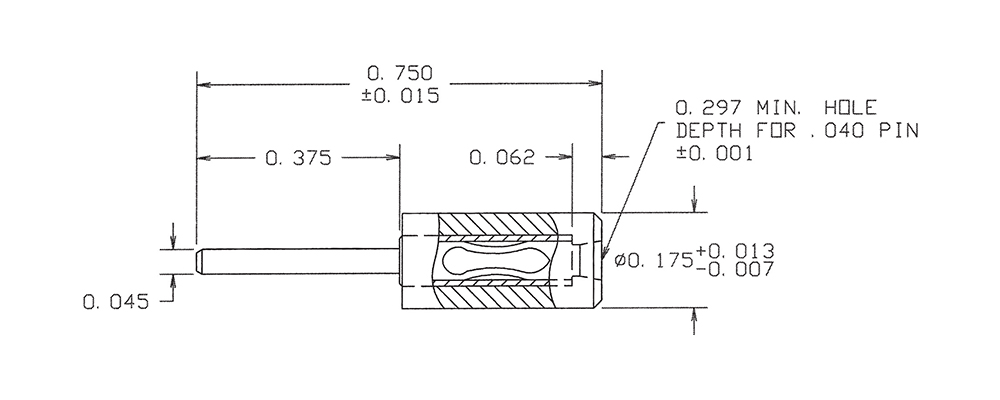

09-9158-1-0418
09-9158-1-0418
09-9158-1-0418
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE Gray -

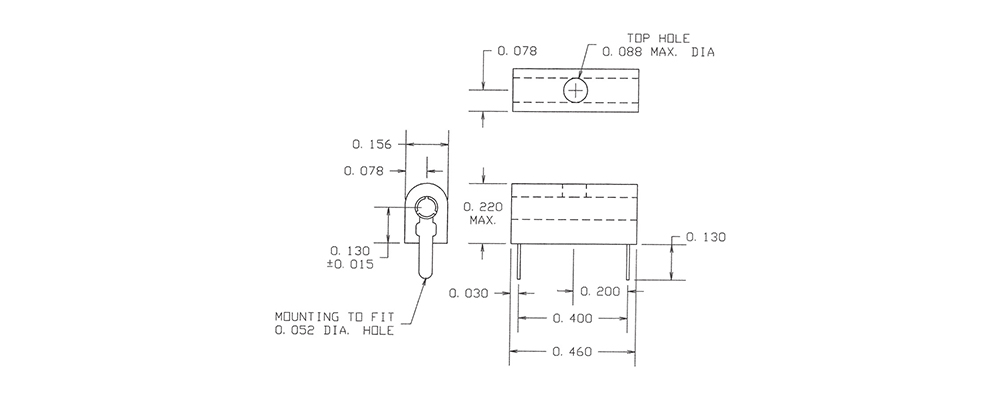

09-9208-1-03514
09-9208-1-03514
09-9208-1-03514
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow M39024/11-48G

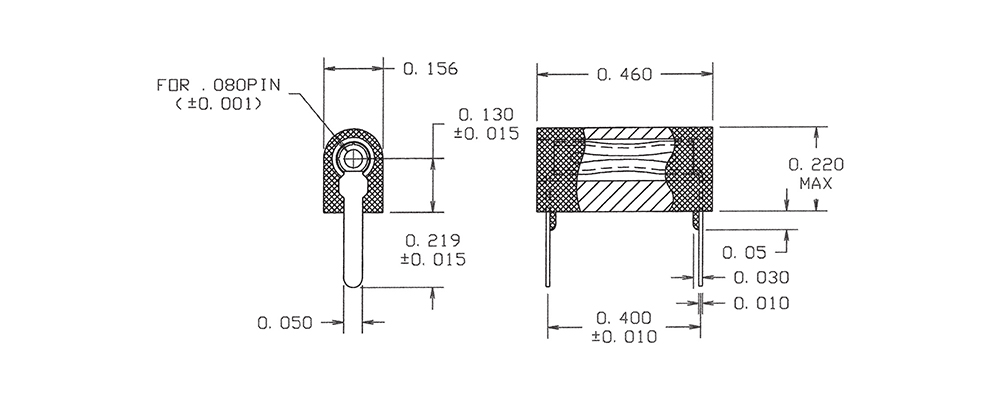

09-9302-1-03510
09-9302-1-03510
09-9302-1-03510
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Black -
09-9012-1-0612
09-9012-1-0612
09-9012-1-0612
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Red -
1128-07-03516
1128-07-03516
1128-07-03516
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Blue -
1128-28-0312
1128-28-0312
1128-28-0312
0.093 0.390 " 0.699" Jack/Turret Press Fit 0.187 1/32 - 23/64 Vertical - - PTFE Red -
1128-50-03518
1128-50-03518
1128-50-03518
0.080 0.250 " 0.472" Jack/Pin Press Fit 0.172 1/32 - 1/16 Vertical - - PTFE Gray -
1128-73-0314
1128-73-0314
1128-73-0314
0.080 0.145 " 0.437" Jack/Turret Press Fit 0.191 1/32 - 3/16 Vertical - - PTFE Yellow -
1138-29-03510
1138-29-03510
1138-29-03510
0.080 0.187 " 0.437" Jack/Solder Cup Press Fit 0.172 1/32 - 3/16 Vertical - - PTFE Black -
09-9060-1-08815
09-9060-1-08815
09-9060-1-08815
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Green -
09-9158-1-0419
09-9158-1-0419
09-9158-1-0419
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE White -
09-9208-1-03515
09-9208-1-03515
09-9208-1-03515
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green M39024/11-45G
09-9302-1-03511
09-9302-1-03511
09-9302-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Brown -
