Insulated
PC Jacks

Filter

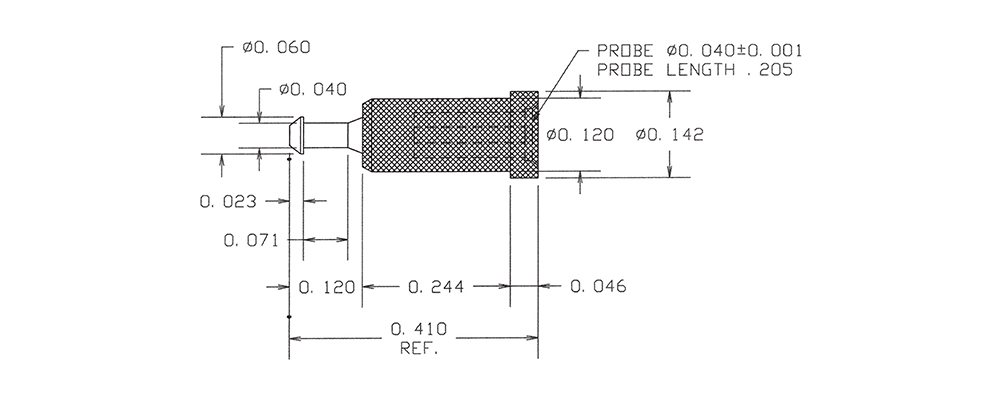

1128-02-0313
1128-02-0313
1128-02-0313
0.040 0.205 " 0.410" Jack/Turret Press Fit 0.108 1/32 - 3/16 Vertical - - PTFE Orange -

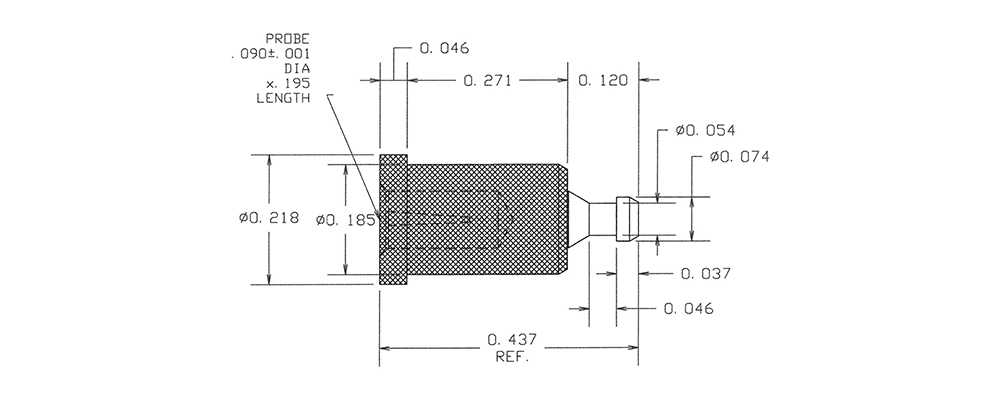

1128-15-03519
1128-15-03519
1128-15-03519
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE White -

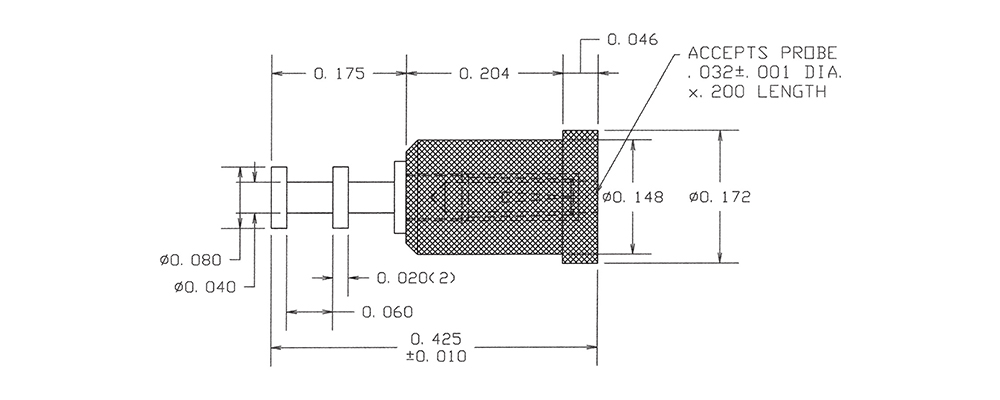

1128-34-0315
1128-34-0315
1128-34-0315
0.032 0.200 " 0.425" Jack/Turret Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Green -

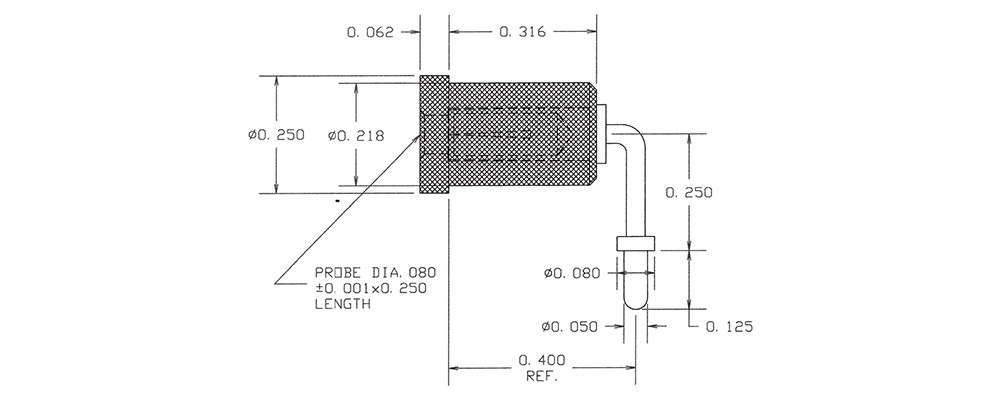

1128-57-0311
1128-57-0311
1128-57-0311
0.080 0.250 " 0.487" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Brown -

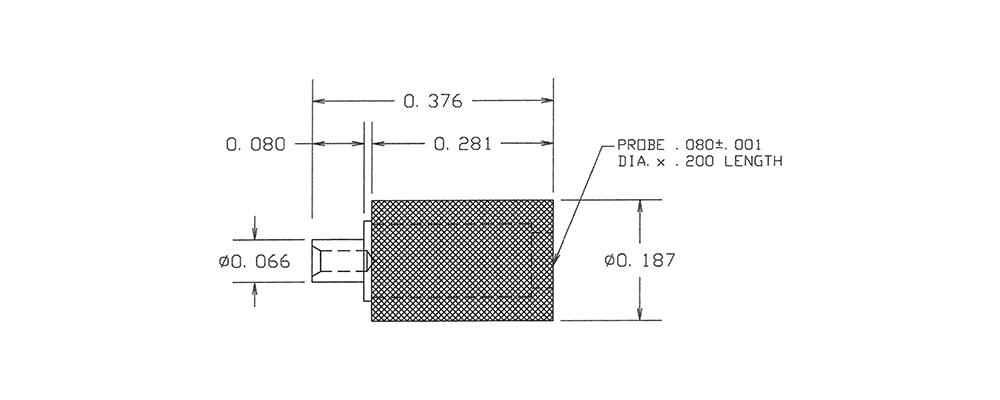

1138-04-03517
1138-04-03517
1138-04-03517
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Violet -

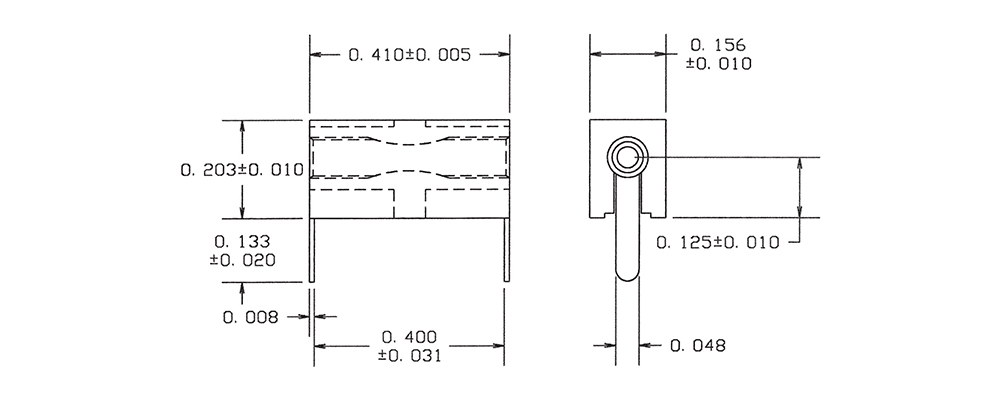

21-9205-1-04413
21-9205-1-04413
21-9205-1-04413
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange -
09-9084-1-03516
09-9084-1-03516
09-9084-1-03516
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Blue M39024/12-07
09-9192-1-0612
09-9192-1-0612
09-9192-1-0612
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Red -

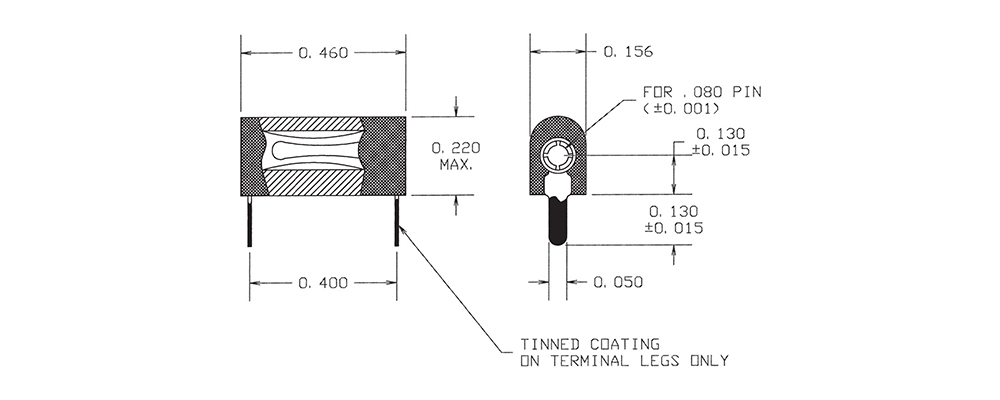

09-9224-1-03518
09-9224-1-03518
09-9224-1-03518
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray M39024/11-09
09-9012-1-08812
09-9012-1-08812
09-9012-1-08812
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Red -
1128-02-0314
1128-02-0314
1128-02-0314
0.040 0.205 " 0.410" Jack/Turret Press Fit 0.108 1/32 - 3/16 Vertical - - PTFE Yellow -

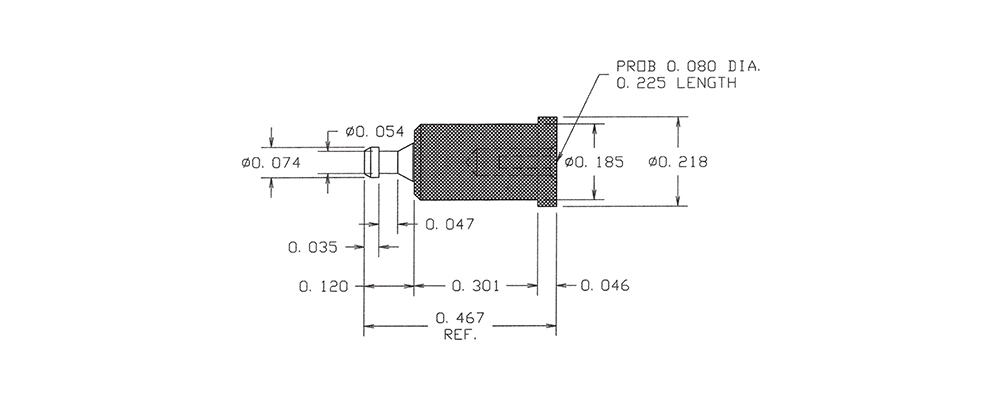

1128-16-0310
1128-16-0310
1128-16-0310
0.080 0.225 " 0.467" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Black -
1128-34-0316
1128-34-0316
1128-34-0316
0.032 0.200 " 0.425" Jack/Turret Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Blue -
1128-57-0312
1128-57-0312
1128-57-0312
0.080 0.250 " 0.487" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Red -
1138-04-03518
1138-04-03518
1138-04-03518
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Gray -
21-9205-1-04414
21-9205-1-04414
21-9205-1-04414
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow -
09-9084-1-03517
09-9084-1-03517
09-9084-1-03517
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Violet M39024/12-10
09-9192-1-0613
09-9192-1-0613
09-9192-1-0613
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Orange -
09-9224-1-03519
09-9224-1-03519
09-9224-1-03519
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White M39024/11-01
09-9012-1-08813
09-9012-1-08813
09-9012-1-08813
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Orange -
