Insulated
PC Jacks

Filter

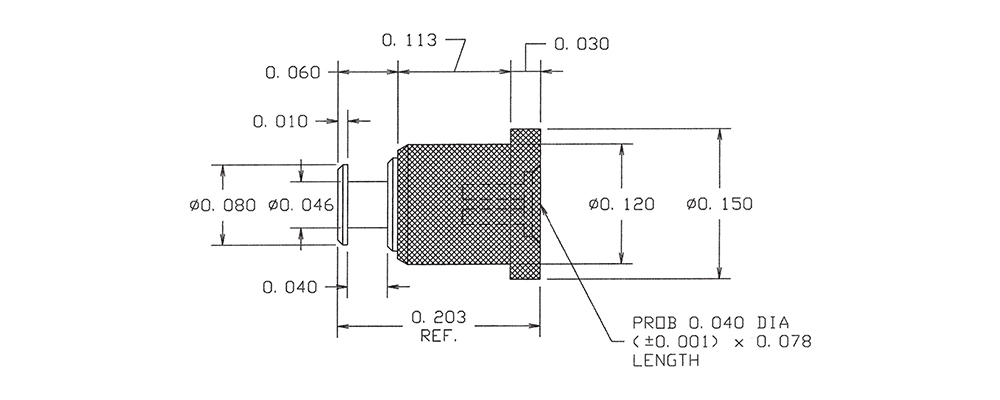

1128-01-03513
1128-01-03513
1128-01-03513
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE Orange -

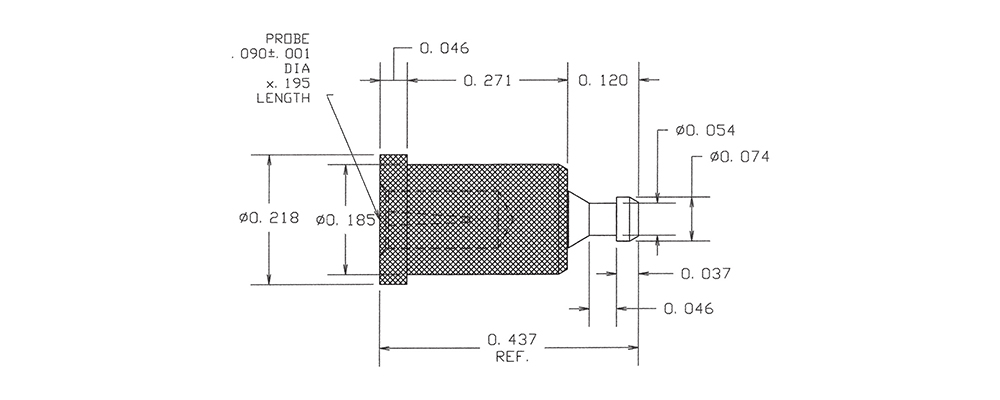

1128-15-0319
1128-15-0319
1128-15-0319
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE White -

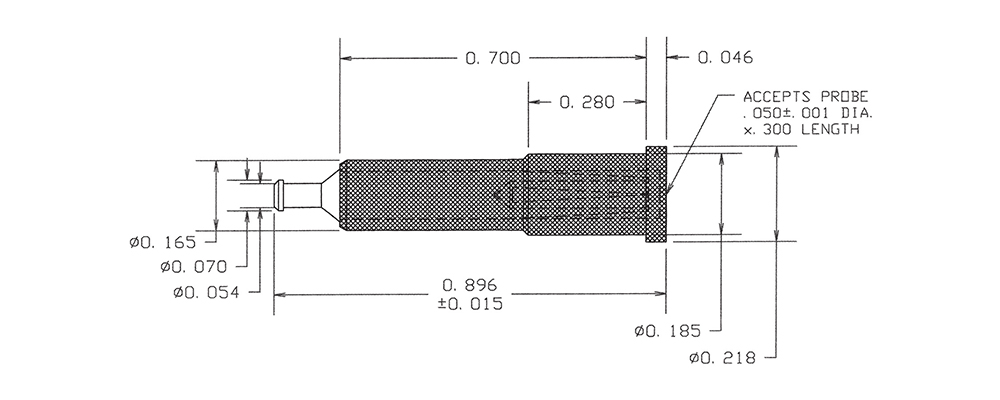

1128-33-03515
1128-33-03515
1128-33-03515
0.050 0.300 " 0.896" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Green -

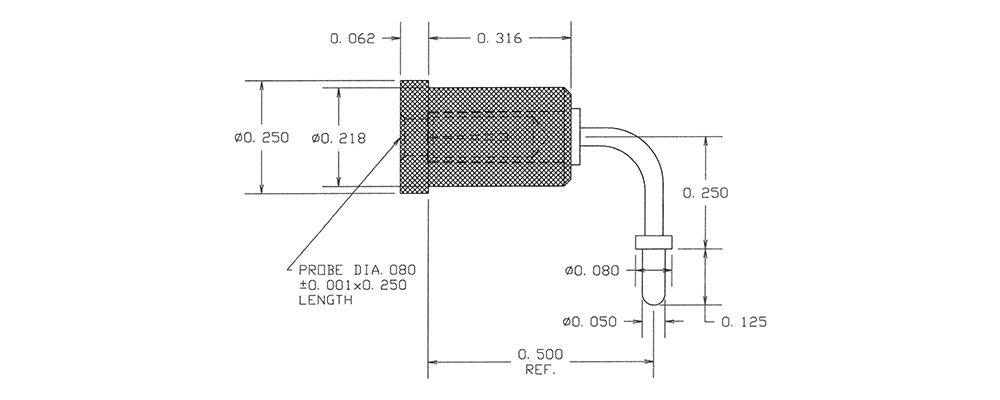

1128-56-03511
1128-56-03511
1128-56-03511
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Brown -

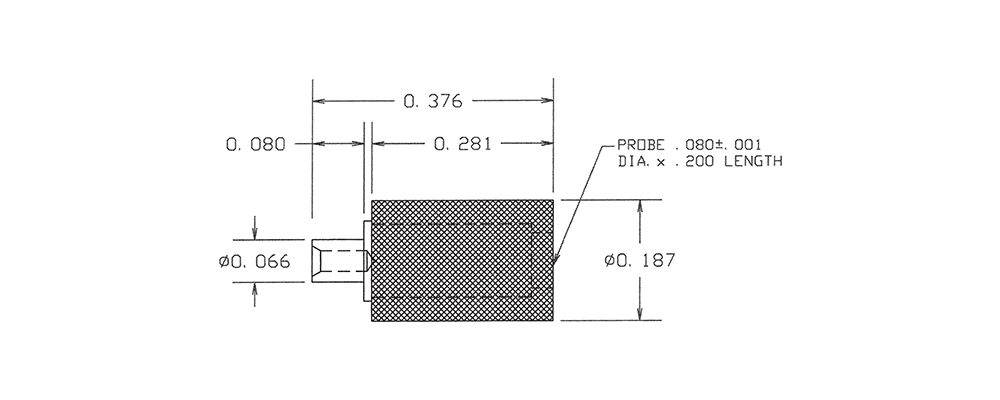

1138-04-0317
1138-04-0317
1138-04-0317
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Violet -

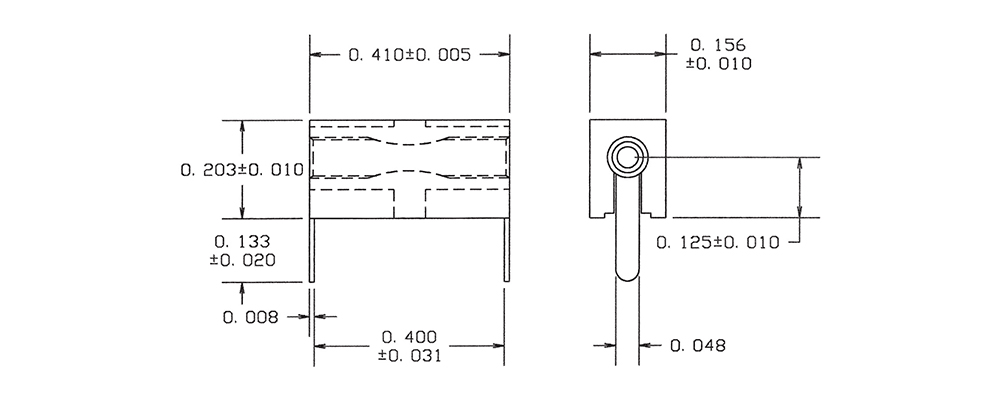

21-9205-1-03513
21-9205-1-03513
21-9205-1-03513
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange -
09-9084-1-0316
09-9084-1-0316
09-9084-1-0316
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Blue -
09-9192-1-0412
09-9192-1-0412
09-9192-1-0412
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Red -

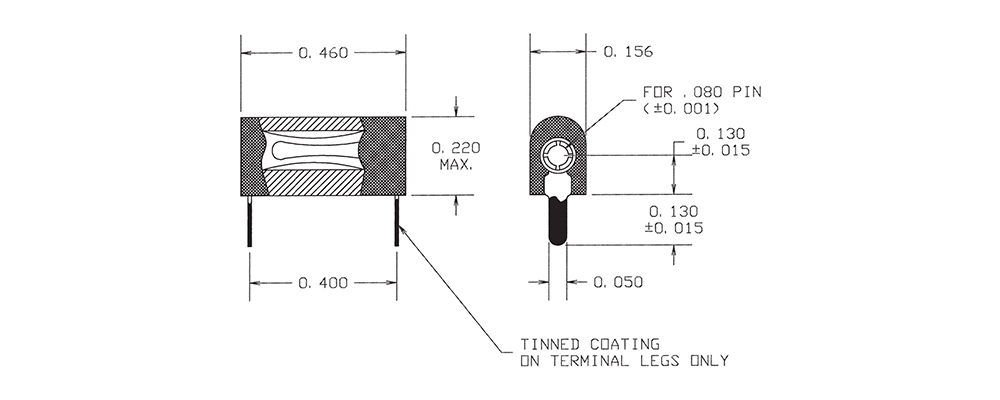

09-9224-1-0318
09-9224-1-0318
09-9224-1-0318
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -
09-9012-1-06313
09-9012-1-06313
09-9012-1-06313
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Orange -
1128-01-03514
1128-01-03514
1128-01-03514
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE Yellow -
1128-15-03510
1128-15-03510
1128-15-03510
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Black -
1128-33-03516
1128-33-03516
1128-33-03516
0.050 0.300 " 0.896" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Blue -
1128-56-03512
1128-56-03512
1128-56-03512
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Red -
1138-04-0318
1138-04-0318
1138-04-0318
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Gray -
21-9205-1-03514
21-9205-1-03514
21-9205-1-03514
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow -
09-9084-1-0317
09-9084-1-0317
09-9084-1-0317
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Violet -
09-9192-1-0413
09-9192-1-0413
09-9192-1-0413
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Orange -
09-9224-1-0319
09-9224-1-0319
09-9224-1-0319
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
09-9012-1-06314
09-9012-1-06314
09-9012-1-06314
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Yellow -
