Insulated
PC Jacks

Filter

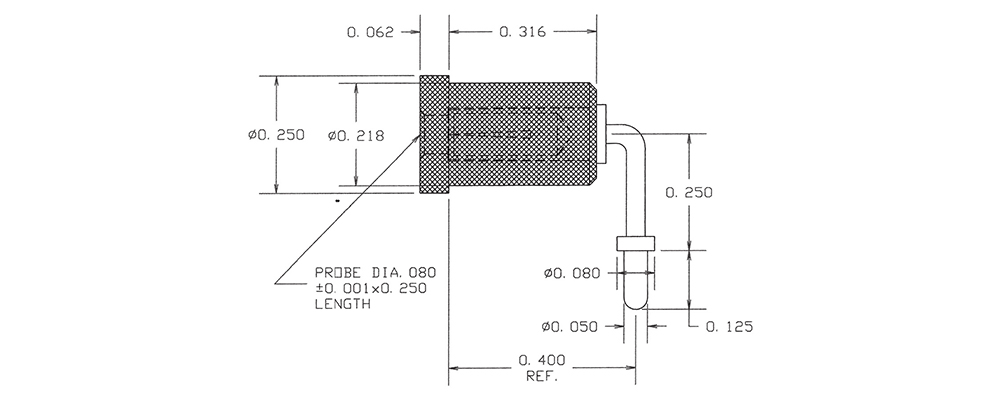

1128-57-03510
1128-57-03510
1128-57-03510
0.080 0.250 " 0.487" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Black -
1128-39-03511
1128-39-03511
1128-39-03511
0.040 0.135 " 0.408" Jack/Solder Cup Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Brown -
1128-56-03518
1128-56-03518
1128-56-03518
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Gray -
09-9063-1-03515
09-9063-1-03515
09-9063-1-03515
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Gold Polyolefin Green -
09-9063-1-03514
09-9063-1-03514
09-9063-1-03514
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Gold Polyolefin Yellow -
09-9063-1-03512
09-9063-1-03512
09-9063-1-03512
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Gold Polyolefin Red -
09-9063-1-0310
09-9063-1-0310
09-9063-1-0310
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Gold Polyolefin Black -
09-9060-1-08815
09-9060-1-08815
09-9060-1-08815
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Green -
09-9060-1-08814
09-9060-1-08814
09-9060-1-08814
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Yellow -
09-9060-1-08813
09-9060-1-08813
09-9060-1-08813
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Orange -
09-9060-1-08810
09-9060-1-08810
09-9060-1-08810
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Black -
09-9060-1-06319
09-9060-1-06319
09-9060-1-06319
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE White -
09-9060-1-06318
09-9060-1-06318
09-9060-1-06318
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Gray -
09-9060-1-06317
09-9060-1-06317
09-9060-1-06317
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Violet -
09-9060-1-06316
09-9060-1-06316
09-9060-1-06316
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Blue -
09-9060-1-06314
09-9060-1-06314
09-9060-1-06314
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Yellow -
09-9060-1-06312
09-9060-1-06312
09-9060-1-06312
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Red -
09-9060-1-0619
09-9060-1-0619
09-9060-1-0619
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE White -
09-9060-1-0614
09-9060-1-0614
09-9060-1-0614
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Yellow -
09-9060-1-0613
09-9060-1-0613
09-9060-1-0613
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Orange -
