Insulated
PC Jacks

Filter

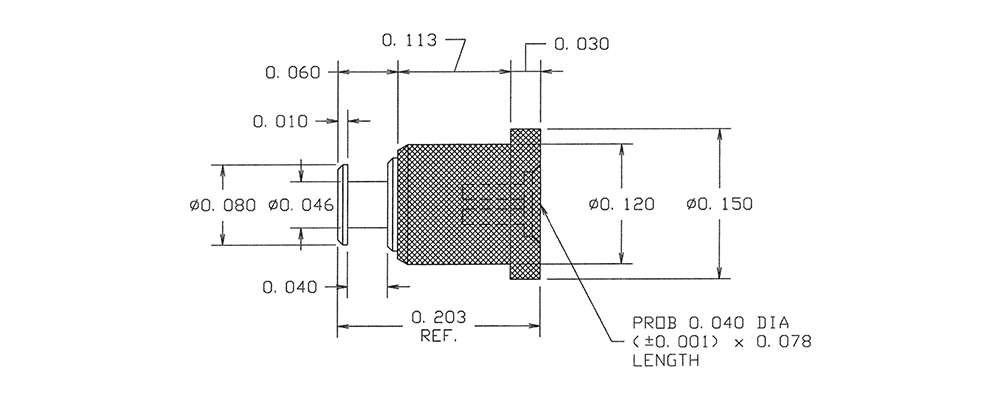

1128-01-03517
1128-01-03517
1128-01-03517
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE Violet -

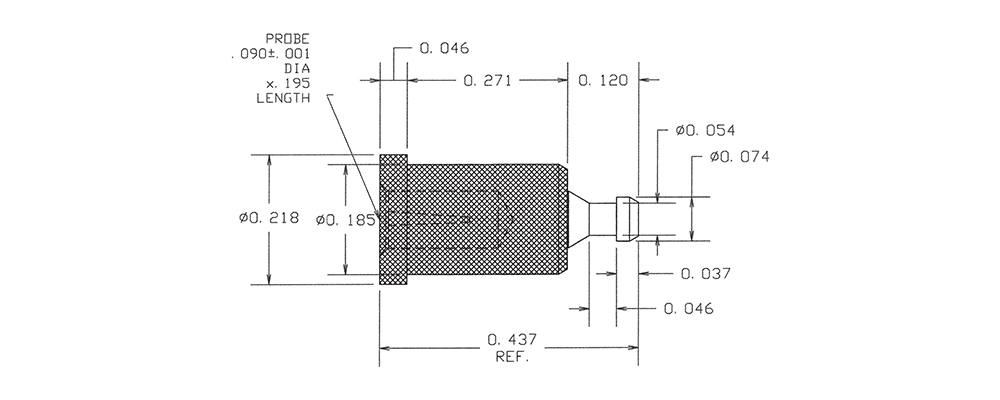

1128-15-03513
1128-15-03513
1128-15-03513
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Orange -

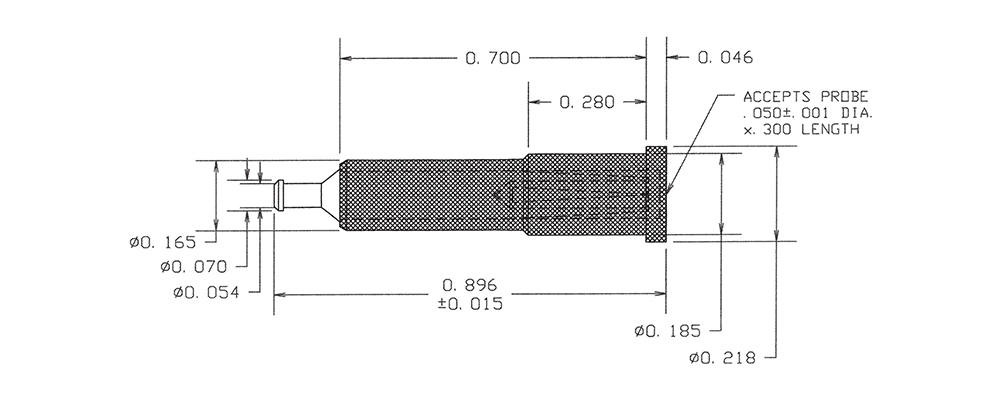

1128-33-03519
1128-33-03519
1128-33-03519
0.050 0.300 " 0.896" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE White -

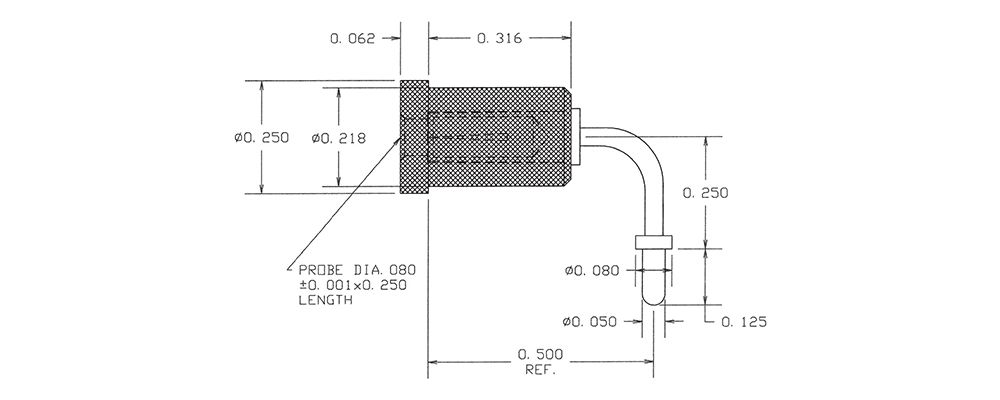

1128-56-03515
1128-56-03515
1128-56-03515
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Green -

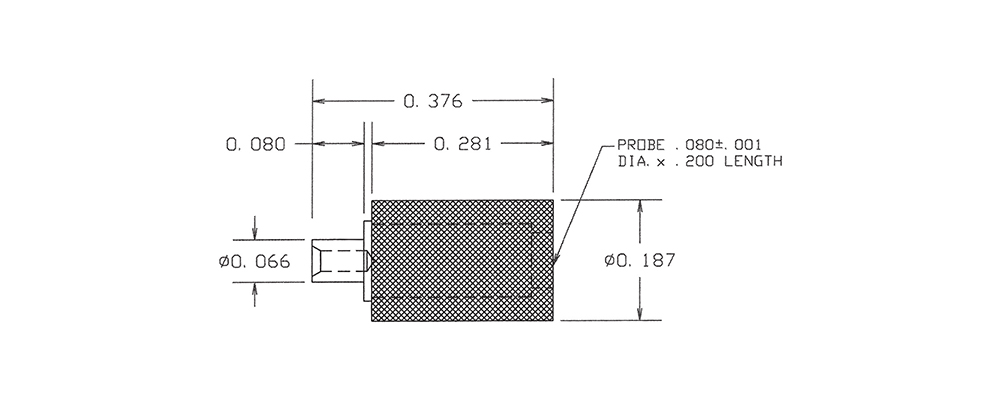

1138-04-03511
1138-04-03511
1138-04-03511
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Brown -

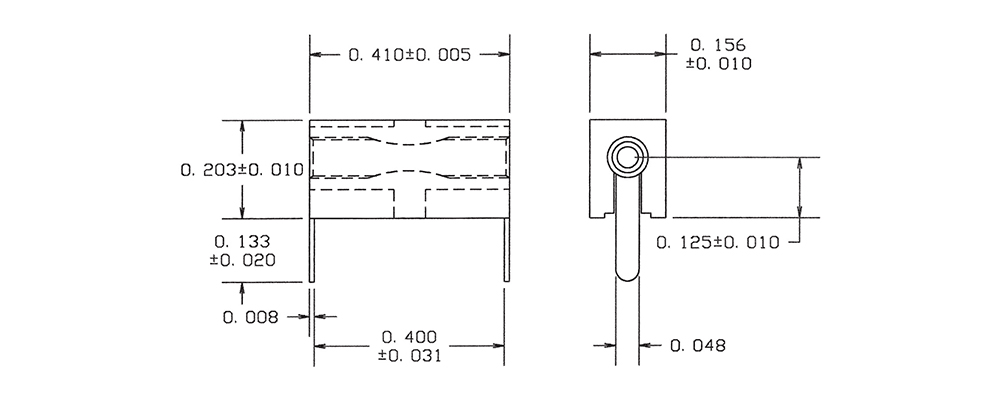

21-9205-1-03517
21-9205-1-03517
21-9205-1-03517
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Violet -

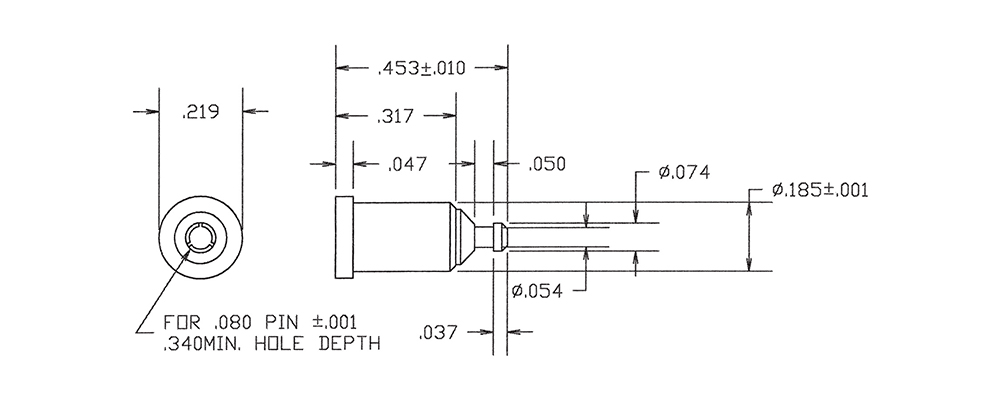

09-9084-1-03510
09-9084-1-03510
09-9084-1-03510
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Black M39024/12-03

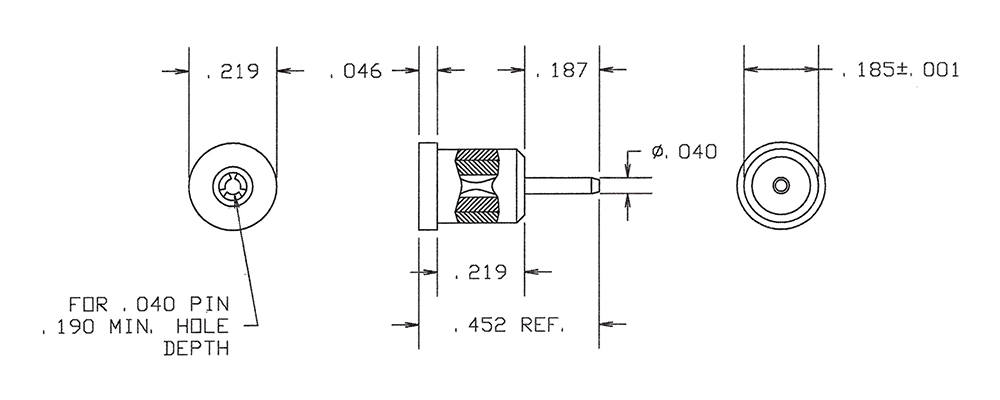

09-9192-1-0416
09-9192-1-0416
09-9192-1-0416
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Blue -

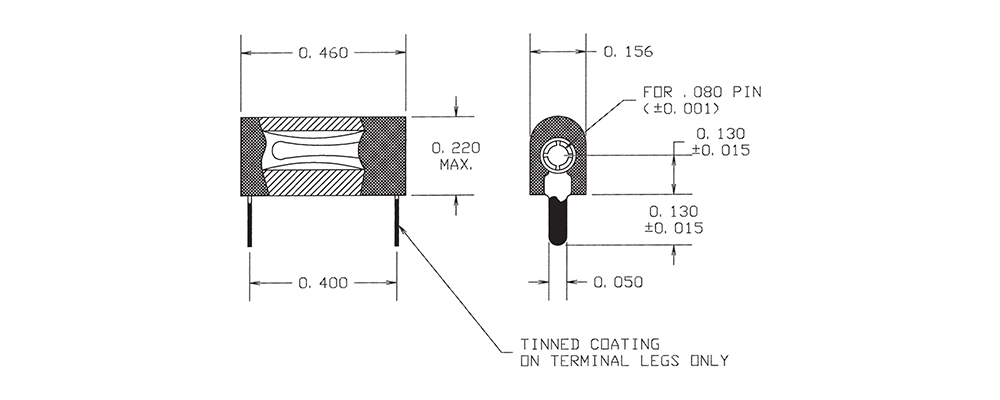

09-9224-1-03512
09-9224-1-03512
09-9224-1-03512
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Red M39024/11-02

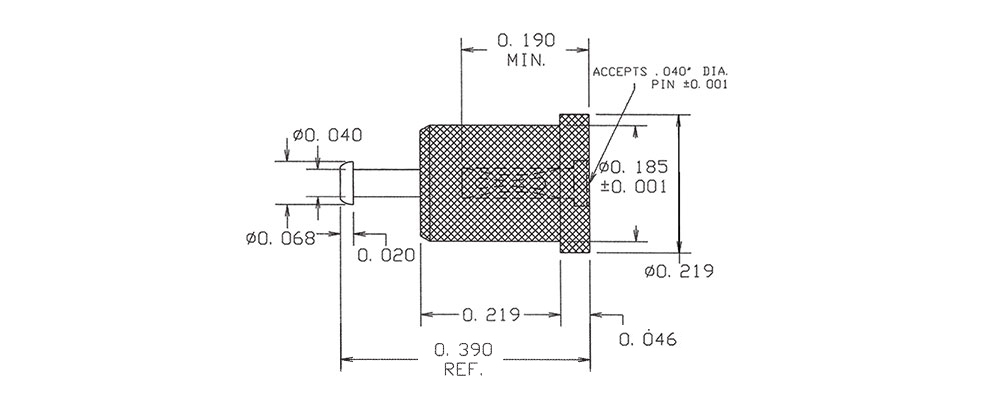

09-9012-1-06317
09-9012-1-06317
09-9012-1-06317
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Violet -
1128-01-03518
1128-01-03518
1128-01-03518
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE Gray -
1128-15-03514
1128-15-03514
1128-15-03514
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Yellow -

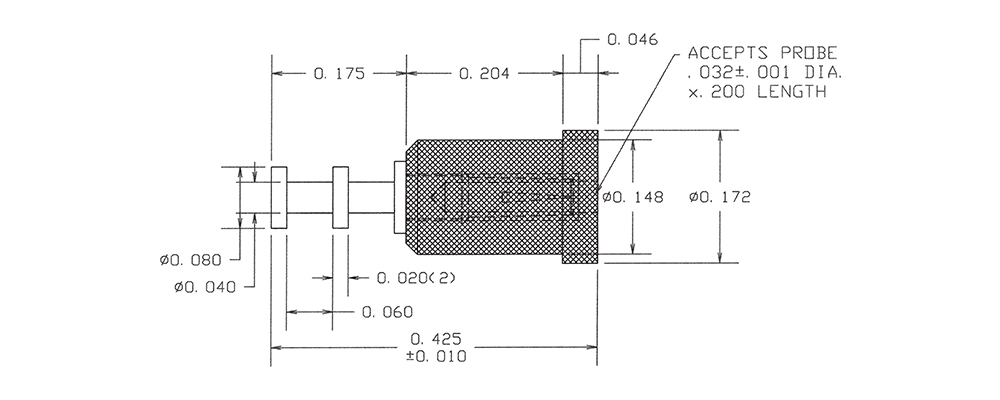

1128-34-0310
1128-34-0310
1128-34-0310
0.032 0.200 " 0.425" Jack/Turret Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Black -
1128-56-03516
1128-56-03516
1128-56-03516
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Blue -
1138-04-03512
1138-04-03512
1138-04-03512
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Red -
21-9205-1-03518
21-9205-1-03518
21-9205-1-03518
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -
09-9084-1-03511
09-9084-1-03511
09-9084-1-03511
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Brown M39024/12-04
09-9192-1-0417
09-9192-1-0417
09-9192-1-0417
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Violet -
09-9224-1-03513
09-9224-1-03513
09-9224-1-03513
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange M39024/11-06

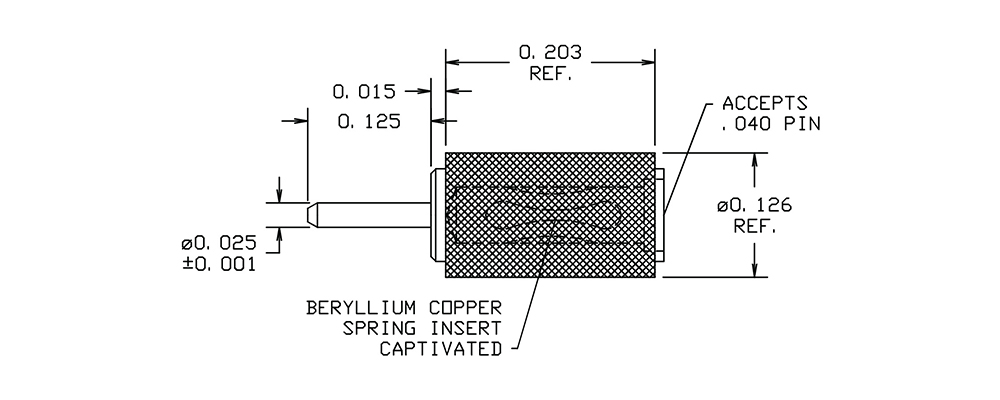

09-9010-1-0415
09-9010-1-0415
09-9010-1-0415
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Electro-Tin Polyolefin Green -
