Insulated
PC Jacks

Filter

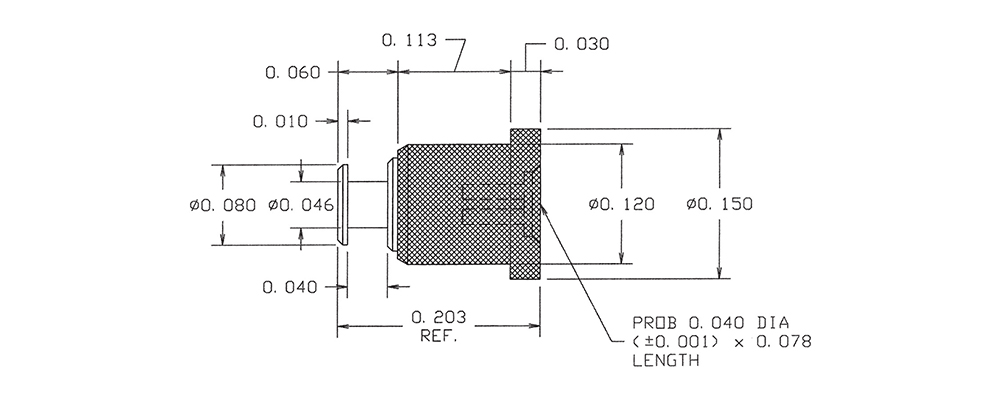

1128-01-03515
1128-01-03515
1128-01-03515
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE Green -

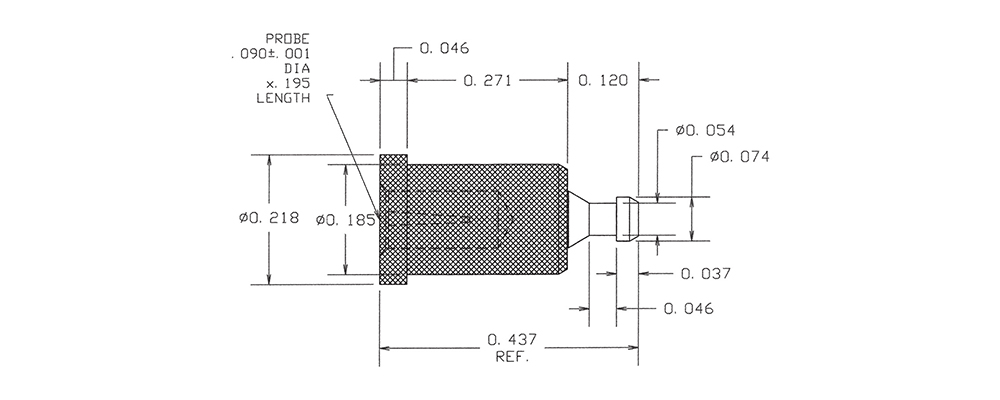

1128-15-03511
1128-15-03511
1128-15-03511
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Brown -

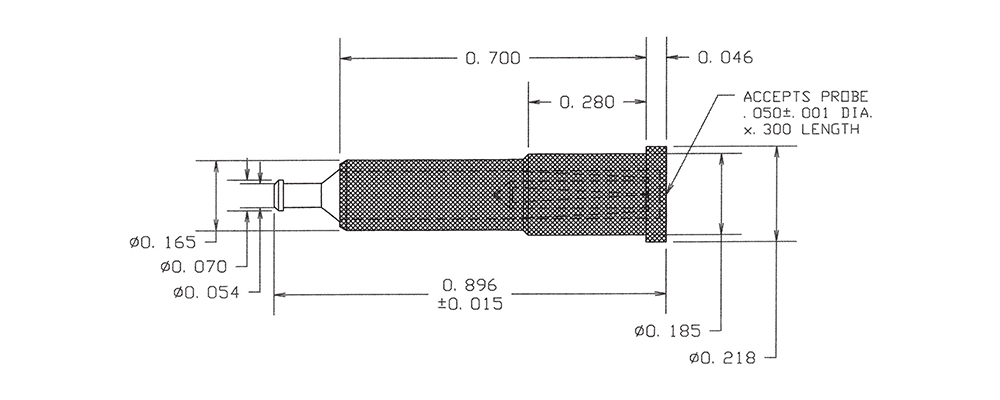

1128-33-03517
1128-33-03517
1128-33-03517
0.050 0.300 " 0.896" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Violet -

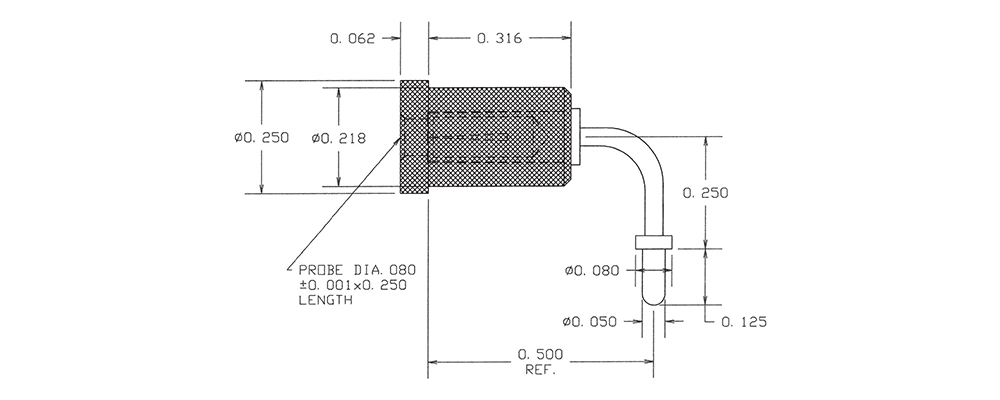

1128-56-03513
1128-56-03513
1128-56-03513
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Orange -

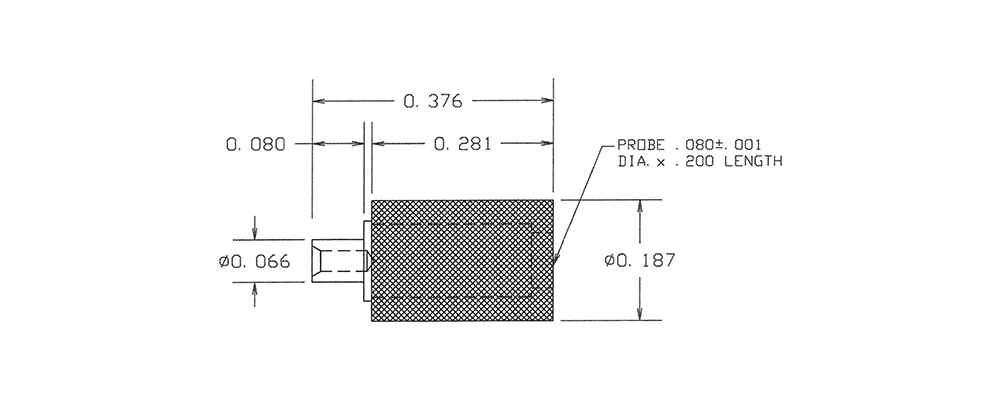

1138-04-0319
1138-04-0319
1138-04-0319
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE White -

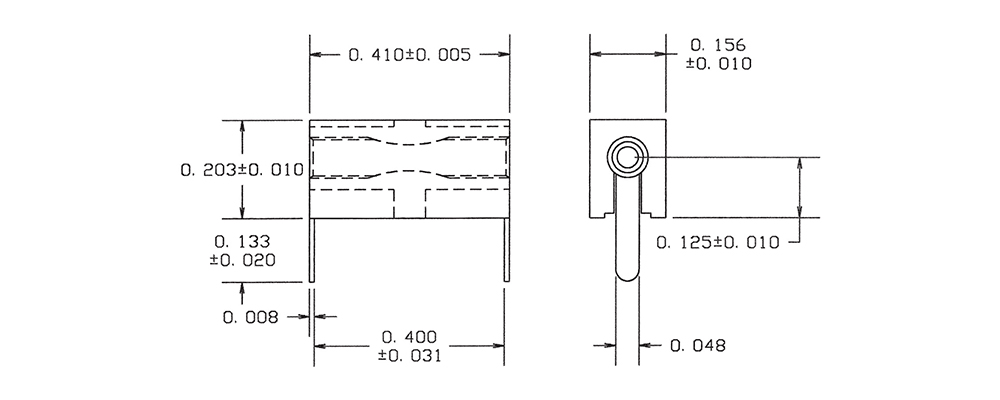

21-9205-1-03515
21-9205-1-03515
21-9205-1-03515
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green -
09-9084-1-0318
09-9084-1-0318
09-9084-1-0318
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Gray -
09-9192-1-0414
09-9192-1-0414
09-9192-1-0414
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Yellow -

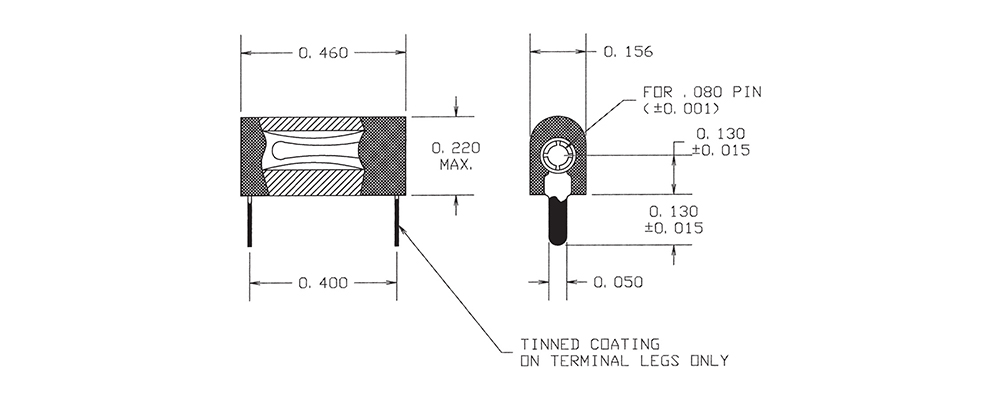

09-9224-1-03510
09-9224-1-03510
09-9224-1-03510
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black M39024/11-03
09-9012-1-06315
09-9012-1-06315
09-9012-1-06315
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Green -
1128-01-03516
1128-01-03516
1128-01-03516
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE Blue -
1128-15-03512
1128-15-03512
1128-15-03512
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Red -
1128-33-03518
1128-33-03518
1128-33-03518
0.050 0.300 " 0.896" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Gray -
1128-56-03514
1128-56-03514
1128-56-03514
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Yellow -
1138-04-03510
1138-04-03510
1138-04-03510
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Black -
21-9205-1-03516
21-9205-1-03516
21-9205-1-03516
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Blue -
09-9084-1-0319
09-9084-1-0319
09-9084-1-0319
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE White -
09-9192-1-0415
09-9192-1-0415
09-9192-1-0415
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Green -
09-9224-1-03511
09-9224-1-03511
09-9224-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Brown M39024/11-04
09-9012-1-06316
09-9012-1-06316
09-9012-1-06316
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Blue -
