Insulated
PC Jacks

Filter
1128-01-03519
1128-01-03519
1128-01-03519
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE White -

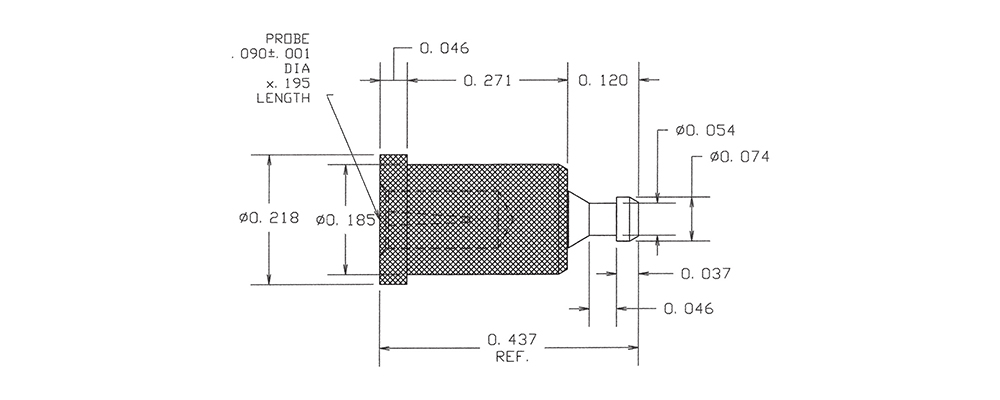

1128-15-03515
1128-15-03515
1128-15-03515
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Green -

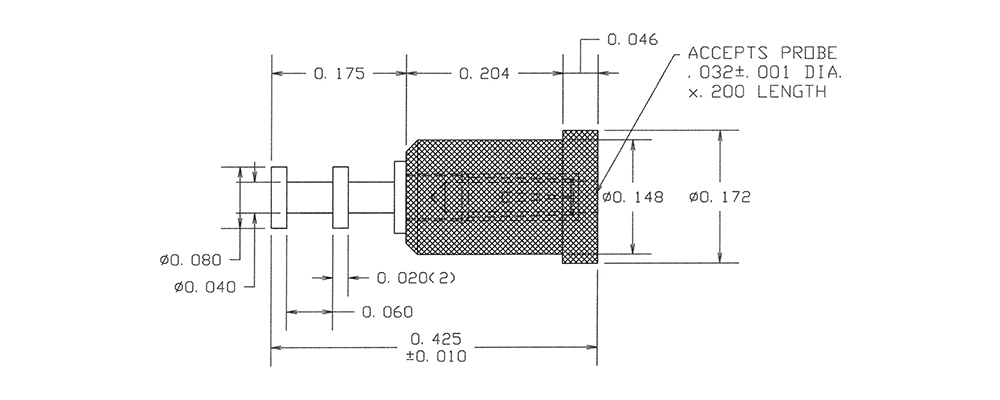

1128-34-0311
1128-34-0311
1128-34-0311
0.032 0.200 " 0.425" Jack/Turret Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Brown -

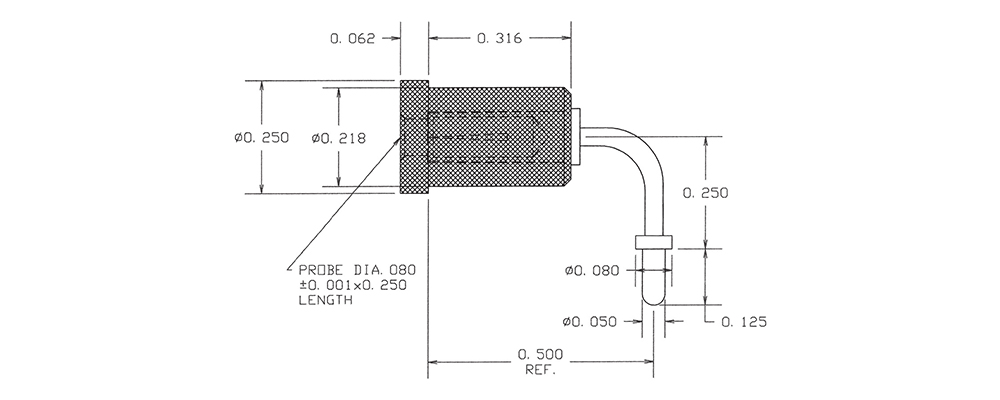

1128-56-03517
1128-56-03517
1128-56-03517
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Violet -

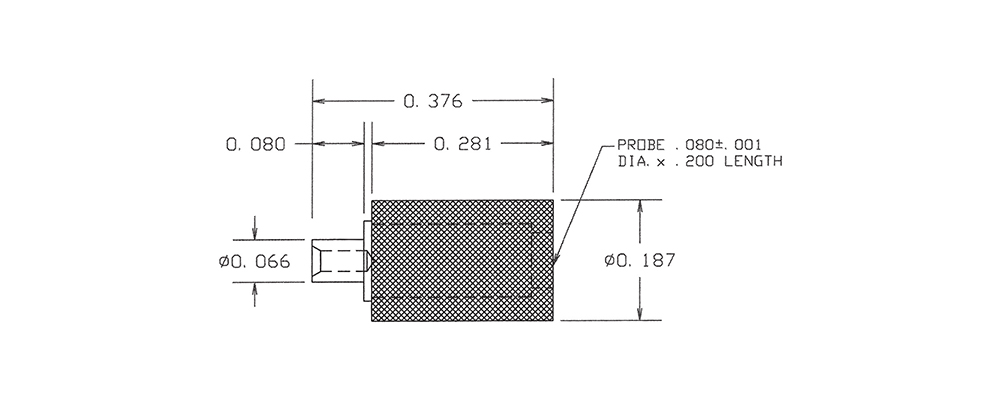

1138-04-03513
1138-04-03513
1138-04-03513
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Orange -

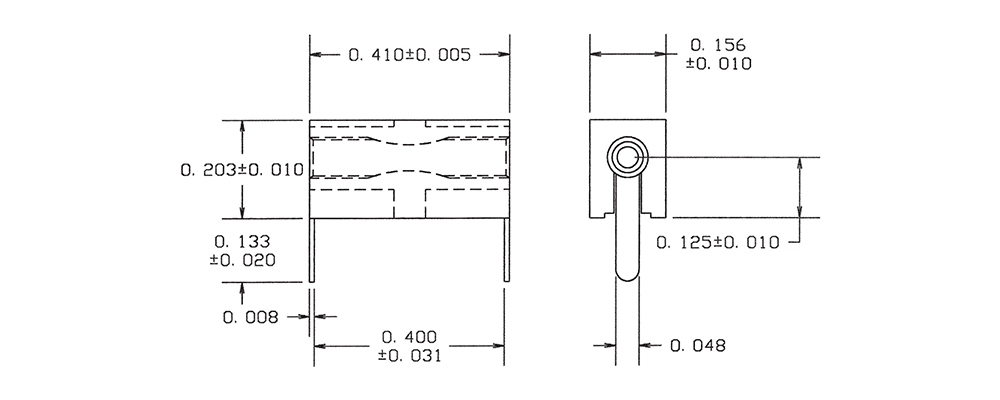

21-9205-1-03519
21-9205-1-03519
21-9205-1-03519
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
09-9084-1-03512
09-9084-1-03512
09-9084-1-03512
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Red M39024/12-02
09-9192-1-0418
09-9192-1-0418
09-9192-1-0418
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Gray -

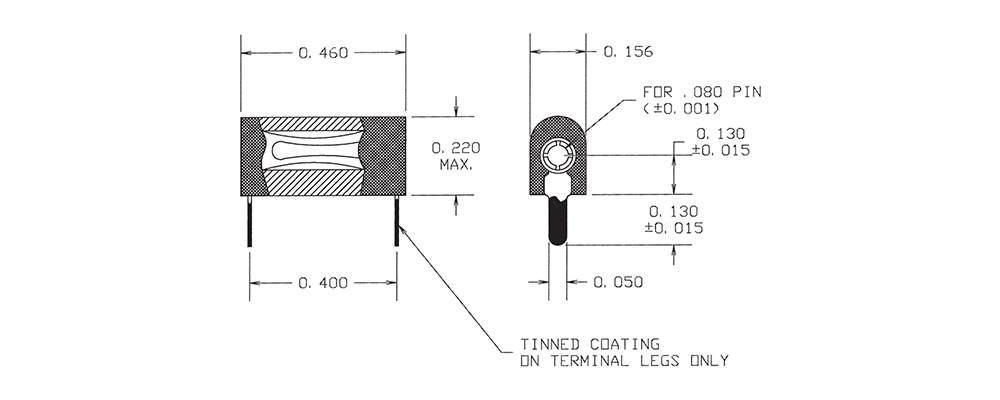

09-9224-1-03514
09-9224-1-03514
09-9224-1-03514
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow M39024/11-08
09-9010-1-0416
09-9010-1-0416
09-9010-1-0416
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Electro-Tin Polyolefin Blue -

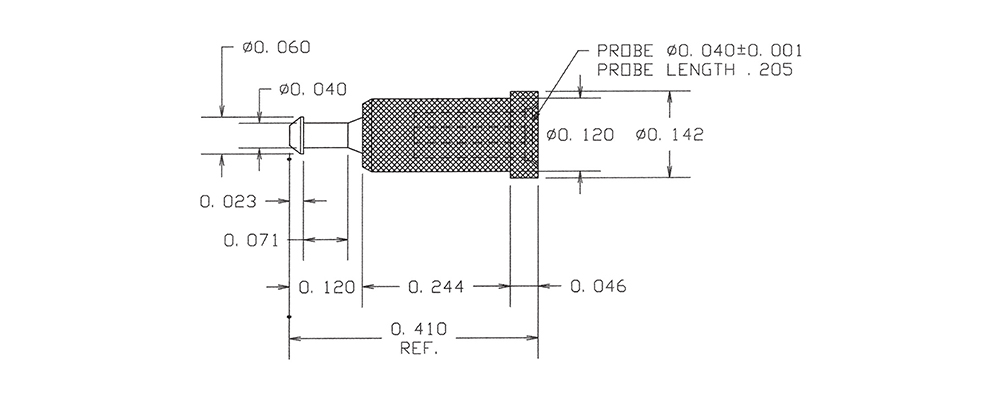

1128-02-0310
1128-02-0310
1128-02-0310
0.040 0.205 " 0.410" Jack/Turret Press Fit 0.108 1/32 - 3/16 Vertical - - PTFE Black -
1128-15-03516
1128-15-03516
1128-15-03516
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Blue -
1128-34-0312
1128-34-0312
1128-34-0312
0.032 0.200 " 0.425" Jack/Turret Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Red -
1128-56-03518
1128-56-03518
1128-56-03518
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Gray -
1138-04-03514
1138-04-03514
1138-04-03514
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Yellow -
21-9205-1-04410
21-9205-1-04410
21-9205-1-04410
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black -
09-9084-1-03513
09-9084-1-03513
09-9084-1-03513
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Orange M39024/12-06
09-9192-1-0419
09-9192-1-0419
09-9192-1-0419
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE White -
09-9224-1-03515
09-9224-1-03515
09-9224-1-03515
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green M39024/11-05
09-9010-1-0419
09-9010-1-0419
09-9010-1-0419
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Electro-Tin Polyolefin White -
