Insulated
PC Jacks

Filter

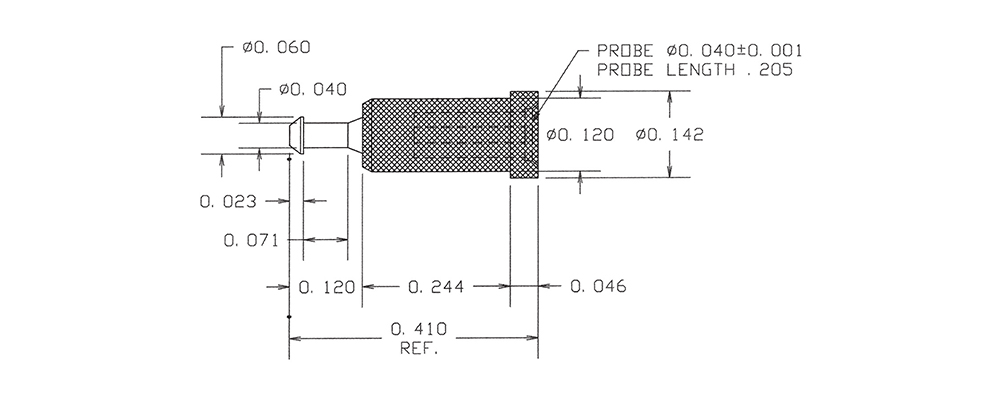

1128-02-0319
1128-02-0319
1128-02-0319
0.040 0.205 " 0.410" Jack/Turret Press Fit 0.108 1/32 - 3/16 Vertical - - PTFE White -

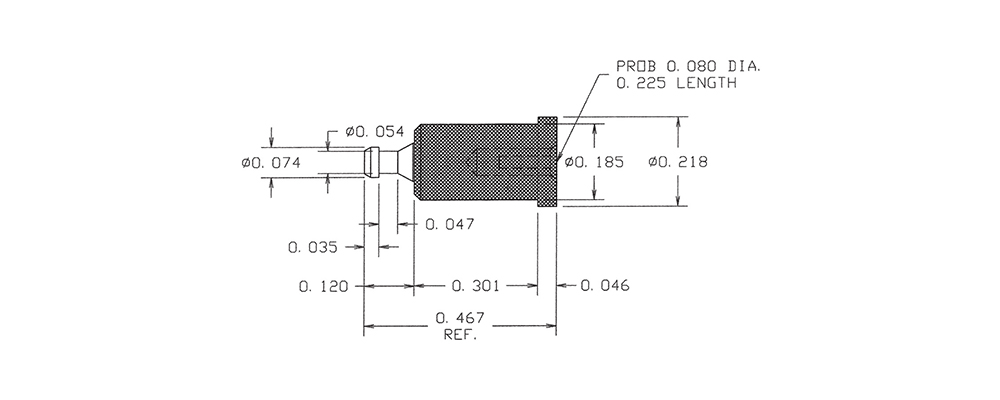

1128-16-0315
1128-16-0315
1128-16-0315
0.080 0.225 " 0.467" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Green -

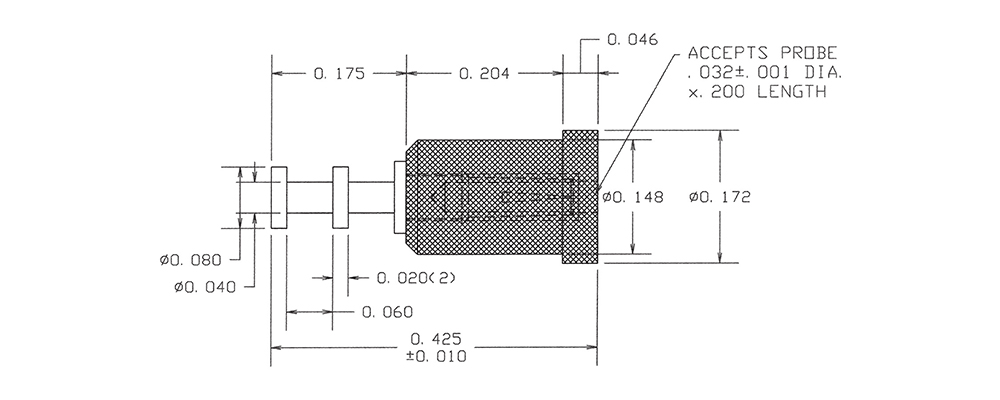

1128-34-03511
1128-34-03511
1128-34-03511
0.032 0.200 " 0.425" Jack/Turret Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Brown -

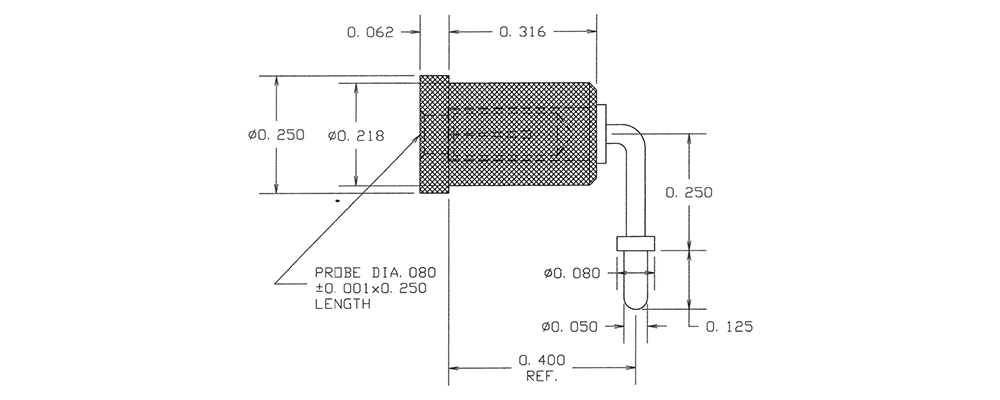

1128-57-0317
1128-57-0317
1128-57-0317
0.080 0.250 " 0.487" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Violet -

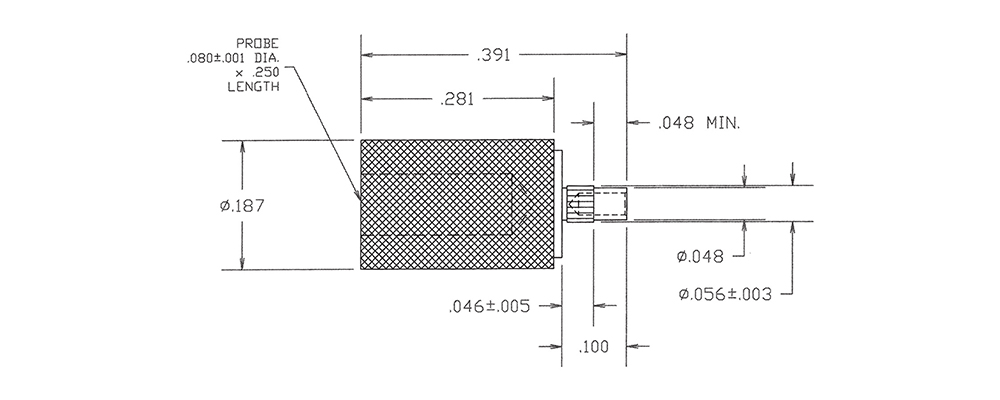

1138-05-0313
1138-05-0313
1138-05-0313
0.080 0.250 " 0.391" - Swage Mount 0.061 1/16 Vertical - - PTFE Orange -

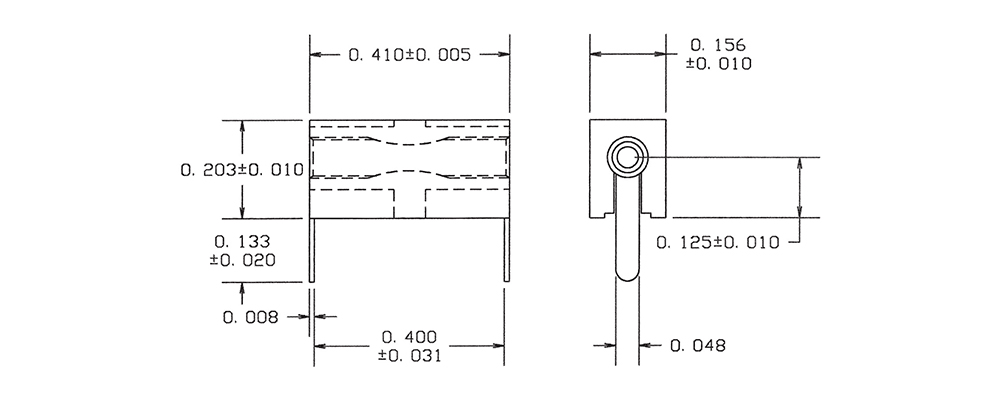

21-9205-1-04419
21-9205-1-04419
21-9205-1-04419
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
09-9084-1-0412
09-9084-1-0412
09-9084-1-0412
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Red -
09-9192-1-0618
09-9192-1-0618
09-9192-1-0618
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Gray -

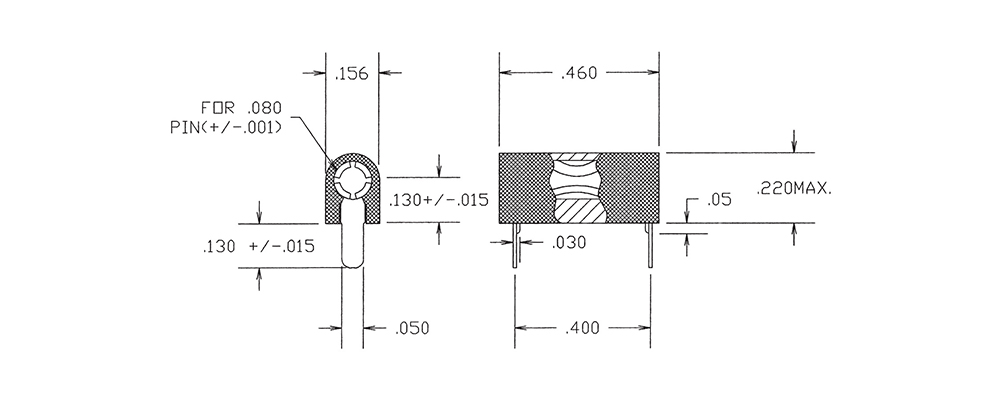

09-9252-1-0314
09-9252-1-0314
09-9252-1-0314
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon Yellow -
09-9012-1-08818
09-9012-1-08818
09-9012-1-08818
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Gray -
1128-02-03510
1128-02-03510
1128-02-03510
0.040 0.205 " 0.410" Jack/Turret Press Fit 0.108 1/32 - 3/16 Vertical - - PTFE Black -
1128-16-0316
1128-16-0316
1128-16-0316
0.080 0.225 " 0.467" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Blue -
1128-34-03512
1128-34-03512
1128-34-03512
0.032 0.200 " 0.425" Jack/Turret Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Red -
1128-57-0318
1128-57-0318
1128-57-0318
0.080 0.250 " 0.487" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Gray -
1138-05-0314
1138-05-0314
1138-05-0314
0.080 0.250 " 0.391" - Swage Mount 0.061 1/16 Vertical - - PTFE Yellow -
09-9225-1-0310
09-9225-1-0310
09-9225-1-0310
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black -
09-9084-1-0413
09-9084-1-0413
09-9084-1-0413
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Orange -
09-9192-1-0619
09-9192-1-0619
09-9192-1-0619
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE White -
09-9252-1-0315
09-9252-1-0315
09-9252-1-0315
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon Green -
09-9012-1-08819
09-9012-1-08819
09-9012-1-08819
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE White -
