Insulated
PC Jacks

Filter
09-9201-1-03514
09-9201-1-03514
09-9201-1-03514
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow M39024/11-08G

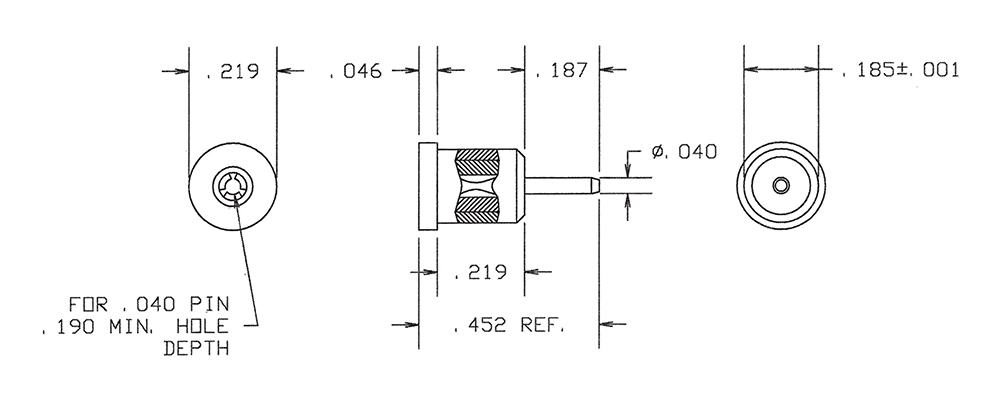

09-9192-1-08811
09-9192-1-08811
09-9192-1-08811
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Brown -

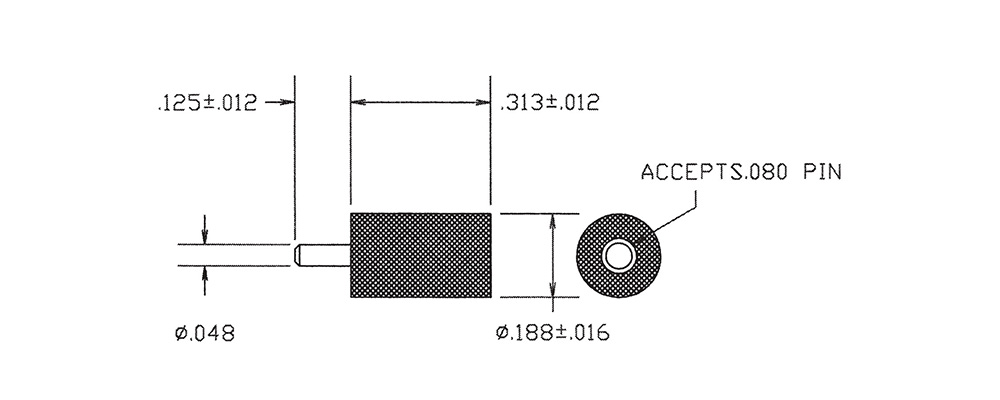

09-9221-1-0413
09-9221-1-0413
09-9221-1-0413
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Electro-Tin Nylon Orange -
09-9201-1-03516
09-9201-1-03516
09-9201-1-03516
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Blue M39024/11-07G
09-9084-1-0617
09-9084-1-0617
09-9084-1-0617
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Violet -
1138-29-03516
1138-29-03516
1138-29-03516
0.080 0.187 " 0.437" Jack/Solder Cup Press Fit 0.172 1/32 - 3/16 Vertical - - PTFE Blue -
1138-30-0319
1138-30-0319
1138-30-0319
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE White -
1138-30-0318
1138-30-0318
1138-30-0318
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Gray -
09-9084-1-0312
09-9084-1-0312
09-9084-1-0312
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Red -

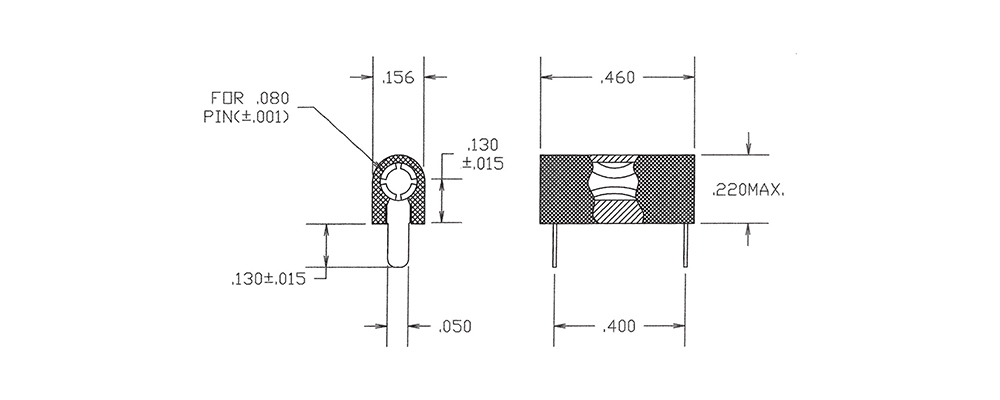

20-9201-1-04415
20-9201-1-04415
20-9201-1-04415
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green -
09-9211-1-03210
09-9211-1-03210
09-9211-1-03210
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE Black -
09-9192-1-06315
09-9192-1-06315
09-9192-1-06315
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Green -
09-9158-1-0416
09-9158-1-0416
09-9158-1-0416
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE Blue -
09-9192-1-06313
09-9192-1-06313
09-9192-1-06313
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Orange -
09-9305-1-03513
09-9305-1-03513
09-9305-1-03513
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Orange -
09-9211-1-03214
09-9211-1-03214
09-9211-1-03214
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE Yellow -
09-9224-1-0319
09-9224-1-0319
09-9224-1-0319
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
09-9211-1-03215
09-9211-1-03215
09-9211-1-03215
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE Green -
09-9211-1-03218
09-9211-1-03218
09-9211-1-03218
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE Gray -
09-9092-1-03515
09-9092-1-03515
09-9092-1-03515
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Green -
