Insulated
PC Jacks

Filter

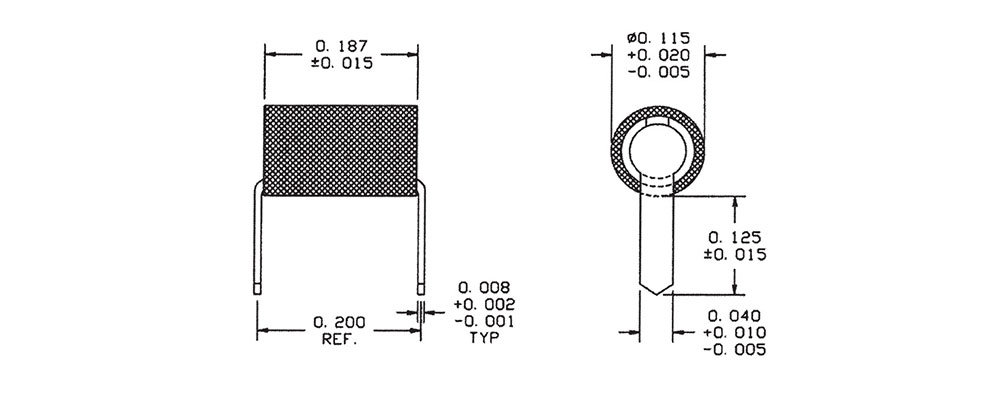

09-9350-1-04417
09-9350-1-04417
09-9350-1-04417
0.080 0.187 " 0.200" - Solder 0.052 1/32 - 1/16 Horizontal - - PTFE Violet -

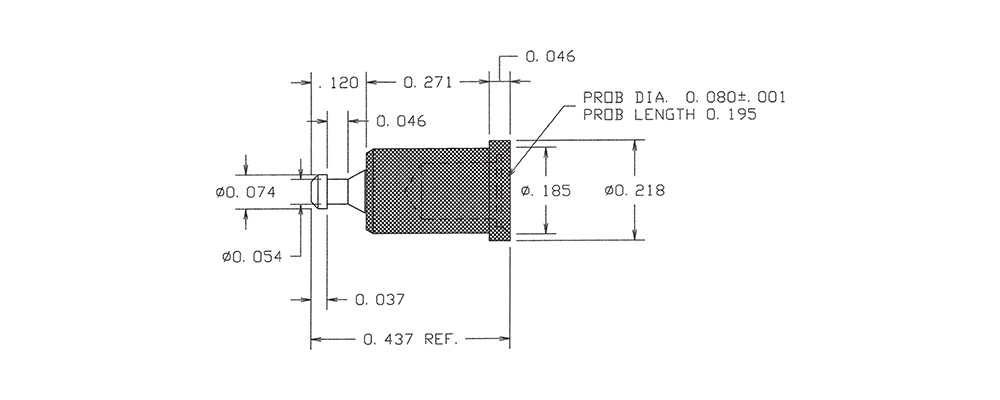

1128-13-03513
1128-13-03513
1128-13-03513
0.080 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Orange -

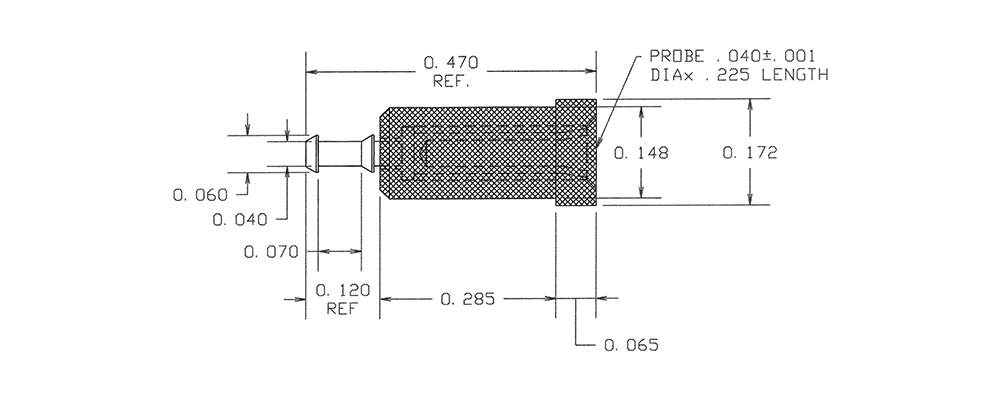

1128-32-03519
1128-32-03519
1128-32-03519
0.040 0.225 " 0.470" Jack/Turret Press Fit 0.136 1/32 - 15/64 Vertical - - PTFE White -

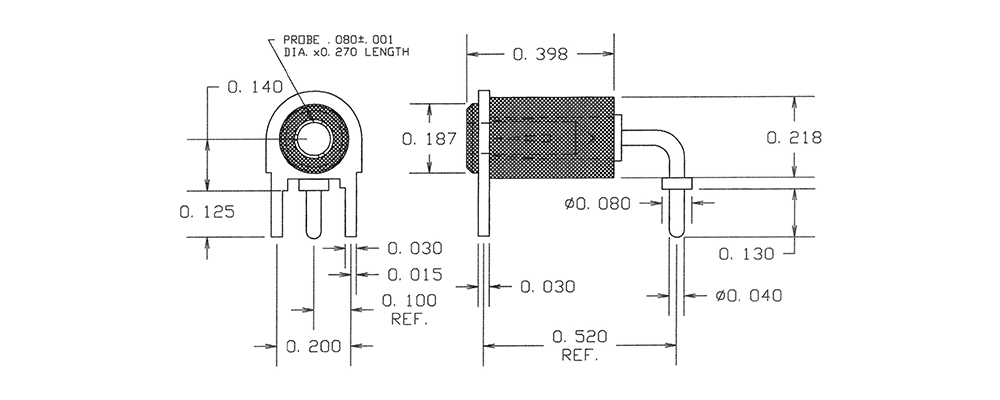

1128-55-03515
1128-55-03515
1128-55-03515
0.080 0.270 " 0.607" - Solder 0.052 1/32 - 1/16 Horizontal - - PTFE Green -

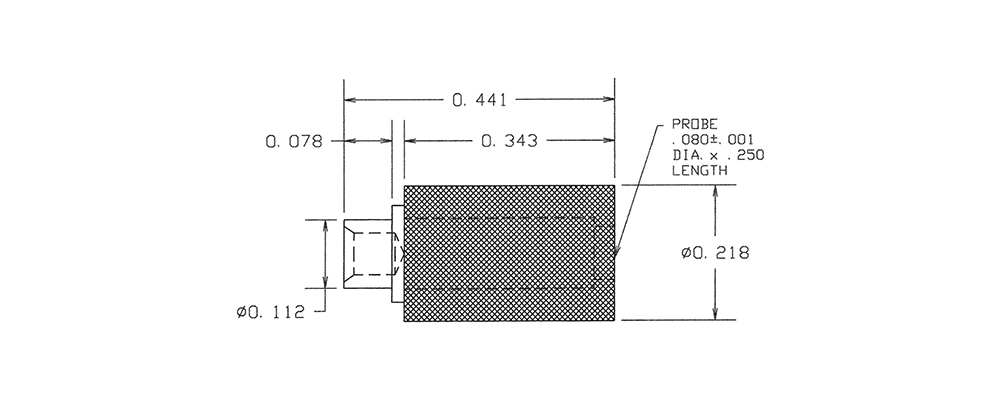

1138-03-03511
1138-03-03511
1138-03-03511
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE Brown -

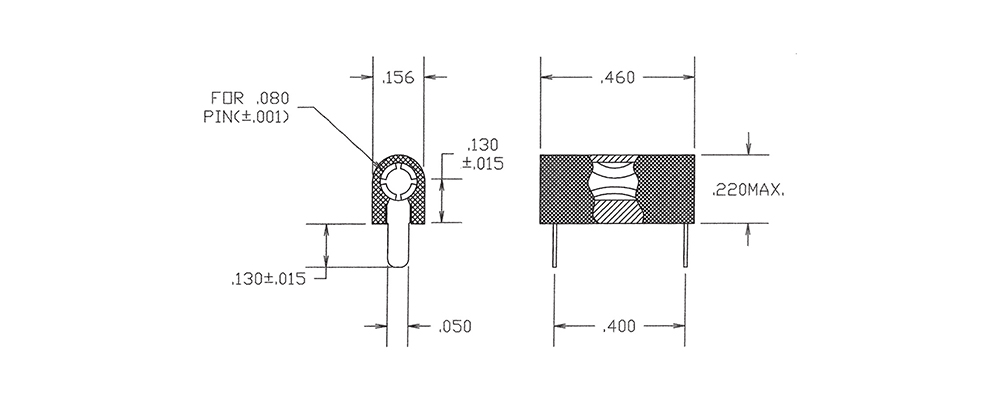

20-9201-1-04417
20-9201-1-04417
20-9201-1-04417
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Violet -

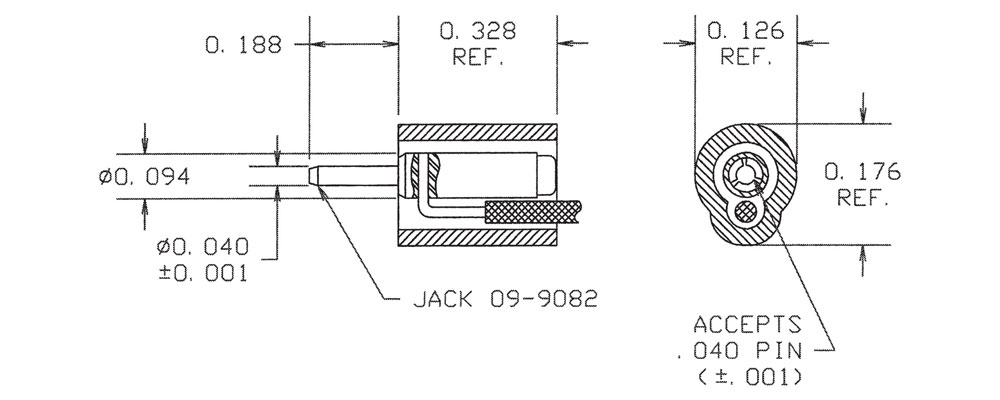

09-9083-1-06314
09-9083-1-06314
09-9083-1-06314
0.140 0.190 " 0.516" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Yellow -

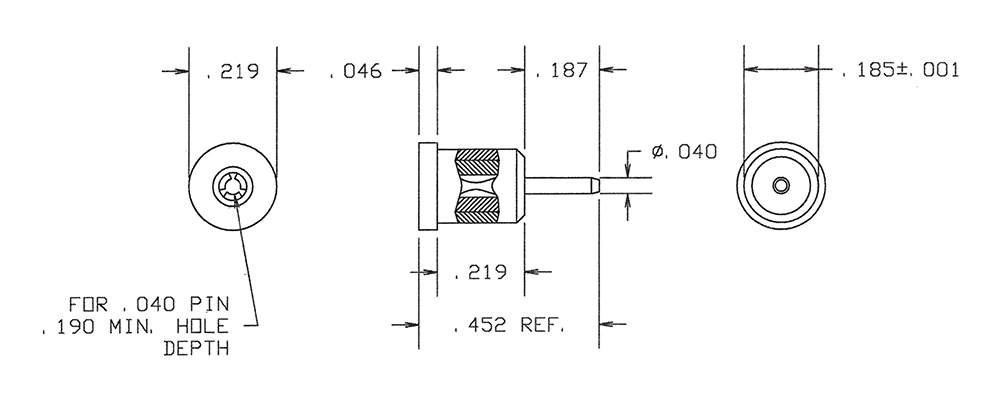

09-9192-1-0316
09-9192-1-0316
09-9192-1-0316
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Blue -

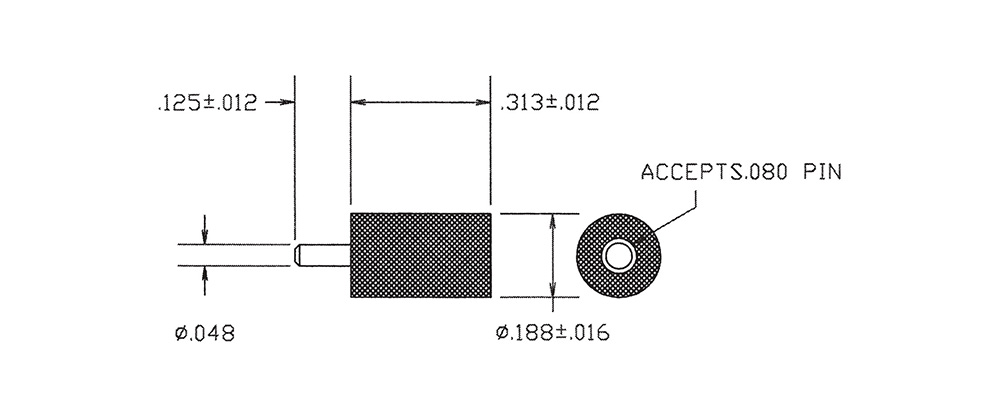

09-9221-1-04412
09-9221-1-04412
09-9221-1-04412
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Bright Tin-Lead Nylon Red -

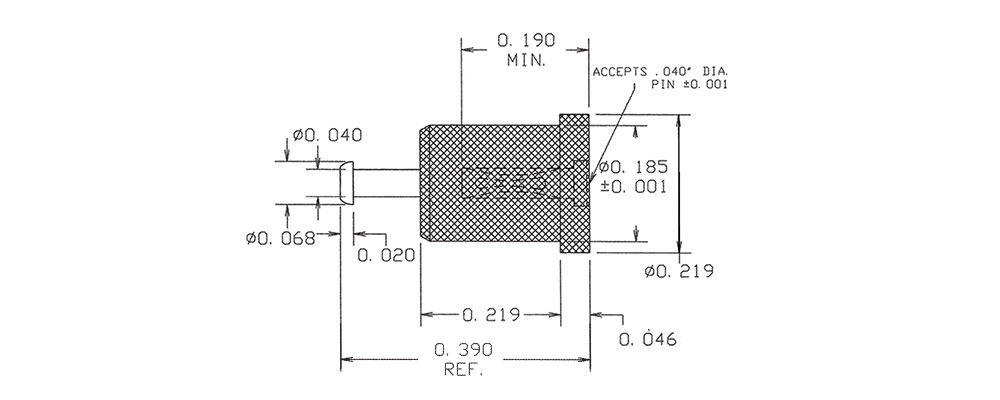

09-9012-1-0418
09-9012-1-0418
09-9012-1-0418
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Gray -
09-9350-1-04418
09-9350-1-04418
09-9350-1-04418
0.080 0.187 " 0.200" - Solder 0.052 1/32 - 1/16 Horizontal - - PTFE Gray -
1128-13-03514
1128-13-03514
1128-13-03514
0.080 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Yellow -

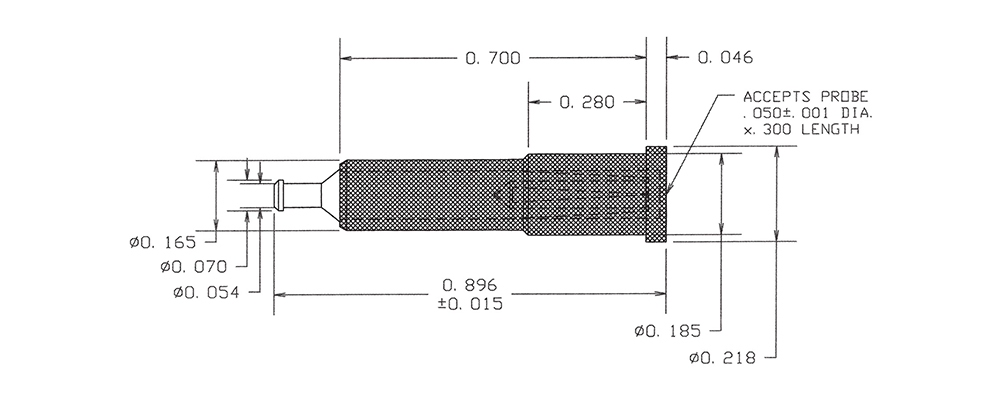

1128-33-0310
1128-33-0310
1128-33-0310
0.050 0.300 " 0.896" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Black -
1128-55-03516
1128-55-03516
1128-55-03516
0.080 0.270 " 0.607" - Solder 0.052 1/32 - 1/16 Horizontal - - PTFE Blue -
1138-03-03512
1138-03-03512
1138-03-03512
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE Red -
20-9201-1-04418
20-9201-1-04418
20-9201-1-04418
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -
09-9083-1-06315
09-9083-1-06315
09-9083-1-06315
0.140 0.190 " 0.516" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Green -
09-9192-1-0317
09-9192-1-0317
09-9192-1-0317
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Violet -
09-9221-1-04413
09-9221-1-04413
09-9221-1-04413
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Bright Tin-Lead Nylon Orange -
09-9012-1-0419
09-9012-1-0419
09-9012-1-0419
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE White -
