Insulated
PC Jacks

Filter
09-9084-1-08815
09-9084-1-08815
09-9084-1-08815
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Green -
09-9084-1-0315
09-9084-1-0315
09-9084-1-0315
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Green -

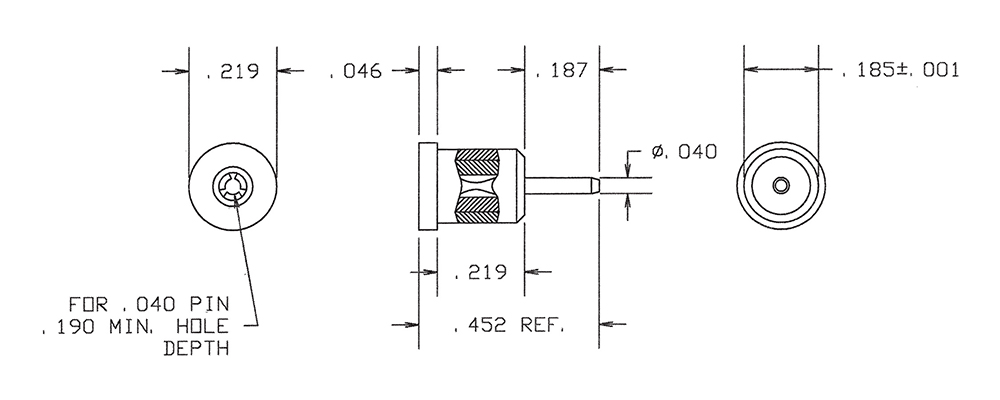

09-9192-1-06311
09-9192-1-06311
09-9192-1-06311
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Brown -
1138-32-0314
1138-32-0314
1138-32-0314
0.080 0.250 " 0.912" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Yellow -
1138-32-0313
1138-32-0313
1138-32-0313
0.080 0.250 " 0.912" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Orange -
09-9208-1-03515
09-9208-1-03515
09-9208-1-03515
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green M39024/11-45G
09-9158-1-03514
09-9158-1-03514
09-9158-1-03514
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE Yellow -
09-9084-1-08814
09-9084-1-08814
09-9084-1-08814
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Yellow -
09-9192-1-0618
09-9192-1-0618
09-9192-1-0618
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Gray -
20-9201-1-03515
20-9201-1-03515
20-9201-1-03515
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green -
09-9192-1-06316
09-9192-1-06316
09-9192-1-06316
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Blue -
09-9203-1-03519
09-9203-1-03519
09-9203-1-03519
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE White M39024/4-01

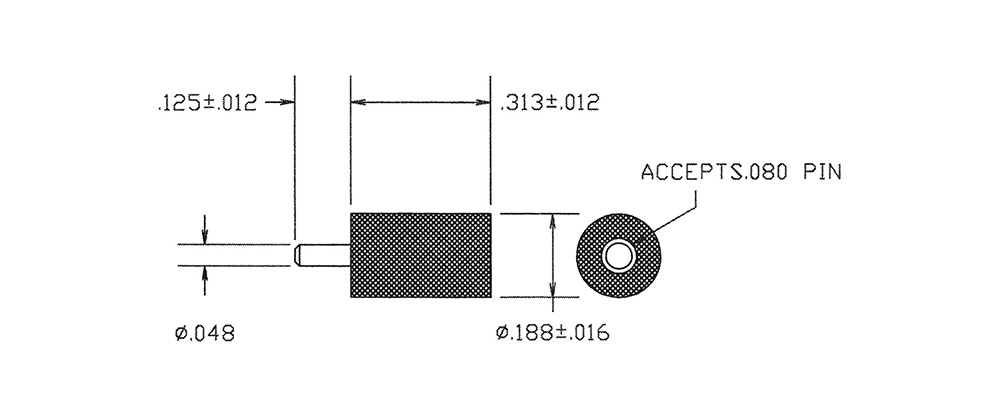

09-9221-1-04417
09-9221-1-04417
09-9221-1-04417
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Bright Tin-Lead Nylon Violet -
09-9224-1-03510
09-9224-1-03510
09-9224-1-03510
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black M39024/11-03
09-9071-1-08810
09-9071-1-08810
09-9071-1-08810
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin Black -
09-9011-1-03510
09-9011-1-03510
09-9011-1-03510
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Black M39024/12-14
1138-28-0319
1138-28-0319
1138-28-0319
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE White -
09-9057-1-03512
09-9057-1-03512
09-9057-1-03512
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin Red -
09-9063-1-03519
09-9063-1-03519
09-9063-1-03519
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Gold Polyolefin White -
1128-57-03519
1128-57-03519
1128-57-03519
0.080 0.250 " 0.487" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE White -
