Insulated
PC Jacks

Filter
09-9071-1-06315
09-9071-1-06315
09-9071-1-06315
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin Green -

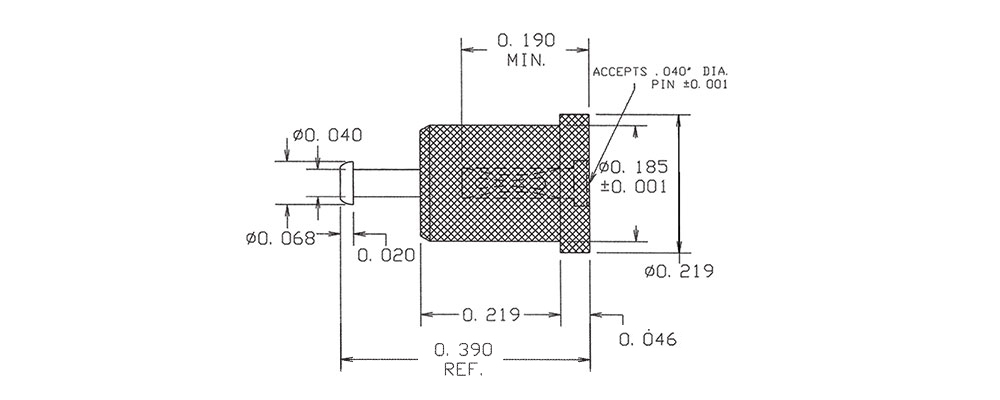

09-9012-1-0418
09-9012-1-0418
09-9012-1-0418
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Gray -
09-9175-1-0610
09-9175-1-0610
09-9175-1-0610
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -
09-9202-1-0312
09-9202-1-0312
09-9202-1-0312
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Red -
09-9158-1-06314
09-9158-1-06314
09-9158-1-06314
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Yellow -
1138-28-03518
1138-28-03518
1138-28-03518
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Gray -
1138-28-03517
1138-28-03517
1138-28-03517
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Violet -
09-9265-1-0316
09-9265-1-0316
09-9265-1-0316
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Blue -
1138-05-0318
1138-05-0318
1138-05-0318
0.080 0.250 " 0.391" - Swage Mount 0.061 1/16 Vertical - - PTFE Gray -
1138-28-03514
1138-28-03514
1138-28-03514
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Yellow -
1138-28-03511
1138-28-03511
1138-28-03511
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Brown -
1138-30-0314
1138-30-0314
1138-30-0314
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Yellow -
09-9252-1-04419
09-9252-1-04419
09-9252-1-04419
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon White -

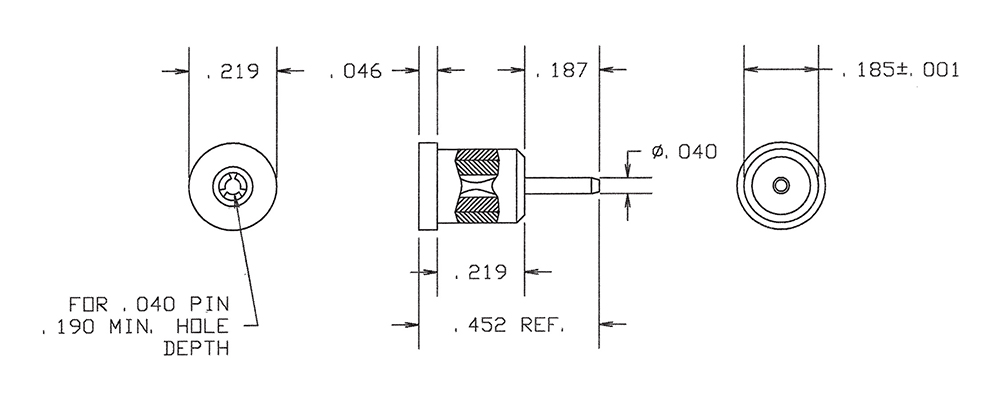

09-9192-1-06317
09-9192-1-06317
09-9192-1-06317
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Violet -
21-9205-1-0316
21-9205-1-0316
21-9205-1-0316
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Blue -
1138-30-03518
1138-30-03518
1138-30-03518
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Gray -
1128-72-03512
1128-72-03512
1128-72-03512
0.080 0.600 " 0.794" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Red -
09-9158-1-03519
09-9158-1-03519
09-9158-1-03519
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE White -

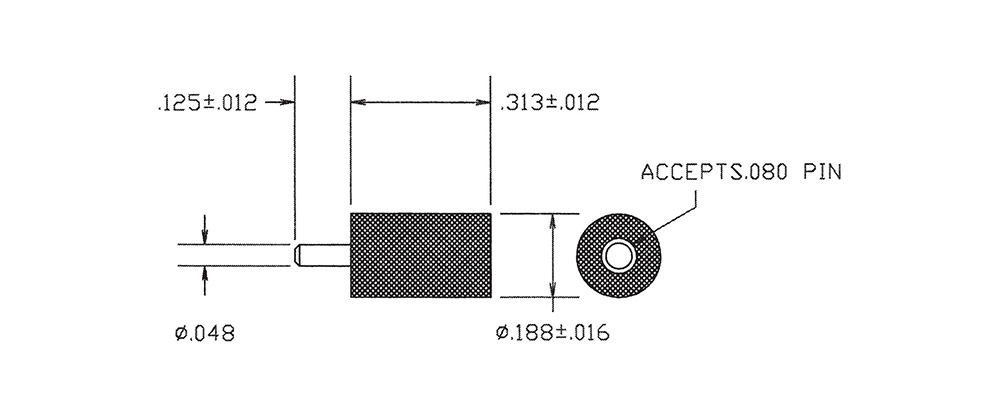

09-9221-1-04418
09-9221-1-04418
09-9221-1-04418
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Bright Tin-Lead Nylon Gray -
09-9224-1-0310
09-9224-1-0310
09-9224-1-0310
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black -

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
