Insulated
PC Jacks

Filter
09-9265-1-03515
09-9265-1-03515
09-9265-1-03515
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Green -
09-9201-1-03518
09-9201-1-03518
09-9201-1-03518
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray M39024/11-09G
1138-27-0317
1138-27-0317
1138-27-0317
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Violet -
1138-27-0316
1138-27-0316
1138-27-0316
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Blue -
09-9265-1-03516
09-9265-1-03516
09-9265-1-03516
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Blue -
09-9306-1-0313
09-9306-1-0313
09-9306-1-0313
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Orange -
09-9306-1-0312
09-9306-1-0312
09-9306-1-0312
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Red -
09-9060-1-0610
09-9060-1-0610
09-9060-1-0610
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Black -
09-9055-1-0316
09-9055-1-0316
09-9055-1-0316
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Gold Polyolefin Blue -

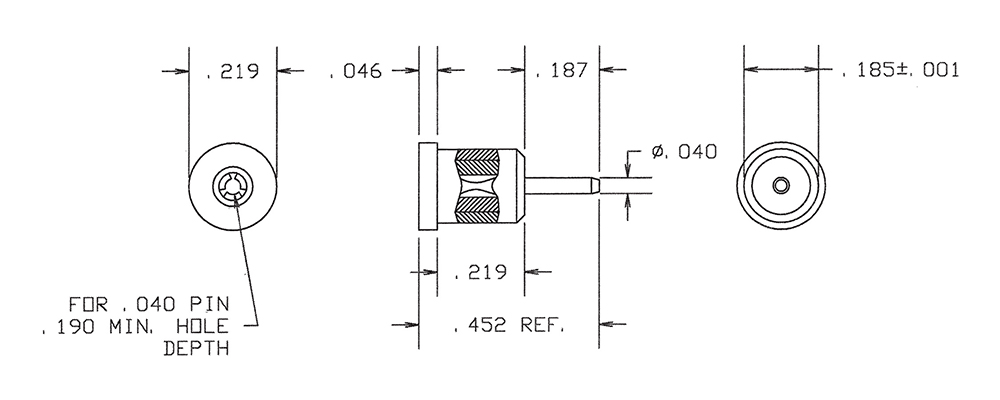

09-9192-1-08818
09-9192-1-08818
09-9192-1-08818
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Gray -
1138-01-03510
1138-01-03510
1138-01-03510
0.080 0.250 " 0.381" - Swage Mount 0.064 1/16 Vertical - - PTFE Black -

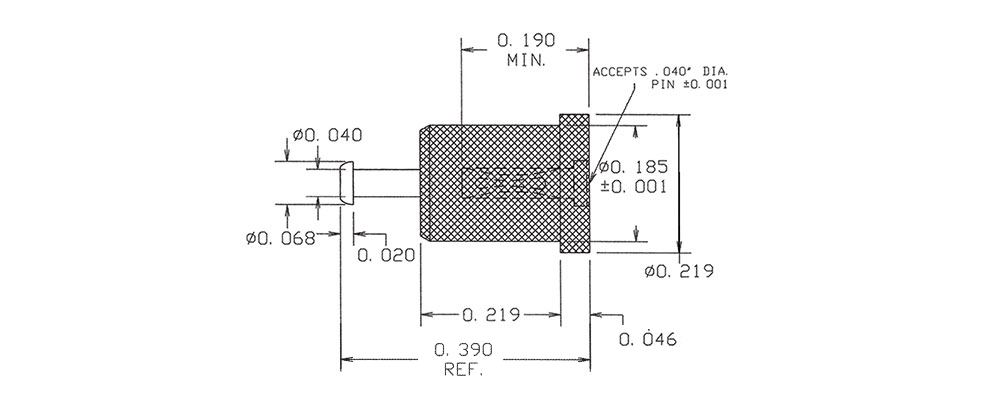

09-9012-1-06319
09-9012-1-06319
09-9012-1-06319
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE White -
09-9012-1-06318
09-9012-1-06318
09-9012-1-06318
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Gray -
09-9011-1-06310
09-9011-1-06310
09-9011-1-06310
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Black -
09-9012-1-03517
09-9012-1-03517
09-9012-1-03517
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Violet -
09-9307-1-0311
09-9307-1-0311
09-9307-1-0311
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Brown -
09-9057-1-0410
09-9057-1-0410
09-9057-1-0410
0.040 0.185 " 0.750" - - - - - Brass Electro-Tin Polyolefin Black -
09-9057-1-03516
09-9057-1-03516
09-9057-1-03516
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin Blue -
09-9057-1-03514
09-9057-1-03514
09-9057-1-03514
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin Yellow -
09-9057-1-0316
09-9057-1-0316
09-9057-1-0316
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin Blue -
