Insulated
PC Jacks

Filter
09-9265-1-03515
09-9265-1-03515
09-9265-1-03515
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Green -
09-9010-1-06312
09-9010-1-06312
09-9010-1-06312
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Bright Tin-Lead Polyolefin Red -

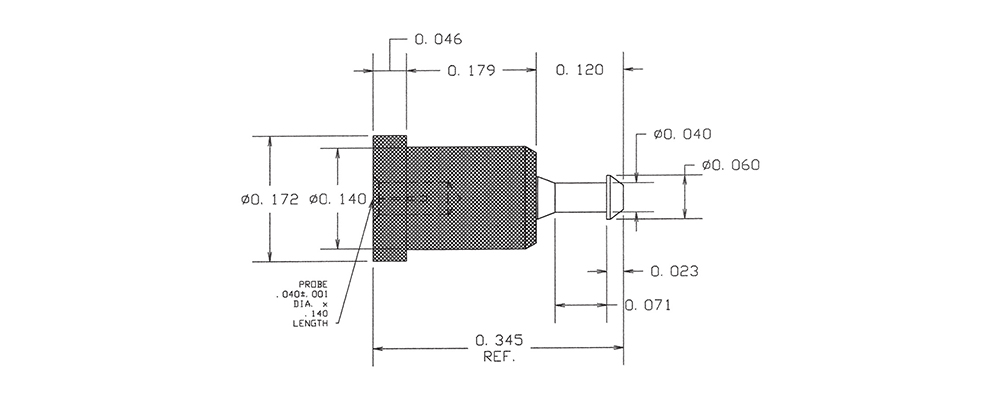

1128-04-0311
1128-04-0311
1128-04-0311
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Brown -

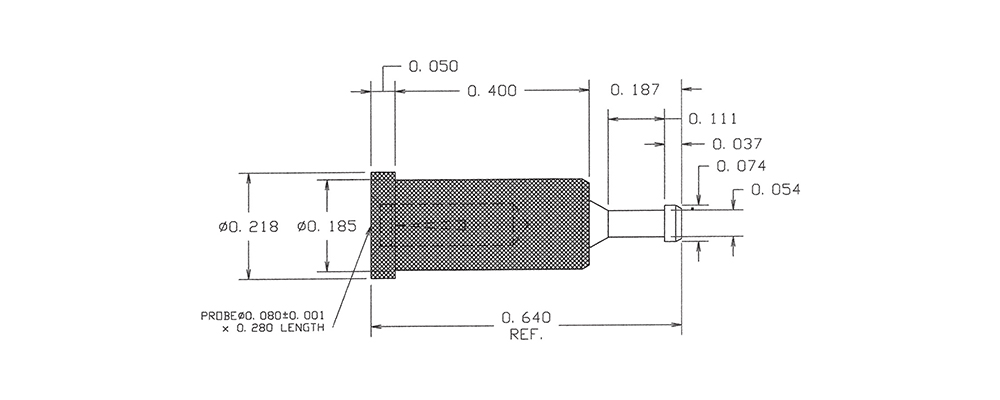

1128-18-030117
1128-18-030117
1128-18-030117
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Violet -

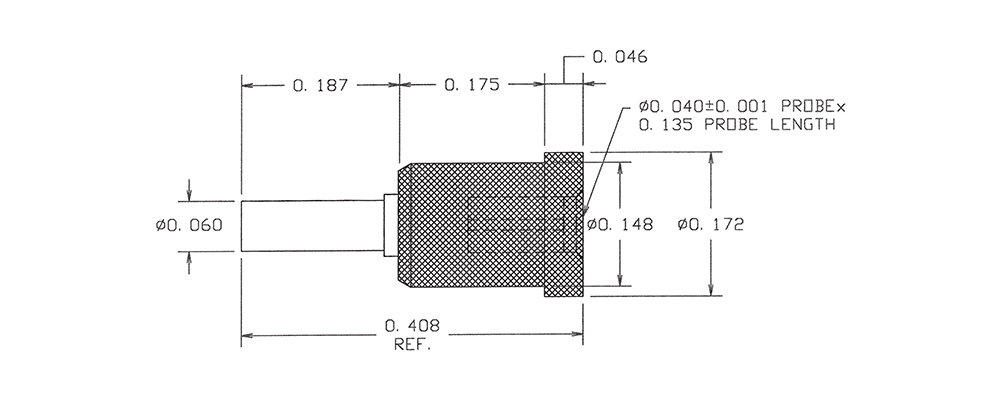

1128-36-03513
1128-36-03513
1128-36-03513
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Orange -

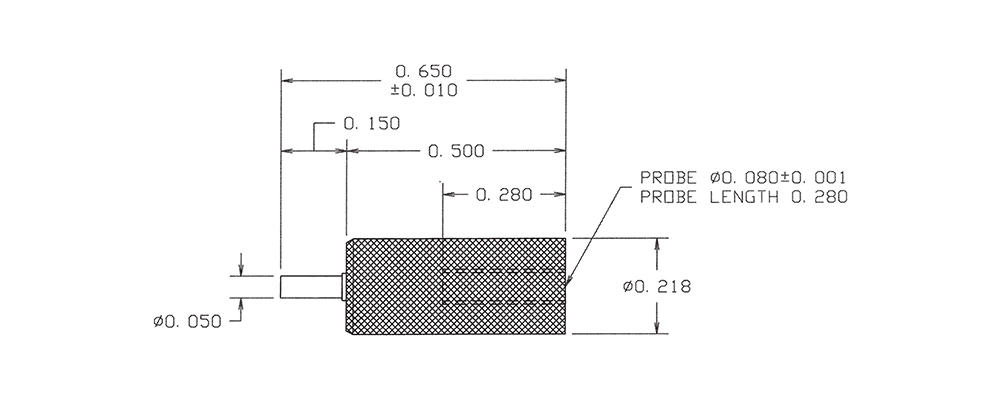

1128-59-0319
1128-59-0319
1128-59-0319
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE White -

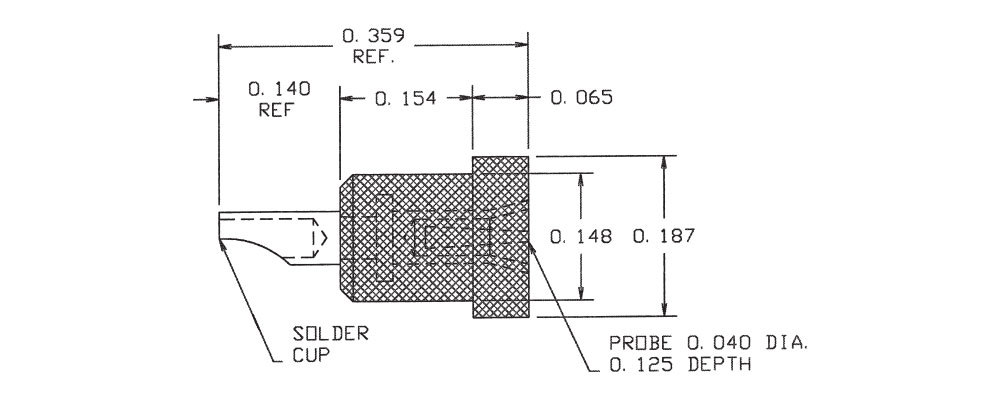

1138-25-0315
1138-25-0315
1138-25-0315
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Green -

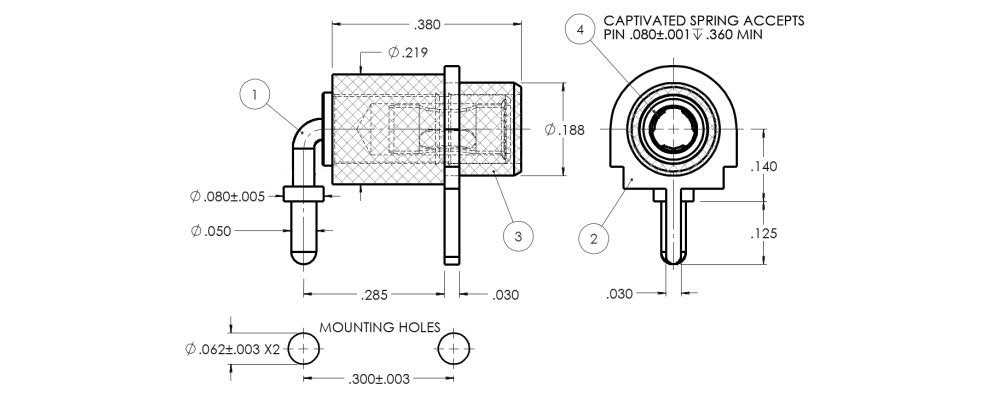

09-9299-1-03511
09-9299-1-03511
09-9299-1-03511
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Brown -
09-9011-1-0610
09-9011-1-0610
09-9011-1-0610
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -

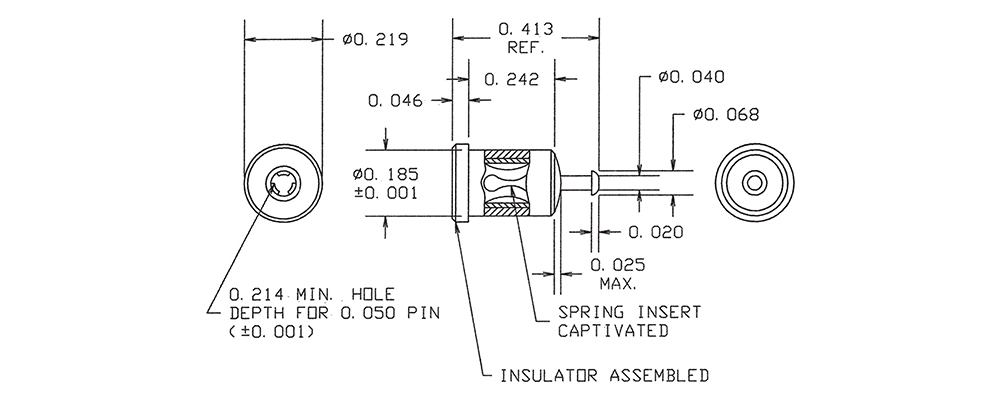

09-9092-1-0314
09-9092-1-0314
09-9092-1-0314
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Yellow -

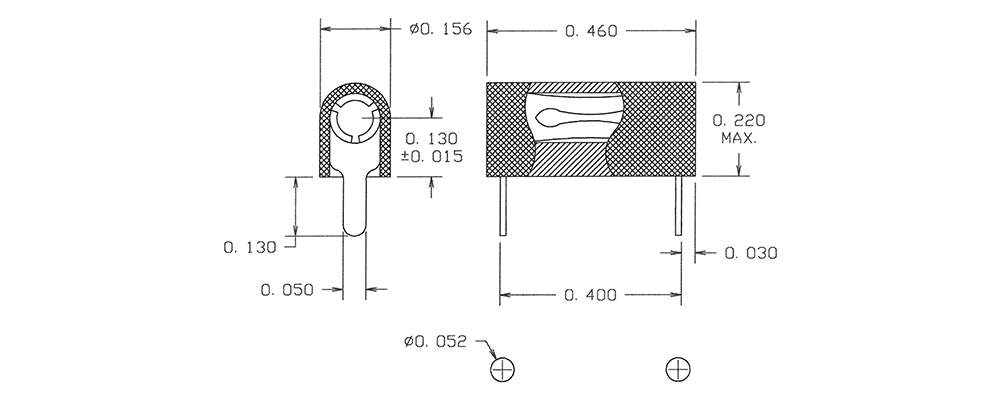

09-9201-1-04410
09-9201-1-04410
09-9201-1-04410
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black -
09-9265-1-03516
09-9265-1-03516
09-9265-1-03516
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Blue -
09-9010-1-06314
09-9010-1-06314
09-9010-1-06314
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Bright Tin-Lead Polyolefin Yellow -
1128-04-0312
1128-04-0312
1128-04-0312
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Red -
1128-18-030118
1128-18-030118
1128-18-030118
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Gray -
1128-36-03514
1128-36-03514
1128-36-03514
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Yellow -
1128-59-03510
1128-59-03510
1128-59-03510
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Black -
1138-25-0316
1138-25-0316
1138-25-0316
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Blue -
09-9299-1-03512
09-9299-1-03512
09-9299-1-03512
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Red -
09-9011-1-0611
09-9011-1-0611
09-9011-1-0611
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Brown -
