Insulated
PC Jacks

Filter

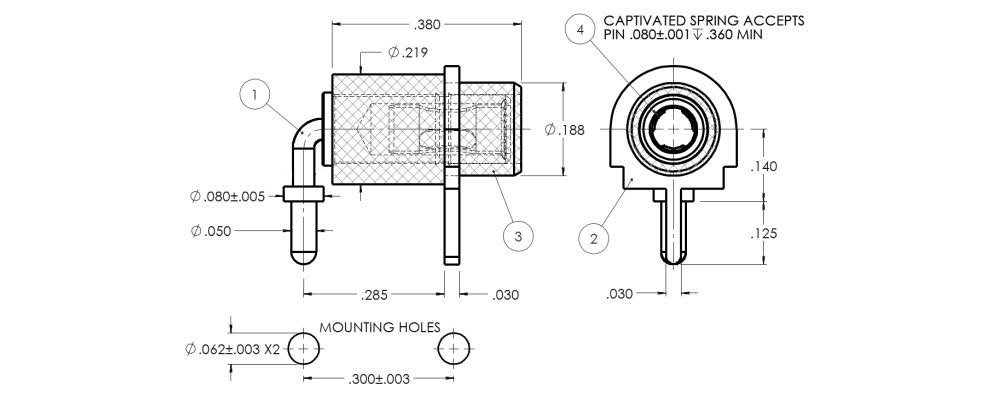

09-9299-1-03514
09-9299-1-03514
09-9299-1-03514
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Yellow -
09-9011-1-0613
09-9011-1-0613
09-9011-1-0613
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Orange -

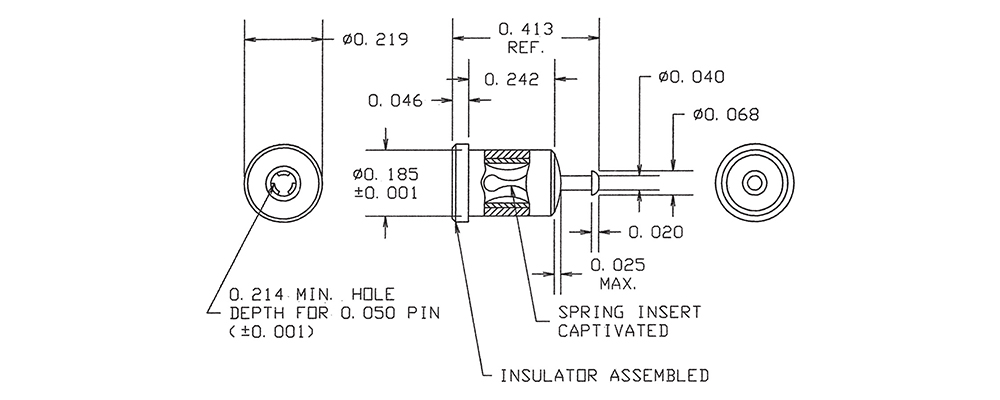

09-9092-1-0317
09-9092-1-0317
09-9092-1-0317
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Violet -

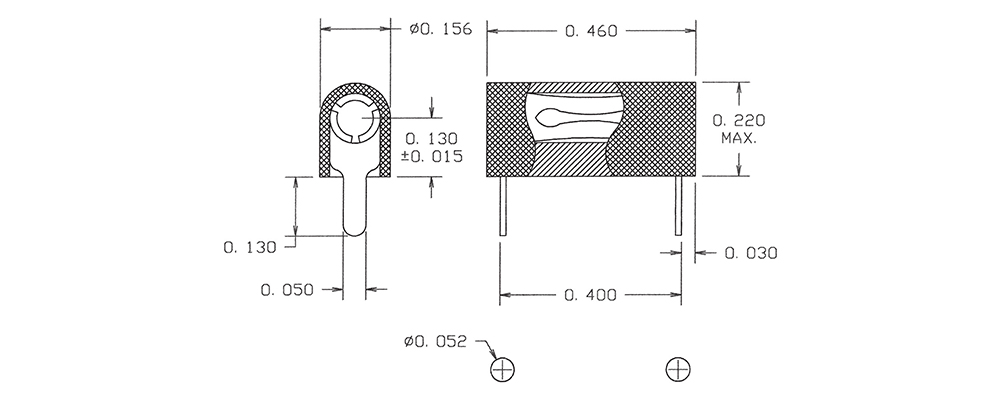

09-9201-1-04413
09-9201-1-04413
09-9201-1-04413
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange -
09-9265-1-03519
09-9265-1-03519
09-9265-1-03519
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE White -

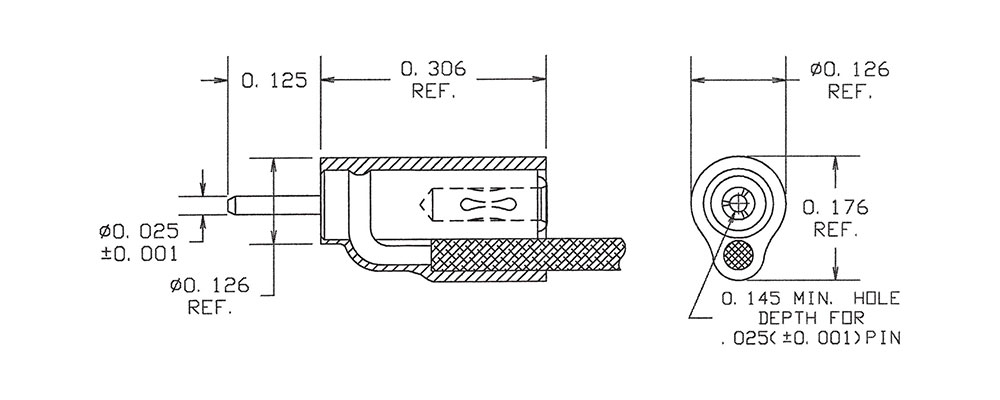

09-9055-1-06310
09-9055-1-06310
09-9055-1-06310
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Black -

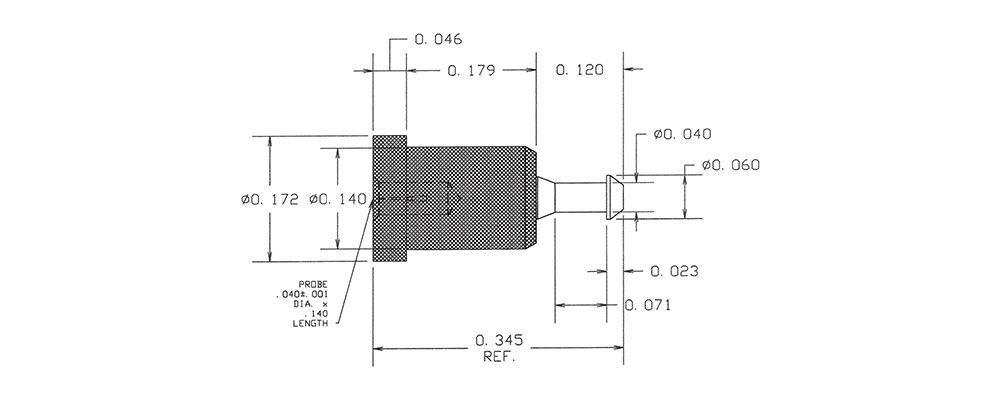

1128-04-0315
1128-04-0315
1128-04-0315
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Green -

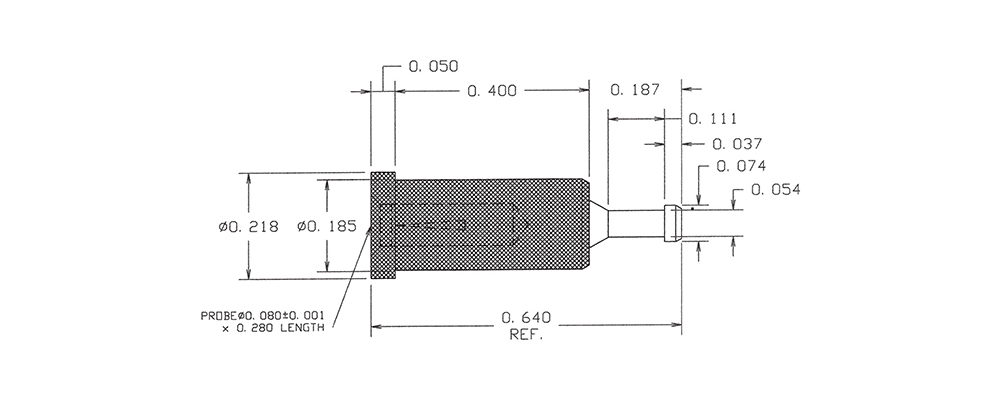

1128-18-0311
1128-18-0311
1128-18-0311
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Brown -

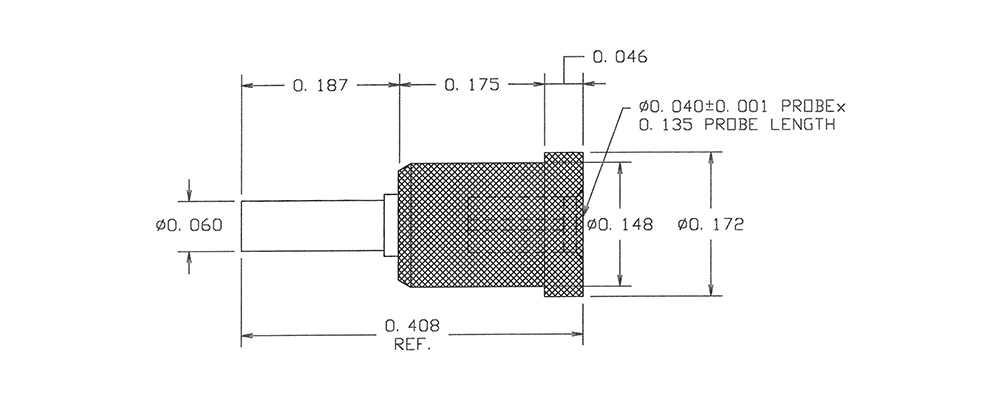

1128-36-03517
1128-36-03517
1128-36-03517
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Violet -

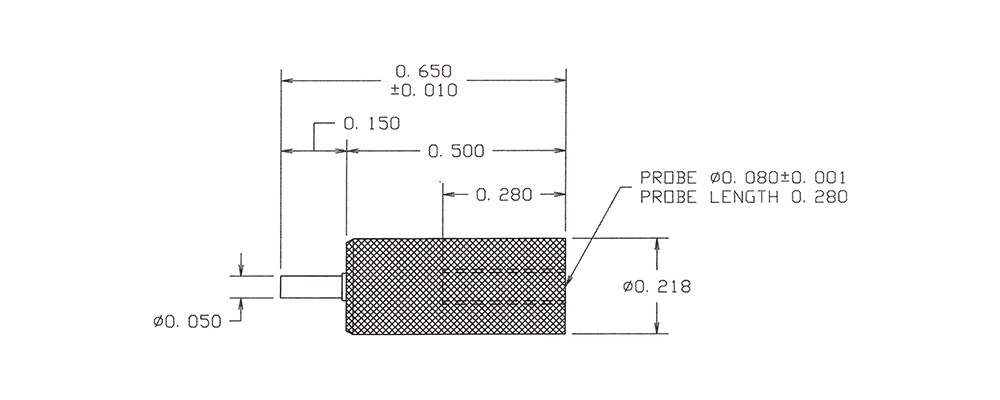

1128-59-03513
1128-59-03513
1128-59-03513
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Orange -

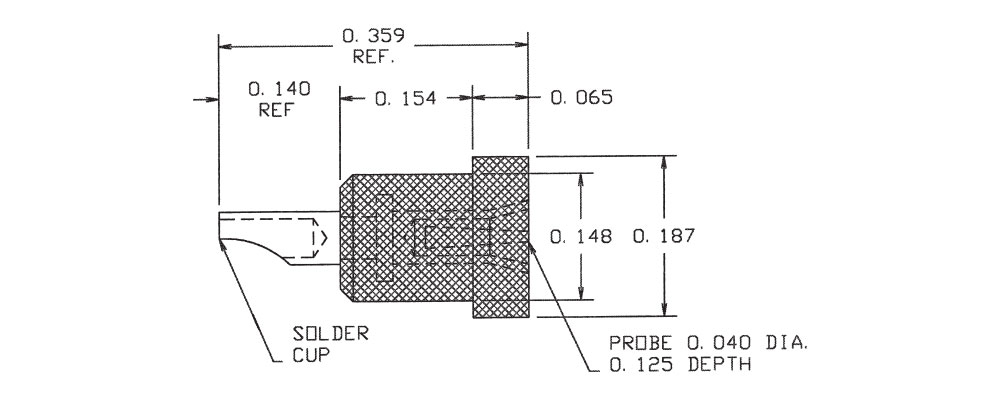

1138-25-0319
1138-25-0319
1138-25-0319
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE White -
09-9299-1-03515
09-9299-1-03515
09-9299-1-03515
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Green -
09-9011-1-0614
09-9011-1-0614
09-9011-1-0614
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Yellow -
09-9092-1-0318
09-9092-1-0318
09-9092-1-0318
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Gray -
09-9201-1-04414
09-9201-1-04414
09-9201-1-04414
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow -
09-9265-1-0410
09-9265-1-0410
09-9265-1-0410
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -
09-9055-1-06312
09-9055-1-06312
09-9055-1-06312
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Red -
1128-04-0316
1128-04-0316
1128-04-0316
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Blue -
1128-18-0312
1128-18-0312
1128-18-0312
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Red -
1128-36-03518
1128-36-03518
1128-36-03518
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Gray -
