Insulated
PC Jacks

Filter

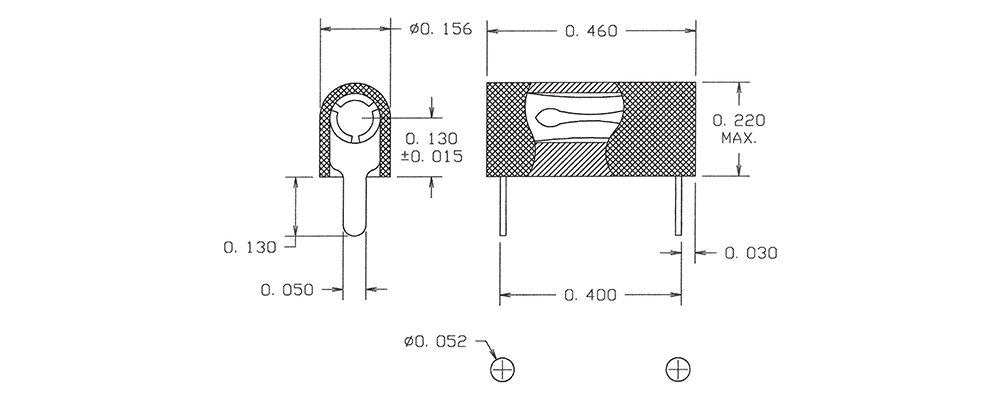

09-9201-1-03510
09-9201-1-03510
09-9201-1-03510
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black M39024/11-03G
09-9265-1-0316
09-9265-1-0316
09-9265-1-0316
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Blue -

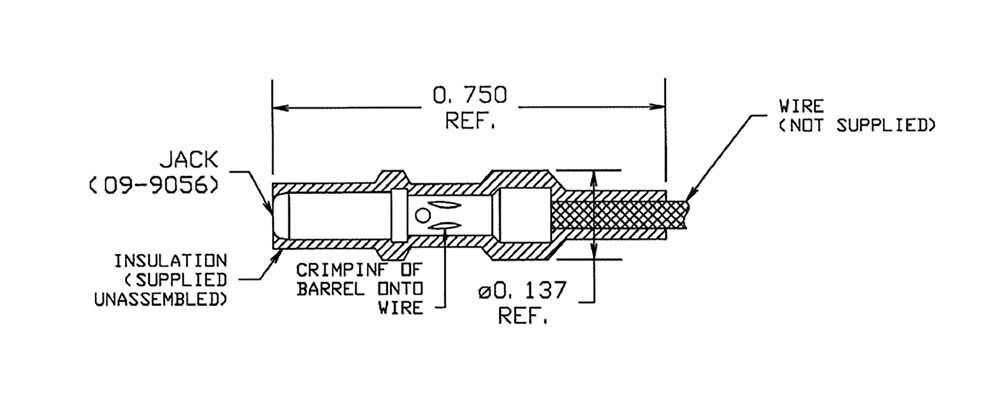

09-9057-1-08814
09-9057-1-08814
09-9057-1-08814
0.040 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin Yellow -

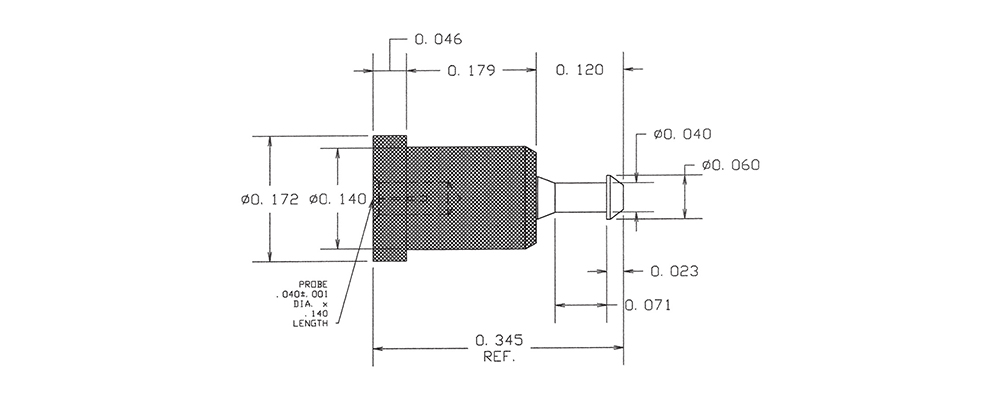

1128-04-030112
1128-04-030112
1128-04-030112
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Red -

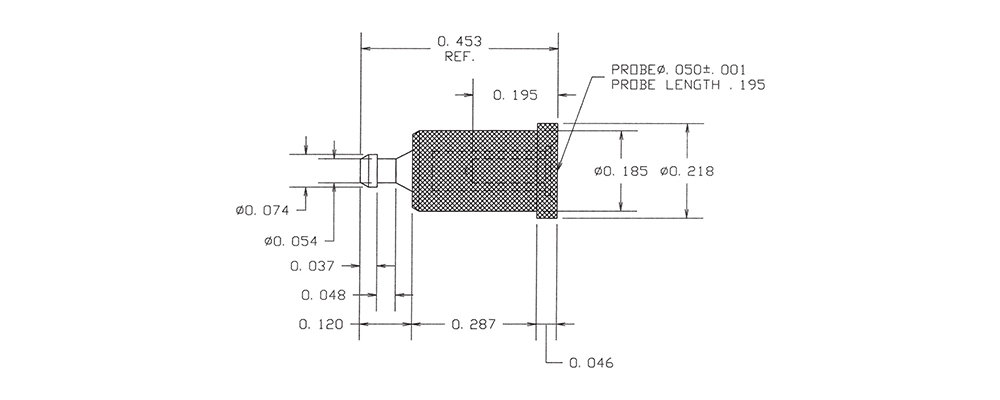

1128-17-03518
1128-17-03518
1128-17-03518
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Gray -

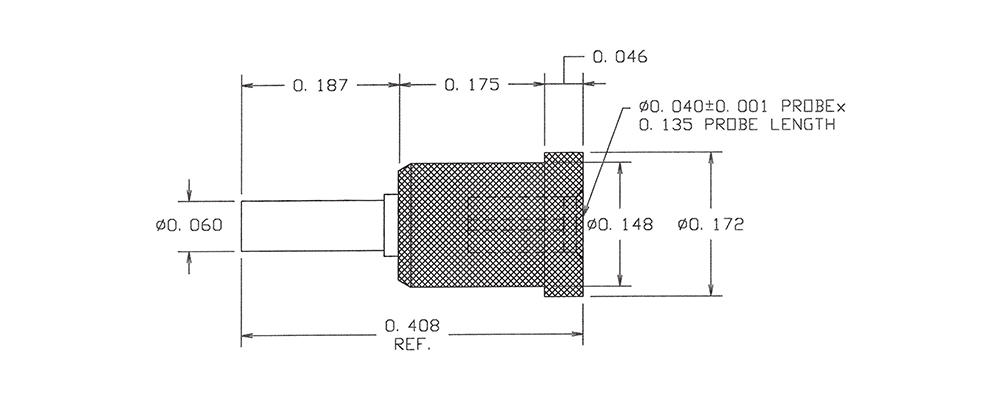

1128-36-0314
1128-36-0314
1128-36-0314
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Yellow -

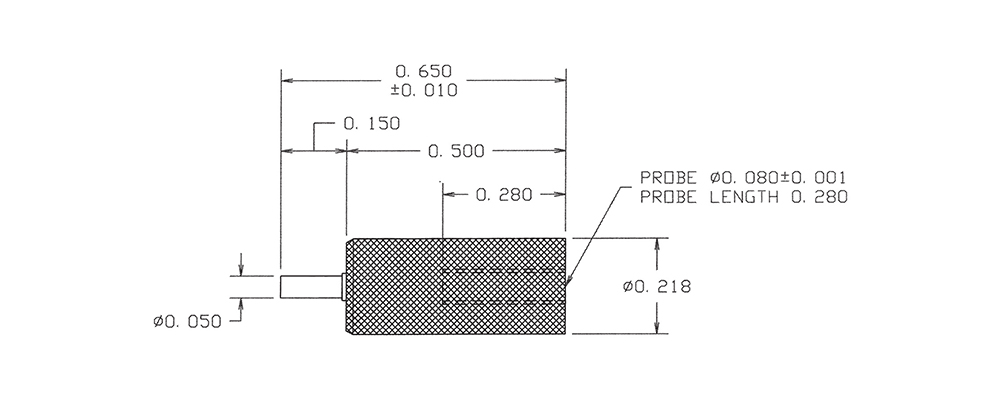

1128-59-0310
1128-59-0310
1128-59-0310
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Black -

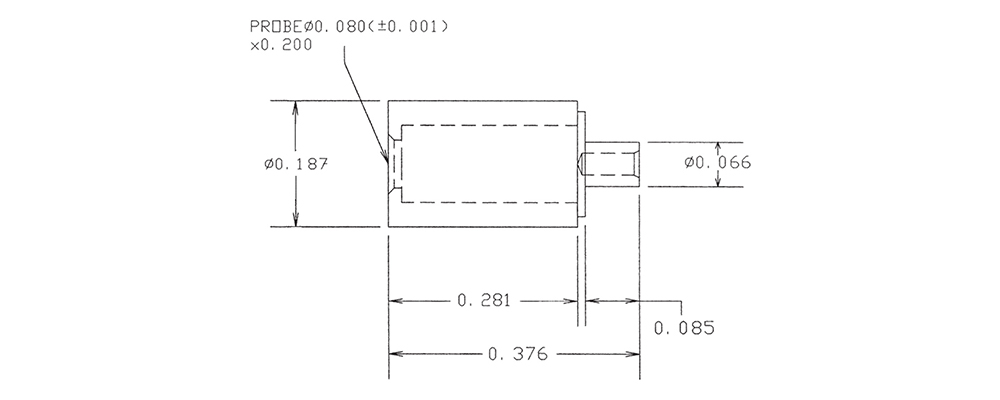

1138-06-03516
1138-06-03516
1138-06-03516
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Blue -

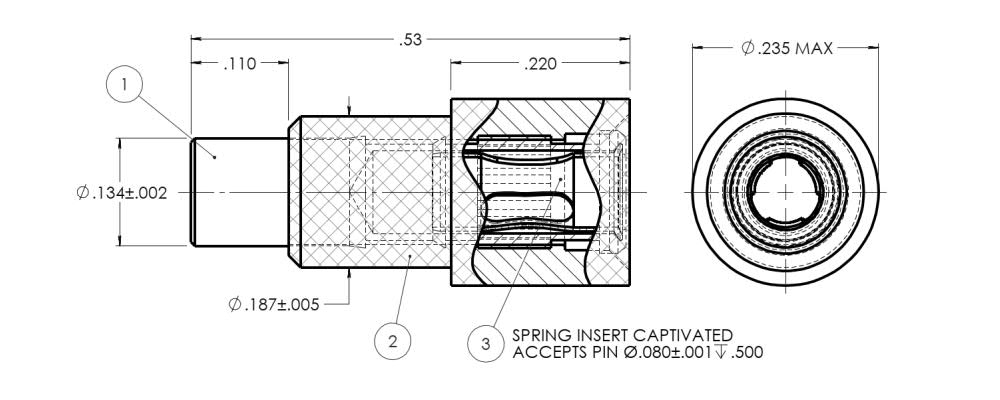

09-9295-1-03512
09-9295-1-03512
09-9295-1-03512
0.080 0.500 " 0.530" Jack/Pin Press Fit 0.178 1/32 - 5/32 Vertical Brass Gold PTFE Red -
09-9011-1-03519
09-9011-1-03519
09-9011-1-03519
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE White M39024/12-12

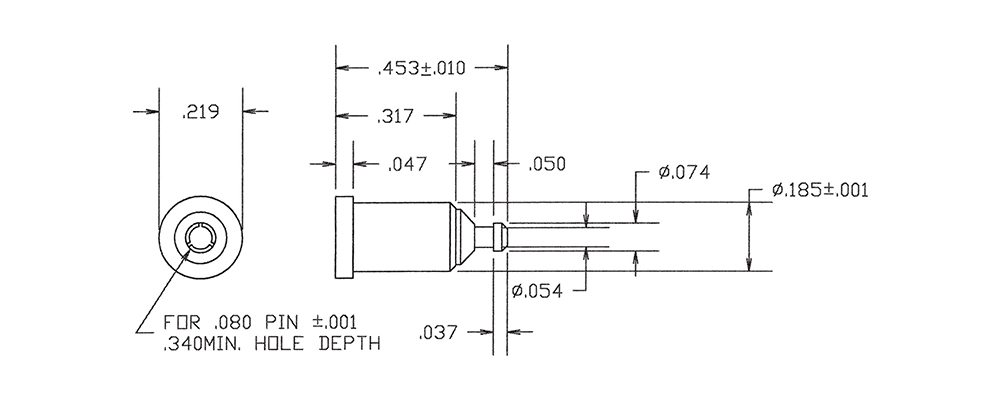

09-9084-1-08815
09-9084-1-08815
09-9084-1-08815
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Green -
09-9201-1-03511
09-9201-1-03511
09-9201-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Brown M39024/11-04G
09-9265-1-0317
09-9265-1-0317
09-9265-1-0317
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Violet -
09-9057-1-08815
09-9057-1-08815
09-9057-1-08815
0.040 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin Green -
1128-04-030113
1128-04-030113
1128-04-030113
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Orange -
1128-17-03519
1128-17-03519
1128-17-03519
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE White -
1128-36-0315
1128-36-0315
1128-36-0315
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Green -
1128-59-0311
1128-59-0311
1128-59-0311
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Brown -
1138-06-03517
1138-06-03517
1138-06-03517
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Violet -
09-9295-1-03513
09-9295-1-03513
09-9295-1-03513
0.080 0.500 " 0.530" Jack/Pin Press Fit 0.178 1/32 - 5/32 Vertical Brass Gold PTFE Orange -
