Insulated
PC Jacks

Filter

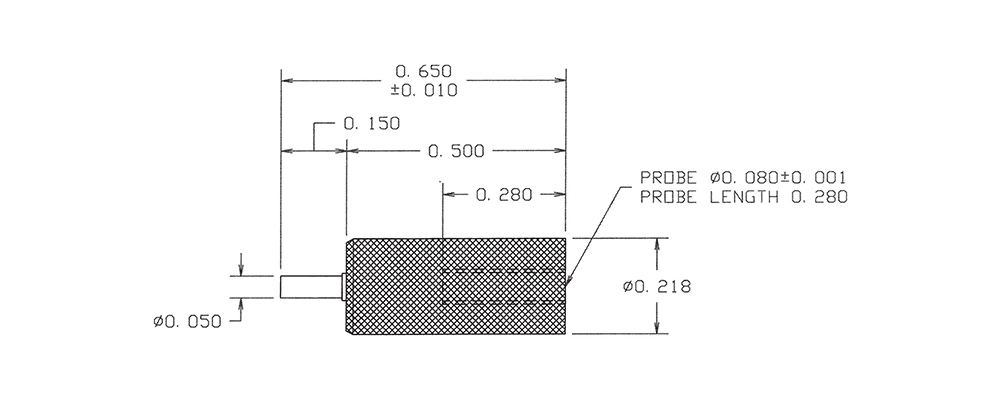

1128-59-03514
1128-59-03514
1128-59-03514
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Yellow -

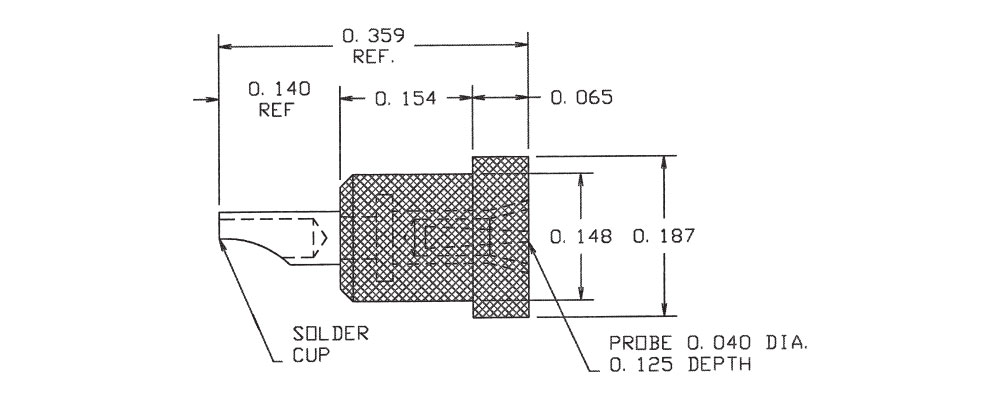

1138-25-03510
1138-25-03510
1138-25-03510
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Black -

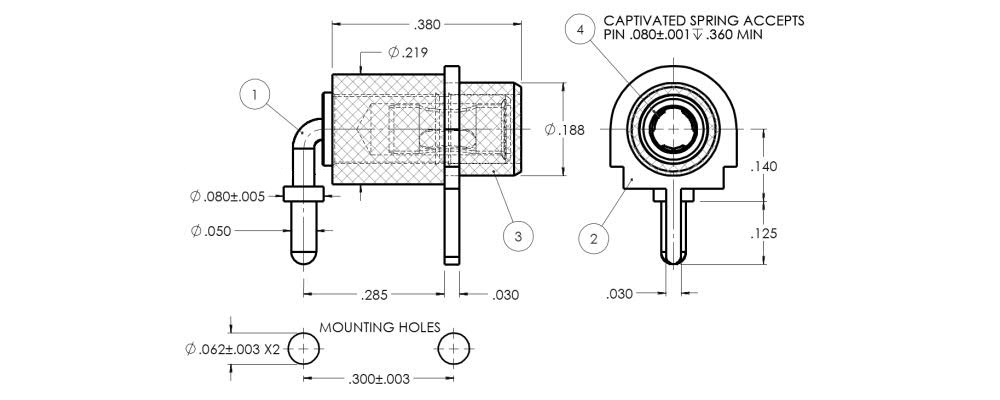

09-9299-1-03516
09-9299-1-03516
09-9299-1-03516
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Blue -
09-9011-1-0615
09-9011-1-0615
09-9011-1-0615
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Green -
09-9092-1-0319
09-9092-1-0319
09-9092-1-0319
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE White -

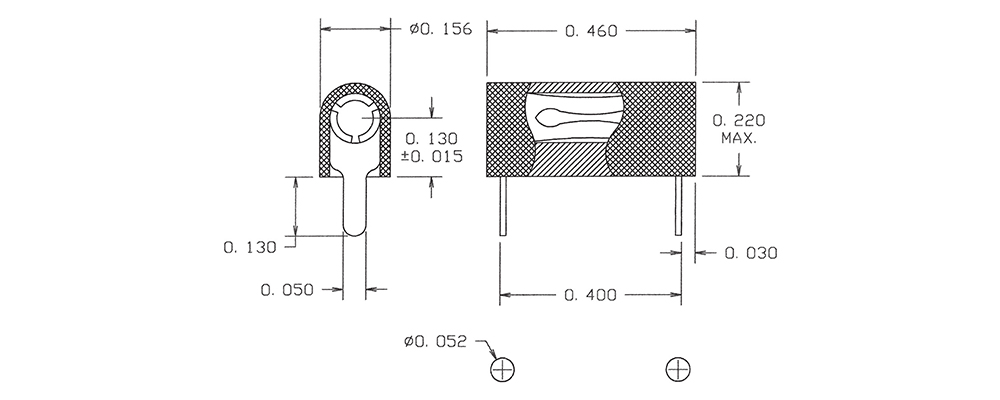

09-9201-1-04415
09-9201-1-04415
09-9201-1-04415
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green -
09-9265-1-0411
09-9265-1-0411
09-9265-1-0411
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Brown -

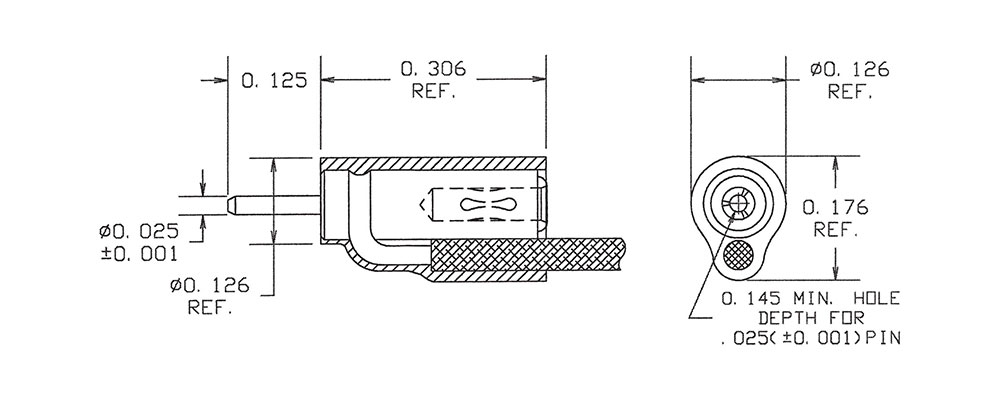

09-9055-1-06314
09-9055-1-06314
09-9055-1-06314
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Yellow -

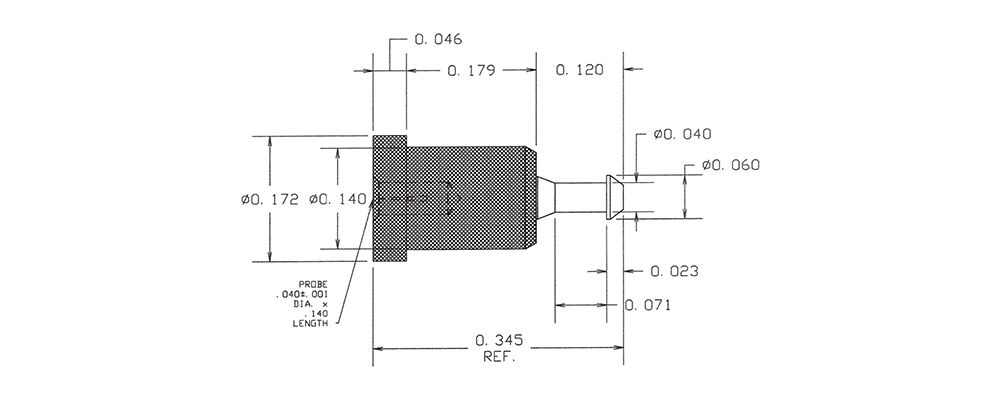

1128-04-0317
1128-04-0317
1128-04-0317
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Violet -

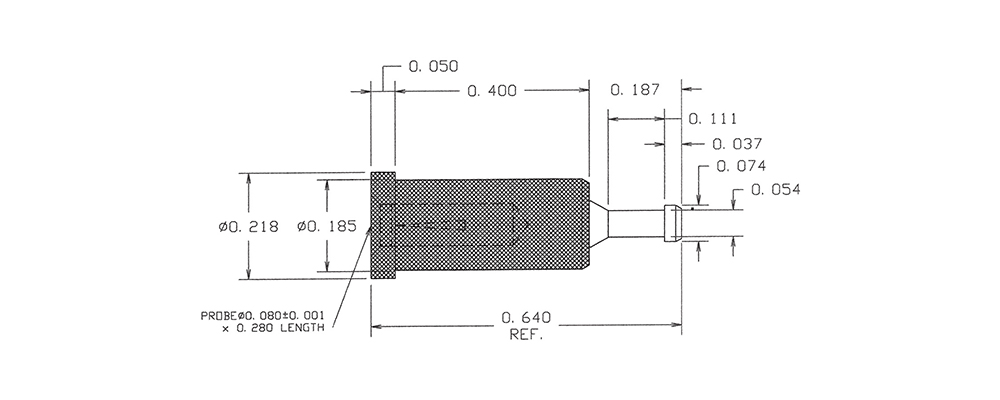

1128-18-0313
1128-18-0313
1128-18-0313
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Orange -

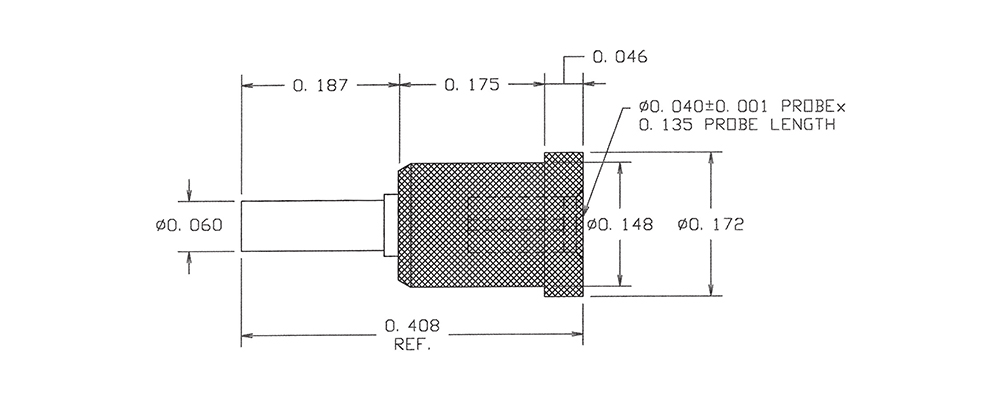

1128-36-03519
1128-36-03519
1128-36-03519
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE White -
1128-59-03515
1128-59-03515
1128-59-03515
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Green -
1138-25-03511
1138-25-03511
1138-25-03511
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Brown -
09-9299-1-03517
09-9299-1-03517
09-9299-1-03517
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Violet -
09-9011-1-0616
09-9011-1-0616
09-9011-1-0616
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Blue -
09-9092-1-03510
09-9092-1-03510
09-9092-1-03510
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Black -
09-9201-1-04416
09-9201-1-04416
09-9201-1-04416
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Blue -
09-9265-1-0412
09-9265-1-0412
09-9265-1-0412
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Red -
09-9055-1-06315
09-9055-1-06315
09-9055-1-06315
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Green -
1128-04-0318
1128-04-0318
1128-04-0318
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Gray -

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
