Insulated
PC Jacks

Filter

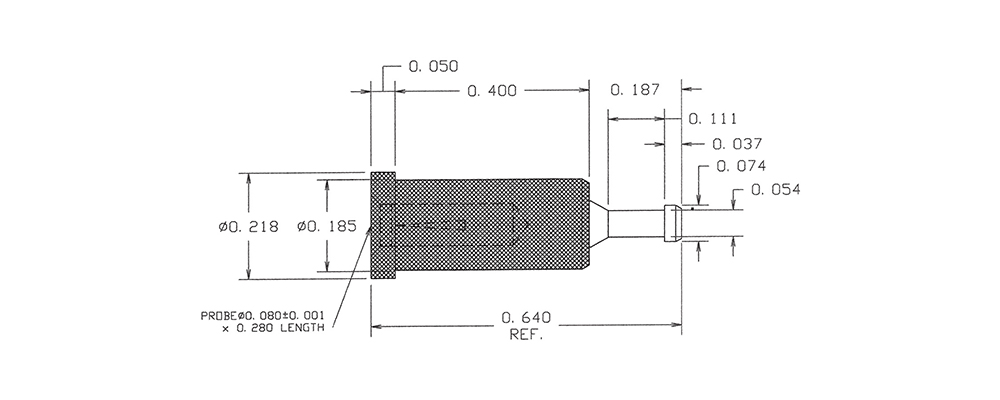

1128-18-0314
1128-18-0314
1128-18-0314
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Yellow -
1128-37-0310
1128-37-0310
1128-37-0310
0.040 0.400 " 0.657" Jack/Turret Press Fit 0.136 1/32 - 1/4 Vertical - - PTFE Black -

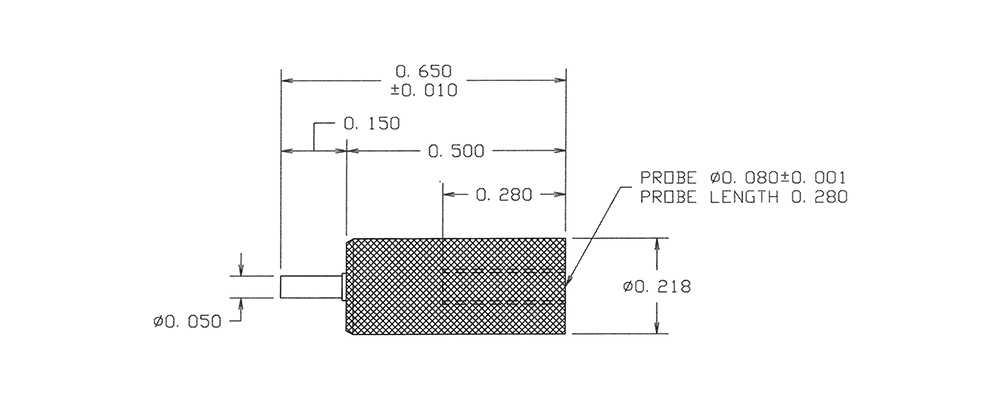

1128-59-03516
1128-59-03516
1128-59-03516
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Blue -

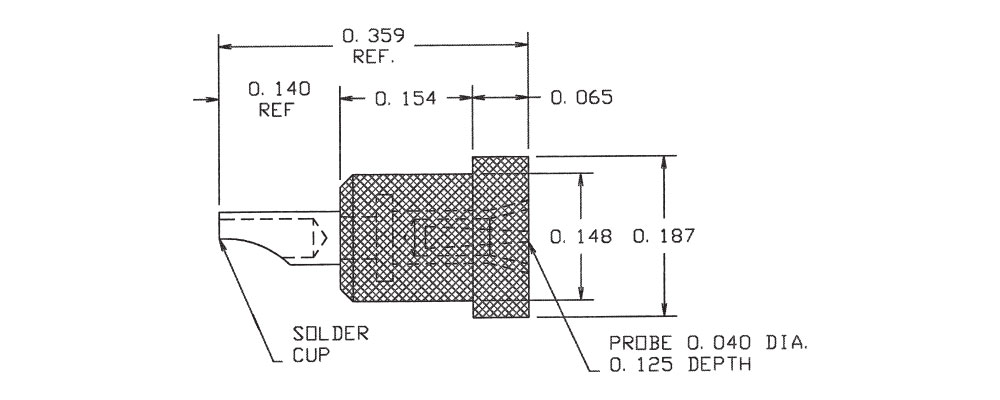

1138-25-03512
1138-25-03512
1138-25-03512
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Red -

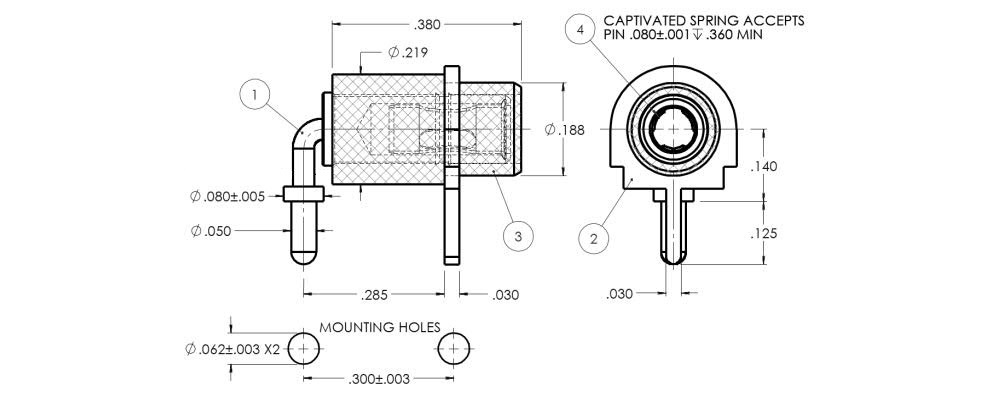

09-9299-1-03518
09-9299-1-03518
09-9299-1-03518
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Gray -
09-9011-1-0617
09-9011-1-0617
09-9011-1-0617
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Violet -

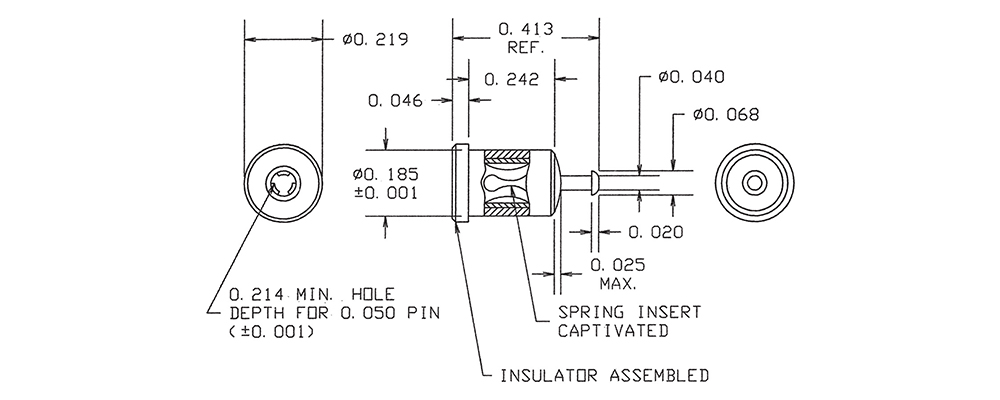

09-9092-1-03511
09-9092-1-03511
09-9092-1-03511
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Brown -

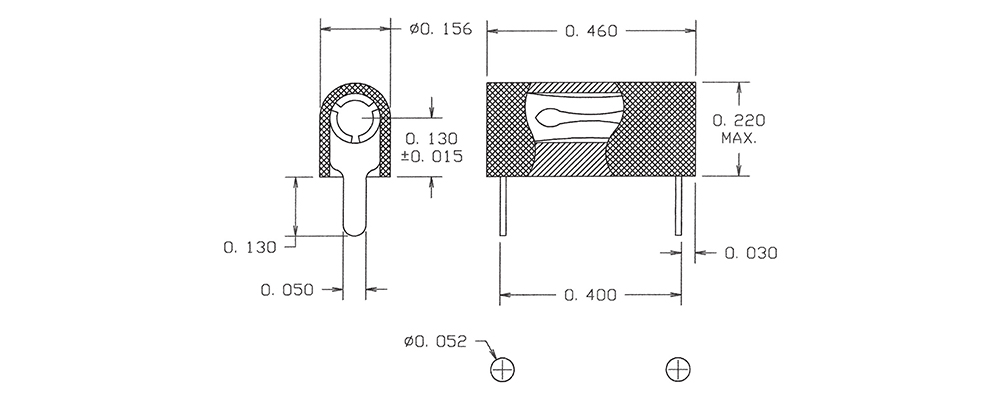

09-9201-1-04417
09-9201-1-04417
09-9201-1-04417
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Violet -
09-9265-1-0413
09-9265-1-0413
09-9265-1-0413
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Orange -

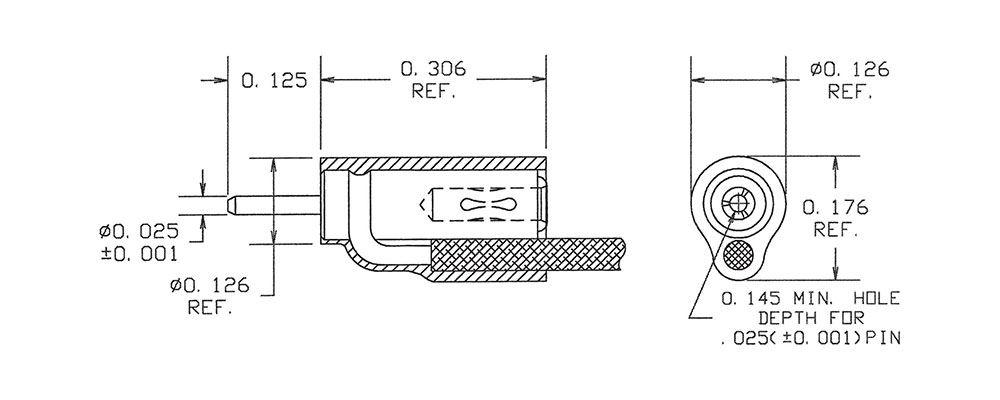

09-9055-1-06316
09-9055-1-06316
09-9055-1-06316
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Blue -

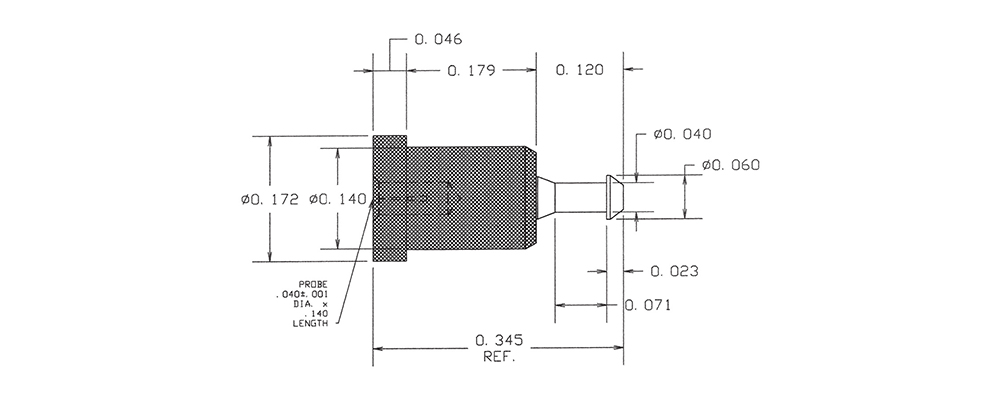

1128-04-0319
1128-04-0319
1128-04-0319
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE White -
1128-18-0315
1128-18-0315
1128-18-0315
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Green -
1128-37-0311
1128-37-0311
1128-37-0311
0.040 0.400 " 0.657" Jack/Turret Press Fit 0.136 1/32 - 1/4 Vertical - - PTFE Brown -
1128-59-03517
1128-59-03517
1128-59-03517
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Violet -
1138-25-03513
1138-25-03513
1138-25-03513
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Orange -
09-9299-1-03519
09-9299-1-03519
09-9299-1-03519
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE White -
09-9011-1-0618
09-9011-1-0618
09-9011-1-0618
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Gray -
09-9092-1-03512
09-9092-1-03512
09-9092-1-03512
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Red -
09-9201-1-04418
09-9201-1-04418
09-9201-1-04418
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -
09-9265-1-0414
09-9265-1-0414
09-9265-1-0414
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Yellow -
