Insulated
PC Jacks

Filter

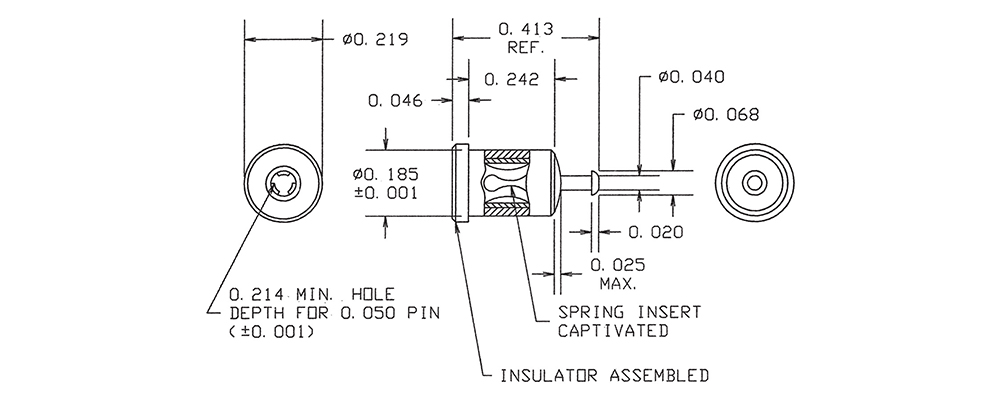

09-9092-1-0315
09-9092-1-0315
09-9092-1-0315
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Green -

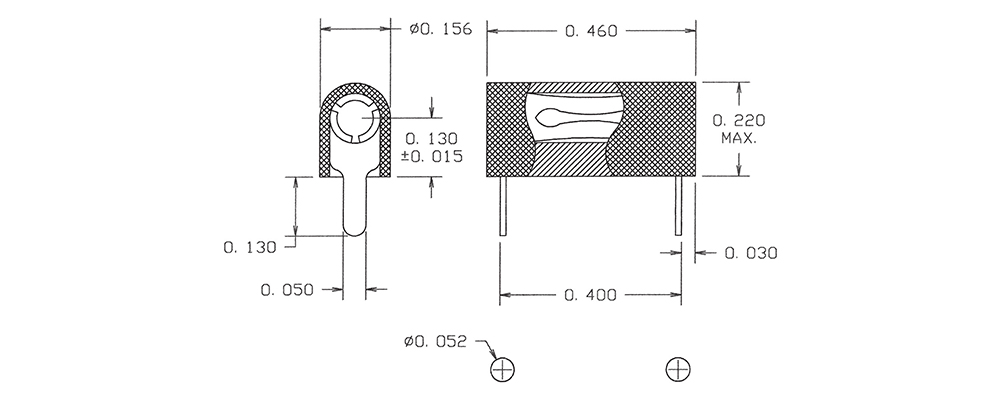

09-9201-1-04411
09-9201-1-04411
09-9201-1-04411
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Brown -
09-9265-1-03517
09-9265-1-03517
09-9265-1-03517
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Violet -

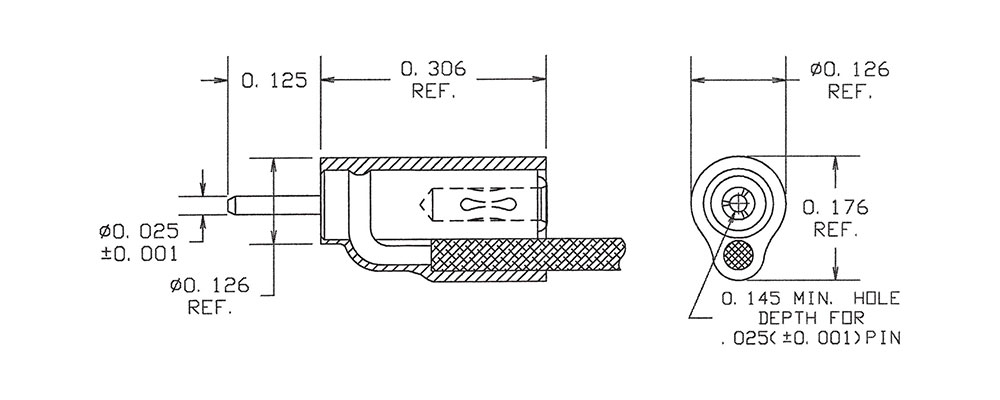

09-9055-1-0616
09-9055-1-0616
09-9055-1-0616
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Electro-Tin Polyolefin Blue -

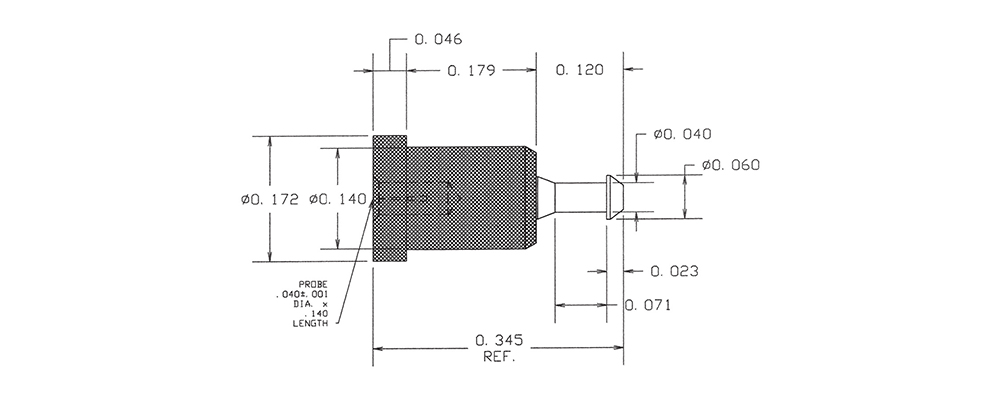

1128-04-0313
1128-04-0313
1128-04-0313
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Orange -

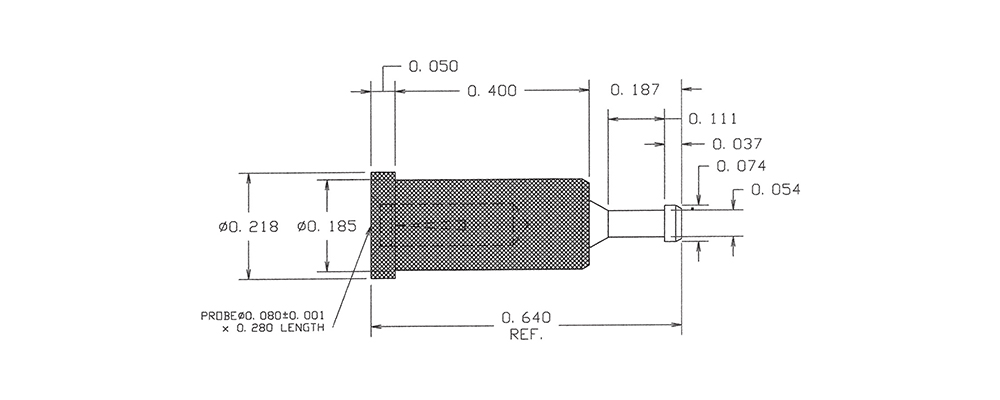

1128-18-030119
1128-18-030119
1128-18-030119
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE White -

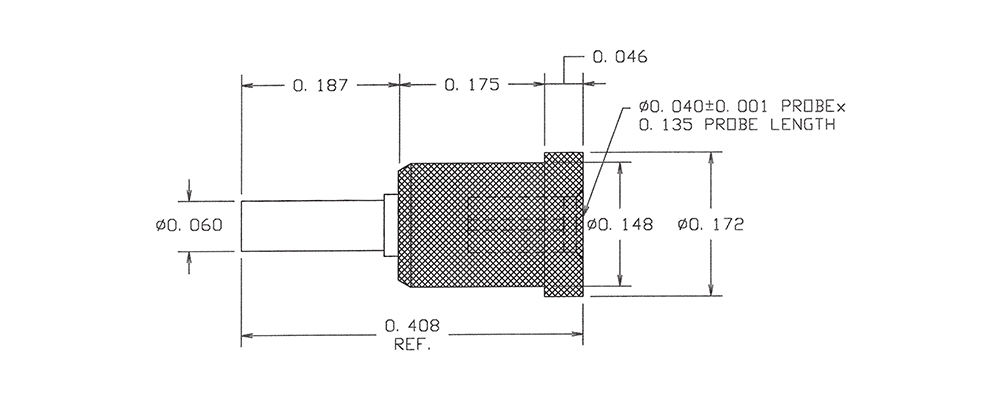

1128-36-03515
1128-36-03515
1128-36-03515
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Green -

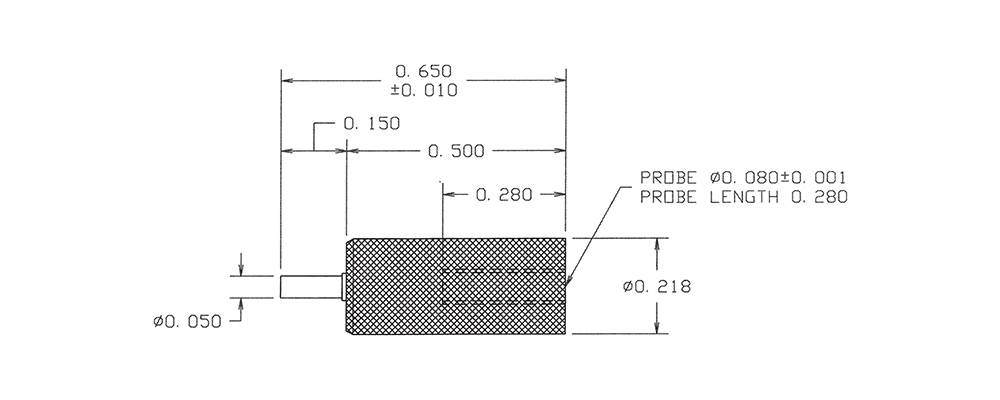

1128-59-03511
1128-59-03511
1128-59-03511
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Brown -

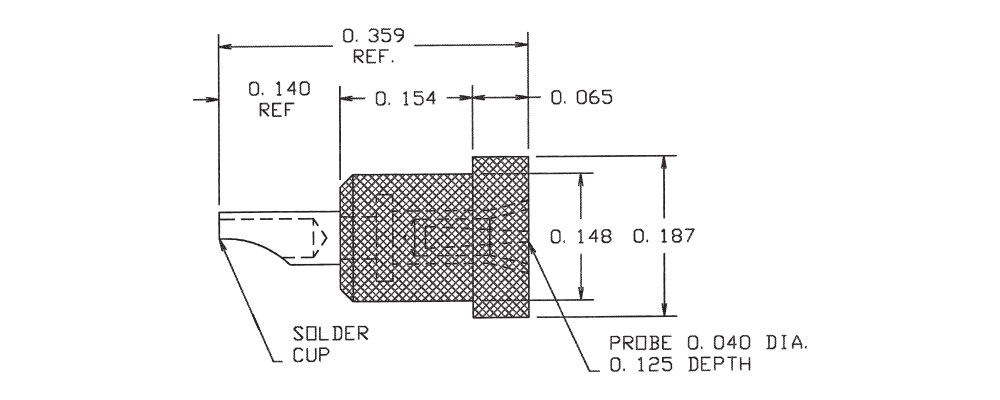

1138-25-0317
1138-25-0317
1138-25-0317
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Violet -

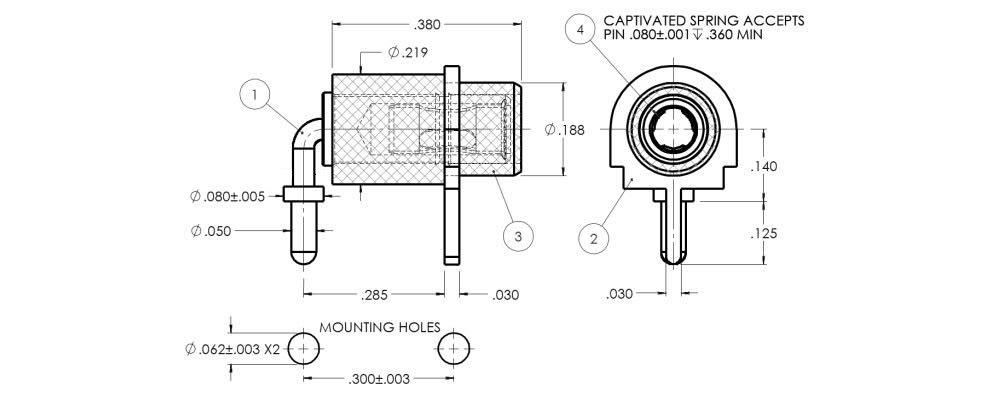

09-9299-1-03513
09-9299-1-03513
09-9299-1-03513
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Orange -
09-9011-1-0612
09-9011-1-0612
09-9011-1-0612
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Red -
09-9092-1-0316
09-9092-1-0316
09-9092-1-0316
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Blue -
09-9201-1-04412
09-9201-1-04412
09-9201-1-04412
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Red -
09-9265-1-03518
09-9265-1-03518
09-9265-1-03518
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Gray -
09-9055-1-0619
09-9055-1-0619
09-9055-1-0619
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Electro-Tin Polyolefin White -
1128-04-0314
1128-04-0314
1128-04-0314
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Yellow -
1128-18-0310
1128-18-0310
1128-18-0310
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Black -
1128-36-03516
1128-36-03516
1128-36-03516
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Blue -
1128-59-03512
1128-59-03512
1128-59-03512
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Red -
1138-25-0318
1138-25-0318
1138-25-0318
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Gray -
