Insulated
PC Jacks

Filter
09-9305-1-04419
09-9305-1-04419
09-9305-1-04419
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon White -

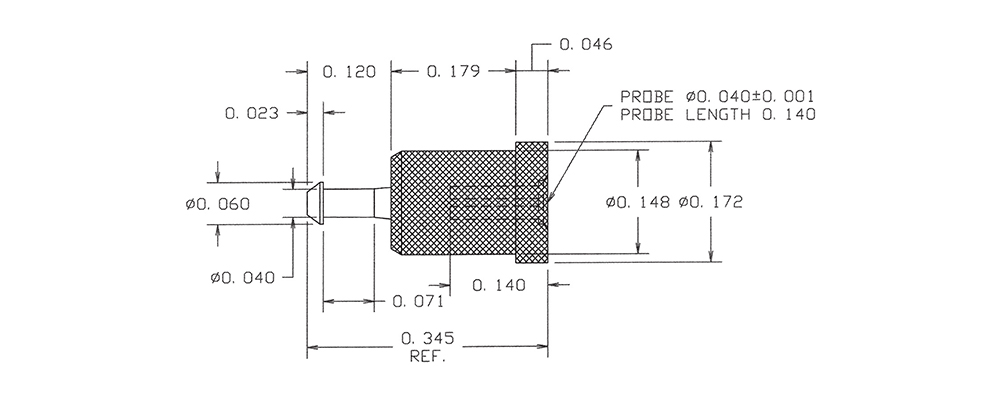

1128-08-0315
1128-08-0315
1128-08-0315
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Green -

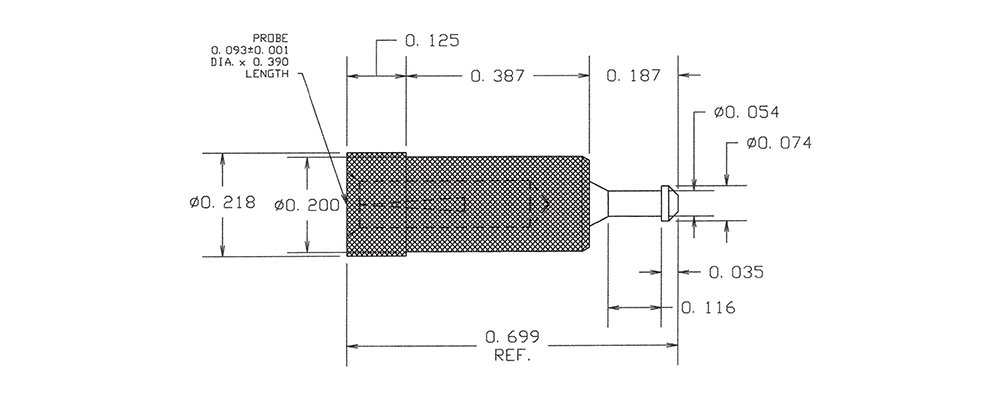

1128-28-03511
1128-28-03511
1128-28-03511
0.093 0.390 " 0.699" Jack/Turret Press Fit 0.187 1/32 - 23/64 Vertical - - PTFE Brown -

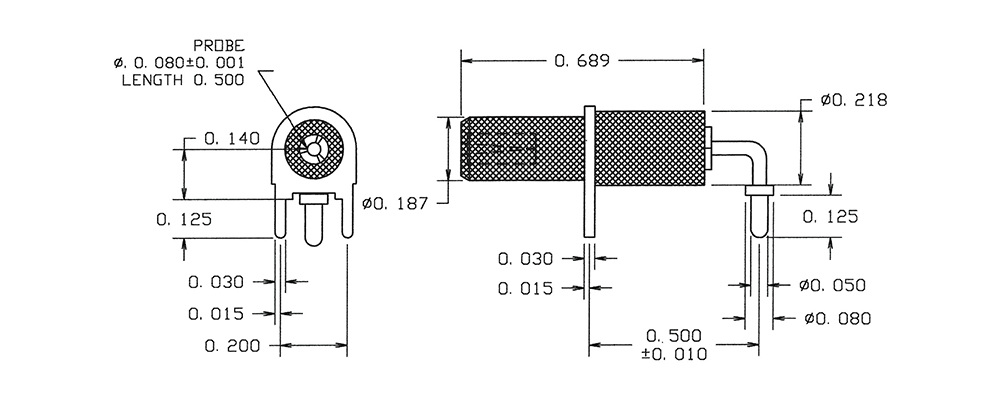

1128-51-0317
1128-51-0317
1128-51-0317
0.080 0.500 " 0.898" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Violet -

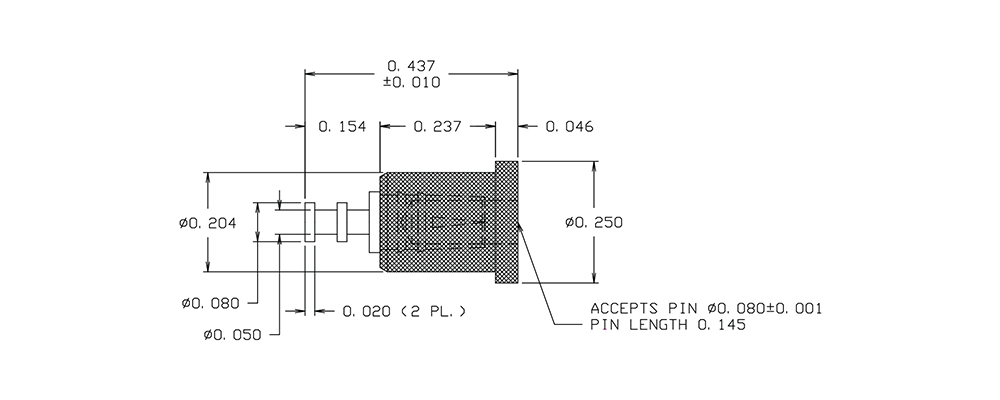

1128-73-03513
1128-73-03513
1128-73-03513
0.080 0.145 " 0.437" Jack/Turret Press Fit 0.191 1/32 - 3/16 Vertical - - PTFE Orange -

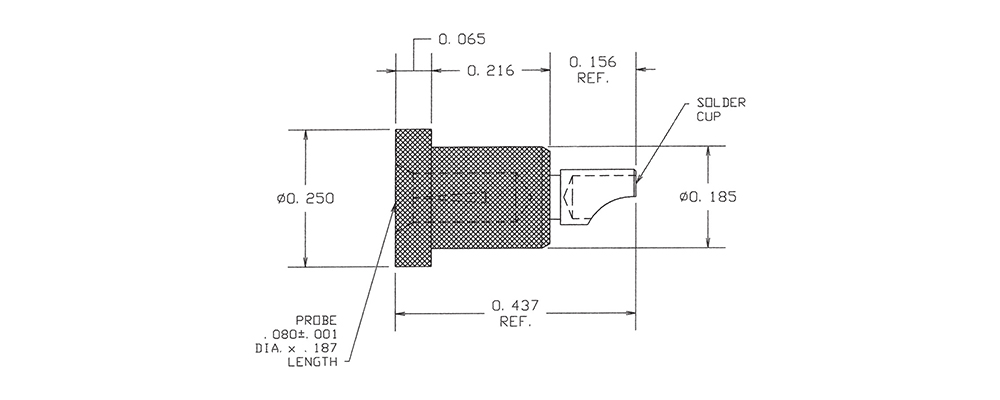

1138-29-03519
1138-29-03519
1138-29-03519
0.080 0.187 " 0.437" Jack/Solder Cup Press Fit 0.172 1/32 - 3/16 Vertical - - PTFE White -

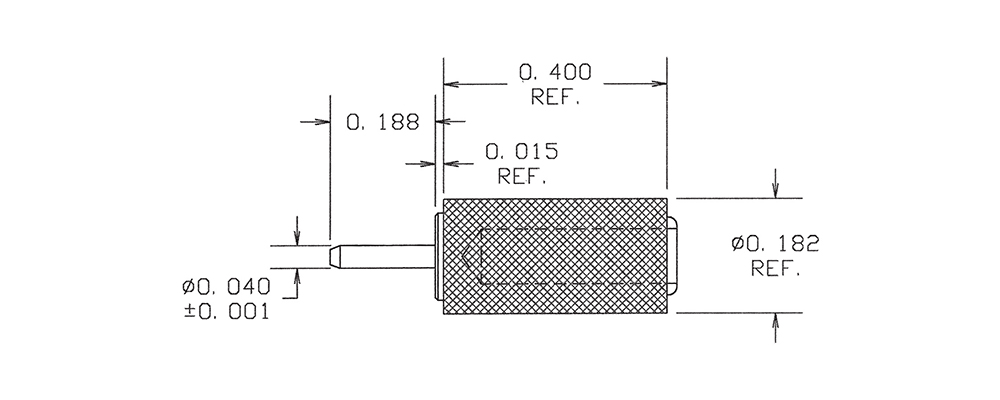

09-9063-1-0316
09-9063-1-0316
09-9063-1-0316
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Gold Polyolefin Blue -
09-9158-1-0618
09-9158-1-0618
09-9158-1-0618
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE Gray -

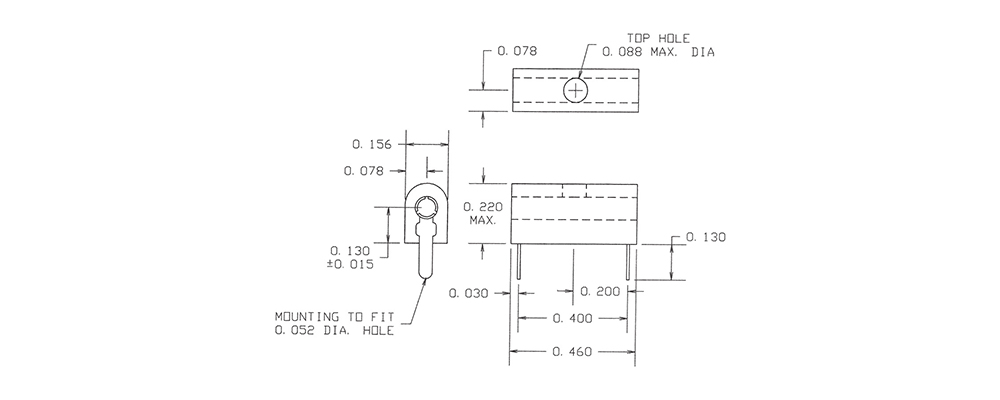

09-9208-1-04414
09-9208-1-04414
09-9208-1-04414
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow -

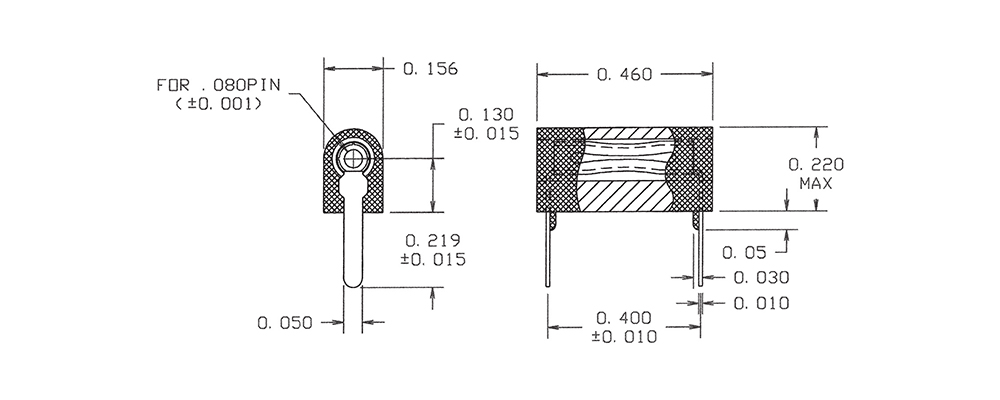

09-9302-1-04410
09-9302-1-04410
09-9302-1-04410
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Black -

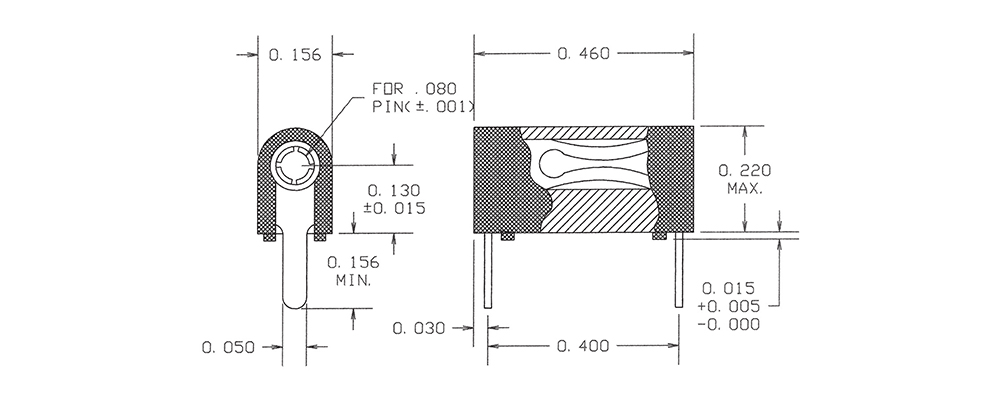

09-9306-1-0310
09-9306-1-0310
09-9306-1-0310
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Black -
1128-08-0316
1128-08-0316
1128-08-0316
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Blue -
1128-28-03512
1128-28-03512
1128-28-03512
0.093 0.390 " 0.699" Jack/Turret Press Fit 0.187 1/32 - 23/64 Vertical - - PTFE Red -
1128-51-0318
1128-51-0318
1128-51-0318
0.080 0.500 " 0.898" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Gray -
1128-73-03514
1128-73-03514
1128-73-03514
0.080 0.145 " 0.437" Jack/Turret Press Fit 0.191 1/32 - 3/16 Vertical - - PTFE Yellow -

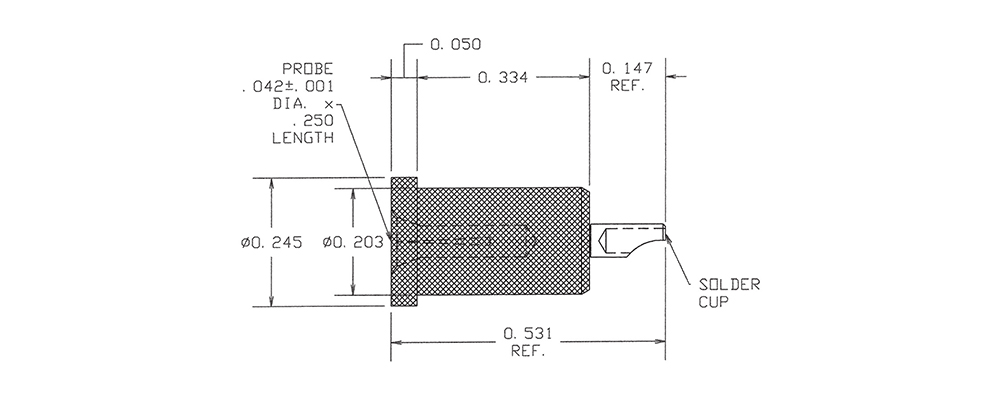

1138-30-0310
1138-30-0310
1138-30-0310
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Black -
09-9063-1-0319
09-9063-1-0319
09-9063-1-0319
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Gold Polyolefin White -
09-9158-1-0619
09-9158-1-0619
09-9158-1-0619
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE White -
09-9208-1-04415
09-9208-1-04415
09-9208-1-04415
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green -
09-9302-1-04411
09-9302-1-04411
09-9302-1-04411
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Brown -
