Military
Non-Insulated
Terminals

Filter
15-494-3-095
15-494-3-095
15-494-3-095
0.240" - Swage Mount 0.115" 3/32 0.043 Brass Hot Solder Dip M55155/24XI13 AA59126/24XI13

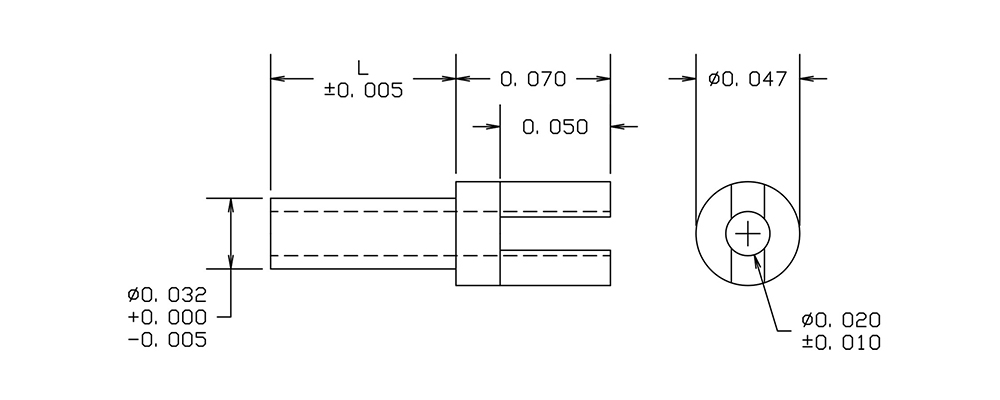

15-499-3-095
15-499-3-095
15-499-3-095
0.185" - Swage Mount 0.115" 3/32 0.033 Brass Hot Solder Dip M55155/24XI17 AA59126/24XI17
15-499-2-095
15-499-2-095
15-499-2-095
0.154" - Swage Mount 0.084" 1/16 0.033 Brass Hot Solder Dip M55155/24XI16 AA59126/24XI16
15-493-1-095
15-493-1-095
15-493-1-095
0.178" - Swage Mount 0.053" 1/32 0.0635 Brass Hot Solder Dip M55155/24XI06 AA59126/24XI06
15-903-3-095
15-903-3-095
15-903-3-095
0.313" - Swage Mount 0.125" 3/32 0.0635 Brass Hot Solder Dip M55155/24XI03 AA59126/24XI03
15-494-4-088
15-494-4-088
15-494-4-088
0.272" - Swage Mount 0.147" 1/8 0.043 Brass Bright Tin-Lead M55155/24XJ14 AA59126/24XJ14
15-903-1-095
15-903-1-095
15-903-1-095
0.250" - Swage Mount 0.062" 1/32 0.0635 Brass Hot Solder Dip M55155/24XI01 AA59126/24XI01
15-903-4-088
15-903-4-088
15-903-4-088
0.344" - Swage Mount 0.156" 1/8 0.0635 Brass Bright Tin-Lead M55155/24XJ04 AA59126/24XJ04
15-903-2-088
15-903-2-088
15-903-2-088
0.282" - Swage Mount 0.094" 1/16 0.0635 Brass Bright Tin-Lead M55155/24XJ02 AA59126/24XJ02
15-904-2-088
15-904-2-088
15-904-2-088
0.230" - Swage Mount 0.094" 1/16 0.0635 Brass Bright Tin-Lead M55155/25XJ02 AA59126/25XJ02
15-904-4-095
15-904-4-095
15-904-4-095
0.292" - Swage Mount 0.156" 1/8 0.0635 Brass Hot Solder Dip M55155/25XI04 AA59126/25XI04
15-904-3-095
15-904-3-095
15-904-3-095
0.261" - Swage Mount 0.125" 3/32 0.0635 Brass Hot Solder Dip M55155/25XI03 AA59126/25XI03
15-904-2-095
15-904-2-095
15-904-2-095
0.230" - Swage Mount 0.094" 1/16 0.0635 Brass Hot Solder Dip M55155/25XI02 AA59126/25XI02
15-904-4-05
15-904-4-05
15-904-4-05
0.292" - Swage Mount 0.156" 1/8 0.0635 Brass Electro Solder M55155/25XH04 AA59126/25XH04
09-0018-1M-095
09-0018-1M-095
09-0018-1M-095
0.312" - 8-32 Screw - - CLEARANCE FOR #8 Screw Brass Hot Solder Dip M55155/26XI01 AA59126/26XI01
09-0018-1M-05
09-0018-1M-05
09-0018-1M-05
0.312" - 8-32 Screw - - CLEARANCE FOR #8 Screw Brass Electro Solder M55155/26XH01 AA59126/26XH01
09-0017-1M-095
09-0017-1M-095
09-0017-1M-095
0.250" - 8-32 Screw - - CLEARANCE FOR #8 Screw Brass Hot Solder Dip M55155/26XI02 AA59126/26II02
09-0016-1M-095
09-0016-1M-095
09-0016-1M-095
0.280" - 6-32 Screw - - CLEARANCE FOR #6 Screw Brass Hot Solder Dip M55155/26XI03 AA59126/26XI03
15-104-3-088
15-104-3-088
15-104-3-088
0.206" - Swage Mount 0.113" 3/32 0.052 Brass Bright Tin-Lead M55155/29XJ08 AA59126/29XJ08
15-141-3-095
15-141-3-095
15-141-3-095
0.209" - Swage Mount 0.115" 3/32 0.067 Brass Hot Solder Dip M55155/11XI06 AA59126/11XI06
