Military
Non-Insulated
Terminals

Filter
15-209-2-05
15-209-2-05
15-209-2-05
0.327" - Swage Mount 0.109" 1/16 0.094 Brass Electro Solder M55155/30XH06 AA59126/30XH06
15R-211-8-05
15R-211-8-05
15R-211-8-05
0.796" - Swage Mount 0.296" 1/4 0.266 Phosphor Bronze Electro Solder M55155/30XB22 AA59226/30XB22

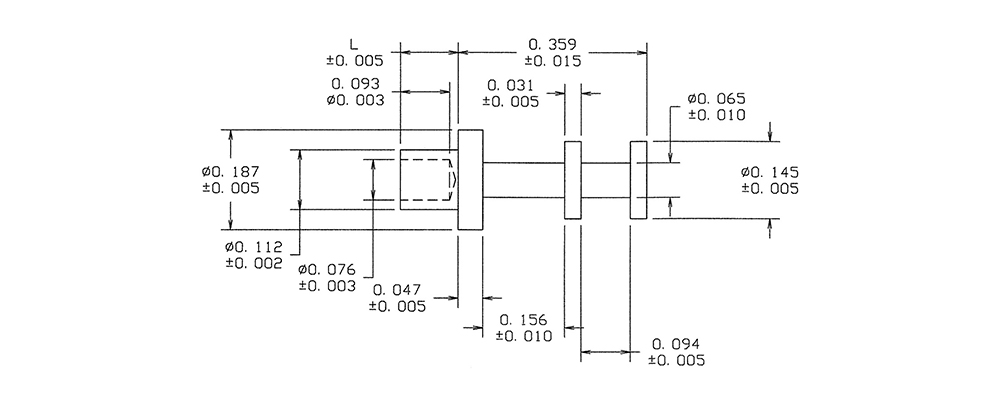

15-270-8-05
15-270-8-05
15-270-8-05
0.657" - Swage Mount 0.298" 1/4 0.116 Brass Electro Solder M55155/30XH21 AA59126/30XH21
15-211-6-05
15-211-6-05
15-211-6-05
0.734" - Swage Mount 0.234" 3/16 0.266 Brass Electro Solder M55155/30XH19 AA59196/30XH19
15-270-6-05
15-270-6-05
15-270-6-05
0.593" - Swage Mount 0.234" 3/16 0.116 Brass Electro Solder M55155/30XH18 AA59126/30XH18
15-209-6-05
15-209-6-05
15-209-6-05
0.452" - Swage Mount 0.234" 3/16 0.094 Brass Electro Solder M55155/30XH17 AA59126/30XH17
15-209-3-05
15-209-3-05
15-209-3-05
0.358" - Swage Mount 0.140" 3/32 0.094 Brass Electro Solder M55155/30XH10 AA59126/30XH10
15-270-6-088
15-270-6-088
15-270-6-088
0.593" - Swage Mount 0.234" 3/16 0.116 Brass Bright Tin-Lead M55155/30XJ18 AA59126/30XJ18
15R-211-4-088
15R-211-4-088
15R-211-4-088
0.671" - Swage Mount 0.171" 1/8 0.266 Phosphor Bronze Bright Tin-Lead M55155/30XD16 AA59166/30XD16
15R-211-8-088
15R-211-8-088
15R-211-8-088
0.796" - Swage Mount 0.296" 1/4 0.266 Phosphor Bronze Bright Tin-Lead M55155/30XD22 AA59226/30XD22
15-601-4-088
15-601-4-088
15-601-4-088
0.457" - Swage Mount 0.156" 1/8 0.094 Brass Bright Tin-Lead M55155/31XJ07 AA59126/31XJ07
15-602-4-088
15-602-4-088
15-602-4-088
0.655" - Swage Mount 0.171" 1/8 0.116 Brass Bright Tin-Lead M55155/31XJ08 AA59126/31XJ08
15-601-3-05
15-601-3-05
15-601-3-05
0.426" - Swage Mount 0.125" 3/32 0.094 Brass Electro Solder M55155/31XH05 AA59126/31XH05
15-601-2-05
15-601-2-05
15-601-2-05
0.394" - Swage Mount 0.093" 1/16 0.094 Brass Electro Solder M55155/31XH03 AA59126/31XH03
15R-602-1-05
15R-602-1-05
15R-602-1-05
0.562" - Swage Mount 0.078" 1/32 0.116 Phosphor Bronze Electro Solder M55155/31XB02 AA59126/31XB02

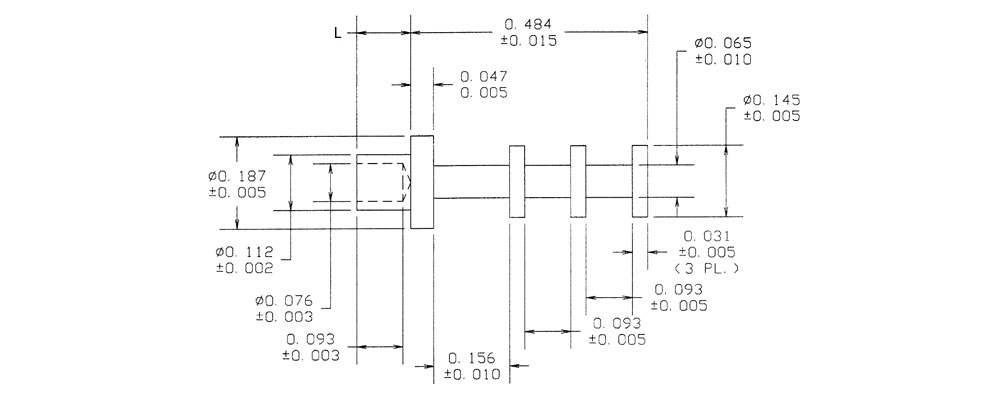

15-602-8-05
15-602-8-05
15-602-8-05
0.780" - Swage Mount 0.296" 1/4 0.116 Brass Electro Solder M55155/31XH12 AA59126/31XH12
15-601-6-05
15-601-6-05
15-601-6-05
0.519" - Swage Mount 0.218" 3/16 0.094 Brass Electro Solder M55155/31XH10 AA59126/31XH10
15-601-1-088
15-601-1-088
15-601-1-088
0.363" - Swage Mount 0.062" 1/32 0.094 Brass Bright Tin-Lead M55155/31XJ01 AA59126/31XJ01
15R-602-4-05
15R-602-4-05
15R-602-4-05
0.655" - Swage Mount 0.171" 1/8 0.116 Phosphor Bronze Electro Solder M55155/31XB08 AA59126/31XB08
15-433-5-05
15-433-5-05
15-433-5-05
0.882" - Swage Mount 0.195" 1/8 0.189 Brass Electro Solder M55155/32XH09 AA59126/32XH09
