Military
Non-Insulated
Terminals

Filter
15-201-4-095
15-201-4-095
15-201-4-095
0.331" - Swage Mount 0.145" 1/8 0.076 Brass Hot Solder Dip M55155/12XI03 AA59126/12XI03
15-216-4-05
15-216-4-05
15-216-4-05
0.402" - Swage Mount 0.165" 1/8 0.094 Brass Electro Solder M55155/12XH06 AA59126/12XH06
15-266-2-095
15-266-2-095
15-266-2-095
0.240" - Swage Mount 0.084" 1/16 0.0635 Brass Hot Solder Dip M55155/12XI11 AA59126/12XI11
15-266-4-095
15-266-4-095
15-266-4-095
0.303" - Swage Mount 0.147" 1/8 0.0635 Brass Hot Solder Dip M55155/12XI13 AA59126/12XI13
15-216-2-05
15-216-2-05
15-216-2-05
0.342" - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder M55155/12XH04 AA59126/12XH04
15-201-3-05
15-201-3-05
15-201-3-05
0.299" - Swage Mount 0.113" 3/32 0.076 Brass Electro Solder M55155/12XH02 AA59126/12XH02
15-201-2-05
15-201-2-05
15-201-2-05
0.268" - Swage Mount 0.082" 1/16 0.076 Brass Electro Solder M55155/12XH01 AA59126/12XH01
15-204-2-088
15-204-2-088
15-204-2-088
0.469" - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin-Lead M55155/12XJ07 AA59126/12XJ07
15-204-4-088
15-204-4-088
15-204-4-088
0.532" - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin-Lead M55155/12XJ09 AA59126/12XJ09

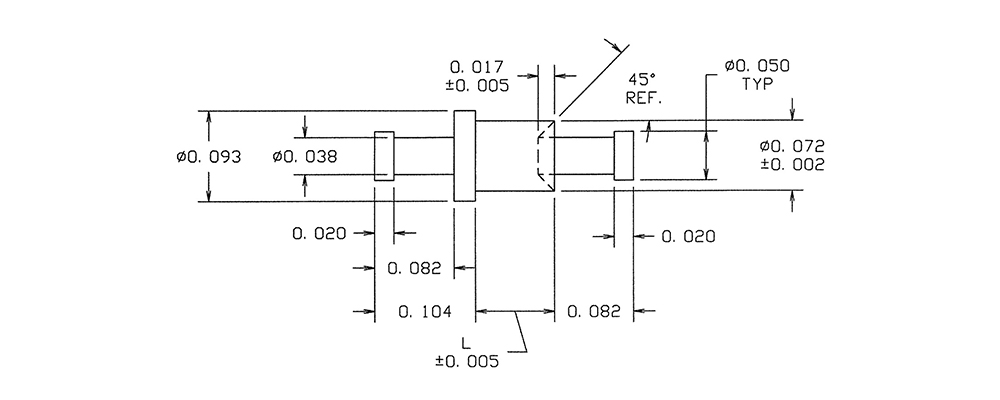

15-501-2-05
15-501-2-05
15-501-2-05
0.268" Turret/Turret Swage Mount 0.082" 1/16 0.076 Brass Electro Solder M55155/13XH01 AA59126/13XH01
15-501-4-05
15-501-4-05
15-501-4-05
0.331" Turret/Turret Swage Mount 0.145" 1/8 0.076 Brass Electro Solder M55155/13XH03 AA59126/13XH03
15R-576-4-05
15R-576-4-05
15R-576-4-05
0.446" Turret/Turret Swage Mount 0.165" 1/8 0.120 Phosphor Bronze Electro Solder M55155/13XB06 AA59126/13XB06
15-576-4-088
15-576-4-088
15-576-4-088
0.446" Turret/Turret Swage Mount 0.165" 1/8 0.120 Brass Bright Tin-Lead M55155/13XJ06 AA59126/13XJ06
15-576-4-095
15-576-4-095
15-576-4-095
0.446" Turret/Turret Swage Mount 0.165" 1/8 0.120 Brass Hot Solder Dip M55155/13XI06 AA59126/13XI06
15-501-3-095
15-501-3-095
15-501-3-095
0.299" Turret/Turret Swage Mount 0.113" 3/32 0.076 Brass Hot Solder Dip M55155/13XI02 AA59126/13XI02
15-502-4-088
15-502-4-088
15-502-4-088
0.413" TURRET/DOUBLE TURRET Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead M55155/14XJ03 AA59126/14XJ03
15-541-4-095
15-541-4-095
15-541-4-095
0.634" TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Brass Hot Solder Dip M55155/14XI06 AA59126/14XI06
15-502-2-05
15-502-2-05
15-502-2-05
0.350" TURRET/DOUBLE TURRET Swage Mount 0.082" 1/16 0.076 Brass Electro Solder M55155/14XH01 AA59126/14XH01
15-541-3-088
15-541-3-088
15-541-3-088
0.604" TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead M55155/14XJ05 AA59126/14XJ05
15-433-5-05
15-433-5-05
15-433-5-05
0.882" - Swage Mount 0.195" 1/8 0.189 Brass Electro Solder M55155/32XH09 AA59126/32XH09
