Military
Non-Insulated
Terminals

Filter
15R-211-4-05
15R-211-4-05
15R-211-4-05
0.671" - Swage Mount 0.171" 1/8 0.266 Phosphor Bronze Electro Solder M55155/30XB16 AA59166/30XB16
15-270-3-05
15-270-3-05
15-270-3-05
0.499" - Swage Mount 0.140" 3/32 0.116 Brass Electro Solder M55155/30XH11 AA59126/30XH11
15-209-3-05
15-209-3-05
15-209-3-05
0.358" - Swage Mount 0.140" 3/32 0.094 Brass Electro Solder M55155/30XH10 AA59126/30XH10
15R-211-8-095
15R-211-8-095
15R-211-8-095
0.796" - Swage Mount 0.296" 1/4 0.266 Phosphor Bronze Hot Solder Dip M55155/30XC22 AA59226/30XC22

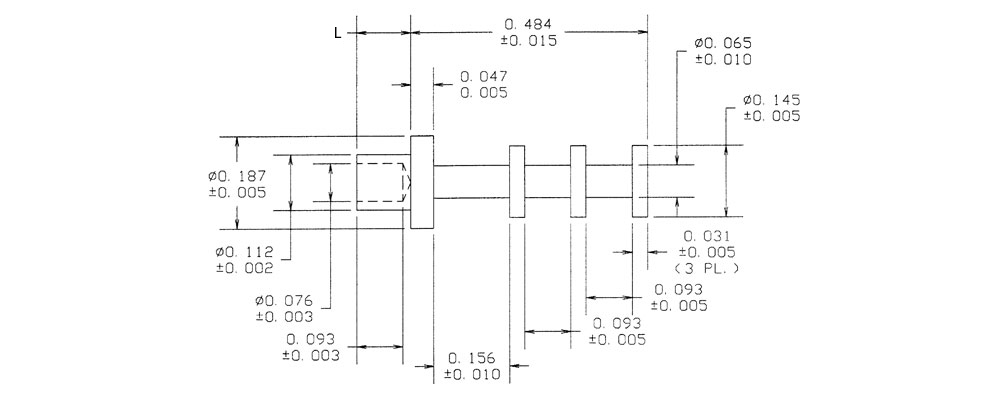

15-602-5-095
15-602-5-095
15-602-5-095
0.679" - Swage Mount 0.195" 5/32 0.116 Brass Hot Solder Dip M55155/31XI09 AA59126/31XI09
15-602-1-088
15-602-1-088
15-602-1-088
0.562" - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin-Lead M55155/31XJ02 AA59126/31XJ02
15-602-4-088
15-602-4-088
15-602-4-088
0.655" - Swage Mount 0.171" 1/8 0.116 Brass Bright Tin-Lead M55155/31XJ08 AA59126/31XJ08
15-601-2-088
15-601-2-088
15-601-2-088
0.394" - Swage Mount 0.093" 1/16 0.094 Brass Bright Tin-Lead M55155/31XJ03 AA59126/31XJ03
15-601-4-088
15-601-4-088
15-601-4-088
0.457" - Swage Mount 0.156" 1/8 0.094 Brass Bright Tin-Lead M55155/31XJ07 AA59126/31XJ07
15R-602-1-088
15R-602-1-088
15R-602-1-088
0.562" - Swage Mount 0.078" 1/32 0.116 Phosphor Bronze Bright Tin-Lead M55155/31XD02 AA59126/31XD02
15-602-4-095
15-602-4-095
15-602-4-095
0.655" - Swage Mount 0.171" 1/8 0.116 Brass Hot Solder Dip M55155/31XI08 AA59126/31XI08
15R-602-4-05
15R-602-4-05
15R-602-4-05
0.655" - Swage Mount 0.171" 1/8 0.116 Phosphor Bronze Electro Solder M55155/31XB08 AA59126/31XB08
15-601-3-05
15-601-3-05
15-601-3-05
0.426" - Swage Mount 0.125" 3/32 0.094 Brass Electro Solder M55155/31XH05 AA59126/31XH05
15-601-2-05
15-601-2-05
15-601-2-05
0.394" - Swage Mount 0.093" 1/16 0.094 Brass Electro Solder M55155/31XH03 AA59126/31XH03
15R-602-1-05
15R-602-1-05
15R-602-1-05
0.562" - Swage Mount 0.078" 1/32 0.116 Phosphor Bronze Electro Solder M55155/31XB02 AA59126/31XB02
15-602-8-05
15-602-8-05
15-602-8-05
0.780" - Swage Mount 0.296" 1/4 0.116 Brass Electro Solder M55155/31XH12 AA59126/31XH12
15R-602-6-05
15R-602-6-05
15R-602-6-05
0.718" - Swage Mount 0.234" 3/16 0.116 Phosphor Bronze Electro Solder M55155/31XB11 AA59126/31XB11
15-601-6-05
15-601-6-05
15-601-6-05
0.519" - Swage Mount 0.218" 3/16 0.094 Brass Electro Solder M55155/31XH10 AA59126/31XH10
15-602-5-088
15-602-5-088
15-602-5-088
0.679" - Swage Mount 0.195" 5/32 0.116 Brass Bright Tin-Lead M55155/31XJ09 AA59126/31XJ09
15-141-3-095
15-141-3-095
15-141-3-095
0.209" - Swage Mount 0.115" 3/32 0.067 Brass Hot Solder Dip M55155/11XI06 AA59126/11XI06

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
