Commercial
Non-Insulated
Terminals

Filter
10-506-2-04
10-506-2-04
10-506-2-04
0.375" - Turret/Turret Swage Mount 0.094" 1/16 0.120 Brass Electro-Tin YES
10-576-2-035
10-576-2-035
10-576-2-035
0.386" - Turret/Turret Swage Mount 0.105" 1/16 0.120 Brass Gold YES
10-501-8-095
10-501-8-095
10-501-8-095
0.456" - Turret/Turret Swage Mount 0.270" 1/4 0.076 Brass Hot Solder Dip NO
10-211-8-095
10-211-8-095
10-211-8-095
0.797" - - Swage Mount 0.297" 1/4 0.266 Brass Hot Solder Dip NO
10-501-1-095
10-501-1-095
10-501-1-095
0.237" - Turret/Turret Swage Mount 0.051" 1/32 0.076 Brass Hot Solder Dip NO
10-108-3-095
10-108-3-095
10-108-3-095
0.208" - - Swage Mount 0.115" 3/32 0.067 Brass Hot Solder Dip NO

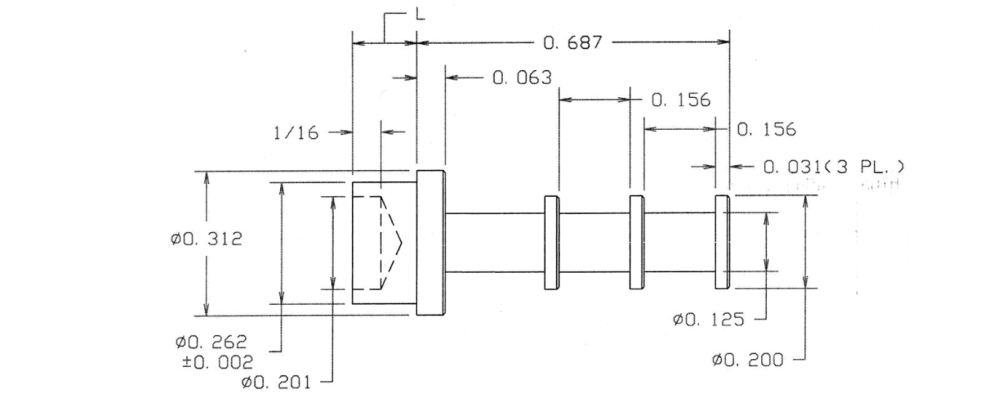

10-604-8-095
10-604-8-095
10-604-8-095
0.984" - - Swage Mount 0.297" 1/4 0.266 Brass Hot Solder Dip NO
10-560-3-095
10-560-3-095
10-560-3-095
0.682" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Brass Hot Solder Dip NO
10-560-2-095
10-560-2-095
10-560-2-095
0.652" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Brass Hot Solder Dip NO
10-556-1-095
10-556-1-095
10-556-1-095
0.356" - Turret/Turret Swage Mount 0.075" 1/32 0.116 Brass Hot Solder Dip NO
10-806-8-05
10-806-8-05
10-806-8-05
0.724" - - Swage Mount 0.297" 1/4 0.094 Brass Electro Solder NO
10-211-6-095
10-211-6-095
10-211-6-095
0.734" - - Swage Mount 0.234" 3/16 0.266 Brass Hot Solder Dip NO
10-501-4-095
10-501-4-095
10-501-4-095
0.331" - Turret/Turret Swage Mount 0.145" 1/8 0.076 Brass Hot Solder Dip NO
10-544-2-095
10-544-2-095
10-544-2-095
0.335" - Turret/Turret Swage Mount 0.094" 1/16 0.094 Brass Hot Solder Dip NO
09-0150-4-095
09-0150-4-095
09-0150-4-095
0.217" - - Swage Mount 0.147" 1/8 0.037 Brass Hot Solder Dip NO
10-512-2-095
10-512-2-095
10-512-2-095
0.476" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.129 Brass Hot Solder Dip NO
09-0353-2-095
09-0353-2-095
09-0353-2-095
0.375" - - Swage Mount 0.085" 1/16 0.067 Brass Hot Solder Dip NO
10-509-4-095
10-509-4-095
10-509-4-095
0.813" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Brass Hot Solder Dip NO
10-433-4-03
10-433-4-03
10-433-4-03
0.860" - - Swage Mount 0.172" 1/8 0.182 Brass Gold YES
10-714-2-03
10-714-2-03
10-714-2-03
0.667" - DOUBLE TURRET/THREAD Swage Mount 0.105" 1/16 0.204 Brass Gold YES
