Commercial
Non-Insulated
Terminals

Filter
09-7135-2-035
09-7135-2-035
09-7135-2-035
0.483" 0.040 - RIVET MOUNT 0.087" 1/16 0.044 Brass Gold YES

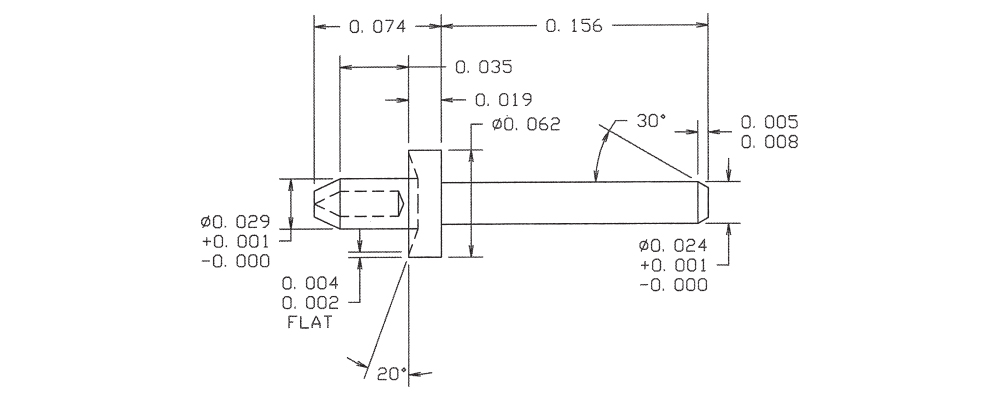

09-7162-1-088
09-7162-1-088
09-7162-1-088
0.230" 0.024 (+0.001/-0.000) - RIVET MOUNT 0.035" 1/100 0.032 Brass Bright Tin-Lead NO
09-7196-2-04
09-7196-2-04
09-7196-2-04
0.281" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Electro-Tin YES
09-8043-2-01
09-8043-2-01
09-8043-2-01
0.772" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES
09-8075-2-04
09-8075-2-04
09-8075-2-04
0.282" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES
09-8136-2-01
09-8136-2-01
09-8136-2-01
0.447" 0.040 TURRET/PIN Swage Mount 0.093" 1/16 0.125 Brass Silver YES
09-8169-1-044
09-8169-1-044
09-8169-1-044
0.211" 0.031 - Swage Mount 0.055" 1/32 0.0465 Brass Bright Tin YES
09-8251-4-05
09-8251-4-05
09-8251-4-05
0.249" - - Swage Mount 0.145" 1/8 0.076 Brass Electro Solder NO
09-8462-1-01
09-8462-1-01
09-8462-1-01
0.201" 0.040 - Swage Mount 0.061" 1/32 0.0465 Brass Silver YES

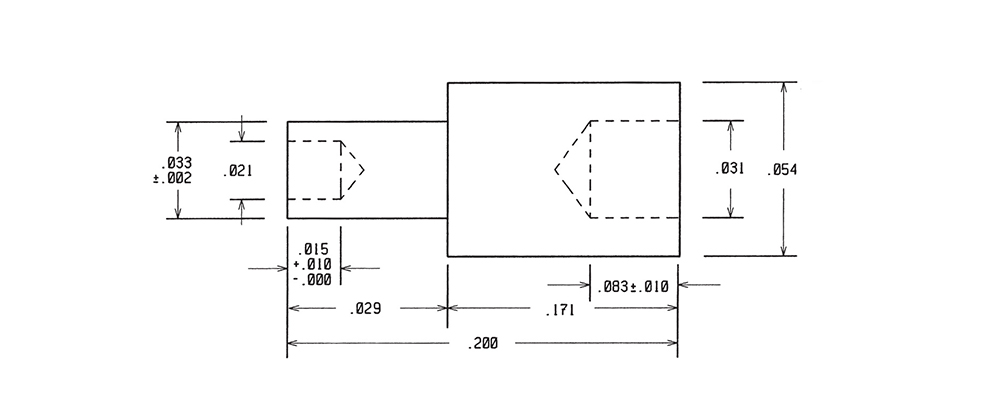

09-8653-11-01
09-8653-11-01
09-8653-11-01
0.200" - - Swage Mount 0.029" 1/64 0.037 Brass Silver YES
09-8765-5-044
09-8765-5-044
09-8765-5-044
0.340" 0.022 (+0.000/-0.002) - Solder 0.180" 1/64 TO 5/32 0.024 Brass Bright Tin YES
09-8847-1-05
09-8847-1-05
09-8847-1-05
0.535" (0.030)/(0.040) - - - - - Brass Electro Solder NO
10-102-3-088
10-102-3-088
10-102-3-088
0.328" - - Swage Mount 0.141" 3/32 0.082 Brass Bright Tin-Lead NO
10-109-1-035
10-109-1-035
10-109-1-035
0.221" - - Swage Mount 0.062" 1/32 0.094 Brass Gold YES

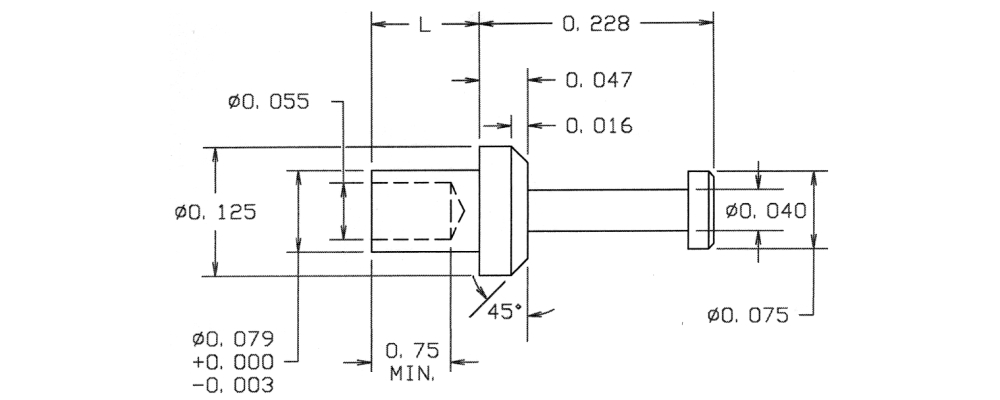

10-119-2-088
10-119-2-088
10-119-2-088
0.333" - - Swage Mount 0.105" 1/16 0.082 Brass Bright Tin-Lead NO
10-138-4-01
10-138-4-01
10-138-4-01
0.406" - - Swage Mount 0.156" 1/8 0.067 Brass Silver YES
10-209-2-01
10-209-2-01
10-209-2-01
0.328" - - Swage Mount 0.109" 1/16 0.094 Brass Silver YES

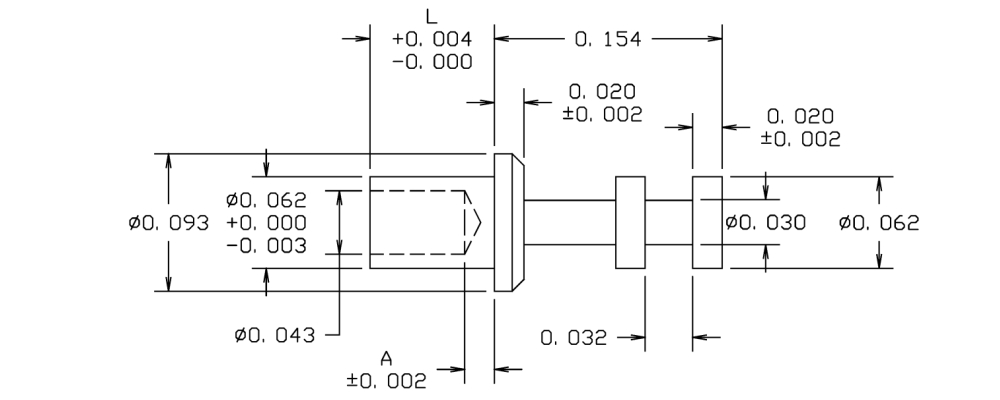

10-215-6-044
10-215-6-044
10-215-6-044
0.363" - - Swage Mount 0.209" 3/16 0.063 Brass Bright Tin YES

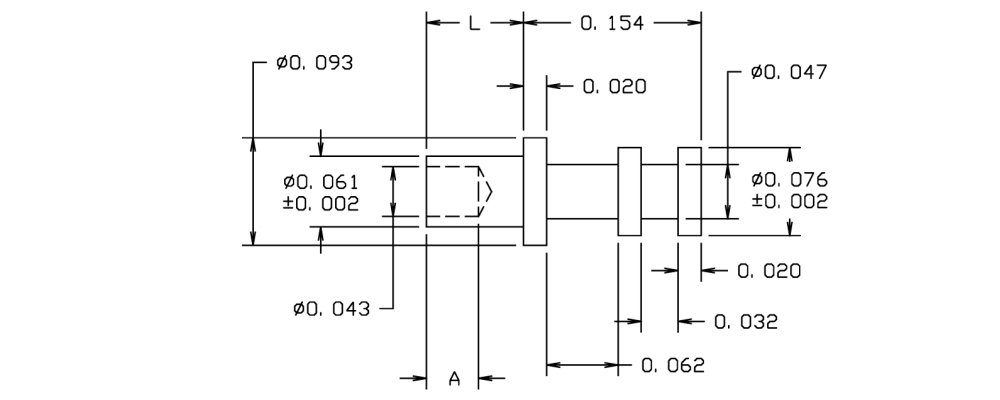

10-225-5-088
10-225-5-088
10-225-5-088
0.332" - - Swage Mount 0.178" 5/32 0.067 Brass Bright Tin-Lead NO
10-240-3-035
10-240-3-035
10-240-3-035
0.499" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
