Commercial
Non-Insulated
Terminals

Filter
09-8075-2-035
09-8075-2-035
09-8075-2-035
0.282" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
09-8136-1-088
09-8136-1-088
09-8136-1-088
0.416" 0.040 TURRET/PIN Swage Mount 0.062" 1/32 0.125 Brass Bright Tin-Lead NO
09-8169-1-04
09-8169-1-04
09-8169-1-04
0.211" 0.031 - Swage Mount 0.055" 1/32 0.0465 Brass Electro-Tin YES

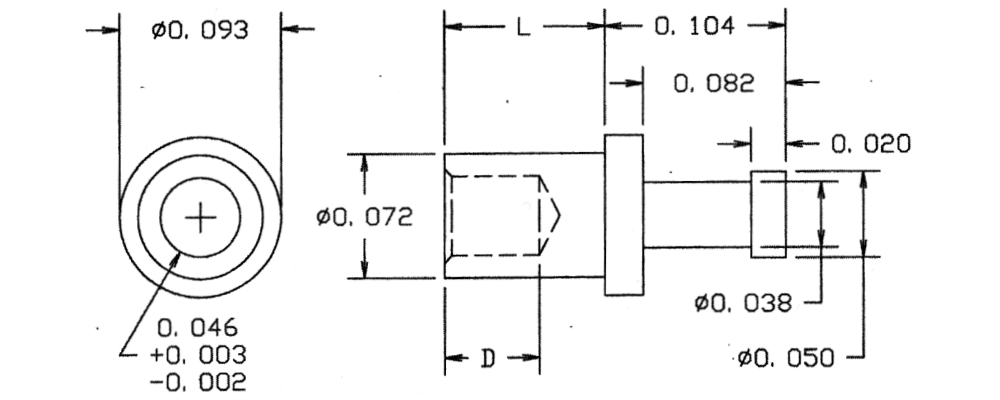

09-8251-4-044
09-8251-4-044
09-8251-4-044
0.249" - - Swage Mount 0.145" 1/8 0.076 Brass Bright Tin YES
09-8423-3-095
09-8423-3-095
09-8423-3-095
0.240" 0.025 - Swage Mount 0.115" 3/32 0.036 Brass Hot Solder Dip NO
09-8652-3-095
09-8652-3-095
09-8652-3-095
0.229" - - Swage Mount 0.125" 3/32 0.076 LEADED Red Brass Hot Solder Dip NO
09-8765-5-04
09-8765-5-04
09-8765-5-04
0.340" 0.022 (+0.000/-0.002) - Solder 0.180" 1/64 TO 5/32 0.024 Brass Electro-Tin YES

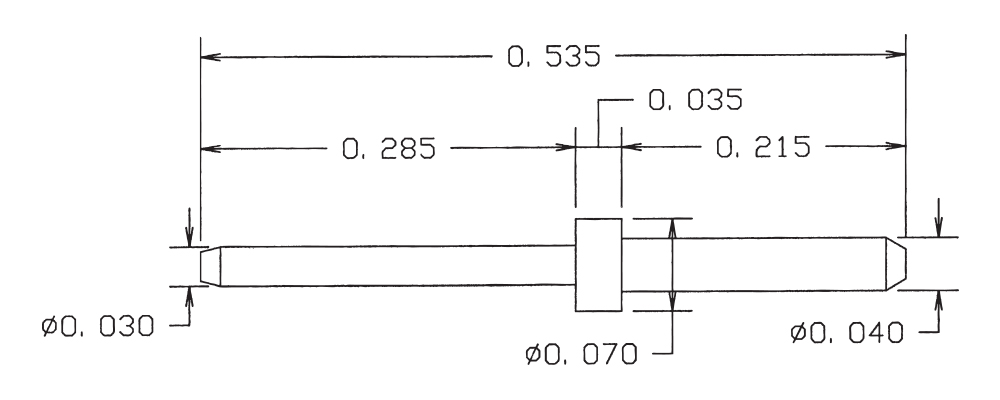

09-8847-1-044
09-8847-1-044
09-8847-1-044
0.535" (0.030)/(0.040) - - - - - Brass Bright Tin YES
10-102-3-05
10-102-3-05
10-102-3-05
0.328" - - Swage Mount 0.141" 3/32 0.082 Brass Electro Solder NO
10-109-1-03
10-109-1-03
10-109-1-03
0.221" - - Swage Mount 0.062" 1/32 0.094 Brass Gold YES
10-119-2-05
10-119-2-05
10-119-2-05
0.333" - - Swage Mount 0.105" 1/16 0.082 Brass Electro Solder NO
10-138-3-095
10-138-3-095
10-138-3-095
0.375" - - Swage Mount 0.125" 3/32 0.067 Brass Hot Solder Dip NO
10-209-1-095
10-209-1-095
10-209-1-095
0.297" - - Swage Mount 0.078" 1/32 0.094 Brass Hot Solder Dip NO

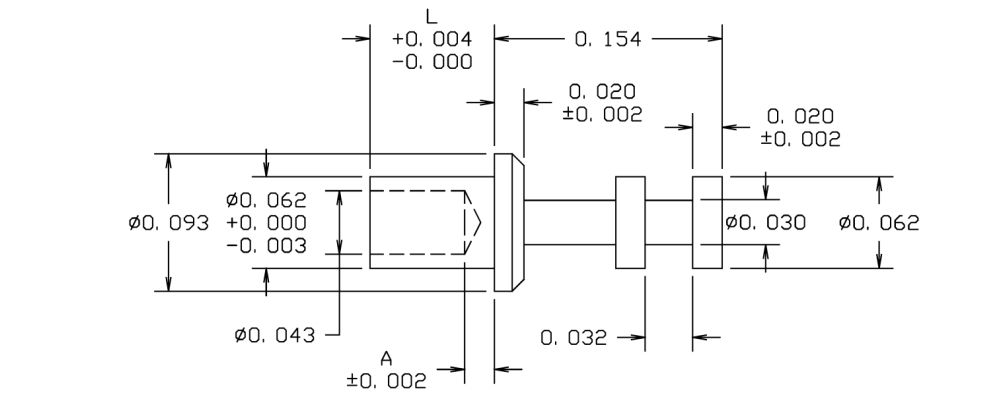

10-215-6-04
10-215-6-04
10-215-6-04
0.363" - - Swage Mount 0.209" 3/16 0.063 Brass Electro-Tin YES
10-225-5-05
10-225-5-05
10-225-5-05
0.332" - - Swage Mount 0.178" 5/32 0.067 Brass Electro Solder NO

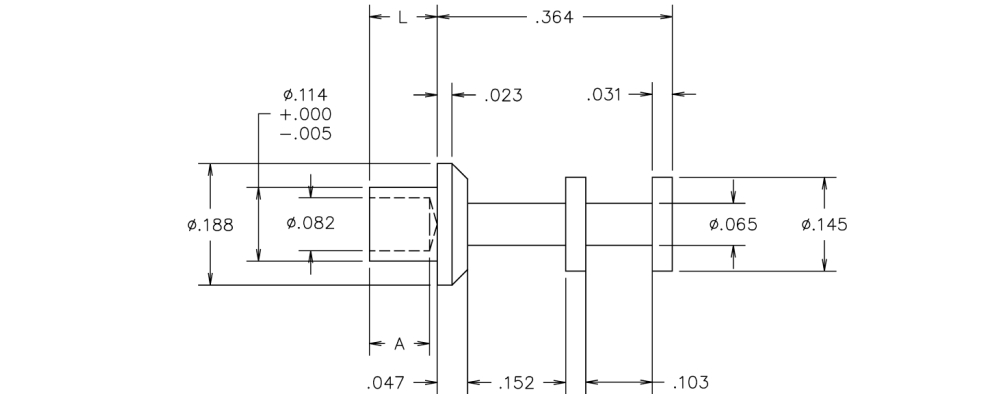

10-240-3-03
10-240-3-03
10-240-3-03
0.499" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-301-3-044
10-301-3-044
10-301-3-044
0.312" - - Swage Mount 0.125" 3/32 0.076 Brass Bright Tin YES
10-310-1-044
10-310-1-044
10-310-1-044
0.278" - - Swage Mount 0.075" 1/32 0.116 Brass Bright Tin YES
10-318-4-03
10-318-4-03
10-318-4-03
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES
10-336-3-05
10-336-3-05
10-336-3-05
0.484" - - Swage Mount 0.156" 1/8 0.125 Brass Electro Solder NO
