Commercial
Non-Insulated
Terminals

Filter
10-209-2-03
10-209-2-03
10-209-2-03
0.328" - - Swage Mount 0.109" 1/16 0.094 Brass Gold YES
10-215-6-05
10-215-6-05
10-215-6-05
0.363" - - Swage Mount 0.209" 3/16 0.063 Brass Electro Solder NO
10-225-5-095
10-225-5-095
10-225-5-095
0.332" - - Swage Mount 0.178" 5/32 0.067 Brass Hot Solder Dip NO
10-240-3-04
10-240-3-04
10-240-3-04
0.499" - - Swage Mount 0.135" 3/32 0.116 Brass Electro-Tin YES

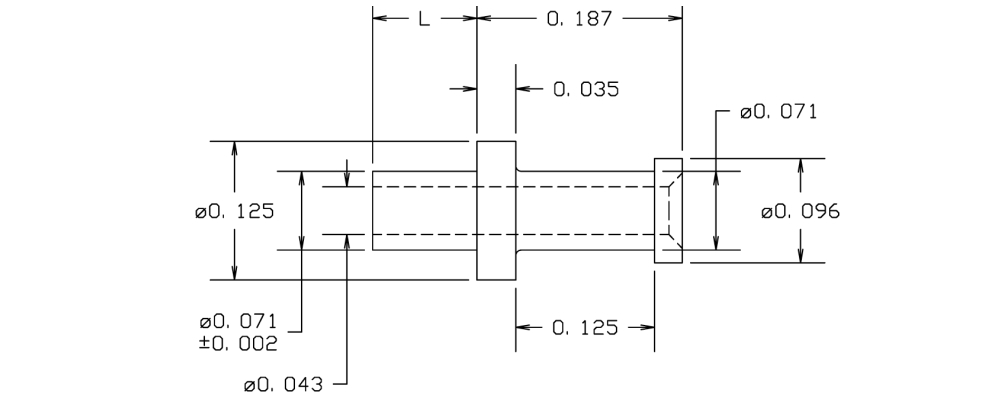

10-301-3-088
10-301-3-088
10-301-3-088
0.312" - - Swage Mount 0.125" 3/32 0.076 Brass Bright Tin-Lead NO
10-310-1-088
10-310-1-088
10-310-1-088
0.278" - - Swage Mount 0.075" 1/32 0.116 Brass Bright Tin-Lead NO
10-318-4-04
10-318-4-04
10-318-4-04
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES
10-337-2-01
10-337-2-01
10-337-2-01
0.531" - - Swage Mount 0.109" 1/16 0.125 Brass Silver YES
10-411-4-044
10-411-4-044
10-411-4-044
0.500" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin YES
10-422-3-05
10-422-3-05
10-422-3-05
0.447" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO
10-441-3-05
10-441-3-05
10-441-3-05
0.479" - - Swage Mount 0.135" 3/32 0.1405 Brass Electro Solder NO

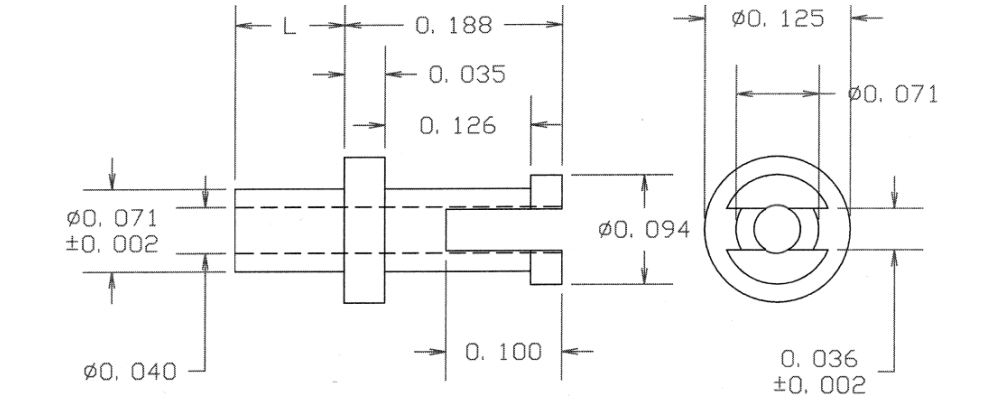

10-458-1-035
10-458-1-035
10-458-1-035
0.250" - - Swage Mount 0.062" 1/32 0.076 Brass Gold YES
10-468-1-05
10-468-1-05
10-468-1-05
0.314" - - Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO
10-501-3-01
10-501-3-01
10-501-3-01
0.299" - Turret/Turret Swage Mount 0.113" 3/32 0.076 Brass Silver YES

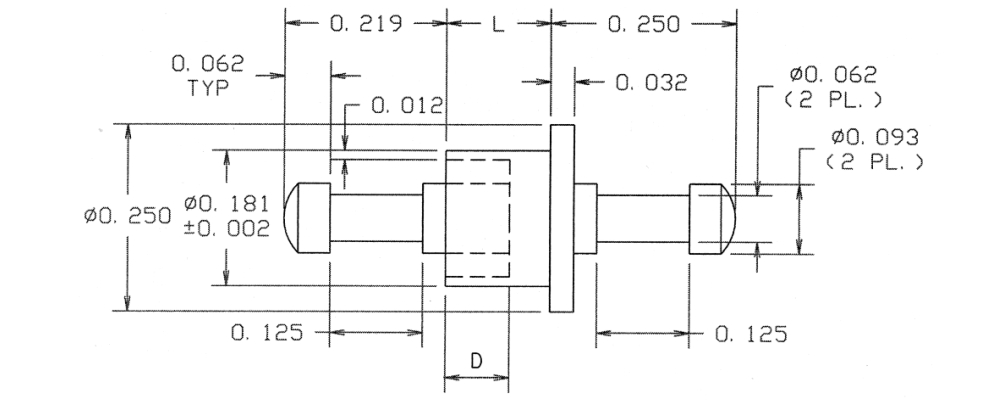

10-507-3-01
10-507-3-01
10-507-3-01
0.610" - Turret/Turret Swage Mount 0.141" 3/32 0.185 Brass Silver YES
10-513-2-01
10-513-2-01
10-513-2-01
0.424" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.129 Brass Silver YES
10-522-4-01
10-522-4-01
10-522-4-01
0.634" - Turret/Turret Swage Mount 0.165" 1/8 0.206 Brass Silver YES
10-542-3-01
10-542-3-01
10-542-3-01
0.488" - TURRET/DOUBLE TURRET Swage Mount 0.125" 3/32 0.094 Brass Silver YES
10-559-1-01
10-559-1-01
10-559-1-01
0.348" - TURRET/DOUBLE TURRET Swage Mount 0.053" 1/32 0.076 Brass Silver YES
10-604-3-044
10-604-3-044
10-604-3-044
0.828" - - Swage Mount 0.141" 3/32 0.266 Brass Bright Tin YES
