Commercial
Non-Insulated
Terminals

Filter

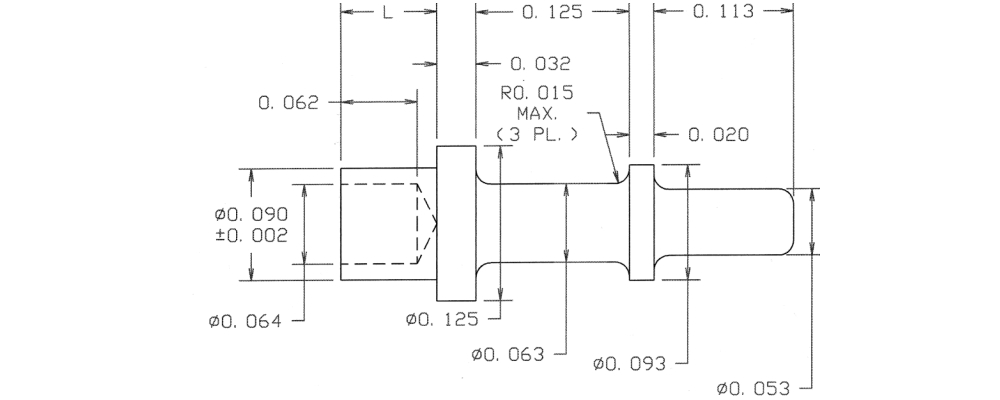

09-0268-1-01
09-0268-1-01
09-0268-1-01
0.368" - - Swage Mount 0.078" 1/32 0.094 Brass Silver YES
09-0314-2-05
09-0314-2-05
09-0314-2-05
0.253" - - Swage Mount 0.097" 1/16 0.047 Brass Electro Solder NO
09-0384-3-04
09-0384-3-04
09-0384-3-04
0.275" - - 2-56 - - 2-56 THREAD Brass Electro-Tin YES
09-7020-2A-088
09-7020-2A-088
09-7020-2A-088
0.233" - - Swage Mount 0.093" 1/16 0.059 Brass Bright Tin-Lead NO
09-7135-2-04
09-7135-2-04
09-7135-2-04
0.483" 0.040 - RIVET MOUNT 0.087" 1/16 0.044 Brass Electro-Tin YES
09-7163-1-01
09-7163-1-01
09-7163-1-01
0.183" 0.026 - RIVET MOUNT 0.051" 1/32 0.035 Brass Silver YES

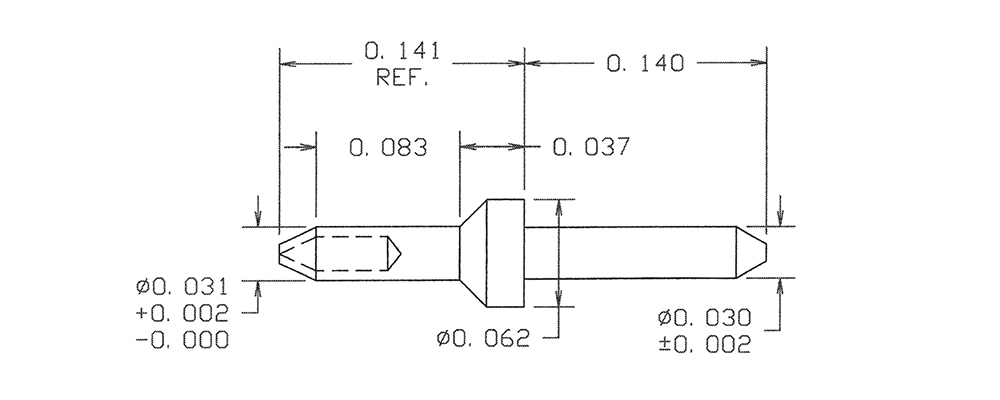

09-7196-2-044
09-7196-2-044
09-7196-2-044
0.281" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Bright Tin YES

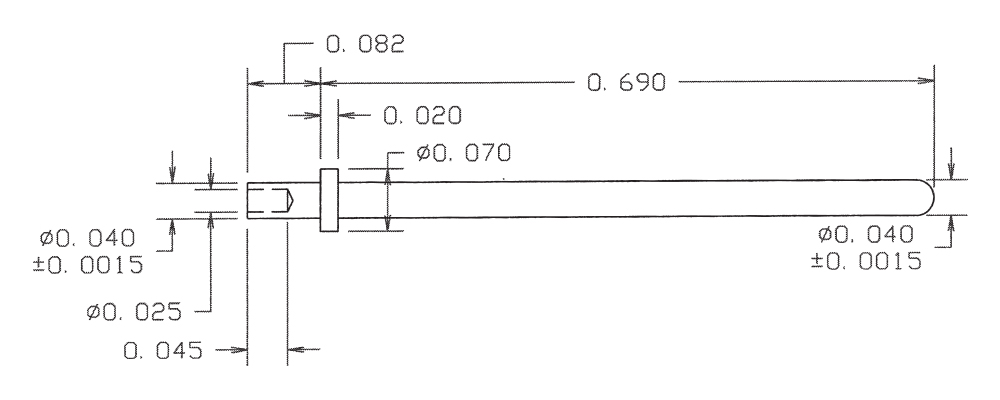

09-8043-2-03
09-8043-2-03
09-8043-2-03
0.772" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
09-8075-2-044
09-8075-2-044
09-8075-2-044
0.282" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES
09-8136-2-03
09-8136-2-03
09-8136-2-03
0.447" 0.040 TURRET/PIN Swage Mount 0.093" 1/16 0.125 Brass Gold YES

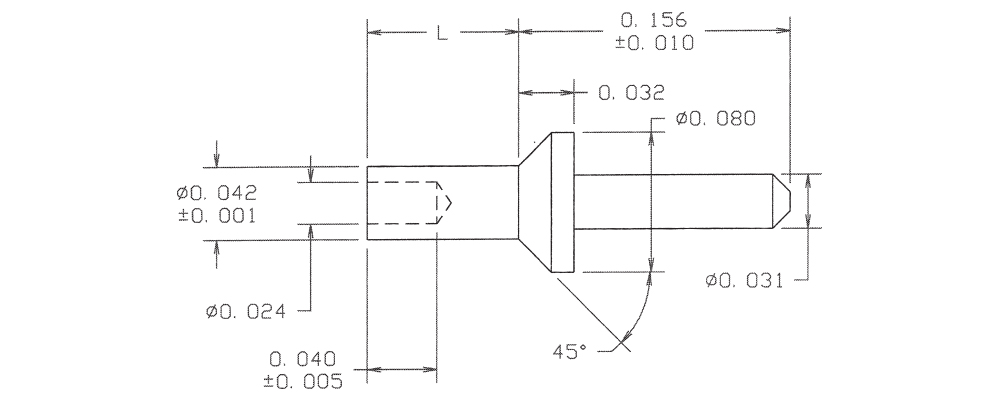

09-8169-1-05
09-8169-1-05
09-8169-1-05
0.211" 0.031 - Swage Mount 0.055" 1/32 0.0465 Brass Electro Solder NO
09-8251-4-088
09-8251-4-088
09-8251-4-088
0.249" - - Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead NO

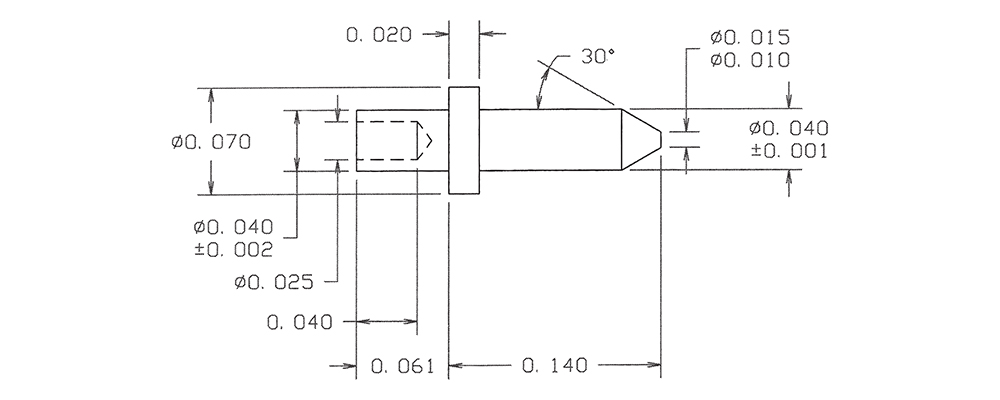

09-8462-1-03
09-8462-1-03
09-8462-1-03
0.201" 0.040 - Swage Mount 0.061" 1/32 0.0465 Brass Gold YES
09-8653-11-03
09-8653-11-03
09-8653-11-03
0.200" - - Swage Mount 0.029" 1/64 0.037 Brass Gold YES
09-8765-5-05
09-8765-5-05
09-8765-5-05
0.340" 0.022 (+0.000/-0.002) - Solder 0.180" 1/64 TO 5/32 0.024 Brass Electro Solder NO
09-8847-1-088
09-8847-1-088
09-8847-1-088
0.535" (0.030)/(0.040) - - - - - Brass Bright Tin-Lead NO
10-102-3-095
10-102-3-095
10-102-3-095
0.328" - - Swage Mount 0.141" 3/32 0.082 Brass Hot Solder Dip NO
10-109-1-04
10-109-1-04
10-109-1-04
0.221" - - Swage Mount 0.062" 1/32 0.094 Brass Electro-Tin YES
10-119-2-095
10-119-2-095
10-119-2-095
0.333" - - Swage Mount 0.105" 1/16 0.082 Brass Hot Solder Dip NO
10-138-4-03
10-138-4-03
10-138-4-03
0.406" - - Swage Mount 0.156" 1/8 0.067 Brass Gold YES
