Commercial
Non-Insulated
Terminals

Filter
09-7133-2-088
09-7133-2-088
09-7133-2-088
1.013" 0.0405 - RIVET MOUNT 0.087" 1/16 0.044 Brass Bright Tin-Lead NO
09-7161-1-04
09-7161-1-04
09-7161-1-04
0.252" 0.040 - RIVET MOUNT 0.064" 1/32 0.0625 Brass Electro-Tin YES
09-7195-2-01
09-7195-2-01
09-7195-2-01
0.433" 0.040 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Silver YES

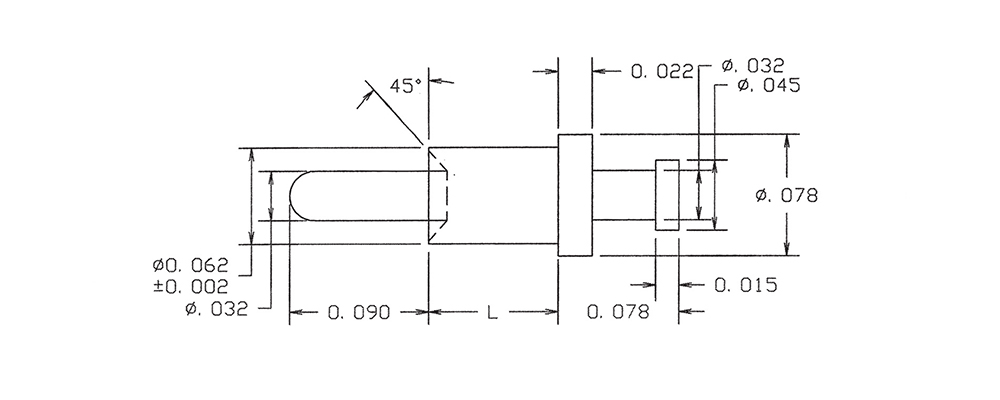

09-8041-4-044
09-8041-4-044
09-8041-4-044
0.315" 0.032 TURRET/PC PIN Swage Mount 0.147" 1/8 0.067 Brass Bright Tin YES
09-8075-1-01
09-8075-1-01
09-8075-1-01
0.251" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

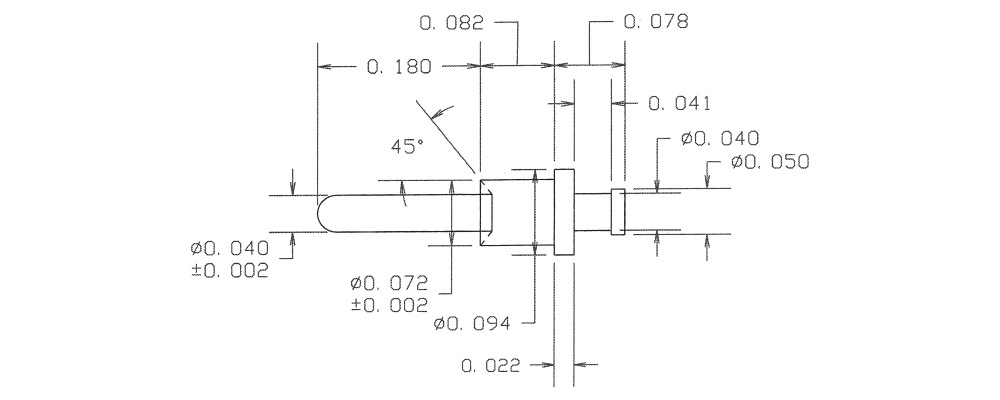

09-8134-2-044
09-8134-2-044
09-8134-2-044
0.340" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES
09-8168-3-03
09-8168-3-03
09-8168-3-03
0.690" 0.090 - Swage Mount 0.135" 3/32 0.094 Brass Gold YES
09-8251-3-04
09-8251-3-04
09-8251-3-04
0.229" - - Swage Mount 0.125" 3/32 0.076 Brass Electro-Tin YES

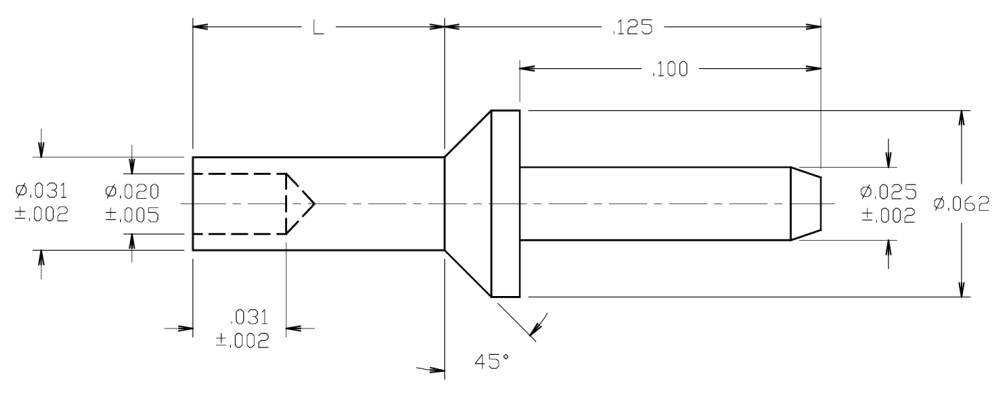

09-8423-2-088
09-8423-2-088
09-8423-2-088
0.207" 0.025 - Swage Mount 0.082" 1/16 0.036 Brass Bright Tin-Lead NO

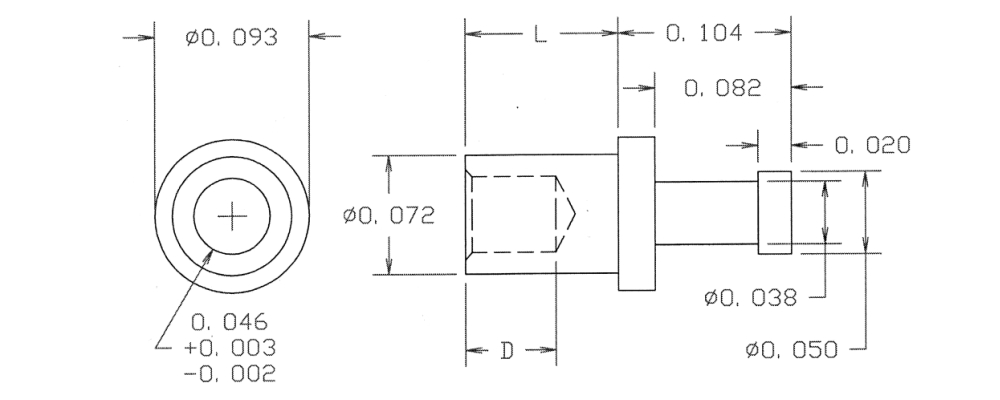

09-8652-2-088
09-8652-2-088
09-8652-2-088
0.197" - - Swage Mount 0.093" 1/16 0.076 LEADED Red Brass Bright Tin-Lead NO
09-8764-1-03
09-8764-1-03
09-8764-1-03
0.370" 0.040 - - - - - Brass Gold YES
09-8843-1-035
09-8843-1-035
09-8843-1-035
0.335" 0.0305 - Swage Mount 0.051" 1/32 0.042 Brass Gold YES
10-102-2-044
10-102-2-044
10-102-2-044
0.296" - - Swage Mount 0.109" 1/16 0.082 Brass Bright Tin YES
10-108-4-01
10-108-4-01
10-108-4-01
0.240" - - Swage Mount 0.147" 1/8 0.067 Brass Silver YES

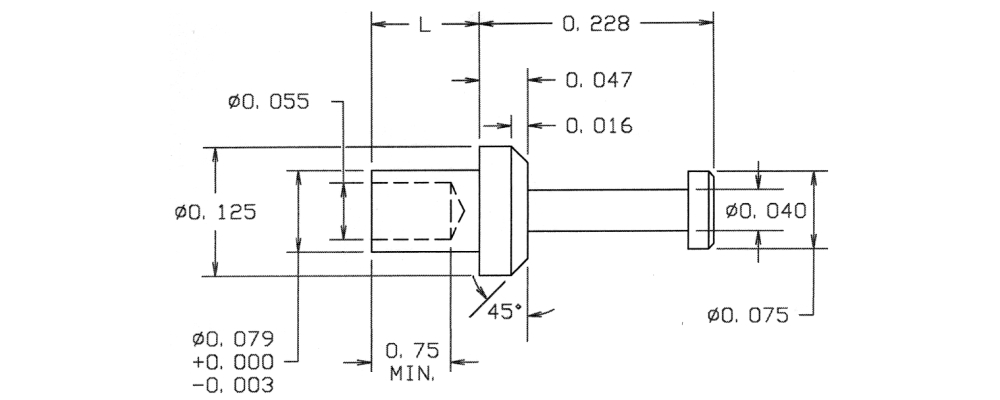

10-119-1-044
10-119-1-044
10-119-1-044
0.303" - - Swage Mount 0.075" 1/32 0.082 Brass Bright Tin YES
10-138-2-088
10-138-2-088
10-138-2-088
0.344" - - Swage Mount 0.094" 1/16 0.067 Brass Bright Tin-Lead NO
10-207-4-05
10-207-4-05
10-207-4-05
0.399" - - Swage Mount 0.165" 1/8 0.094 Brass Electro Solder NO
10-215-5-035
10-215-5-035
10-215-5-035
0.332" - - Swage Mount 0.178" 5/32 0.063 Brass Gold YES

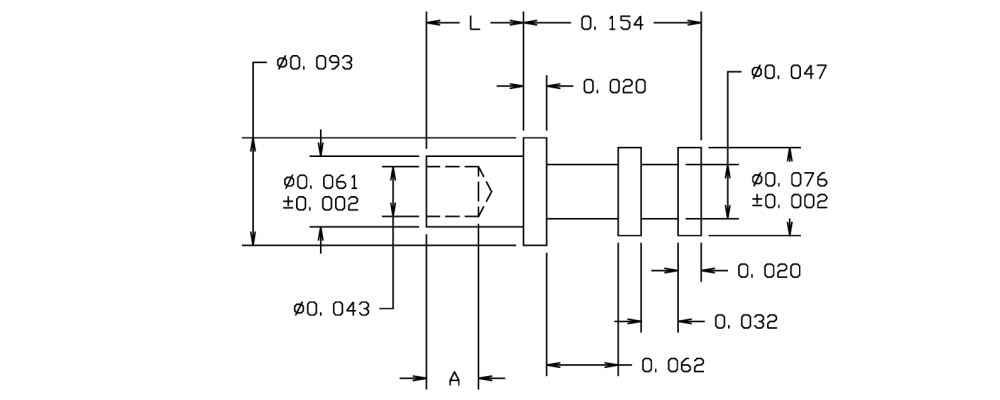

10-225-4-044
10-225-4-044
10-225-4-044
0.301" - - Swage Mount 0.147" 1/8 0.067 Brass Bright Tin YES
10-240-2-01
10-240-2-01
10-240-2-01
0.469" - - Swage Mount 0.105" 1/16 0.116 Brass Silver YES
