Commercial
Non-Insulated
Terminals

Filter

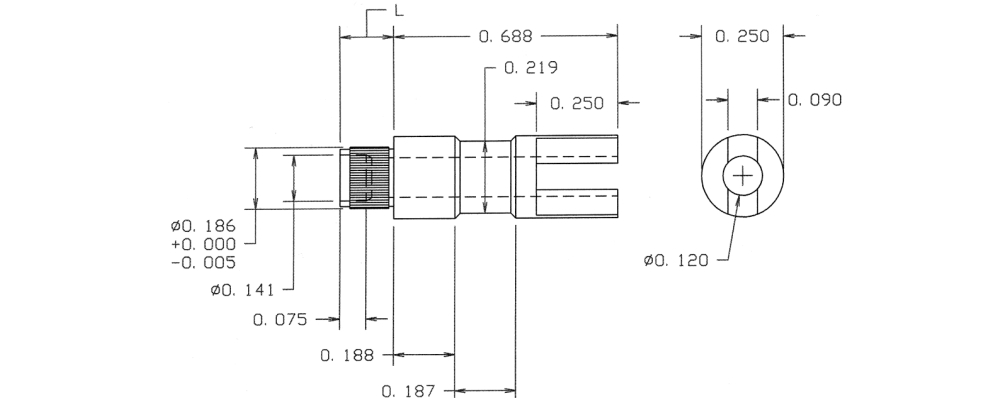

10-467-5-088
10-467-5-088
10-467-5-088
0.883" - - Swage Mount 0.195" 5/32 0.1875 Brass Bright Tin-Lead NO
10-501-1A-04
10-501-1A-04
10-501-1A-04
0.254" - Turret/Turret Swage Mount 0.068" 1/32 0.076 Brass Electro-Tin YES
10-507-1-04
10-507-1-04
10-507-1-04
0.547" - Turret/Turret Swage Mount 0.078" 1/32 0.185 Brass Electro-Tin YES
10-512-8-04
10-512-8-04
10-512-8-04
0.661" - Double Turret/Double Turret Swage Mount 0.290" 1/4 0.129 Brass Electro-Tin YES
10-522-2-04
10-522-2-04
10-522-2-04
0.574" - Turret/Turret Swage Mount 0.105" 1/16 0.206 Brass Electro-Tin YES
10-542-1-04
10-542-1-04
10-542-1-04
0.425" - TURRET/DOUBLE TURRET Swage Mount 0.062" 1/32 0.094 Brass Electro-Tin YES

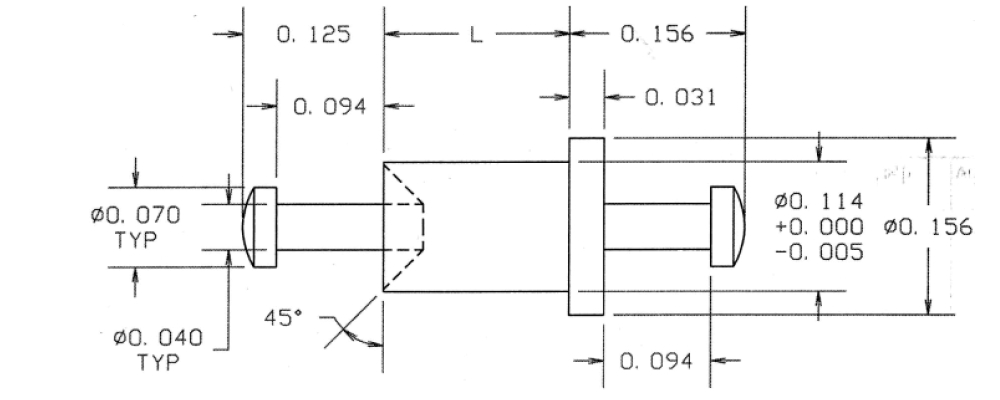

10-556-3-04
10-556-3-04
10-556-3-04
0.416" - Turret/Turret Swage Mount 0.135" 3/32 0.116 Brass Electro-Tin YES
10-603-4-088
10-603-4-088
10-603-4-088
0.586" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin-Lead NO
10-704-3-04
10-704-3-04
10-704-3-04
0.250" - - 4-40 - - 4-40 THREAD Brass Electro-Tin YES
10-8011-1-088
10-8011-1-088
10-8011-1-088
0.359" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin-Lead NO
10-802-2-044
10-802-2-044
10-802-2-044
0.302" 0.032 TURRET/PIN Swage Mount 0.084" 1/16 0.067 Brass Bright Tin YES
10-806-2-088
10-806-2-088
10-806-2-088
0.536" - - Swage Mount 0.109" 1/16 0.094 Brass Bright Tin-Lead NO
10-812-1-01
10-812-1-01
10-812-1-01
0.562" - Turret/Turret Swage Mount 0.062" 1/32 0.147 Brass Silver YES
10-821-2-088
10-821-2-088
10-821-2-088
0.438" 0.040 Pin/Pin Swage Mount 0.105" 1/16 0.094 Brass Bright Tin-Lead NO
10-832-1-035
10-832-1-035
10-832-1-035
0.313" 0.050 - Swage Mount 0.063" 1/32 0.064 Brass Gold YES

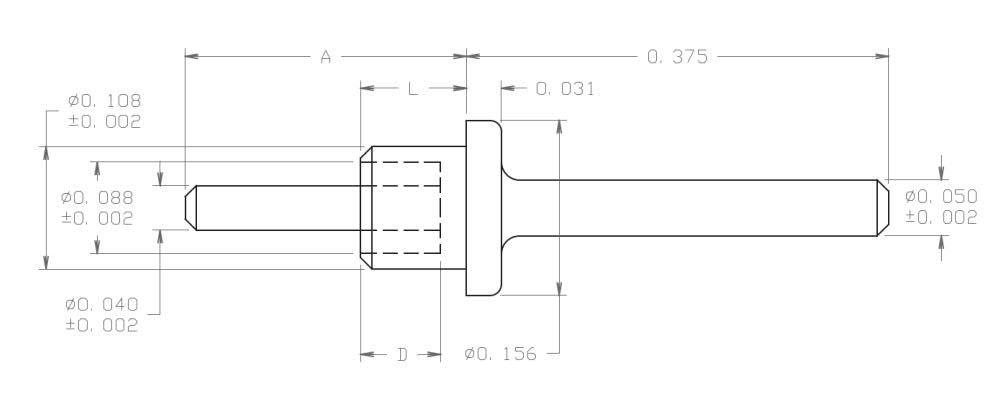

10-839-6-088
10-839-6-088
10-839-6-088
0.938" 0.050 Pin/Pin Swage Mount 0.219" 3/16 0.111 Brass Bright Tin-Lead NO
10-861-4-04
10-861-4-04
10-861-4-04
0.328" 0.040 - Swage Mount 0.156" 1/8 0.094 Brass Electro-Tin YES
10-882-1-03
10-882-1-03
10-882-1-03
0.535" - Turret/Turret Swage Mount 0.075" 1/32 0.147 Brass Gold YES
10-901-4-01
10-901-4-01
10-901-4-01
0.312" 0.060 - Swage Mount 0.156" 1/8 0.064 Brass Silver YES
10-916-2-088
10-916-2-088
10-916-2-088
0.402" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO
